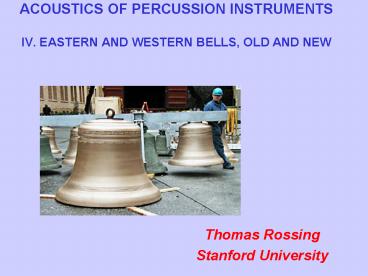

ACOUSTICS OF PERCUSSION INSTRUMENTS IV' EASTERN AND WESTERN BELLS, OLD AND NEW

1
ACOUSTICS OF PERCUSSION INSTRUMENTSIV. EASTERN
AND WESTERN BELLS, OLD AND NEW

• Thomas Rossing
• Stanford University

2
Two tone bell ancient China
Tzar Kolokol Russia
3
HOOVER TOWER STANFORD
MANY BELLS ARE FOUND IN CARILLONS AROUND THE
WORLD
48 BELLS, REFURBISHED IN 1999 BY EIJBOUTS FOUNDRY
IN HOLLAND
4
VIBRATIONAL MODES OF CIRCULAR PLATES
CLAMPED OR HINGED EDGE
FREE EDGE
5
FIRST FIVE VIBRATIONAL MODES OF A CHURCH BELL OR
CARILLON BELL
fn/fs
6
TUNED CHURCH BELL OR CARILLON BELL
7
MOTION OF A BELL FOR INEXTENSIONAL MODES OF SMALL
m
m0 represents twisting modes m1 represents
swinging modes As m increases, radial
components become large compared with tangential
components
8
PERIODIC TABLE OF BELL MODES
9
Bells
10
MOTION OF A BELL FOR THE m 3, RING AXIAL MODE
11
MODAL SHAPES IN A CHURCH BELL PREDICTED BY
FINITE ELEMENT CALCULATION FOR THE INEXTENSIONAL
MODES
12
MOTION OF A BELL FOR EXTENSIONAL MODES OF SMALL m
Extensional modes involve stretching and occur
at high frequencies
13
TUNING A BELL ON A VERTICAL LATHE
14
TUNING AND TEMPERAMENT IN CHURCH BELLS OR
CARILLON BELLS
15
STRIKE NOTE OF A BELL
? A SUBJECTIVE NOTE ? DETERMINED BY THREE MODES
THAT ARE NEARLY HARMONIC IN FREQUENCY
16
(4,1)
INFLUENCE OF VARIOUS PARTIALS ON THE STRIKE NOTE
(6,1)
TIERCE
PRIME
(5,1)
QUINT
HUM
17
SCALING OF BELLS
fk/r mcr3 C/k remains more of less constant
18
(No Transcript)
19
MAJOR THIRD BELLS
20
MAJOR AND MINOR THIRD BELLS
21
WORLD PEACE BELL
NEWPORT, KENTUCKY
22
PEACE BELLS
Hiroshima
Australian
Justice Bell Valley Forge
23
MORE PEACE BELLS
Okinawa Peace Bell
Korean
Liberty Bell
24
HANDBELLS

• HANDBELLS DATE BACK AT LEAST SEVERAL CENTURIES
  BC, ALTHOUGH TUNED HANDBELLS WERE DEVELOPED IN
  THE 18TH CENTURY
• THERE ARE OVER 50,000 HANDBELL CHOIRS IN THE
  UNITED STATES ALONE
• MOST HANDBELLS HAVE ONE OVERTONE TUNED TO 3 TIMES
  THE FREQUENCY OF THE FUNDAMENTAL

25
HOLOGRAPHIC INTERFEROMETRY
26
VIBRATIONAL MODES OF A HANDBELL
27
MODE FREQUENCIES IN TWO HANDBELLS
28
PERIODIC TABLE OF HANDBELL MODES
29
EXPERIMENTAL MODAL TESTING
30
(No Transcript)
31
SPECTRA OF G4 AND G5 HANDBELLS STRUCK WITH HARD
AND SOFT CLAPPERS
32
SOUND RADIATION FROM HANDBELLS
TOP MULTIPOLE RADIATION AT FREQUENCIES OF (2,0)
AND (3,0) MODES BOTTOM RADIATION AT TWICE THE
FREQUENCY OF THE (2,0) MODE DUE TO NET VOLUME
CHANGE
33
PRINCIPAL PARTIALS OF HANDBELL SOUND ALONG THE
AXIS AND AT RIGHT ANGLES TO THE AXIS
ALONG THE AXIS
RIGHT ANGLE
34
ANGULAR DEPENDENCE OF SOUND RADIATED FROM A C5
HANDBELL AT 1 m
35
HANDBELL SCALING
MALMARK, SCHULMERICH, WHITECHAPELL AND PETIT
FRITSEN
MALMARK HANDBELLS
36
G1 ALUMINUM BASS HANDBELL (Worlds largest
handbell)
37
MODES OF A SWISS COWBELL
38
ANCIENT CHINESE TWO-TONE BELLS
39
TWO-TONE BELLS OF ANCIENT CHINA
NIUZHONG
NAO
YONGZHONG
BO
40
ZENG HOU YIHUBEI PROVENCE, 433 BC
41
Chinese Bell Church Bell Handbell
42
EXAMINING BELLS AT THE SACKLERGALLERY
43
VIBRATIONAL MODES OF A MODERN CHINESE TWO-TONE
BELL
44
MODE FREQUENCIES OF A TWO-TONE BELL
45
ZENG HOU YI BELLS
INTERVAL BETWEEN A- AND B- TONES IN
ZENG HOU YI BELLS
46
HOW IS THE INTERVAL BETWEEN THE A AND B TONES
DETERMINED?
BY THE ECCENTRICITY? BY VARIATION IN WALL
WIDTH? OTHER??
47
DEPENDENCE OF B/A INTERVAL ON ECCENTRICITY
48
(No Transcript)
49
(No Transcript)
50
TEMPLE BELLS IN THE GREAT BELL TEMPLE,BEIJING
51
YONG LE BELL IN THE GREAT BELL TEMPLE,
BEIJING(45 tons, 5.5 meters in diameter)
52
TEMPLE BELLS OF KOREA, CHINA, JAPAN
53
KING SONGDOK (EMILLE) BELL KOREA(771 AD)
54
8th CENTURY TEMPLE BELL KOREAYONGJU SA, SUWON
55
OLDEST TEMPLE BELL IN JAPAN (575 AD)
56
MODERN TEMPLE BELLOSAKA
57
DOTAKU DATING FROM THE YAYOI CULTURE (250 BC TO
250 AD)
58
THANK YOU FOR YOUR ATTENTION
