Introduction to Physiology: The Cell and General Physiology

1

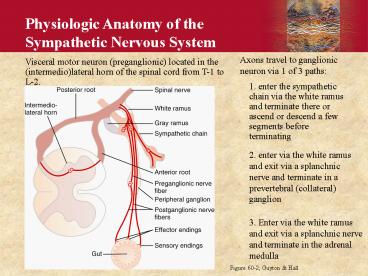

Physiologic Anatomy of the Sympathetic Nervous
System
Axons travel to ganglionic neuron via 1 of 3
paths
Visceral motor neuron (preganglionic) located in
the (intermedio)lateral horn of the spinal cord
from T-1 to L-2.
1. enter the sympathetic chain via the white
ramus and terminate there or ascend or descend a
few segments before terminating
2. enter via the white ramus and exit via a
splanchnic nerve and terminate in a prevertebral
(collateral) ganglion
3. Enter via the white ramus and exit via a
splanchnic nerve and terminate in the adrenal
medulla
Figure 60-2 Guyton Hall
2
Sympathetic Nervous System
Figure 60-1Guyton Hall
3
Sympathetic Organization
0
4
Sympathetic Chain
0
Figure 16.4a
5
Collateral Ganglia
0
6
Adrenal Gland
0
7
Sympathetic Distribution
0
8
Parasympathetic Nervous System
Figure 60-3 Guyton Hall
9
Parasympathetic Organization
0
10
Parasympathetic Distribution
0
11
Neurotransmitters
0
12
Receptors of the Autonomic Nervous System
adrenergic receptors
sympathetic
preganglionic neuron
postganglionic neuron
parasympathetic
nicotinic receptors
muscarinic receptors
13
Pharmacology of the Sympathetic Nervous System

• adrenergic or sympathomimetic drugs act like
  norepi and epi
• these drugs have an effect which is much more
  prolonged than that of either norepi or epi
• isoproterenol stimulates both beta1 and beta2
  receptors (e.g. increases heart rate)
• albuterol stimulates only beta2 receptors (e.g.
  bronchodilation)
• some drugs act indirectly by increasing the
  release of norepi from its storage terminals
• amphetamine

14
Pharmacology of the Sympathetic Nervous System

• Example - drugs that block the effect of norepi
  and epi
• beta blockers
• beta1 - metoprolol

15
Pharmacology of the Parasympathetic Nervous System

• parasympathomimetic drugs
• nicotine
• activates nicotinic receptors
• cholinesterase inhibitors
• neostigmine
• potentiates the effect of acetylcholine
• antimuscarinic drugs
• atropine
• blocks the effect of acetylcholine on effector
  cells
