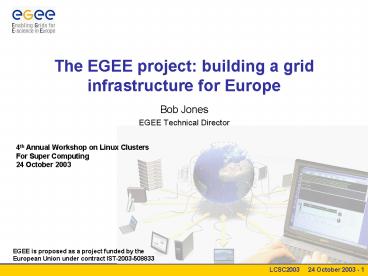

The EGEE project: building a grid infrastructure for Europe

1
The EGEE project building a grid infrastructure
for Europe

• Bob Jones
• EGEE Technical Director

4th Annual Workshop on Linux Clusters For Super
Computing 24 October 2003
EGEE is proposed as a project funded by
the European Union under contract IST-2003-508833
2
EGEE Goals

• Create a wide European Grid production quality
  infrastructure on top of present and future EU RN
  infrastructure
• Provide distributed European research communities
  with round-the-clock access to major computing
  resources, independent of geographic location
• Change of emphasis from grid development to grid
  deployment
• Support many application domains with one
  large-scale infrastructure that will attract new
  resources over time
• Provide training and support for end-users

3
EGEE Strategy

• Leverage current and planned national and
  regional Grid programmes, building on
• the results of existing projects such as DataGrid
  and others
• the EU Research Network Geant and work closely
  with relevant industrial Grid developers and
  NRENs
• Support Grid computing needs common to the
  different communities
• integrate the computing infrastructures and agree
  on common access policies
• Exploit International connections (US and AP)
• Provide interoperability with other major Grid
  initiatives such as the US NSF Cyberinfrastructure
  , establishing a worldwide Grid infrastructure

4
EGEE Partners

• Leverage national resources in a more effective
  way for broader European benefit
• 70 leading institutions in 27 countries organised
  into regional federations

5
EGEE Activities
24 Joint Research
28 Networking
JRA1 Middleware Engineering and
Integration JRA2 Quality Assurance JRA3
Security JRA4 Network Services Development
NA1 Management NA2 Dissemination and
Outreach NA3 User Training and Education NA4
Application Identification and Support NA5
Policy and International Cooperation
Emphasis in EGEE is on operating a
production grid and supporting the end-users
48 Services
SA1 Grid Operations, Support and Management SA2
Network Resource Provision
Starts 1st April 2004 for 2 years (1st phase)
with EU funding of 32M
6
EGEE Service Activity (I)
Create, operate, support and manage a production
quality infrastructure

• 1 Operations Management Centre OMC
• Coordinator for CICs and for ROCs
• Team to oversee operations problems resolved,
  performance targets, etc.
• Operations Advisory Group to advise on policy
  issues, etc.
• 5 Core Infrastructure Centres CIC
• Day-to-day operation management implement
  operational policies defined by OMC
• Monitor state, initiate corrective actions,
  eventual 24x7 operation of grid infrastructure
• Provide resource and usage accounting, security
  incident response coordination, ensure recovery
  procedures
• 11 Regional Operations Centres ROC
• Provide front-line support to users and resource
  centres
• Support new resource centres joining EGEE in the
  regions

7
EGEE Service Activity (II)

• Resource Centers

Month 1 10 RCs
Month 15 20 RCs
Region CPU nodes Disk (TB) CPU Nodes Month 15 Disk (TB) Month 15
CERN 900 140 1800 310
UK Ireland 100 25 2200 300
France 400 15 895 50
Italy 553 60.6 679 67.2
North 200 20 2000 50
South West 250 10 250 10
Germany Switzerland 100 2 400 67
South East 146 7 322 14
Central Europe 385 15 730 32
Russia 50 7 152 36
Totals 3084 302 8768 936
RCs are not funded via the project Expect to
attract many more RCs
8
The Northern Region ROC

• Joint operation between SARA (Netherlands) and
  Swedish Infrastructure for Computing (SNIC)
• Collaboration body formed in North European Grid
  Cluster (NEG)
• The SNIC part lead by KTH PDC (Parallelldatorcentr
  um)
• Operation
• Negotiate service level agreements (SLA) with
  committed resource centres (RC) in the Nordic
  countries and Estonia
• Deploy and support egee grid middleware -
  includes documentation and training
• Monitor and support 24/7 operation of Grid
  resources
• Ensure collaboration with other Grid initiatives
  in the region - Nordic Data Grid, Nordugrid,
  Swegrid, NOTUR, CSC,

Per Öster ltper_at_pdc.kth.se
9
The Northern Region ROC

• Organisation and tasks (in short)
• ROC manager
• Coordinate and lead activity
• Coordinate activity with the other 8 ROCs
• Interact with the CIC
• Deployment team
• Validate software releases
• Deploy software and aid the RCs in resolving
  implementation issues
• Aid support team in middleware support issues
• Support team
• Monitor Grid resources
• Support RCs in operation of Grid middleware
• Operate call centre for user and RC support

Per Öster ltper_at_pdc.kth.se
10
EGEE Service Activity (III)

• Network Provision
• Ensures EGEE access to network services provided
  by GEANT and the NRENs to link users, resources
  and operational management
• Tasks
• Definition of requirements
• Specification of services
• Definition of network access policies
• Monitoring of service level provision

GEANT is the High-speed pan-European backbone
linking National Research and Educational
Networks (NRENs)
11
EGEE Middleware Activity (I)

• Hardening and re-engineering of existing
  middleware functionality, leveraging the
  experience of partners
• Activity concentrated in few major centers
• Key services Resource Access
• Data Management (CERN)
• Information Collection and Accounting (UK)
• Resource Brokering (Italy)
• Quality Assurance (France)
• Grid Security (Northern Europe)
• Middleware Integration (CERN)
• Middleware Testing (CERN)

includes Nordugrid partners
12
EGEE Middleware Activity (II)

• Provide robust, supportable middleware components
• Select, re-engineer, integrate identified Grid
  Services, evolve towards Services Oriented
  Architecture and multiple platforms
• All software available to other projects via Open
  Source licence
• Selection of Middleware based on requirements of
• the applications (Bio HEP) and the Operations
• Support and evolve of the middleware components
• Evolve towards OGSI, define a re-engineer
  process, address multiplatform, multiple
  implementations and interoperability issues
• Define defect handling processes and
  responsibilities

13
Quality Assurance
14
EGEE and LCG (I)

• Strong links already established between EDG and
  LCG and this approach will continue in the scope
  of EGEE
• The core infrastructure of the LCG and EGEE grids
  will be operated as a single service, and will
  grow out of LCG service
• LCG includes US and Asia
• EGEE includes other sciences
• Substantial part of infrastructure common to both

• The ROCs provide local support for Resource
  Centres and users
• Similar to LCG primary sites
• Some ROCs and LCG primary sites will be merged

15
EGEE and LCG (II)

• LCG Deployment Manager will be the EGEE
  Operations Manager
• Production Middleware deployment in EGEE

16
EGEE Implementation Plans

• Initial service will be based on the LCG
  infrastructure (production service where most
  resources are allocated)
• WIll need a certification test-bed system
• For debugging and problem resolving of the
  production system
• Must deploy a development service
• Runs the candidate next software release for
  production
• Treated as an reliable facility (but with less
  support than the production service)

17
EGEE Networking Activity (I)

• Dissemination and outreach
• Lead by TERENA
• User training and induction
• Lead by Unv Edin. (NeSC)
• Application identification and support
• Two pilot application centers (for high energy
  physics and biomedical grids)
• One more generic component dealing with longer
  term recruitment and support of other communities
• Policy and International cooperation
• Establish Grid policy forum
• Guide work with international standards bodies
  (GGF etc.)
• Coordinate relations with other projects (EU and
  beyond)

map points indicate federations and are not
geographically precise
18
EGEE Networking Activity (II)

• User training and Induction
• Over 25 courses for more than 1000 people in the
  first 2 years
• Induction advanced user courses
• Application developer training and middleware
  retreat

19
EGEE Networking Activity (III)

• EGEE Scope ALL-Inclusive for academic
  applications
• Open to industrial and socio-economic world as
  well
• The major success criterion of EGEE how many
  satisfied users from how many different domains ?
• 5000 users (3000 after year 2) from at least 5
  disciplines
• 2 Pilot Application Domains Physics
  Bioinformatics

Application domains and timelines are for
illustration only
20
EGEE and Industry

• Industrial participation encouraged both as
  potential end-users and IT technology and service
  suppliers
• Normally through national and regional Grid EGEE
  federations
• EGEE will organise an Industry Forum to keep
  selected Industrial and Commercial interested
  parties in close contact
• Services developed in first phase of 2 years
  (2004-5) may be tendered to Industry in second
  phase (2006-7)

21
Summary

• EGEE represents the change from grid development
  to large-scale deployment build on the results of
  existing projects such as DataGrid, NorduGrid,
  LCG and others
• The goal is to support many application domains
  with one large-scale infrastructure that will
  attract new resources over time
• Training and support for end-users is an
  important activity of the project
• A path for providing a continuously available
  grid service is established (EDG, LCG, EGEE)
• Grid middleware will be re-engineered to produce
  a OGSI based implementation addressing the needs
  of the applications
• The project will start in April 2004 - first
  phase will last 2 years. Negotiations have been
  successfully completed with the European
  Commission and planning for the transition to
  EGEE is underway
