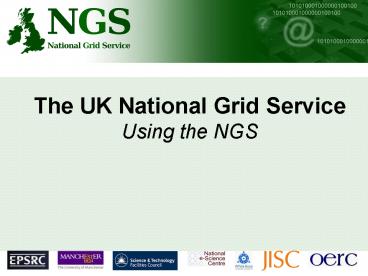

The UK National Grid Service Using the NGS

1
The UK National Grid ServiceUsing the NGS
2
Outline

• NGS Background
• Getting Certificates
• Acceptable usage policies
• Joining VOs
• What resources will be available to the users
  when they sign up
• Submitting jobs moving data etc.

3
The NGS

• A Production Quality Grid
• (Background)

4
A Brief History of Time

• 2001 - UK e-Science Grid
• GridPP and others start
• 2003 - Initial grid service ITT
• 4 independent clusters to investigate provision
  of a grid service
• April 2004 - NGS pre-production service
• EGEE, GridPP-2
• August 2004 GOSC proposed
• Coordinating NGS and providing central services
• September 2004 - NGS production service / GOSC
• April 2006 NGS/GOSC phase 1 review
• May 2006 - NGS phase-2 approved
• More integrated programme
• EGEE-2 started in April
• October 2006 NGS phase-2

5
The Mission of the NGS

• The Mission of the National Grid Service
• To provide coherent electronic access for UK
  researchers to all computational and data based
  resources and facilities required to carry out
  their research, independent of resource or
  researcher location

6
Key Themes

• Provide the users what they need with as low an
  additional barrier as possible.
• As if by magic give them access to much more.
• Content
• Services data, computation, ...
• NGS will only grow if the content grows
• Not the job of 1 person or organisation
• Job of everyone

7
NGS

• Is the largest National Grid Initiative outside
  US
• Is 1-2 years ahead of other NGIs
• Has the largest grid PKI infrastructure
• Best integration of Grid and HPC
• Is known worldwide
• Has real users !
• Knows what the next steps are ...

8
NGS Status

• Approx 500 registered users
• 11 Sites (Core/Partners/Affiliates)
• Predominantly focussed on compute and storage at
  present
• Limited data sets available

9
Using the NGS
10
Getting Certificates

• Starting point for getting certificates,
  including user documentation etc.
• http//www.grid-support.ac.uk/ca
• Interface of CA Service (for reference)
• https//ca.grid-support.ac.uk/

11
Access to NGS

• Evolving models
• Several agendas
• Encourage new users, support collaborative
  activities, enable research
• How do users get access
• Lightweight peer review (e-science certificate)
• Individual users -gt projects (we support VOs !!)
• What do users get
• Access to resources (that they are authorised to
  use or pay for)
• Access to core services
• free allocations on core nodes (and some
  partners)
• Time limited allocations
• No guarantees beyond each re-application - best
  efforts
• Opportunity to build a collaboration/case/support
• Many users news to the game, e.g. students

12
Acceptable Use Policies

• NGS currently has its Terms and Conditions of Use
  that all users have to accept
• http//www.ngs.ac.uk/NGS-tacu.html
• We are looking towards adopting the simple VO
  Policies of EGEE/LCG/GridPP/ (something common)
  for VOs that we host and support on our VOMS
  infrastructure.
• For support of external VOs, if we accept the
  VO, then the VO Manager has to accept our TACU,
  but not each individual member.

13
Joining

• You can join the NGS as
• A single user
• A VO (externally hosted, or hosted by the NGS)
• A Project accessing NGS resources via own
  infrastructure and where NGS sees only a single
  user e.g. BRIDGES project
• OR as A Resource Provider
• See http//www.ngs.ac.uk/access.html

14
Resources Available
15
NGS Partners, 2007
16
Resources available to users

• National HPC services
• HPCx
• HeCToR (expected 2007)
• Must apply separately to Research Councils

• NGS core nodes
• Linux IA32 clusters
• data nodes at RAL and Manchester
• each 15 TB, 40 processors
• 128p compute nodes at Oxford and Leeds
• PHASE 2 NOW BEING INSTALLED!
• free at point of use
• apply through NGS web site
• 500 registered users
• accept conditions of use
• light-weight peer review
• 1-2 weeks
• access is through digital X.509 certificates
• from UK e-Science CA
• or recognized peer

• NGS partner sites
• Compute nodes at Bristol and Cardiff, Lancaster,
  Westminster
• Access as per NGS core nodes
• Belfast
• NGS affiliates
• NeSC
• User access at discretion of affiliate

17
NGS-2 Hardware

• Compute Nodes
• 48 nodes with Dual Socket Dual Core AMD Opteron
  280 processors, 8GB memory 2x80GB disks, Myrinet
  2000
• 8 nodes with Quad Socket Dual Core AMD Opteron
  280 processors, 32GB memory 2x80GB disks, Myrinet
  2000
• Storage
• 8 storage nodes Dual Socket Dual Core AMD Opteron
  280 processors, 8GB memory 2x80GB disks, Myrinet
  2000, Fibre HBA
• 5 x 12 TB Infotrend Storage Arrays
• Qlogic 5200 SANbox
• Initial BenchMarks
• Initial testing using HPL (top 500 gigaflops
  tester) on 240 Cores gives 934Gflops (81 peak).
  The full system should have 256 Cores available
  but some nodes have hardware problems

18
UK e
-
Infrastructure
get common access, tools, information,
Users
Nationally supported services, through NGS
HPCx

HECtoR
Regional and
Campus grids
Community Grids
Integrated
internationally
LHC
VRE, VLE, IE
ISIS TS2
19
Doing Work on the NGS
20
Access Mechanisms

• Direct gsissh login
• Globus tools
• Portals
• Resource Brokers / UI machines
• AHE (Application Hosting Environment)
• GridSAM
• .your own application

21
GSI-SSHhttp//www.ngs.ac.uk (Grid Utilities)
22
Globus Toolkit
See NGS website for tutorials and information on
installing client versions www.ngs.ac.uk
(Documentation)
23
Portals
NGS Applications Repository (https//portal.ngs.ac
.uk)
24
Portals
https//gngs-portal.cpc.wmin.ac.uk8080/gridsphere
/gridsphere
Community Supported Portals e.g. University of
Westminster NGS P-Grade Portal
25
Resource Brokerhttp//www.ngs.ac.uk(Other
Services/Resource Broker)

• EGEE gLite RB ( UI)
• The NGS Resource Broker and User Interface is
  based on the gLite 3.0 WMS-LB and UI nodes from
  the EGEE Project. The UI is accessible to all
  members of the NGS by GSISSH on port 2222 at the
  following nodengsui01.ngs.rl.ac.uk
• Gridway
• http//asds.dacya.ucm.es/GridWay/
• Metascheduling technologies for the grid

26
Community Services

• Have a service or application that other NGS
  users can use?
• Advertise it on the NGS wiki
• http//wiki.ngs.ac.uk
• based on GridSite MediaWiki
• anyone with a UK e-Science certficate can
  register and post

27
Further Support
Any Comments or questions or feedback on what you
want is always welcome

• http//www.ngs.ac.uk
• Email support_at_grid-support.ac.uk
• User Forum June 19th-20th Oxford
