Intro' to Ruby

1

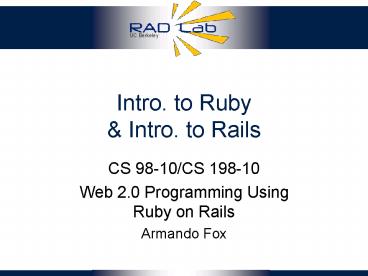

Intro. to Ruby Intro. to Rails

• CS 98-10/CS 198-10
• Web 2.0 Programming Using Ruby on Rails
• Armando Fox

2
Administrivia

• 5um signup!!
• Lab 0
• Self-diagnostic quiz on web page
• Hack sessions Th 4-5, Fri 1-2
• place, staffing TBA on webpage
• Books
• more or less required Agile Web Development with
  Rails, 1st or 2nd ed.
• Programming Ruby (free, online at
  rubycentral.org/book)
• or The Ruby Way by Fulton
• Online resources coming soon

3
CS61A Keywords of the Day

• Symbol
• Binding

4
Review MVC

• Goal separate organization of data (model) from
  UI presentation (view) by introducing
  controller
• mediates user actions requesting access to data
• presents data for rendering by the view
• Web apps are sort of MVC by design

Controller
View
Model
5
Review CRUD in SQL

• 4 basic operations on a table row Create, Read,
  Update attributes, Destroy
• INSERT INTO students (last_name, ucb_sid,
  degree_expected) VALUES (Fox, 99999,
  1998-12-15),        (Bodik, 88888,
  2009-06-05)
• SELECT FROM students WHERE (degree_expected lt
  2000-01-01)
• UPDATE students SET degree_expected2008-06-05
  WHERE last_nameBodik)
• DELETE FROM students WHERE ucb_sid99999

6
Review C/C

• If data model is called Student
• model (Ruby class) is app/models/student.rb
• SQL table is students
• table row object instance
• columns object attribute
• controller methods live in app/controllers/student
  _controller.rb
• views are app/views/student/.rhtml

7
Review C/C scaffolding

• Model Student implies...
• class StudentsController in students_controller.rb

• views in app/view/students/, ....
• table students, primary key id, column names
  match Student classs attributes
• 2 ways to scaffold your controller views
• metaprogramming makes it happen

8
While were on SQL...whats a primary key anyway?

• Column whose value must be unique for every table
  row
• Why not just use (e.g.) last name or SID?
• SQL AUTO_INCREMENT function makes it easy to
  specify an integer primary key
• If using migrations to create tables
  (recommended), Rails takes care of creating an
  autoincrement primary key field called ID

CREATE TABLE students ( id INT NOT NULL
AUTO_INCREMENT, last_name VARCHAR(255),
first_name VARCHAR(255), ucb_sid INT(11)
DEFAULT 9999)
class CreateStudentsltActiveRecordMigration def
self.up create_table students do tbl
tbl.column last_name, string tbl.column
first_name, string tbl.column ucb_sid,
integer, nullgtfalse, defaultgt9999
end end def self.down drop_table students
endend
9
Using ri and irb from the shell

• Ruby is interpreted (for now)
• irb is an interactive Ruby interpreter
• follow along with the examples!
• ri (Ruby info) is like man
• ri Comparable
• ri gsub
• ri Stringgsub
• Note, need to be in a shell that has PATH and
  environment variables set correctly
• See www.ruby-doc.org for more good documents

10
Rubys Distinguishing Syntax Characteristics

• Syntax features
• Whitespace is not significant (unlike Python)
• Statements separated by semicolons or carriage
  returns
• Statement can span a newline
• Parentheses can often be omitted
• when unambiguous to parser use caution!!
• raise "D'oh!" unless valid(arg)
• raise "D'oh!" unless valid(arg)
• raise "D'oh!" unless valid(arg)
• Advice from your elders use a good text editor

11
Naming conventions

• ClassNames
• class NewRubyProgrammer ... end
• method_names and variable_names
• def learn_conventions ... end
• predicate_like_methods?
• def is_faculty_member? ... end
• dangerous_methods!
• def brainwash_with_ruby! ... end
• symbols
• favorite_framework rails
• SOME_CONSTANTS or OtherConstants
• result in warning if reassigned after init

12
Everything is an object (almost) everything is a
method call

• Everything is an object
• Even integers (try 57.methods)
• Even nil (try nil.respond_to?(to_s))
• (almost) every operator is really a method call
• my_str.length gt my_str.send(length)
• mymethod(foo) gt self.send(mymethod, foo)
• 1 2 gt 1.send(, 2)
• arr4 gt arr.send(, 4)
• arr3 foo gt arr.send(, 3, foo)
• if (x 3) gt if (x.send(, 3))
• in particular, things like implicit conversion
  on comparison are done by the class methods, not
  in the language (unlike, e.g., Perl)

13
Variables Methods

• Variables have no type objects do
• variables spring into existence on first
  assignment
• nil,false are Boolean false everything else true
• Everything is passed-by-reference
• can use clone method to effect pass-by-value
• except Fixnums...
• Defining methods
• def foo(x) x,x1 end
• def foo(x)
• x,x1
• end
• def foo(x)
• return x,x1
• end

14
Arrays

• x 3, 'a', "third", blah, last
• x0 gt 3
• x-1 gt last
• x-2 gt blah
• x-3..-1 gt "third", blah, last
• y 1,2
• y 3,4 gt 1,2,3,4
• y ltlt 5 gt 1,2,3,4,5
• y ltlt 6,7 gt 1,2,3,4,5,6,7
• Note! These are nearly all instance methods of
  Arraynot language operators!

15
Hashes

• h "key" gt 1, value gt "foo"
• h.has_key?("key") gt true
• h"not a key" gt nil (not an error!)
• h.delete(value) gt "key" gt 1
• h.merge( key2 gt "3", "hi" gt blah )gt
  "key"gt 1, "key2" gt 3, hi gt blah
• Ruby Rails idioms
• omitting braces when a function takes a hash as
  its last argument
• omitting parens around function arguments
• link_to "Edit student", controllergt'students',
  actiongt'edit'
• link_to("Edit student", controllergt'students',
  actiongt'edit')
• Warning! if ambiguous parse...better safe than
  sorry!

16
Classes Methods

• Methods for MyBank.com
• class Account
• _at__at_bank_name "MyBank.com"
• constructor is always called initialize
• def initialize(starting_balance0)
• _at_balance starting_balance
• end
• instance methods
• def balance
• _at_balance
• end
• def deposit(amount)
• _at_balance amount
• end
• def withdraw(amount)
• _at_balance - amount
• end
• A class method
• def self.bank_name

17
Instance methods, not instance variables

• Lets try a few...
• my_account._at_balance
• my_account.balance
• my_account.balance 100
• _at__at_bank_name
• other_account Account.new(0)
• other_account.bank_name
• ...got it?

18
Instance variables shortcut

• class Foo
• def initialize(bar,baz)
• _at_bar,_at_bazbar,baz
• end
• def bar _at_bar end
• def baz _at_baz end
• def bar(newbar) _at_barnewbar end
• def baz(newbaz) _at_baznewbaz end
• end

19
Instance variables shortcut

• class Foo
• def initialize(bar,baz)
• _at_bar,_at_bazbar,baz
• end
• attr_accessor bar, baz
• end

20
REMEMBER!

• a.b means call method b on object a
• a is the receiver to which you send the method
  call, assuming a will respond to that method
• does not mean b is an instance variable of a
• does not mean a is some kind of structure of
  which b is a member
• Understanding this distinction will save you from
  much grief and confusion

21
There are (almost) no Loops

• Objects manage their own traversal
• (1..10).each x ... gt range traversal
• my_array.each elt ... gt array traversal
• hsh.each_key key ... hsh.each_pair
  key,val .. gt hash traversal
• 10.times ... gt iterator of arity zero
• 10.times do ... end
• ... is a synonym for do...end

22
What is duck typing?

• Ruby type set of values set of operations
• A ruby module defines...
• a collection of behaviors
• that depend only on the presence of one or more
  specific existing behaviors

• i.e. If it looks like a duck and walks like a
  duckgt it responds to the same methods as a
  duck.
• Note, a module ? a class
• but module methods can get mixed in to classes

23
Mix-in example Comparable

• Define ltgt method for your class
• include Comparable
• methods in Comparable assume that objects of
  target class (into which youre includeing)
  respond to ltgt
• doesnt actually matter what the class is!
• Get lt lt gt gt between? for free
• and, your class can now be sorted (by mixing in
  Enumerable...what do you suppose it assumes?)
• Enumerable also provides all?, any?, collect,
  find, include?, inject, map, partition, ....

24
Hashes and function calls

• Immediate hash (any object can be a key, any
  object can be an attribute)
• my_hsh foo gt 1, "x" gt nil, 3 gt 'a',4
• my_hshnonexistent_key returns nil
• Parens can be omitted from function calls if
  parsing is unambiguous
• x foo(3, "no") ? x foo 3, "no"
• Braces can be omitted from hash if parsing is
  unambiguous
• x foo( agt1,bgt2) ? x foo(agt1,bgt2)
• easy way to do keyword arguments
• Caveat passing immediates to a function that
  accepts multiple hashes as its arguments

25
Summary Rubys Distinguishing Features

• Object-oriented with single inheritance
• everything is an object
• almost everything is a method call
• Modules play a role similar to Javas interfaces
  and enable duck typing
• Dynamically typed
• Objects have types variables dont
• very few operators in the language most are
  defined as instance methods on objects
• Idiomatically, and () sometimes optional

26
Active Record what is it?

• A class library that provides an
  object-relational model over a plain old RDBMS
• Deal with objects attributes rather than rows
  columns
• SELECT result rows ? enumerable collection
• (later) object graph ? join query

27
More on Student Example

• object attributes are just instance methods (a
  la attr_accessor)
• so can already say stu.last_name, stu.ucb_sid,
  etc.
• what line in what file makes this happen?
• ActiveRecord accessors/mutators
• default attr_accessor for each table column
• perform type-casting as needed
• can be overridden, virtualized, etc.

28
Example a short tour
Predicate-like method names often end with
question mark
self (like Java this) not strictly necessary here
Some useful class methods of Date
Interpolation of expressions into strings
29
Virtual attributes example simple authentication

• Assume we have a table customers with columns
  salt and hashed_password...

Defines the receiver method for password
Why do we want to use self here?
Wheres the accessor for password?
30
Constructors

• Method named initialize, but invoked as new
• (at least) 3 ways to call it...

31
New ! Create

• Call s.save to write the object to the database
• s.create(args) ? s.new(args) s.save
• s.update_attributes(hash) can be used to update
  attributes in place
• s.new_record? is true iff no underlying database
  row corresponds to s
• save does right thing in SQL (INSERT or UPDATE)
• Convention over configuration
• if id column present, assumes primary key
• if updated_at/created_at columns in table,
  automatically are set to update/creation timestamp

32
find() ? SQL SELECT

• To find an arbitrary single record
• s Student.find(first) returns a Student
  instance
• To find all records
• students Student.find(all) returns
  enumerable!
• find by 'id' primary key (Note! throws
  RecordNotFound)
• book Book.find(1235)
• Find a whole bunch of things
• ids_array get_list_of_ids_from_somewhere()
• students Student.find(ids_array)
• To find by column values
• armando Student.find_by_last_name('Fox') may
  return nil
• a_local_grad Student.find_by_city_and_degree_exp
  ected('Berkeley', Date.parse('June 15,2007')
• To find only a few, and sort by an attribute
• many_localgrads Student.find_all_by_city_and_deg
  ree_expected('Berkeley', Date.parse('June
  15,2007'),limitgt30,ordergtlast_name)

33
Find by conditions

• Use ? for values from parameters. Rails will
  sanitize the SQL and prevent any SQL injection
• You will want to learn some minimal SQL syntax

You can also specify ordering and use arbitrary
SQL operators
Using SQL conditions books Book.find(all,
conditions gt pub_date between ? and ?,
paramsstart_date, paramsend_date,
order gt pub_date DESC)
34
Find by conditions

• Use ? to substitute in condition values
• not mandatory, but a good idea!
• You can include other SQL functionality
• You can roll your own
• s Student.find_by_sql("SELECT FROM students
  ...")

Using SQL conditions books Book.find(all,
conditions gt pub_date between ? and ?,
paramsstart_date, paramsend_date,
order gt pub_date DESC)
35
Advanced Find
You can also specify limits and offsets, and oh
so much more

• books Book.find(all,
• conditions gt pub_date between ? and ?,
• paramsstart_date, paramsend_date,
• limit gt 10, offset gt paramspage.to_i
  10)

• lock - Holds lock on the records (default share
  lock)
• select - Specifies columns for SELECT (default
  )
• group - (used with select) to group
• readonly - load as read-only (object cant be
  saved)
• include - Prefetches joined tables (try include
  first more about this in Section 4)
• Note use SQL-specific features at your own
  risk....

36
Caveat!

• The result of a find-all operation mixes in
  Enumerable
• Enumerable defines methods find and find_all
• Not to be confused with ActiveRecordBasefind!

37

• Caveats for using self.
• gt local variable, method, methodmissing
• so need self. even for mutators
• activerecord accessors/setters are lazy
  memoized
• dymamic finders are never memoized!

38
Action View

• A template for rendering views of the model that
  allows some code embedding
• commonly RHTML also RXML, HAML, RJS
• note...too much code breaks MVC separation
• convention views for model foo are in
  app/views/foo/
• Helper methods for interacting with models
• model values?HTML elements (e.g. menus)
• HTML form input?assignment to model objects
• DRY (Dont Repeat Yourself) support
• Layouts capture common page content at
  application level, model level, etc.
  (app/views/layouts/)
• Partials capture reusable/parameterizable view
  patterns

39
Helper Methods for Input Output

• Review we saw a simple view already...
• Anatomy lt code gt lt output gt
• But these form tags are generic...what about
  model-specific form tags?
• In the RHTML template
• lt text_field 'student', 'last_name' gt
• In HTML delivered to browser
• ltinput id"student_last_name" name"studentlast_n
  ame" size"30" type"text" value"Fox" /gt
• What happened? For that we have to look at
  partial.

40
Action Controller

• Each incoming request instantiates a new
  Controller object with its own instance variables
• Routing (Sec. 4) determines which method to call
• Parameter unmarshaling (from URL or form sub.)
  into params hash
• ...well, not really a hash...but responds to ,

• Controller methods set up instance variables
• these will be visible to the view
• controller has access to models class methods
  idiomatically, often begins with Model.find(...)
• Lets see some examples...

41
Then we render...

• Once logic is done, render the view
• exactly one render permitted from controller
  method (1 HTTP request ? 1 response)
• Convention over configuration implicit render
• if no other render specified explicitly in action
  method
• looks for template matching controller method
  name and renders with default layouts (model, app)

42
What about those model-specific form elements?

• Recallltinput type"text" id"student_last_name"
  name"studentlast_name"/gt
• Related form elements for student attributes will
  be named studentattr
• marshalled into params as paramsstudentlast_n
  ame, paramsstudentdegree_expected, etc.
• i.e, paramsstudent is a hash
  last_namegtstring, degree_expectedgtdate, etc.
• and can be assigned directly to model object
  instance
• helpers for dates and other complex
  types...magic

43
What else can happen?

• redirect_to allows falling through to different
  action without first rendering
• fallthrough action will call render instead
• works using HTTP 302 Found mechanism, i.e.
  separate browser roundtrip
• example create method
• success redirect to list action
• fail render the new action (without
  redirect)...why?

44
The Session Hash

• Problem HTTP is stateless (every request totally
  independent). How to synthesize a session
  (sequence of related actions) by one user?
• Rails answer session is a magic persistent
  hash available to controller
• Actually, its not really a hash, but it quacks
  like one
• Managed at dispatch level using cookies
• You can keep full-blown objects there, or just
  ids (primary keys) of database records
• Deploy-time flag lets sessions be stored in
  filesystem, DB table, or distributed in-memory
  hash table

45
The Flash

• Problem Im about to redirect_to somewhere, but
  want to display a notice to the user
• yet that will be a different controller instance
  with all new instance variables
• Rails answer flash
• contents are passed to the next action, then
  cleared
• to this action flash.nownotice
• visible to views as well as controller

• Strictly speaking, could use session clear it
  out yourself

46
Summary

• ActiveRecord provides (somewhat-)database-independ
  ent object model over RDBMS
• ActionView supports display input of model
  objects
• facilitates reuse of templates via layouts
  partials
• ActionController dispatches user actions,
  manipulates models, sets up variables for views
• declarative specifications capture common
  patterns for checking predicates before executing
  handlers

47
Lab 1

• Create a simple 1-model RoR app with basic CRUD
  MVC
• Create database
• Create the table using migrations
• Create scaffolding using generator
• Find and fix a bug in the code provided to you
  -o
• Hack sessions, forums will help
