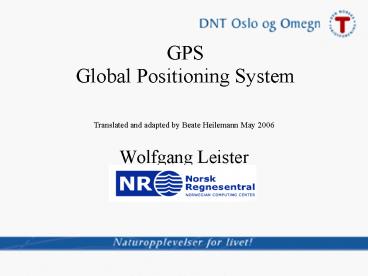

GPS Global Positioning System

1
GPS Global Positioning System

• Wolfgang Leister

Translated and adapted by Beate Heilemann May 2006
2
GPS (Global Positioning System)
3
How does GPS work ?

• Introduced in 1973 in USA for military purposes
• 24 satellites, which send
• signals and their own
• positions
• Receiver which
• receives signals
• from several satellites

4
GPS Receiver

• Receives signals from several satellites
• The positions of the satellites are known
• GPS receivers calculate theircurrent position
  and the precise time
• The GPS receiver calculates its own position
• Convertes to degrees or UTM

5
When does GPS work?

• Your GPS must have free visibility to at least 3
  satelittes (Works much better with 4)
• (3 satellites unreliable and without height
  measuring)
• The satellites schedule must be known
• Trees (forest), walls (tall buildings), mountain
  slopes, certain weather conditions all these
  can confuse your GPS
• Your GPS needs power! Always Remember batteries!

6
Where can I start my GPS

• Indoors ?
• Not possible
• In car, bus, train?
• Limited possibilities, but possible by the
  windows
• Takes a long time, but does work in general
• In towns and cities
• Limited visibility to the sky
• Takes a long time to warm up
• Not precise (ca. 100 meters divergence)

7
CoordinatesThe 2 mostly used coordinate systems
worldwide

• UTM (Universal Transverse Mercator)
• Grades / minutes/ seconds (the Nautical
  coordinate system)
• Local coordinate systems (out-dated)
• German Grid, Swedish Grid, NAD, ED etc. etc
  etc.etc..
• Where is the referanse?(In the left corner)

8
UTM

• Universal
• Transverse
• Mercator
• 60 x 6 stripes

9
UTM

• In the middle 500 000
• Measured in meters in both directions

10
What does the position show us?
N 4303.150 E 07428.317

• Degrees (nautical coordinates)
• UTM ( Universal Transverse Mercator) (metric
  coordination system)
• Better for use on land
• This is at Manas air base!

43T E 0456996 UTM N 4766780
11
GPS-use in Practice

• Which functions are pliable in the mountains?
• Cases
• Where am I?
• How far is it to ...?
• How do I get to ...?

12
Turn on the GPS ...

• Turn on the on/off-button
• Wait for the satellites
• 2D Nav
• 3D Nav
• Preciseness
• GPS can be used when the precision is good enough

• Always check if the answer from your GPS makes
  sense!!!
• Check the map datum
• Check the coordinate system

13
Read and save positions

• Actual position
• Shows directly
• Saves as waypoint
• New position
• Mark and edit

14
Save the position

• You need
• GPS
• MAP

• Turn on the GPS
• Read the coords from the map and log your GPS
• Or Mark when you are visiting the spot

32V 0596700 UTM 6649260
15
Direction

• When you are MOVING the GPS can calculate the
  direction.
• GOTO function show with an arrow in which
  direction you must go.
• Held the GPS in the correct direction.

16
Case from the Norwegian mountainsTick fog at the
hilltop St. Pål

• Fog at the hilltop St. Pål, visibility 20 meters
• Snow-covered without tracks or trail marks
• Read the coords to Klemsbu (shelter) at the map
• Log as waypoint
• Push Goto and choice Klemsbu
• Follow the arrow (but be aware of steep slopes
  and cliffs)

Geiteryggen (Staffed cabin)
Snow /Fog
St. Pål
Klemsbu (shelter)
Finse (Staffed cabin)
17
Digital maps

• You can buy digital maps (on CD) and download to
  you GPS. Expensive at last in Norway. The
  Oslo-area costs 100.-
• Warning. Use ordinary maps as well. The display
  on your GPS is not good enough for overall views.

18
Where are the traps?

• Wait till you have got sufficient satellites
  Sometimes the satellites are in a unfavourable
  position
• Wait a bit and check that the accuracy is ok
• NB Be aware of typing in wrong ciphers
• Check that you have got updated information.
• (sometimes this can take quite some
  time...)Remember. Batteries dont last for ever.

19
Good advices

• Always bring with you map and compass!
• Use the ruler on the compass to read the coords
  on the map!
• Do not rely too much on altitude measuring,
  speed,
• direction, time of arrival
• Using you GPS when walking Easy to stumble!!!
• Remember the GPS is calculating air line. Mind
  the terrain (steep slopes, rivers and other
  obstructions)
• Always have extra sets of batteries with you

20
Use of GPS in the forest north of Oslo -
Geocaching
21
GPS tour on one of lakes east of Oslo
www.geocaching.com
22
GPS use on horseback. In Trøndelag
23
Fun to use your GPS in the mountains!!! At the
western part of Norway
