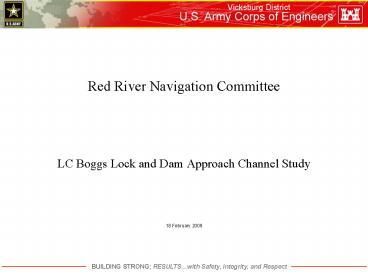

Red River Navigation Committee

1

• Red River Navigation Committee
• LC Boggs Lock and Dam Approach Channel Study
• 18 February 2009

2
Existing Dike Field Hydraulic Model Limits
3
(No Transcript)
4
Scope

• Add Lower Approach Channel to
• Existing Model
• Address Difficult Navigation at the
• Lower Approach to L.C. Boggs Lock
• and Dam

5
Added L.C. Boggs Lower Approach
6
(No Transcript)
7
Higher Flows Affect Water Surface Levels over the
Eddy
8
Plans Tested

• Structure, downstream widening, flow
• Routing ideas
• Widening the channel along the east
• bank seems to be the only significant
• and feasible improvement at low flows.

9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
Widening also removes the whirlpools Navigation
Pothole
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
Questions - Discussion

• Earthwork for 150 ft widening would be
• around 322,000 cubic yards. Flow
• velocities drop by 30 and the
• widening removes the whirlpool/vortex
• dip.
• Comments
