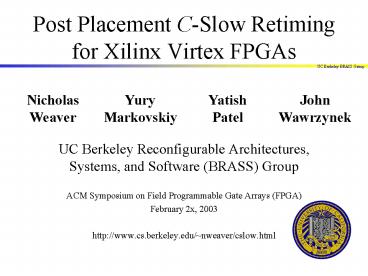

Post Placement CSlow Retiming for Xilinx Virtex FPGAs

1
Post Placement C-Slow Retiming for Xilinx Virtex
FPGAs

• UC Berkeley Reconfigurable Architectures,
  Systems, and Software (BRASS) Group
• ACM Symposium on Field Programmable Gate Arrays
  (FPGA)
• February 2x, 2003
• http//www.cs.berkeley.edu/nweaver/cslow.html

2
Outline

• Automatically Double Your Throughput
• You paid for those registers, heres how to
  use them
• Retiming and C-slow Retiming
• The transformation
• C-slow Retiming and the Virtex FPGA
• The target
• Retiming 3 Benchmarks
• The tests

3
Retiming and Repipelining

• Retiming
• Automatically moving registers to minimize the
  clock period
• Benefits limited by the number of registers
• Algorithm developed by Leiserson et al
• Repipelining
• Adding registers to the front or back
• Let retiming then move them around
• But What About Feedback Loops?
• Retiming and repipelining are of limited benefit
  when you have feedback loops

4
C-Slow Retiming

• Replace every register with a sequenceof C
  registers.
• With more registersretiming can break the
  design into finer pieces
• Again proposed by Leiserson et al, to meet
  systolic slowdown
• Semantic altering transformation
• But resulting semantics are predictable and
  useful
• Ideal C-slow in synthesis, retime after
  placement
• Our prototype C-slow and retime after placement

5
Design Semantics After C-Slowing

• Design operates on C independent data streams
• Data streams are externally interleaved on round
  robin basis
• Semantics apply to designs with Task Level
  Parallelism
• Encryption
• Counter (CTR) mode works on independent blocks
• Sequence matching
• Compare sequence vs database
• C-slowing improves throughput but adds latency
  and registers

6
C-slowing, Retiming, and the Virtex FPGA

• Every 4-LUT has associated register
• Register can, almost always, be used
  independently of the LUT
• LUTs can act as clocked shiftregisters (SRL16s)
• Used in our AES hand-benchmark
• Not used in our tool
• Many designs have low register utilization
• Excess of registers available in unoptimized
  designs
• Retiming best performed with/after placement
• Xilinx placement operates on mapped slices
• Need net delay information for better results

7
Sketch of Tools Operation

• Convert .ncd to .xdl after placement
• Load design into graph representation
• Replace registers with edge annotations to
  represent registers
• Replace every single register with C registers
• Compute costs based on delay model
• Retime
• Convert edge annotations back to instance
  registers
• Write out .xdl, convert to .ncd
• Route

Placer
Router
8
Experiment 1How Good is the Tool?

• Tool is a simple prototype
• Manhattan distance delay estimate
• No attempt to minimize flip-flops
• Basic flip-flop allocation
• Two benchmarks AES and Smith/Waterman
• Hand mapped
• (optionally) hand placed
• (optionally) hand C-slowed and retimed
• Our Best hand AES implementation
• 1.3 Gb/s
• lt800 Slices, 10 BlockRAMs
• 10 part, Spartan II-100

9
Experiment 1AES, Automatically Placed

• Just retiming is of no benefit
• Automatic C-slowing very effective
• But could do even better

10
Experiment 1Smith/Waterman, Automatically Placed

• Again, just retiming is of no benefit
• C-slowing highly effective
• Within 7 of hand-built implementation

11
Experiment 1Comments

• Just retiming is of no benefit
• Both designs limited by single cycle feedback
  loops
• C-Slowing very effective
• Able to automatically nearly double throughput
• Hand implementations more than doubled throughput
• Reasonable numbers of additional registers
• Limitations of prototype tool
• Flip-flop allocation routines could be better
• Some AES hand benchmarks used SRL16 delay chains
• Simple is pretty good
• Relatively simplistic implementation gets
  reasonably close to hand-mapped performance

12
Experiment 2 Retiming LEON

• Can we automatically C-slow a large, synthesized
  design?
• Leon 1 A synthesized , GPLed SPARCcompatible
  microprocessor core 1
• 5 stage pipeline, integer only
• Modify register file to use BlockRAMs
• BlockRAMs are used as negative edge devices
• Remove caches, I/O, etc
• Synthesize, using Symplify with CEs disabled
• Edit EDIF to replace Sets/Resets
• Retime and C-slow with prototype tool
• Prototype tool converts BlockRAMs to positive
  edge
• C-slow a microprocessor core...
• Get an interleaved multithreaded architecture

1 Leon 1, by Jiri Gaisler, http//www.gaisler.co
m/leonmain.html
13
Experiment 2Results

• Retiming alone worked surprisingly well
• 2-slowing very effective
• 3-slowing hit diminishing returns

6132 Luts for all designs
14
Experiment 2Comments

• Retiming alone worked surprisingly well
• Tool automatically converted BlockRAMs to
  positive-edge clocking and rebalanced the
  pipeline
• 2-slowing very effective
• Effectively doubled the initial throughput
• NO slowdown in latency over initial design
  because retiming was effective without C-slowing
• Used more many registers, but fewer registers
  than LUTs
• 3-slowing hit diminishing returns
• Too many registers required combined with poor
  register allocation ? poor performance

15
Conclusions

• C-slow retiming is very effective
• "Automatically double your throughput"
• Benefits More throughput
• Costs More Flip Flops, worse latency
• Post-placement retiming appropriate
• Independent Flip Flop usage critical
• Have delay model for interconnect as well as
  logic
• Some room for improvement
• Faster/Better implementation
• Minimize Flip Flop usage as well as delay
• Use SRL16s
• Better placement of Flip Flops
• Experience suggests more Flip Flops/LUT would be
  useful

16
Backup Slide Why Not Use (Current) Synthesis
Tools?

• Many synthesis tools support retiming, but with
  caveats
• ONLY works for synthesized items
• AES and Smith/Waterman didn't use synthesis
• Can't automatically C-slow
• Can't retime through memory blocks
• Can't accurately guesstimate interconnect delay
  before placement
• gt½ of the delay is the interconnect
• Can't effectively scavenge unused flip-flops
  before placement
• Xilinx placement operates on slices, not luts

17
Backup Slide Why the limitations on total
speedup?

• Absolute maximum
• Interconnect LUT Flip-Flop
• Practical maximums
• Too many flip-flops to allocate
• Only one flip-flop per LUT available
• Flip-flop allocation poor
• Quick and dirty greedy heuristic
• Works well for mild C-slowing
• Fails with highly aggressive C-slowing
• Tool doesnt minimize flip-flops
• Critical path is defined by the single worst path
• Tool uses Cheap and dirty interconnect delay
  model

18
(Backup Slide) Design Restrictions to Enable
C-slowing

• Resets and Clock Enables
• Convert to explicit logic
• Memories
• Increase by a factor of C
• Add high bits of addr to provide round-robin
  access
• Every stream sees an independent memory
• Global Set/Reset
• Convert to individual resets
• Still highly restrictive
• Interleave/deinterleave IO
• Requires external logic
• No asynchronous sets/resets
