Title: Prezentacja programu PowerPoint

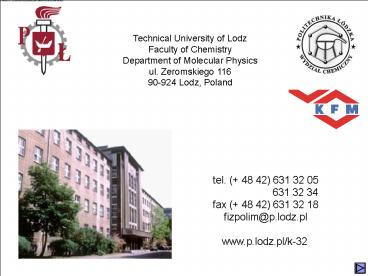

1
Technical University of Lodz Faculty of
Chemistry Department of Molecular Physics ul.
Zeromskiego 116 90-924 Lodz, Poland
tel. ( 48 42) 631 32 05 631 32 34 fax
( 48 42) 631 32 18 fizpolim_at_p.lodz.pl www.p.lodz
.pl/k-32
2
Technical University of Lodz, Faculty of Chemistry
Department of Molecular Physics
  • Main research activities
  • 1. Investigations of mesomorphic biopolymers and
    hydrogel systems- anisotropic composites- LC
    networks and hydrogels- hybrid nanocomposites
  • 2. Synthesis and investigations of molecular
    dynamics of 3D networks based on hyperbranched
    polymers
  • Investigations of heterogeneity in polymer
    systems by Raman spectroscopy- nanoscale
    structure of glassy polymers- laminates,
    composites and nanocomposites
  • 4. Simulation of complex polymer systems - static
    and dynamic properties
  • Preparation and investigations of multifunctional
    molecular and polymeric fluoro-sensors-
    molecularly imprinted polymers- biosensors
    mapping
  • 6. Preparation of conducting polymer
    composites- composites with nanotubes-
    reticulate doped polymers
  • Investigations of electro-optical properties and
    potential applications of organic materials-
    thermoluminescence- photoconductivity -
    photovoltaic effect - electroluminescence-
    field-effect transistors

3
1. Mesomorphic biopolymer and hydrogel systems
Anisotropic composites based on LC cellulose
derivatives
Several cellulose derivatives form lyotropic
solutions in acrylic monomers, what makes
possible the creation of anisotropic composites
with frozen mesophase by photopolymerisation of
acrylic component. By proper choice of the
cellulose derivatives and polymerisable solvents
(e.g. acrylic acid (AA)), one can design the
polymer composites with desired properties.
Polarised micrographs and TOA results show that
the anisotropy of the composites is reversible
after isotropisation. Dielectric spectroscopy and
dynamic mechanical analysis show molecular
dynamic relaxations, which are combination of
relaxations characteristic of the both
components.
Publications
4
1. Mesomorphic biopolymer and hydrogel systems
Liquid crystalline (LC) networks formed by
photoinitiated chain crosslinking
Fig.1
h?
In the 1990s a new period began with
LC-precursors of LC-polymer networks. The
physical phenomena behind these systems are
complicated but have a great potential in many
applications and are expected to play a dominant
role in the field of polymer networks in future.
The photoinitiated chain crosslinking technique
finds diverse applications UV curable coatings,
photoresists, printing processes and composite
preparation.
LC-monomers or their mixtures
LC-network
Fig.2
When LC-monomers are photopolymerised in the
bulk, the so-called LC-networks are produced
(Fig.1). The process of photocrosslinking of
LC-monomer mixtures has to be faster than the
phase separation. In contrary to the liquid
crystalline phases of low molecular weight
materials they exhibit a stabile molecular
organisation up to the degradation temperature.
Fig.2 shows changes of water microstructure in
the LC-hydrogel seen by Raman spectroscopy. 1
(a)- water, (b)- LC-hydrogel
Publications
5
1. Mesomorphic biopolymer and hydrogel systems
Hybrid nanocomposites - nanosized particles
embedded in the mesomorphic polymers
Organic-inorganic nano-systems consisted of
mesomorphic phase of cellulose derivative with
nano-species, prepared by modified sol-gel
process). The microstructure of inorganic
component imposed by the mesomorphic environment
can be observed by Raman microspectroscopy.
) Physical properties and structure of
organic-inorganic hybrid materials produced by
sol-gel process, Shoichro Yanato, Keisuke Iwata,
Kimio Kurita, Materials Science and Engineering C
6 (1998) 75.
Cooperation with University of Potsdam, Germany
6
2. 3D-networks based on hyperbranched polymers
Three-dimensional polyurethane networks based on
hyperbranched polymers
Three-dimensional polyurethane networks are
produced using hyperbranched polyester as
crosslinking agent. Broadband dielectric
spectroscopy and dynamic mechanical analysis are
applied for determination of relationships
between molecular dynamics and properties of the
networks with different structures.
Dielectric modulus for polyurethane system
containing hyperbranched polymer
(10-T650-MDI-HB4-0 )
This project is carried out in collaboration with
Laboratoire des Matériaux Polymères et des
Biomatériaux UCB Lyon 1 and Laboratoire Matériaux
Macromoleculaire INSA Lyon
7
3. Heterogeneity in polymer systems as seen by
Raman spectroscopy
Low frequency Raman scattering of amorphous
polymers
Lowfrequency Raman scattering (1-100cm-1) - an
inelastic scattering of light. - a source of
information on nanostructure of glasses.
  • Examples of applications in investigations of
    polymers
  • Plastification,
  • Stretching,
  • Orientation,
  • Physical aging.

Model of non-continuous structure of polymer
glasses
nanometric heterogeneity due to elasticity
contrast
Publications
Cooperation with Université Claude Bernard Lyon
1, France
8
3. Heterogeneity in polymer systems as seen by
Raman spectroscopy
Low frequency Raman scattering of amorphous
polymers
Lowfrequency Raman scattering (1-100cm-1) - an
inelastic scattering of light. - a source of
information on nanostructure of glasses.
Studies of physical aging in amorphous polymers
Polystyrene
reference sample aging 3 weeks at 80 ºC
aging 10 months at room temperature
Model of non-continuous structure of polymer
glasses
nanometric heterogeneity due to elasticity
contrast
Structure more homogenous and more
stable after aging
Cooperation with Université Claude Bernard Lyon
1, France
9
3. Heterogeneity in polymer systems as seen by
Raman spectroscopy
Low frequency Raman scattering of amorphous
polymers
Lowfrequency Raman scattering (1-100cm-1) - an
inelastic scattering of light. - a source of
information on nanostructure of glasses.
Determination of orientation of macromolecules.
Poly(methyl methacrylate) and (2-hydroxy)propyl
cellulose
Model of non-continuous structure of polymer
glasses
nanometric heterogeneity due to elasticity
contrast
Cooperation with Université Claude Bernard Lyon
1, France
10
3. Heterogeneity in polymer systems as seen by
Raman spectroscopy
Confocal Raman microscopy of polymer composites
Examples of applications The mapping method
PS/PMMA polymer blend image of the surface
(above), Raman spectral map (below)
11
3. Heterogeneity in polymer systems as seen by
Raman spectroscopy
Confocal Raman microscopy of polymer composites
Examples of applications The depth-profile method
Depth-profile series of spectra collected point
by point along the z-axis (here PA/PE laminate)
12
4. Simulation of complex polymer systems
Dynamic properties of two-dimensional polymer
solutions simulation based on the dynamic
lattice liquid model
  • Two neighboring beads try to move in opposite
    directions
  • An attempt of motion starts from a lattice site
    towards which no other beads are attempting to
    move, at the same time
  • Attempted movement would lead to a break bonds in
    the polymer chain
  • Solvent particle would jump through a bond
  • Cooperative rearrangement along closed loop

Cooperation with Max Planck Institute for Polymer
Research, Mainz, Germany
Publications
13
4. Simulation of complex polymer systems
Algorithm applications dynamic properties
14
4. Simulation of complex polymer systems
Algorithm applications dynamic properties
Polymer concentration dependencies of monomer
and chain self-diffusion constants
15
5. Multifunctional molecular and polymeric
fluoro-sensors
Molecularly imprinted polymers (MIPs) and surface
functionalization
Fluorescent polymer molecularly imprinted with
cAMP nucleotyde, with specifically interacting
sites
Imprint formation through polymerisation1
fluorofor 2 - nucleotide
Fluorescence lifetime distributions time
dependent specroscopy
Imprinted polymer
Non-imprinted polymer
Steady state fluorescence of the MIPs in presence
of nucleotides cAMP and cGMP
Incubated with cAMP
Publications
16
5. Multifunctional molecular and polymeric
fluoro-sensors
Fluorescence analysis of chemical species
molecular assemble at the polymer surface
Pyrazolo 3,4-b quinoline fluoro-sensor
Polymer matrix
Single photon counting measurements Two
exponential decay for fluorophore incorported to
polymer surface
Fluorescence intensity decay I(t)
Distribution of fluorescence lifetimes
where ti lifetime of fluorescence
17
5. Multifunctional molecular and polymeric
fluoro-sensors
Mapping of molecular sensors by fluorescence
microscopy
Fluorescence spectra of intracellular probe for
different viscosity of solutions (cP)
Map of fluorescence intensity for single cella)
2nd day of growing b) 6th day of growing
Living cells loaded with the dye
Publications
18
6. Conducting polymer composites
Conductive polyethylene/single walled carbon
nanotubes composites
SEM images of a)SWCNTs b) pure UHMWPE and c)
composite with 4wt. of SWCNTs in polymer matrix
(fracture of tablet)
A single-walled carbon nanotube (SWCNT) can be
described as a single graphene sheet rolled into
a tube. These tubes can be either metallic or
semiconducting.
a)
b)
Segregated Network Concept
c)
Segregated network polymer/carbon nanotubes
composites, A. Mierczynska J. Friedrich H.-E.
Maneck G. Boiteux J.K. Jeszka Central European
Journal of Chemistry 2, 363-370 (2004)
Cooperation with Max Planck Institute for Polymer
Research, Mainz, Germany Federal Institute of
Materials Research and Testing, Berlin, Germany
and Université Claude Bernard Lyon 1, France
19
6. Conducting polymer composites
Electrical properties
High grade material (O), low grade material (?)
and commercial nanotubes (?)
Mechanical properties
A DSC scan for pure UHMWPE and for the UHMWPE
containing 4wt. of SWCNTs. The processing
conditions were 1400C, 10 MPa, and 30 min.
20
6. Conducting polymer composites
Reticulate doped polymers
The technique of reticulate doping of polymers,
originally elaborated in this laboratory,
consists in crystallization of low molecular
weight organic materials (e.g. the so called
"organic metals") in situ, in polymer matrix.
Very fast, diffusion limited crystallisation
leads to formation of highly non-equilibrium
micro- and nano-crystallites (dendrites,
whiskers, very thin plates) forming continuous,
conducting network penetrating the polymer
matrix. These composites show extremely low
percolation threshold - below 0.01 !
Polycarbonate (PC) reticulate doped with 1 wt.
of tetratiafulvalene-tetracyanoquinodimethane
(TTT-TCNQ)
Publications
Cooperation with Centre of Molecular and
Macromolecular Studies PAS, Lodz, Poland
21
6. Conducting polymer composites
Reticulate doped polymers
Different modifications of the reticulate doping
technique allow to produce highly oriented
composites, showing very strong anisotropy of
electrical and optical properties (zone-casting
technique) or surface conducting bi-layer
composites (two-step reticulate technique).
Composite of polyethylene with 1 wt. of TTT-TCNQ
obtained by zone-casting shows very strong
electrical anisotropy, higher than 106 !
Bilayer composites of PC with very thin layers of
(BEDT-TTF)2I3 nanocrystallites show metal-like
conductivity and an onset to superconductivity at
low temperatures.
Cooperation with Institut de Ciencia de Materials
de Barcelona, Barcelona, Spain and Institute of
Problems of Chemical Physics RAS, Chernogolovka,
Russia
Publications
22
7. Electro-optical properties of organic materials
Photo-generation, trapping and recombination of
charge carriers in polysilanes substituted with
carbazole chromophores

  • In unsubstituted polysilane (PMPSi) weak TL peak
    shows, that only shallow traps of charge carriers
    are present.
  • With increasing content of the carbazole side
    groups the intensity of the TL peak increases and
    its position shifts towards higher temperatures
    indicating increasing population of deeper traps
    and more effective recombination.


23
7. Electro-optical properties of organic materials
Spectral analyses of thermoluminescence for
polysilanes
Spectral analyses of TL indicate that for higher
degree of substitution with carbazole
chromophores the excimeric emission (at longer
wavelength) dominates in the spectra, due to
formation of nano-aggregates by carbazole side
groups.
24
7. Electro-optical properties of organic materials
Photogeneration quantum yield in photoconducting
charge-transfer complexes of substituted
polysilanes and of PVK with TNF as studied by
Surface Potential Decay (SPD) technique
  • TL and SPD studies show, that in fully
    substituted polysilane (PSiK) nanoaggregates of
    carbazole chromophores are formed, leading to
    more effective recombination and in a consequence
    to decrease of the photogeneration yield.
  • PSiK (105) copolymer exhibits the optimal
    photoconductive properties among the studied
    polysilanes.

25
7. Electro-optical properties of organic materials
Photogeneration and photovoltaic effects in
discotic LCs
Surface potential decay technique shows that in
pure perylene derivative only negative mobile
charge carriers were photogenerated, in pure
HBC-PhC12 only very weak photogeneration in the
visible range was detected, but in the mixtures a
synergetic effect of photogeneration of both
positive and negative mobile charge carriers was
observed. The above obtained results were
correlated with performance of the photovoltaic
devices with active layer made of the mixtures of
the DLCs and perylene derivative. It was found,
that the power conversion efficiency and
stability of the solar cells is dependent on the
composite morphology, which can be controlled by
the temperature of preparation.
Publications
Project realised in the frame of 5th FP EC
DISCEL and 6th FP EC NAIMO
26
7. Electro-optical properties of organic materials
Hybrid organic-inorganic solar cells based on
TiO2 nano- crystalline layer (dye sensitised
solar cells)
Basic structure of the device - with liquid
electrolyte


27
7. Electro-optical properties of organic materials
Characterisation and adventages of dye synsetized
solar cells (DSSCs)
1. The processes of light absorption and charge
transport in DSSCs occur in different materials,
what prevents the premature recombination of
electron and holes. 2. Incident light is
absorbed by a dye that is coated as a monolayer
on a transparent nanoporous semiconductor. The
porosity results in an enlargement of the
effective surface area up to a factor of 1000.
More dye molecules can be absorbed onto the
surface, which guarantees sufficient light
absorption. 3. Photoexcitation of dye leads to
injection of electrons in the conduction band of
the oxide. 4. The oxidized dye is permanently
reduced back by redox medium (electrolyte) or by
solid hole conductor. 5. Maximum power conversion
efficiency up to 11 can be achieved from single
cells on small active areas.
Examples of photocurrent-voltage curves and
characteristic parameters for DSSCs with liquid
electrolyte (light intensity 10 mW/cm2)
ff - fill factor (Pmax/ VOC ISC) ? - maximum
power conversion efficiency
Cooperation with Linköping University, Campus
Norrköping, Sweden
28
7. Electro-optical properties of organic materials
Polyfluorenes
  • bright and efficient blue light-emitting
    polymer
  • processability
  • high decomposition temperature (Td gt 300 oC)
  • good photostability
  • ? application in isotropic blue LEDs
  • But not desired green emission contribution is
    often observed !
  • much stronger in EL than in PL
  • low efficiency of EL
  • color instability

The aim - prevention of the green emission in EL
EL Electroluminescence PL Photoluminescence
29

7. Electro-optical properties of organic materials
Concept-introduction of competitive charge
carrier traps
D.Sainova, T. Miteva, H. G. Nothofer, U. Scherf,
I. Glowacki, J. Ulanski, H. Fujikawa, D. Neher,
Appl. Phys. Lett. 76, 1810, (2000). D.Sainova, D.
Neher, E. Dobruchowska, B. Luszczynska,I.
Glowacki, J. Ulanski, H-G. Nothofer, U.
Scherf, Chem. Phys. Lett.,371,15 (2003).
30
7. Electro-optical properties of organic materials
Prevention of the green EL emission in
polyfluorenes
TPTE
TPTE - hole transporting molecule (doping
concentration 3 wt)
  • addition of TPTE
  • shift of the TL maxima to higher temperatures
  • (introduction of deeper trapping sites)
  • suppressed green emission upon TPTE-doping

Cooperation with Max Planck Institute for Polymer
Research, Mainz, Germany and University of
Potsdam, Germany
31
7. Electro-optical properties of organic materials
Organic Field Effect Transistor
Zone-casting technique yields highly oriented
layers of LC discotics
Organic semiconductor
dielectric
IS-D A
Publications
Project realised in the frame of 5th FP EC
DISCEL and 6th FP EC NAIMO
32
(No Transcript)
33
Cellulose derivatives  1. Formation of
anisotropic polymer blend by photopolymerization
of lyotropic LC-phase P. Wojciechowski, J.
Ulanski, M. Kryszewski, L. Okrasa, W. Czajkowski
Proc. SPIE 2372 (1995) 268-274 2. Unconventional
anisotropic aolymer/crystalline phase
composites P. Wojciechowski, J. Ulanski, M.
Kryszewski Nonlinear Optics 9 (1995) 203 3.
Thermally Stable Optically Anisotropic Polymer
Networks Obtained from Mesogenic LC Cellulose
Derivatives P. Wojciechowski, L. Okrasa, J.
Ulanski, M. Kryszewski Adv. Mater. Opt.
Electron. 6(5-6) (1996) 383-386 4. Thermally
stable optically anisotropic polymer network
obtained from mesogenic LC-cellulose
derivatives P. Wojciechowski, J. Ulanski, M.
Kryszewski Adv. Mater. for Optics and
Electronics 6 (1996) 338 5. Liquid Crystalline
Cellulose Derivatives for Thermally Stable or
Reversible Crosslinked Anisotropic Polymer
Films M. Kryszewski, P. Wojciechowski, J.
Ulanski, L. Okrasa Proc. SPIE 3227 (Interactive
Paper) (1997) 153-174 6. Efect of polarity of
substituents on phase transition of LC-cellulose
polymers P. Wojciechowski Proc. SPIE 3319
(1997) 240 7. a-relaxation processes in the
composites of LC-cellulose derivatives L.
Okrasa, J. Ulanski, P. Wojciechowski, G. Boiteux,
G. Seytre J. Non-Crystal. Solids 235-237 (1998 )
658-663 8. Anisotropic mesogenic liquid
crystalline cellulose derivatives as a basis for
functional materials M. Kryszewski, P.
Wojciechowski Polym Adv. Technol. 9 (1998)
654 9. Analysis of the hydrogen bonding in
HPC-poly(acrylic acid) composites by Raman
spectroscopy M. Kozanecki, J. Ulanski, P.
Wojciechowski, M. Kryszewski, M. Boudelle, E.
Duval Macromol. Symp. 141 (1999) 185 10. The
molecular structure of composites with
LC-cellulose derivatives P. Wojciechowski Mol.
Phys. Reports 25 (1999) 64 11. The Anisotropy of
Poly(acrylic acid) in Composites with Liquid
Crystalline Cellulose Derivatives as Seen by Low
Frequency Raman Spectroscopy M. Kozanecki, E.
Duval, J. Ulanski, L. Okrasa, L. Saviot Polymer
41 (2000) 751-755 12. Polymer stabilised liquid
crystals system based on the liquid crystalline
cellulose derivatives P. Wojciechowski, M.
Kozanecki, L. Okrasa, W. Jozwiak Proc. SPIE 4147
(2000) 364-369 13. Thermotropic mesomorphism of
selected (2-hydroxypropyl)cellulose derivatives
P. Wojciechowski J. Appl. Polym. Sci. 76 (2000)
837 14. Molecular relaxations in the composites
of liquid crystalline cellulose derivatives with
poly(acrylic acid) L. Okrasa, G. Boiteux, J.
Ulanski, G. Seytre Materials Research Innovative
4 (2001) 278-283 15. Molecular relaxations in
anisotropic composites based on
(hydroxypropyl)cellulose and acrylic polymers
L. Okrasa, G. Boiteux, J. Ulanski, G. Seytre
Polymer 42 (2001) 3817-3825 16. Cellulose
derivatives - organic crystals and liquid
crystals - used the longest, known the least M.
Kryszewski, P. Wojciechowski, L. Okrasa, M.
Kozanecki and J. Ulanski Polish Journal of
Chemistry 76 (2002) 187-200 17. Liquid
crystalline (cyanoethylpropyl)cellulose and its
optically anisotropic composites with acrylic
polymers L. Okrasa, J. Ulanski, G. Boiteux
Polymer 43 (2002) 2417-2424 18. Mesomorphism and
photocuring processes of (2-hydroxypropyl)cellulos
e cinnamate P. Wojciechowski, L. Okrasa, M.
Kozanecki Proc. SPIE 4759 (2002) 25-30 19.
Relaxation processes in anisotropic polymer
composites containing liquid crystalline
cellulose derivatives, L.Okrasa, Ph.D. thesis in
co-tutelle in cooperation between Technical
University of Lodz (Poland) and University
Claude Bernard Lyon I (France), 1999
Back to the presentation
34
1. Structure of Hydrogels Based on Lyotropic
Phases of Cellulose Derivative as studied by
Raman Spectroscopy - A.Joachimiak, T.Halamus,
P.Wojciechowski, J.Ulanski, Macromol. Chem.
Phys., in press (2004) 2. Thermalic stable
optically anisotropic polymer networks obtained
from mesogenic LC cellulose derivatives -
P.Wojciechowski, L.Okrasa, J.Ulanski,
M.Kryszewski, Adv. Mater. Opt. Electr. 6 (5-6)
(1996) 383-386
Back to the presentation
35
1. "The anisotropy of poly(acrylic acid) in
composites with liquid crystalline cellulose
derivatives as seen by low-frequency Raman
spectroscopy M. Kozanecki, E. Duval, J.
Ulanski, L. Okrasa, L. Saviot, Polymer 41 (2000)
751-755 2. "Analysis of hydrogen bonding in
(2-hydroxypropyl)cellulose-poly(acrylic acid)
composites by Raman spectroscopy M. Kozanecki,
J. Ulanski, P. Wojciechowski, M. Kryszewski, M.
Boudeulle, E. Duval, Macromol. Symp. 141 (1999)
185-195 3. Raman spectroscopy of the composites
of liquid crystalline cellulose derivatives,
M.Kozanecki, Ph.D. thesis, Technical University
of Lodz (Poland), 2001
Back to the presentation
36
1.Photogeneration and transport in thin films of
p- and n-type discotic liquid crystals
P.Miskiewicz, A.Rybak, J.Jung, I.Glowacki,
J.Ulanski, Y.Geerts, M.Watson, K.Mullen, Synth.
Met. 137 (2003) 905-906 2. Photogeneration
quantum yield in blends of derivatives of
hexabenzocoronene and perylene, J.Jung, A.Rybak,
A. Slazak, P.Miskiewicz, I. Glowacki, J.Ulanski,
S. Rosselli, A. Yasuda, G.Nelles, Z.Tomovic,
M.D.Watson, K.Mullen in preparation
Back to the presentation
37
1.Photogeneration and transport in thin films of
p- and n-type discotic liquid crystals
P.Miskiewicz, A.Rybak, J.Jung, I.Glowacki,
J.Ulanski, Y.Geerts, M.Watson, K.Mullen, Synth.
Met. 137 (2003) 905-906 2. Opto-electronic
properties of oriented layers of organic discotic
molecules obtained by zone-casting method ,
P.Miskiewicz et al, in preparation
Back to the presentation
38
1. Simulation of polymer-polymer interdiffusion
using the dynamic lattice liquid model
P.Polanowski, T.Pakula J. Chem. Phys. 120 (2004)
6306 2. Studies of mobility, interdiffusion and
self-diffusion in two-component mixtures using
the dynamic lattice liquid model P.Polanowski,
T.Pakula J. Chem. Phys. 118 (2003)
11139 3.Studies of polymer conformation and
dynamics in two dimensions using simulations
based on the Dynamic Lattice Liquid (DLL) model,
P. Polanowski, T. Pakula J. Chem. Phys. 117
(2002) 4022 4. Implementation network model of
liquid and polymer systems in simulation based on
parallel computation, P.Polanowski, Ph.D.
thesis, Technical University of Lodz (Poland),
2002
Back to the presentation
39
1. Conductive polymer reticulate doping with
charge-transfer complex, J .K. Jeszka, J.
Ulanski, M. Kryszewski, Nature 289 (1981) 390 2.
"Reticulate Composites" (monograph), J.Ulanski,
M. Kryszewski, in Encyclopedia of Advanced
Materials, D. Bloor, R.J. Brook, M.C. Flemings,
S. Mahajan, R.W. Cahn (Eds.), Pergamon Press,
Oxford 1994, Vol.3, 2301-2306.
Back to the presentation
40
1. "Temperature dependence of anisotropy of
conductivity in oriented reticulate doped
systems, J.Ulanski, A.Tracz, E.El. Shafee,
G.Debrue, R.Deltour, Synth. Met. 35 (1990) 221 2.
"Superconducting organic polymer films" ,
J.Ulanski, J.K.Jeszka, E.Laukhina, H.W.Helberg
Macromol.Symp. 104 (1996) 251 3. New Molecular
Conductors Based on ETEDT-TTF Trihalides From
Single Crystals to Conducting Layers of
Nanocrystals, M.Mas-Torrent, E.Ribera,
V.Tkacheva, I.Mata, E.Molins, J.Vidal-Gancedo,
S.Khasanov, L.Zorina, R.Shibaeva,
R.Wojciechowski, J.Ulanski, K.Wurst, J.Veciana,
V.Laukhina, E.Canadell, E.Laukhina, C.Rovira
Chem. Mater., 14 (2002) 3295
Back to the presentation
41
Imprinting of polymers 1. "Monitoring by
fluorescence spectroscopy. The selectivity of
molecularly imprinted polymers, B. Wandelt,
A.Mielniczak, P. Cywinski, BiosensorsBioelectroni
cs, 2004, in press. 2. " Molecularly Imprinted
Polymers", B. Wandelt, S. Wysocki, A. Mielniczak,
Patent PR. No. P-344548, 2001r 3. Luminescence
Studies of Polymers, Chapter 4 in Handbook of
Polymers in Electronics, B. Wandelt, RAPRA
Technology LTD., Shrewsbury, United Kingdom
(2002) 4. Fluorescent Molecularly Imprinted
Polymer Studied by Time-Resolved Fluorescence
Spectroscopy, B. Wandelt, P. Turkewitsch, S.
Wysocki, G.D. Darling, Polymer 43 (2002) 2777 5.
Steady-state and time-resolved fluorescence
studies of fluorescent imprinted polymers, B.
Wandelt, A. Mielniczak, P. Turkewitsch, S.
Wysocki, J. of Luminescence 102-103 (2003) 774 6.
Fluorescent Functional Recognition Sites through
Molecular Imprinting. A Polymer-Based Fluorescent
Chemosensor for Aqueous cAMP, P. Turkewitsch,
B. Wandelt, G.D. Darling, W. S. Powell Anal.
Chem. 70 (1998) 2025 7. "Photochemistry and
Polymeric Systems" , R. A. Pethrik, B. Wandelt,
D.J.S. Birch, R.E. Imhof, S. Radhakrishnan,
Photophysical Studies of Gelation and Cure in
Polymeric Systems, A Royal Society of Chemistry
Publication, Ed. J. M. Kelly, C. B. McArdle,
M.J.de F. Maunder, CRC Press, USA, 1993
Back to the presentation
42
Biosensors 1. Fluorescence quenching of
pyrazolo-3,4-b-quinoline derivative in presence
of nucleotide ions , P. Cywinski, A.Danel,
B.Wandelt Annals of Polish Chemical Society, 12
(2003) 975 2. Thin-layer film with incorporated
pyrazoloquinoline derivative as a fluorescent
sensor for nucleotides, P. Cywinski, B.Wandelt,
A. Danel Adsorption Science and Technology,
2004, in press. 3. Viscosity Probe, G.D.
Darling, B.R., S. Heisler, , B. R. Stranix, P.
Turkewitsch, B. Wandelt U.S. Patent 5 834 230,
1998.11.20 4. Effect of Temperature and
Viscosity on Intramolecular Charge Transfer
Fluorescence of 4- p-Dimethylaminostyrylpyridinium
Salt in Protic Solvents, B. Wandelt, P.
Turkewitsch, B.R. Stranix, G.D. Darling J.
Chem. Soc. Faraday Trans. 91 (1995) 4199 5.
Effect of Nucleotides on the Charge Transfer
Fluorescence of trans-4-(p-N,N-Dimethylaminostyryl
)-N-vinylbenzylpyridinium Chloride, P.
Turkewitsch, B. Wandelt, R. R. Ganju, G.D.
Darling, W. S. Powell Chem. Phys. Letter, 260
(1996) 142 6. Nucleotides enhance the
fluorescence of trans-4-(p-N,N-Dimethylaminostyryl
)-N-vinylbenzylpyridinium Chloride , P.
Turkewitsch, B. Wandelt, G.D. Darling, W. S.
Powell J. Photochem. Photobiol. A Chemistry 117
(1998) 199     Mapping 1. Single Cell
Measurement of Intracellular Viscosity by Ratio
from Dual Fluorescence of Styrylpyridinium
Probe , B. Wandelt, P. Cywinski, G. D. Darling,
B. R. Stranix Biosensors Bioelectronics, 2004,
in press. 2. Substituted 4-4-(Dimethylamino)sty
rylpyridinium Salt as a Fluorescent Probe for
Cell Microviscosity, B. Wandelt, A. Mielniczak,
P. Turkewitsch, G. D. Darling, B. R.Stranix
Biosensors Bioelectronics, 18 (2003) 465 3. 4
4-(Dimethylamino)styrylpyridinium Derivative
A Solvent Viscosity and Polarity Sensitive
Fluorescent Sensor, A. Mielniczak, B. Wandelt,
S. Wysocki Materials Science, 20 (2002) 59
Back to the presentation
Write a Comment
User Comments (0)
About PowerShow.com
