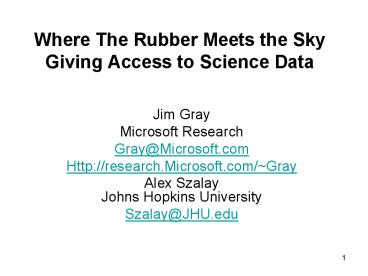

Where The Rubber Meets the Sky Giving Access to Science Data

1
Where The Rubber Meets the SkyGiving Access to
Science Data

• Jim Gray
• Microsoft Research
• Gray_at_Microsoft.com
• Http//research.Microsoft.com/Gray
• Alex SzalayJohns Hopkins University
• Szalay_at_JHU.edu

2
New Science Paradigms

• Thousand years ago science was empirical
• describing natural phenomena
• Last few hundred years theoretical branch
• using models, generalizations
• Last few decades a computational branch
• simulating complex phenomena
• Today data exploration (eScience)
• unify theory, experiment, and simulation
• using data management and statistics
• Data captured by instrumentsOr generated by
  simulator
• Processed by software
• Scientist analyzes database / files

3
The Virtual Observatory

• Premise most data is (or could be online)
• The Internet is the worlds best telescope
• It has data on every part of the sky
• In every measured spectral band optical, x-ray,
  radio..
• As deep as the best instruments (2 years ago).
• It is up when you are up
• The seeing is always great
• Its a smart telescope links objects and
  data to literature
• Software is the capital expense
• Share, standardize, reuse..

4
The Big Picture
The Big Problems

• Data ingest
• Managing a petabyte
• Common schema
• How to organize it?
• How to reorganize it?
• How to coexist with others?

• Data Query and Visualization tools
• Support/training
• Performance
• Execute queries in a minute
• Batch (big) query scheduling

5
What X-info Needs from us (cs)(not drawn to
scale)
6
Data Access Hitting a Wall

• Current science practice based on data download
  (FTP/GREP)Will not scale to the datasets of
  tomorrow
• You can GREP 1 MB in a second
• You can GREP 1 GB in a minute
• You can GREP 1 TB in 2 days
• You can GREP 1 PB in 3 years.
• Oh!, and 1PB 5,000 disks
• At some point you need indices to limit
  search parallel data search and analysis
• This is where databases can help

• You can FTP 1 MB in 1 sec
• You can FTP 1 GB / min (1)
• 2 days and 1K
• 3 years and 1M

7
Next-Generation Data Analysis

• Looking for
• Needles in haystacks the Higgs particle
• Haystacks dark matter, dark energy, turbulence,
  ecosystem dynamics
• Needles are easier than haystacks
• Global statistics have poor scaling
• Correlation functions are N2, likelihood
  techniques N3
• As data and computers grow at Moores Law, we
  can only keep up with N logN
• A way out?
• Relax optimal notion (data is fuzzy, answers are
  approximate)
• Dont assume infinite computational resources or
  memory
• Requires combination of statistics computer
  science

8
Smart Data Unifying DB and Analysis

• There is too much data to move aroundDo data
  manipulations at database
• Build custom procedures and functions into DB
• Unify data Access Analysis
• Examples
• Statistical sampling and analysis
• Temporal and spatial indexing
• Pixel processing
• Automatic parallelism
• Auto (re)organize
• Scalable to Petabyte datasets

Move Mohamed to the mountain, not the mountain to
Mohamed.
9
Experiment Budgets ¼½ Software

• Millions of lines of code
• Repeated for experiment after experiment
• Not much sharing or learning
• Lets work to change this
• Identify generic tools
• Workflow schedulers
• Databases and libraries
• Analysis packages
• Visualizers

• Software for
• Instrument scheduling
• Instrument control
• Data gathering
• Data reduction
• Database
• Analysis
• Visualization

Simulation (computational science) are gt ½
software
10
How to Help?

• Cant learn the discipline before you
  start(takes 4 years.)
• Cant go native you are a CS person not a
  bio, person
• Have to learn how to communicateHave to learn
  the language
• Have to form a working relationship with domain
  expert(s)
• Have to find problems that leverage your skills

11
Working Cross-Culture A Way to Engage With
Domain Scientists

• Find someone who is desperate for help
• Communicate in terms of scenarios
• Work on a problem that gives 100x benefit
• Weeks/task vs hours/task
• Solve 20 of the problem
• The other 80 will take decades
• Prototype
• Go from working-to-working, Always have
• Something to show
• Clear next steps
• Clear goal
• Avoid death-by-collaboration-meetings.

12
Working Cross-Culture -- 20 Questions A Way to
Engage With Domain Scientists

• Astronomers proposed 20 questions
• Typical of things they want to do
• Each would require a week or more in old way
  (programming in tcl / C/ FTP)
• Goal, make it easy to answer questions
• This goal motivates DB and tools design

13
The 20 Queries

• Q11 Find all elliptical galaxies with spectra
  that have an anomalous emission line.
• Q12 Create a grided count of galaxies with u-ggt1
  and rlt21.5 over 60ltdeclinationlt70, and 200ltright
  ascensionlt210, on a grid of 2, and create a map
  of masks over the same grid.
• Q13 Create a count of galaxies for each of the
  HTM triangles which satisfy a certain color cut,
  like 0.7u-0.5g-0.2ilt1.25 rlt21.75, output it in
  a form adequate for visualization.
• Q14 Find stars with multiple measurements and
  have magnitude variations gt0.1. Scan for stars
  that have a secondary object (observed at a
  different time) and compare their magnitudes.
• Q15 Provide a list of moving objects consistent
  with an asteroid.
• Q16 Find all objects similar to the colors of a
  quasar at 5.5ltredshiftlt6.5.
• Q17 Find binary stars where at least one of them
  has the colors of a white dwarf.
• Q18 Find all objects within 30 arcseconds of one
  another that have very similar colors that is
  where the color ratios u-g, g-r, r-I are less
  than 0.05m.
• Q19 Find quasars with a broad absorption line in
  their spectra and at least one galaxy within 10
  arcseconds. Return both the quasars and the
  galaxies.
• Q20 For each galaxy in the BCG data set
  (brightest color galaxy), in 160ltright
  ascensionlt170, -25ltdeclinationlt35 count of
  galaxies within 30"of it that have a photoz
  within 0.05 of that galaxy.

• Q1 Find all galaxies without unsaturated pixels
  within 1' of a given point of ra75.327,
  dec21.023
• Q2 Find all galaxies with blue surface
  brightness between and 23 and 25 mag per square
  arcseconds, and -10ltsuper galactic latitude (sgb)
  lt10, and declination less than zero.
• Q3 Find all galaxies brighter than magnitude 22,
  where the local extinction is gt0.75.
• Q4 Find galaxies with an isophotal surface
  brightness (SB) larger than 24 in the red band,
  with an ellipticitygt0.5, and with the major axis
  of the ellipse having a declination of between
  30 and 60arc seconds.
• Q5 Find all galaxies with a deVaucouleours
  profile (r¼ falloff of intensity on disk) and the
  photometric colors consistent with an elliptical
  galaxy. The deVaucouleours profile
• Q6 Find galaxies that are blended with a star,
  output the deblended galaxy magnitudes.
• Q7 Provide a list of star-like objects that are
  1 rare.
• Q8 Find all objects with unclassified spectra.
• Q9 Find quasars with a line width gt2000 km/s and
  2.5ltredshiftlt2.7.
• Q10 Find galaxies with spectra that have an
  equivalent width in Ha gt40Å (Ha is the main
  hydrogen spectral line.)

Also some good queries at http//www.sdss.jhu.edu
/ScienceArchive/sxqt/sxQT/Example_Queries.html
14
SkyQuery (http//skyquery.net/)

• Distributed Query tool using a set of web
  services
• Many astronomy archives from Pasadena, Chicago,
  Baltimore, Cambridge (England)
• Has grown from 4 to 15 archives,now becoming
  international standard
• Allows queries like

SELECT o.objId, o.r, o.type, t.objId FROM
SDSSPhotoPrimary o, TWOMASSPhotoPrimary t
WHERE XMATCH(o,t)lt3.5 AND AREA(181.3,-0.76,6.5)
AND o.type3 and (o.I - t.m_j)gt2
15
SkyQuery Structure

• Portal is
• Plans Query (2 phase)
• Integrates answers
• Is itself a web service

• Each SkyNode publishes
• Schema Web Service
• Database Web Service

16
MyDB eScience Workbench

• Prototype of bringing analysis to the data
• Everybody gets a workspace (database)
• Executes analysis at the data
• Store intermediate results there
• Long queries run in batch
• Results shared within groups
• Only fetch the final results
• Extremely successful matches work patterns
