LING 572

1

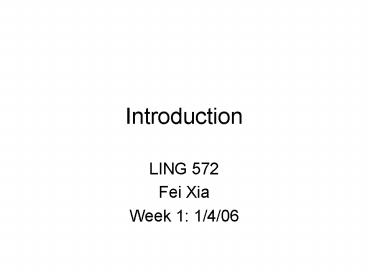

Introduction

• LING 572
• Fei Xia
• Week 1 1/4/06

2
Outline

• Course overview
• Mathematical foundation (Prereq)
• Probability theory
• Information theory
• Basic concepts in the classification task

3
Course overview
4
General info

• Course url http//courses.washington.edu/ling572
• Syllabus (incl. slides, assignments, and papers)
  updated every week.
• Message board
• ESubmit
• Slides
• I will try to put the slides online before class.
• Additional slides are not required and not
  covered in class.

5
Office hour

• Fei
• Email
• Email address fxia_at_u
• Subject line should include ling572
• The 48-hour rule
• Office hour
• Time Fr 10-1120am
• Location Padelford A-210G

6
Lab session

• Bill McNeil
• Email billmcn_at_u
• Lab session what time is good for you?
• Explaining homework and solution
• Mallet related questions
• Reviewing class material
• ? I highly recommend you to attend lab sessions,
  especially the first few sessions.

7
Time for Lab Session

• Time
• Monday 1000am - 1220pm, or
• Tues 1030 am - 1130 am, or
• ??
• Location ??
• ? Thursday 3-4pm, MGH 271?

8
Misc

• Ling572 Mailing list ling572a_wi07_at_u
• EPost
• Mallet developer mailing list
• mallet-dev_at_cs.umass.edu

9
Prerequisites

• Ling570
• Some basic algorithms FSA, HMM,
• NLP tasks tokenization, POS tagging, .
• Programming If you dont know Java well, talk to
  me.
• Java Mallet
• Basic concepts in probability and statistics
• Ex random variables, chain rule, Gaussian
  distribution, .
• Basic concepts in Information Theory
• Ex entropy, relative entropy,

10
Expectations

• Reading
• Papers are online
• Reference book Manning Schutze (MS)
• Finish reading papers before class
• ? I will ask you questions.

11
Grades

• Assignments (9 parts) 90
• Programming language Java
• Class participation 10
• No quizzes, no final exams
• No incomplete unless you can prove your case.

12
Course objectives

• Covering basic statistical methods that produce
  state-of-the-art results
• Focusing on classification algorithms
• Touching on unsupervised and semi-supervised
  algorithms
• Some material is not easy. We will focus on
  applications, not theoretical proofs.

13
Course layout

• Supervised methods
• Classification algorithms
• Individual classifiers
• Naïve Bayes
• kNN and Rocchio
• Decision tree
• Decision list ??
• Maximum Entropy (MaxEnt)
• Classifier ensemble
• Bagging
• Boosting
• System combination

14
Course layout (cnt)

• Supervised algorithms (cont)
• Sequence labeling algorithms
• Transformation-based learning (TBL)
• FST, HMM,
• Semi-supervised methods
• Self-training
• Co-training

15
Course layout (cont)

• Unsupervised methods
• EM algorithm
• Forward-backward algorithm
• Inside-outside algorithm

16
Questions for each method

• Modeling
• what is the model?
• How does the decomposition work?
• What kind of assumption is made?
• How many types of model parameters?
• How many internal (or non-model) parameters?
• How to handle multi-class problem?
• How to handle non-binary features?

17
Questions for each method (cont)

• Training how to estimate parameters?
• Decoding how to find the best solution?
• Weaknesses and strengths?
• Is the algorithm
• robust? (e.g., handling outliners)
• scalable?
• prone to overfitting?
• efficient in training time? Test time?
• How much data is needed?
• Labeled data
• Unlabeled data

18
Relation between 570/571 and 572

• 570/571 are organized by tasks 572 is organized
  by learning methods.
• 572 focuses on statistical methods.

19
NLP tasks covered in Ling570

• Tokenization
• Morphological analysis
• POS tagging
• Shallow parsing
• WSD
• NE tagging

20
NLP tasks covered in Ling571

• Parsing
• Semantics
• Discourse
• Dialogue
• Natural language generation (NLG)

21
A ML method for multiple NLP tasks

• Task (570/571)
• Tokenization
• POS tagging
• Parsing
• Reference resolution
• Method (572)
• MaxEnt

22
Multiple methods for one NLP task

• Task (570/571) POS tagging
• Method (572)
• Decision tree
• MaxEnt
• Boosting
• Bagging
• .

23
Projects Task 1

• Text Classification Task 20 groups
• P1 First look at the Mallet package
• P2 Your first tui class
• Naïve Bayes
• P3 Feature selection
• Decision Tree
• P4 Bagging
• Boosting
• Individual project

24
Projects Task 2

• Sequence labeling task IGT detection
• P5 MaxEnt
• P6 Beam Search
• P7 TBA
• P8 Presentation final class
• P9 Final report
• Group project (?)

25
Both projects

• Use Mallet, a Java package
• Two types of work
• Reading code to understand ML methods
• Writing code to solve problems

26
Feedback on assignments

• Misc section in each assignment
• How long it takes to finish the homework?
• Which part is difficult?

27
Mallet overview

• It is a Java package, that includes many
• classifiers,
• sequence labeling algorithms,
• optimization algorithms,
• useful data classes,
• You should
• read Mallet Guides
• attend mallet tutorial next Tuesday
  1030-1130am LLC109
• start on Hw1
• I will use Mallet class/method names if possible.

28
Questions for course overview?
29
Outline

• Course overview
• Mathematical foundation
• Probability theory
• Information theory
• Basic concepts in the classification task

30
Probability Theory
31
Basic concepts

• Sample space, event, event space
• Random variable and random vector
• Conditional probability, joint probability,
  marginal probability (prior)

32
Sample space, event, event space

• Sample space (O) a collection of basic outcomes.

• Ex toss a coin twice HH, HT, TH, TT
• Event an event is a subset of O.
• Ex HT, TH
• Event space (2O) the set of all possible events.

33
Random variable

• The outcome of an experiment need not be a
  number.
• We often want to represent outcomes as numbers.
• A random variable X is a function O?R.
• Ex toss a coin twice X(HH)0, X(HT)1,

34
Two types of random variables

• Discrete X takes on only a countable number of
  possible values.
• Ex Toss a coin 10 times. X is the number of
  tails that are noted.
• Continuous X takes on an uncountable number of
  possible values.
• Ex X is the lifetime (in hours) of a light bulb.

35
Probability function

• The probability function of a discrete variable X
  is a function which gives the probability p(xi)
  that X equals xi a.k.a. p(xi) p(Xxi).

36
Random vector

• Random vector is a finite-dimensional vector of
  random variables XX1,,Xk.
• P(x) P(x1,x2,,xn)P(X1x1,., Xnxn)
• Ex P(w1, , wn, t1, , tn)

37
Three types of probability

• Joint prob P(x,y) prob of x and y happening
  together
• Conditional prob P(xy) prob of x given a
  specific value of y
• Marginal prob P(x) prob of x for all possible
  values of y

38
Common tricks (I)Marginal prob ? joint prob
39
Common tricks (II)Chain rule
40
Common tricks (III)Bayes rule
41
Common tricks (IV)Independence assumption
42
Prior and Posterior distribution

• Prior distribution P(?)
• a distribution over parameter values ? set
  prior to observing any data.
• Posterior Distribution P(? data)
• It represents our belief that ? is true
  after observing the data.
• Likelihood of the model ? P(data ?)
• Relation among the three Bayes Rule
• P(? data) P(data ?) P(?) / P(data)

43
Two ways of estimating ?

• Maximum likelihood (ML)
• ? arg max? P(data ?)
• Maxinum A-Posterior (MAP)
• ? arg max? P(? data)

44
Information Theory
45
Information theory

• It is the use of probability theory to quantify
  and measure information.
• Basic concepts
• Entropy
• Joint entropy and conditional entropy
• Cross entropy and relative entropy
• Mutual information and perplexity

46
Entropy

• Entropy is a measure of the uncertainty
  associated with a distribution.
• The lower bound on the number of bits it takes to
  transmit messages.
• An example
• Display the results of horse races.
• Goal minimize the number of bits to encode the
  results.

47
An example

• Uniform distribution pi1/8.
• Non-uniform distribution (1/2,1/4,1/8, 1/16,
  1/64, 1/64, 1/64, 1/64)

(0, 10, 110, 1110, 111100, 111101, 111110, 111111)

• Uniform distribution has higher entropy.
• MaxEnt make the distribution as uniform as
  possible.

48
Joint and conditional entropy

• Joint entropy
• Conditional entropy

49
Cross Entropy

• Entropy
• Cross Entropy
• Cross entropy is a distance measure between p(x)
  and q(x) p(x) is the true probability q(x) is
  our estimate of p(x).

50
Relative Entropy

• Also called Kullback-Leibler divergence
• Another distance measure between prob functions
  p and q.
• KL divergence is asymmetric (not a true
  distance)

51
Mutual information

• It measures how much is in common between X and
  Y
• I(XY)KL(p(x,y)p(x)p(y))

52
Perplexity

• Perplexity is 2H.
• Perplexity is the weighted average number of
  choices a random variable has to make.

53
Questions for Mathematical foundation?
54
Outline

• Course overview
• Mathematical foundation
• Probability theory
• Information theory
• Basic concepts in the classification task

55
Types of ML problems

• Classification problem
• Estimation problem
• Clustering
• Discovery
• A learning method can be applied to one or more
  types of ML problems.
• We will focus on the classification problem.

56
Definition of classification problem

• Task
• C c1, c2, .., cm is a set of pre-defined
  classes (a.k.a., labels, categories).
• Dd1, d2, is a set of input needed to be
  classified.
• A classifier is a function D C ? 0, 1.
• Multi-label vs. single-label
• Single-label for each di, only one class is
  assigned to it.
• Multi-class vs. binary classification problem
• Binary C 2.

57
Conversion to single-label binary problem

• Multi-label ? single-label
• We will focus on single-label problem.
• A classifier D C ? 0, 1
• becomes D ? C
• More general definition D C ? 0, 1
• Multi-class ? binary problem
• Positive examples vs. negative examples

58
Examples of classification problems

• Text classification
• Document filtering
• Language/Author/Speaker id
• WSD
• PP attachment
• Automatic essay grading

59
Problems that can be treated as a classification
problem

• Tokenization / Word segmentation
• POS tagging
• NE detection
• NP chunking
• Parsing
• Reference resolution

60
Labeled vs. unlabeled data

• Labeled data
• (xi, yi) is a set of labeled data.
• xi 2 D data/input, often represented as a
  feature vector.
• yi 2 C target/label
• Unlabeled data
• xi without yi.

61
Instance, training and test data

• xi with or without yi is called an instance.
• Training data a set of (labeled) instances.
• Test data a set of unlabeled instances.
• The training data is stored in an InstanceList in
  Mallet, so is test data.

62
Attribute-value table

• Each row corresponds to an instance.
• Each column corresponds to a feature.
• A feature type (a.k.a. a feature template) w-1
• A feature w-1book
• Binary feature vs. non-binary feature

63
Attribute-value table
f1 f2 fK Target
d1 yes 1 no -1000 c2
d2
d3

dn
64
Feature sequence vs. Feature vector

• Feature sequence a (featName, featValue) list
  for features that are present.
• Feature Vector a (featName, featValue) list for
  all the features.
• Representing data x as a feature vector.

65
Data/Input ? a feature vector

• Example
• Task text classification
• Original x a document
• Feature vector bag-of-words approach
• In Mallet, the process is handled by a sequence
  of pipes
• Tokenization
• Lowercase
• Merging the counts

66
Classifier and decision matrix

• A classifier is a function f f(x) (ci,
  scorei). It fills out a decision matrix.
• (ci, scorei) is called a Classification in
  Mallet.

d1 d2 d3 .
c1 0.1 0.4 0
c2 0.9 0.1 0
c3

67
Trainer (a.k.a Learner)

• A trainer is a function that takes an
  InstanceList as input, and outputs a classifier.
• Training stage
• Classifier train (instanceList)
• Test stage
• Classification classify (instance)

68
Important concepts (summary)

• Instance, InstanceList
• Labeled data, unlabeled data
• Training data, test data
• Feature, feature template
• Feature vector
• Attribute-value table
• Trainer, classifier
• Training stage, test stage

69
Steps for solving an NLP task with classifiers

• Convert the task into a classification problem
  (optional)
• Split data into training/test/validation
• Convert the data into attribute-value table
• Training
• Decoding
• Evaluation

70
Important subtasks (for you)

• Converting the data into attribute-value table
• Define feature types
• Feature selection
• Convert an instance into a feature vector
• Understanding training/decoding algorithms for
  various algorithms.

71
Notation
Classification in general Text categorization
Input/data xi di
Target/label yi ci
Features fk tk (term)

72
Questions for Concepts in a classification task?
73
Summary

• Course overview
• Mathematical foundation
• Probability theory
• Information theory
• MS Ch2
• Basic concepts in the classification task

74
Downloading

• Hw1
• Mallet Guide
• Homework Guide

75
Coming up

• Next Tuesday
• Mallet tutorial on 1/8 (Tues) 1030-1130am at
  LLC 109.
• Classification algorithm overview and Naïve
  Bayes read the paper beforehand.
• Next Thursday
• kNN and Rocchio read the other paper
• Hw1 is due at 11pm on 1/13

76
Additional slides
77
An example

• 570/571
• POS tagging HMM
• Parsing PCFG
• MT Model 1-4 training
• 572
• HMM forward-backward algorithm
• PCFG inside-outside algorithm
• MT EM algorithm
• ? All special cases of EM algorithm, one method
  of unsupervised learning.

78
Proof Relative entropy is always non-negative
79
Entropy of a language

• The entropy of a language L
• If we make certain assumptions that the language
  is nice, then the cross entropy can be
  calculated as

80
Cross entropy of a language

• The cross entropy of a language L
• If we make certain assumptions that the language
  is nice, then the cross entropy can be
  calculated as

81
Conditional Entropy
