Markov Random Fields with Efficient Approximations

1

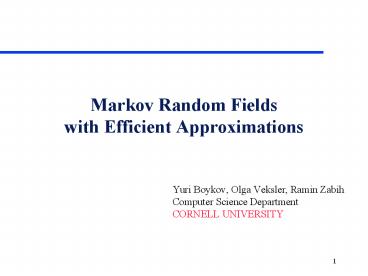

Markov Random Fields with Efficient
Approximations

• Yuri Boykov, Olga Veksler, Ramin Zabih
• Computer Science Department
• CORNELL UNIVERSITY

2
Introduction

• MAP-MRF approach
• (Maximum Aposteriori Probability estimation of
  MRF)
• Bayesian framework suitable for problems in
  Computer Vision (Geman and Geman, 1984)
• Problem High computational cost. Standard
  methods (simulated annealing) are very slow.

3
Outline of the talk

• Models where MAP-MRF estimation is equivalent to
  min-cut problem on a graph
• generalized Potts model
• linear clique potential model
• Efficient methods for solving the corresponding
  graph problems
• Experimental results
• stereo, image restoration

4
MRF framework in the context of stereo

• image pixels (vertices)

• neighborhood relationships (n-links)

MRF defining property
Hammersley-Clifford Theorem
5
MAP estimation of MRF configuration
6
Energy minimization
7
Generalized Potts model
8
Static clues - selecting
Stereo Image White Rectangle in front of
the black background
9
Minimization of E(f) via graph cuts
p-vertices (pixels)
10
Multiway cut
vertices V pixels terminals
Remove a subset of edges C
edges E n-links t-links

• C is a multiway cut if terminals are separated
  in G(C)

11
Main Result (generalized Potts model)

• Under some technical conditions on
  the multiway min-cut C on G gives___
  that minimizes E( f ) - the posterior energy
  function for the generalized Potts model.

• Multiway cut Problem find minimum cost
  multiway cut C graph G

12
Solving multiway cut problem

• Case of two terminals
• max-flow algorithm (Ford, Fulkerson 1964)
• polinomial time (almost linear in practice).
• NP-complete if the number of labels gt2
• (Dahlhaus et al., 1992)
• Efficient approximation algorithms that are
  optimal within a factor of 2

13
Our algorithm
Initialize at arbitrary multiway cut C
1. Choose a pair of terminals
2. Consider connected pixels
14
Our algorithm
Initialize at arbitrary multiway cut C
1. Choose a pair of terminals
2. Consider connected pixels
3. Reallocate pixels between two terminals
by running max-flow algorithm
15
Our algorithm
Initialize at arbitrary multiway cut C
1. Choose a pair of terminals
2. Consider connected pixels
3. Reallocate pixels between two terminals
by running max-flow algorithm
4. New multiway cut C is obtained
Iterate until no pair of terminals improves the
cost of the cut
16
Experimental results (generalized Potts model)

• Extensive benchmarking on synthetic images and on
  real imagery with dense ground truth
• From University of Tsukuba
• Comparisons with other algorithms

17
Synthetic example
18
Real imagery with ground truth
Ground truth
Our results
19
Comparison with ground truth
20
Gross errors (gt 1 disparity)
21
Comparative results normalized correlation
Data
Gross errors
22
Statistics
23
Related work (generalized Potts model)

• Greig et al., 1986 is a special case of our
  method (two labels)
• Two solutions with sensor noise (function g)
  highly restricted
• Ferrari et al., 1995, 1997

24
Linear clique potential model
25
Minimization of via graph cuts
26
Main Result (linear clique potential model)

• Under some technical conditions on
  the min-cut C on gives that
  minimizes - the posterior energy
  function for the linear clique potential model.

27
Related work (linear clique potential model)

• Ishikawa and Geiger, 1998
• earlier independently obtained a very similar
  result on a directed graph
• Roy and Cox, 1998
• undirected graph with the same structure
• no optimality properties since edge weights are
  not theoretically justified

28
Experimental results (linear clique potential
model)

• Benchmarking on real imagery with dense ground
  truth
• From University of Tsukuba
• Image restoration of synthetic data

29
Ground truth stereo image
30
Image restoration
