The OptIPuter

1

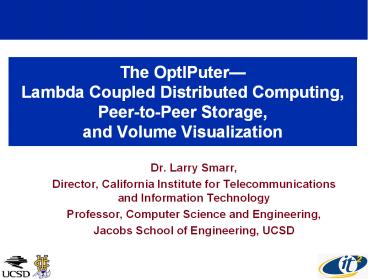

The OptIPuterLambda Coupled Distributed
Computing, Peer-to-Peer Storage, and Volume
Visualization

• Dr. Larry Smarr,
• Director, California Institute for
  Telecommunications and Information Technology
• Professor, Computer Science and Engineering,
• Jacobs School of Engineering, UCSD

2
Two New Cal-(IT)2 Buildings Approved by
Legislature This Week!
Bioengineering

• Will Create New Laboratory Facilities
• Clean Rooms for Nanotech and BioMEMS
• Computer Arts Virtual Reality
• Wireless and Optical Networking
• Interdisciplinary Teams

UC Irvine
UC San Diego
3
Future Systems Will Waste Bandwidth and
Storage, While Conserving Computing
Scientific American, January 2001
4
S-Curves of Exponential Technology Growth

Lambda Grids
Experimental Networks
Production/ Mass Market
DWDM
100
Technology Penetration
Internet2 Abilene
Experimental/ Early Adopters
Connections Program
0
Research
Gigabit Testbeds
Time Technology S-Curve
1990s 2000
2010 Networking Technology S-Curves
5
A LambdaGrid Will Be the Backbone for an
e-Science Network
Apps Middleware

• Metro Area Laboratories Springing Up Worldwide
• Developing GigE and 10GigE Applications and
  Services
• Testing Optical Switches
• Metro Optical Testbeds-the next GigaPOP?

Clusters
C O N T R O L P L A N E
Dynamically Allocated Lightpaths
Switch Fabrics
Physical Monitoring
Source Joe Mambretti, NU
6
NSF Defines Three Classes of Networks Beyond the
Commodity Internet

• Production Networks (e.g. Internet2)
• High-Performance Networks
• Reaches All US Researchers
• 24 / 7 Reliable
• Experimental Networks
• Trials of Cutting-Edge High-Performance Networks
• Deliver Advanced Application Needs Unsupported by
  Production Networks
• Robust Enough to Support Application-Dictated
  Development
• Software Application Toolkits,
• Middleware,
• Computing and Networking
• Research Networks
• Smaller-Scale Network Prototypes
• Enable Basic Scientific and Engineering Network
  Research
• Testing of Component Technologies, Protocols,
  Network Architectures
• Not Expected to Be Persistent
• Not Expected to Support Production Applications

www.evl.uic.edu/activity/NSF/index.html
7
Local and Regional Lambda Experimental Networks
Are Achievable and Practical

• Several GigaPOPs Are Building Multi-Lambda
  Metropolitan Experimental Networks by Lighting up
  Their Own Dark Fiber
• With Hundreds of Lambdas by 2010
• LambdaGrid Software to Dynamically Couple
  Applications to Metro and Resources Is Possible
• Metro Experimental Networks Will Be Sensitized
  to
• End Application Needs
• Local Connectivity Issues
• Current National Production Networks Have Not
  Begun to Satisfy
• Substantial State and Local Funds Can Be Heavily
  Leveraged by an NSF Experimental Networks Program

• Cross-country Inter-Connection
• Persistent Support of Emerging Experimental
  Networks
• First NSF Workshop UIC December 2001
• Second NSF Workshop UCI May 2002
• Expected NSF RFP by Fall 2002

8
Cal-(IT)2 is Developing a Metro-ScaleExperimental
Optical Network

• Driven by Data-Intensive Applications
• Real Time Seismic
• Emergency Response
• Medical Imaging
• Linked UCSD and SDSU
• Dedication March 4, 2002

Linking Control Rooms
UCSD
SDSU
Cox, Panoram, SAIC, SGI, IBM, TeraBurst
Networks SD Telecom Council
44 Miles of Cox Fiber
9
Beginning of Cal-(IT)2 Metro Optical Networking
Laboratory
10
Next Step California Must Have a State-Wide
Experimental Optical Network

• The Institutes are Creating a Joint Plan
• Led by Cal-(IT)2 CITRIS
• Involving QB3 and CNSI
• Leveraging Todays CENIC Investment
• Provides California Internet Connectivity
• K-12 and Universities
• Necessary for Data-Intensive Science
• Widely Available to Many Disciplines
• California is Not the Leader Today!
• Illinois, Indiana, and Canada Already There

11
CENIC and CISI May Create a Dark
FiberExperimental and Research Network
The SoCal Component
12
Some Scientific Applications Require
Experimental Optical Networks

• Challenges
• Large Data Challenges in Neuro and Earth Sciences
• Each Data Object is 3D and Gigabytes
• Data are Generated and Stored in Distributed
  Archives
• Research is Carried Out on Federated Repository
• Requirements
• Computing Requirements ? PC Clusters
• Communications ? Dedicated Lambdas
• Data ? Large Peer-to-Peer Lambda Attached Storage

• Visualization ? Collaborative Volume Algorithms
• Response
• Cal-(IT)2 OptIPuter Research Project

13
NIH is Funding a National-Scale Grid Which is an
OptIPuter Application Driver
Biomedical Informatics Research Network (BIRN)
NIH Plans to Expand to Other Organs and Many
Laboratories
Part of the UCSD CRBS Center for Research on
Biological Structure
National Partnership for Advanced Computational
Infrastructure
14
The OptIPuter is an Experimental Network
Research Project

• Multiple Lambdas Linking Clusters and Storage
• Integration with InfiniBand PC Clusters
• Rethink TCP/IP Protocols
• Peer to Peer Storage
• LambdaGrid Software Stack
• Interactive Collaborative Volume Visualization
• NSF Large Information Technology Research
  Proposal
• Larry Smarr, PI
• UCSD and UIC Lead Campuses
• USC, UCI, SDSU, NW Partnering Campuses
• Industrial Partners IBM, Telcordia/SAIC, Chiaro
  Networks, CENIC
• San Diego Telecom Council Letter of Support
• Submitted April 4, 2002
• Seeking 15M over 5 Years

15
The OptIPuter Research Team and ItsRegional,
National, Intl Extensions
SURFnet CERN
Asia Pacific
CAnet4
Vancouver
Seattle
CAnet4
Pacific Light Rail
Portland
Chicago
NYC
UIC NU
PSC
San Francisco
TeraGrid DTFnet
Asia Pacific
NCSA
CENIC
USC
UCI
Los Angeles
UCSD, SDSU
Atlanta
San Diego (SDSC)
AMPATH
Source Tom DeFanti and Maxine Brown, UIC
16
OMNInet Optical Switching TrialNow Underway in
Chicago Metro Area
Univ. Illinois at Chicago
Northwestern Univ.
2x10GE
8x1GE
8x1GE
2x10GE
Optical Switching Platform
Optical Switching Platform
Application Cluster
Passport 8600
Application Cluster
Passport 8600
OPTera Metro 5200
CAnet3/4--Chicago
StarLight
8x1GE
2x10GE
8x1GE
Optical Switching Platform
Application Cluster
Optical Switching Platform
Application Cluster
Passport 8600
Passport 8600

• A Four-Site Network in Chicago -- The First 10GE
  Service Trial!
• A Test Bed for All-Optical Switching and Advanced
  High-speed Services
• Partners SBC, Nortel, iCAIR at Northwestern,
  UIC, CANARIE, ANL

17
Planned Chicago Metro Electronic Switching
OptIPuter Laboratory
Source Tom DeFanti
18
Plan for UCSD Campus-Scale OptIPuter
Initially Connect Schools of Medicine and
Engineering with SIO and SDSC
Philip Papadopoulos, SDSC
19
OptIPuter Optical Research Topics

• Integrate InfiniBand and IP Over Lambdas
• Connectivity, Addressing, Configuration, Recovery
  and Resource Discovery
• Design Evaluation, Monitoring and Analysis Tools
  for
• Optimizing InfiniBand Over Dedicated Lambdas
• Devise Network Control and Management (NCM) and
  Traffic Engineering
• Gather Cluster Demand and Signal the
  Reconfiguration of the Network
• Extend Signaling
• Permit OptIPuter Clusters to Establish and
  Teardown Connections to Peer Clusters Across the
  IP/Lambda Network
• Integrate This Signaling With Network-based NCM
• Extend the IP/Lambda Network to Support Very Fast
  Switches
• Participate in the Optical Switching of Label
  Switched Paths (LSPS) That Transport InfiniBand
  Messages
• Develop Common-Control-Plane Optical Transport
  Architectures
• With Generalized Multi-Protocol Label Switching
  (GMPLS)
• Transport Traffic Over Multiple User Planes With
  Variable Switching Modes, Namely Lambda Switching

• Burst Switching
• Inverse Multiplexing (Enabling One Application to
  Use Multiple Lambdas)

20
Other OptIPuter Research Topics

• Software Architecture
• LambdaGrid Middleware Architecture
• Application Communication Abstractions and
  Cluster Bundle Composition
• Real-Time, Dependable Execution Environment
• Distribute Storage While Optimizing Storewidth
• Distribute Massive Pools of Physical RAM (Network
  Memory)
• Develop Visual TeraMining Techniques to Mine
  Petabytes of Data
• Enable Ultrafast Image Rendering
• Create for Optical Storage Area Networks (OSANs)
• Enhance Security Mechanisms
• End-to-End Integrity Check of Data Streams
• Access Multiple Locations With Trusted
  Authentication Mechanisms
• Use LambdaGrid Middleware for Authentication,
  Authorization, Validation, Encryption and
  Forensic Analysis of Multiple Systems and
  Administrative Domains
