MSE Radial Resolution with

1

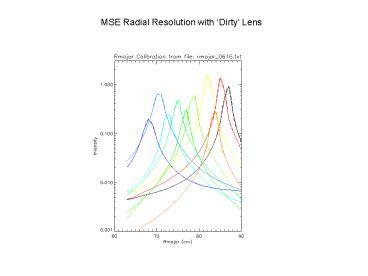

MSE Radial Resolution with Dirty Lens
2
MSE Radial Resolution with Clean Lens

• FWHM about a factor 2-3 smaller.
• Tails are reduced.
• Tried various fitting functions settled on a
  spline

3
Actual magnetic Pitch-angle
Degrees
geometry
Angle that MSE sees
radius
4
The Poor Spatial Resolution of the Dirty Lens
Changes the Measured Field-Line Pitch Angle by
up to 0.5 degrees.
5
There is Little Difference in Inferred
Pitch-Angle between a Local And a
Radially-averaged MSE Measurement with a Clean
Lens
6
Measured MSE Light is the Convolution of the
Diagnostic Response (spatial resolution) and MSE
Emission Intensity Profile

• At edge emission intensity weighted to inside
  of viewing region.
• At center emission intensity weighted to
  outside of viewing region.
• Beam-into-gas emission intensity weighted to
  outside of viewing region.

MSE Edge Channel
Density profile
MSE Intensity Profile
radius
7
Edge Density Gradients in L- and H-modes
L-mode
H-mode
8
