Fast Propositional Algorithms for Planning

1

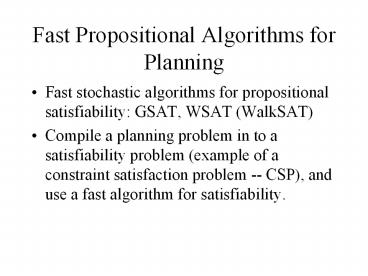

Fast Propositional Algorithms for Planning

• Fast stochastic algorithms for propositional
  satisfiability GSAT, WSAT (WalkSAT)
• Compile a planning problem in to a satisfiability
  problem (example of a constraint satisfaction
  problem -- CSP), and use a fast algorithm for
  satisfiability.

2
Review of Satisfiability

• A problem instance is a Boolean conjunctive
  normal form (CNF) formula, that is, a conjunction
  of propositional clauses, over some set X1,,Xn
  of propositions.
• Goal is to find an assignment to the propositions
  (variables) that satisfies the CNF formula.

3
Satisfiability Review (Continued)

• Satisfiability is important for several reasons,
  including
• It is at the foundation of NP-completeness
• Its the canonical example of constraint
  satisfaction problems (CSPs)
• Many interesting tasks, including planning tasks,
  can be encoded as satisfiability problems.
• Broadly speaking, CSPs grow easier with

4
Satisfiability (Continued)

• (Continued) more variables but harder with more
  constraints. In the case of satisfiability, each
  clause is a constraint.
• Kautz, Levesque, Mitchell, and Selman showed that
  the critical measure of hardness of
  satisfiability is the fraction of the number of
  clauses over the number of variables. For a
  large fraction, its almost always easy

5
Satisfiability (Continued)

• (Continued) to answer no quickly, and for a
  small fraction its almost always easy to answer
  yes quickly. Theres a relatively slim phase
  transition area in between these extremes where
  most of the hard problems are located.
• GSAT and WSAT were created (by subsets of the
  preceding authors) to address these.

6
GSAT

• Input CNF formula and integers Max_flips (e.g.
  100) and Max_climbs (e.g. 20).
• Output Yes (satisfiable) or No (couldnt find a
  satisfying assignment). Might also output the
  best assignment found.
• Assignments are scored by the number of clauses
  they satisfy.
• GSAT performs a (greedy) hill-climbing search
  with random restarts (next slide).

7
GSAT Algorithm

• For i from 1 to Max_Climbs
• Randomly draw a truth assignment over the
  variables in the CNF formula (e.g. flip a coin
  for each variable to decide whether to make it 0
  or 1 -- in practice, use pseudo-random number).
  If assignment satisfies formula, return Yes.
• For j from 1 to Max_Flips
• For each variable, calculate the score of the
  truth assignment that results when we flip the
  value of

8
GSAT Algorithm (Continued)

• (Continued) that variable. Make the flip that
  yields the highest score (need not be greater
  than or equal to the score of the previous
  assignment). If the new assignment satisfies the
  formula, return Yes.
• Return No (no satisfying assignment found,
  although one might still exist).

9
Key Points about GSAT

• Cannot tell us a formula is unsatisfiable (but we
  can just run propositional resolution in
  parallel).
• Random re-starts help us find multiple local
  optima -- the hope is that one will be global.
• Sideways (or even downward) moves help us get
  off a plateau -- can bounce us off a local
  optimum. Significant practical advance over
  standard greedy approach.

10
WalkSAT (WSAT)

• To further get around the problems of local
  optima, we can occasionally choose to make a
  random flip rather than a GSAT flip (as in a
  random walk). WSAT differs from GSAT as follows
• One additional input a probability p of a random
  move at any step.
• A random move will involve randomly choosing an
  unsatisfied clause, randomly

11
WSAT (Continued)

• (Continued) choosing a variable in that clause,
  and flipping that variable in the assignment
  (even if the net result of the flip is a decrease
  in score).
• For each move, draw a pseudo-random number
  between 0 and 1. If less than p, make a random
  move otherwise, make a GSAT move.
• WSAT outperforms GSAT, GAs, and Simulated
  Annealing on random trials.

12
Davis-Putnam with RRR

• For awhile, GSAT and WSAT displaced the old
  standard deterministic algorithm, Davis-Putnam.
• Actually, whats called Davis-Putnam is really
  Davis-Putnam-Logemann-Loveland.
• Recently, its been seen that the key to
  GSAT/WSAT success is the random restart idea.

13
DPLL with RRR (Continued)

• In the last few years, Davis-Putnam-Logemann-Lovel
  and has been fitted with rapid random restarts
  (RRR). The result often outperforms WSAT and
  GSAT.
• DPLL is a backtrack search algorithm that uses
  some heuristics. Different restarts involve
  different choices at backtrack points.

14
DPLL(CNF formula f)

• If f is empty then return yes.
• Else if there is an empty clause in f then return
  no.
• Else if there is a pure literal l in f then
  return DPLL(f(l)).
• Else if there is a unit clause l in f then
  return DPLL(f(l)).
• Else choose a variable v mentioned in f. If
  DPLL(f(v)) yes then return yes. Else return
  DPLL(f(v)).

15
DPLL with RRR

• Randomly select the variable and variable setting
  at the choice point.
• Restart after a short period of time if a
  solution has not been found.
• Avoids heavy tail directions in the search
  that will lead to very long run times.

16
Classical Planning Problem

• Input descriptions of the current world state
  (initial conditions), the agents goal, and the
  possible actions that can be performed.
• Output a sequence of actions that, when executed
  from the initial state, will result in a state in
  which the goal is true.

17
Formal Language and Vocabulary

• Must choose a formal language (e.g. propositional
  or first-order logic) in which to represent
  states, goals, and actions. Also need a
  vocabulary (e.g. choice of propositions or
  predicate symbols, function symbols, etc.).
• Examples include propositional and first-order
  STRIPS representations, situation calculus
  representations, etc.

18
A Simple Classical Framework

• Propositional STRIPS each action, or operator,
  characterized by preconditions and postconditions
  (add list and delete list).
• Atomic time time proceeds in discrete steps.
• Omniscient agent no probabilities on world
  states, states are completely specified.
• Deterministic effects no probabilities on
  postconditions.

19
Classical Framework (Continued)

• Conjunctive goals.
• Conjunctive preconditions.
• Later we will discuss relaxing the constraints of
  the propositional representation, conjunctive
  goals, and conjunctive preconditions.

20
GRAPHPLAN at a High Level

• Graph-expansion phase extend a planning graph
  forward in time until a necessary (though not
  sufficient) condition for plan existence has been
  achieved.
• Solution-extraction phase search the resulting
  graph for a correct plan.
• If no plan is found, then repeat the two phases
  through more time steps.

21
Planning Graph

• Two types of nodes propositions and actions.
• Nodes partitioned into levels labeled 0 to n
  for some natural number n.
• Nodes at even-numbered levels are labeled by
  propositions, and nodes at odd-numbered levels
  are labeled by actions.

22
(No Transcript)
23
Planning Graph (Continued)

• An odd-numbered level contains one node for each
  action whose preconditions are present at the
  previous level, and that level contains no other
  actions.
• An edge exists between a proposition p at level i
  and an action a at level i1 if and only if p is
  a precondition for i.

24
Planning Graph (Continued)

• An action node at level i has an edge to a
  proposition node at level i1 if and only if the
  action has the effect of making the proposition
  true.
• The only other ordinary edges in the graph are as
  follows for any proposition p at level i, if p
  remains true when no action is taken, then there
  is an edge from p at level i to p at level i2.

25
Planning Graph Represents Parallel Actions

• A planning graph with k action levels can
  represent a plan with more than k actions.
• That two actions appear at the same level does
  not imply that both can be executed at once.
• Whether two actions can be executed at once is
  captured by a relation called mutually exclusive
  (mutex), defined next.

26
The Mutex Relation

• A mutex relation may hold between two actions or
  two propositions at some level.
• Two actions at level i are mutex if either
• the effect of one action is the negation of
  another actions effect (inconsistent effects)

27
Mutex (Continued)

• one action deletes the precondition of another
  (interference)
• the actions have preconditions that are mutually
  exclusive at level i-1 (competing needs)

28
Mutex Relation (Continued)

• Two propositions at level i are mutex if either
• One is the negation of the other
• all ways of achieving the propositions (that is,
  actions at level i-1) are pairwise mutex
  (inconsistent support).

29
Mutex Relation (Continued)

• Maintenance of a proposition p from propositional
  level i-1 to propositional level i1 is also
  considered as an action at level i (although not
  represented by a node at level i, but simply an
  edge from p at level i-1 to p at level i1.
• An action a at level i is mutex with the
  persistence of p from level i-1 to level i1 if a
  makes p false (inconsistent effects).

30
(No Transcript)
31
An Example

• Propositions
• garb garbage is in the house
• dinner dinner is prepared
• present present is wrapped
• cleanH hands are clean
• quiet house is quiet

32
Example (Continued)

• Goal dinner, present, garb
• Initial State garb, cleanH, quiet
• Actions
• cook requires cleanH, achieves dinner
• wrap requires quiet, produces present
• carry achieves garb, deletes cleanH
• dolly achieves garb, deletes quiet

33
Example (Continued)

• Inferred Mutex relations
• carry and garb are mutex because carry deletes
  garb.
• dolly and wrap are mutex because dolly deletes
  quiet, which is a precondition for wrap.
• At proposition level 2, quiet is mutex with
  present because of inconsistent support.

34
(No Transcript)
35
(No Transcript)
36
Solution Extraction

• Suppose the goal has n conjuncts.
• A plan might exist if GRAPHPLAN has proceeded to
  some propositional level at which all the goal
  propositions are present and no pair of these is
  mutex. (This condition is necessary but not
  sufficient.)
• Must attempt to extract a solution from the
  graph---test whether a solution is embedded

37
Solution Extraction (Continued)

• (Continued) in the graph.
• Original method is a backtracking search
  (depth-first search where state transitions
  consist of choosing a next action).

38
Backtrack Algorithm for Solution Extraction

• Suppose i is the last level in the planning graph
  (we assume i is a propositional level). The goal
  at level i is the goal for the plan.
• For each propositional level from i to 0
• For each proposition (say, p) that appears as a
  conjunct of the goal
• Choose one of the actions a that makes p true
  (could be a maintenance action) and that is not
  mutex with any of the actions chosen so far at
  this level.

39
Backtracking Solution Extraction Algorithm
(Continued)

• If no such action exists, backtrack (try another
  alternative for the previous choice). If no
  previous choices were made, FAIL.
• If the current level i is greater than 0, then
  take the union of the preconditions for the
  actions chosen at this level i, and set these to
  be the conjuncts of the goal for level i-2.
  Otherwise, return then plan (reverse the order of
  the sequence of selected actions).

40
Putting it all Together

• The Backtracking Solution Extraction Algorithm
  succeeds if and only if there exists a plan
  within the planning graph.
• If no plan is found, then extend the planning
  graph with additional levels.

41
Example (Continued from Earlier)

• There exists no plan in the planning graph to
  level 2 for our example, because of the mutex
  relations between the propositions of our goal.
• At level 4 several plans exist. Note that the
  propositions at level 4 are the same as level 2,
  but there are fewer mutex relations (because we
  can use maintenance actions for propositions
  achieved at level 2).

42
(No Transcript)
43
Using Fast Satisfiability Algorithms for Planning

• Fast stochastic algorithms for propositional
  satisfiability GSAT, WSAT (WalkSAT)
• Compile a planning problem in to a satisfiability
  problem (example of a constraint satisfaction
  problem -- CSP), and use a fast algorithm for
  satisfiability.

44
SATPLAN

• Compile a planning problem into a satisfiability
  problem.
• Use GSAT (or WSAT) to solve the satisfiability
  problem. A satisfying assignment encodes a plan
• Well see later that we also can merge GRAPHPLAN
  and SATPLAN.

45
SATPLAN (Continued)

• As we might expect, we need to encode the initial
  state, the goal, and the available actions.
• Included among the actions are the maintenance
  actions (must write frame axioms).
• At the end, we will discuss encoding
  non-propositional planning tasks.

46
A Subtle Point

• We still will use the idea of proposition and
  action levels, but for now we will assume only
  one action occurs per level.
• For now we will consider using SAT-based planning
  alone, without GRAPHPLAN.
• Afterward, we will discuss merging the two.

47
Compiling Planning to SAT

• INIT initial state is specified by a set of
  single-literal (empty-body) clauses. For
  example, the initial state from our earlier
  example would be specified by the clauses garb-0,
  cleanH-0, quiet-0, dinner-0, and present-0.
• GOAL To test for a plan of length at most n,
  each goal conjunct is asserted to be true at
  level 2n. For the goal in our example, we

48
Compilation (Continued)

• (Continued) if we want to test whether it is
  true at time 1, we would add the following
  single-literal (empty-body) clauses garb-2,
  dinner-2, and present-2.
• ACTIONS Actions imply both their preconditions
  and effects. Thus among the clauses we would add
  for our preceding example would be (cook-1
  cleanH-0) as

49
Compiling (Continued)

• (Continued) well as (cook-1 cleanH-0).
• EXCLUSION axioms saying at most one action
  occurs at an action level (can relax) for all
  actions a and b add (a-i b-i).
• FRAME Also must encode some type of frame axioms
  (maintenance actions). Well spend several
  slides on this because it is more complicated and
  two options exist.

50
Two Types of Frame Encodings

• Classical frame axioms at-least-one axioms
  classical frame axioms say which propositions are
  left unchanged by a given action, and
  at-least-one axioms enforce that some action
  occurs at each action level.
• Explanatory frame axioms enumerate the set of
  actions that could have occurred to account for
  some state change.

51
Classical Frame Axioms

• In our previous example, we would specify that if
  the garbage was in the house at level 0, and our
  action at level 1 was cook, then garbage is still
  in the house at level 2 (garb-0 cook-1
  garb-2).
• In general, for each action a and each
  proposition p that a leaves unchanged, we have
  (p-(i-1) a-i p-(i1)).

52
At-Least-One Axioms

• But if no action occurs at an action level, we
  will lose all our propositions from the previous
  level. Therefore, we add axioms that specify an
  action must occur at each level.
• For each action level i, we have a disjunction of
  all possible actions, e.g., (cook-i wrap-i
  dolly-i carry-i).

53
Explanatory Frame Axioms

• If garbage was in the house at level 0 but is not
  in the house at level 2, then one of the actions
  that removes garbage must have occurred at level
  1 (garb-0
  garb-2 carry-1 dolly-1).
• We do not need at-least-one axioms, but we do
  still need exclusion axioms.

54
Linking GRAPHPLAN and SATPLAN

• Build the planning graph as normally, and then
  convert the planning graph (partially solved and
  hence simpler task) into a CNF formula.
• INIT and GOAL axioms are as before.
• Actions imply their preconditions (we use our
  ACTION axioms without the implication of effects.

55
Linking (Continued)

• (Almost) explanatory frame axioms each fact at a
  propositional level implies the disjunction of
  all actions that could have caused it, including
  explicit maintenance actions. For example, if
  garbage is not in the house at level 4, then
  either dolly or carry occurred at level 3 or we
  maintained garbage from level 2 ...

56
Linking (Continued)

• Specialized exclusion axioms instead of saying
  no two actions can occur at the same action
  level, we simply say that conflicting (mutex)
  actions cannot occur at the same level.
• GSAT or WSAT can the be used to more efficiently
  search the planning graph (so represented) for a
  plan.

57
Relaxing the Restriction to Propositional Logic

• Suppose we have a first-order representations,
  such as the standard STRIPS representation for
  the blocks world.
• Neither GRAPHPLAN nor SATPLAN (nor their
  combination) as described so far can be applied,
  because they assume a propositional
  representation.
• Solution convert to propositional.

58
Methods of Conversion

• Convert each ground atom (member of the Herbrand
  Universe) and level pair to a distinct
  proposition. For example, each of the following
  becomes a proposition
• ontop(a,b) at level 0
• ontop(b,a) at level 0
• clear(a) at level 0
• clear(b) at level 0

59
Conversion (Continued)

• ontop(a,b) at level 2
• unstack(a,b) at level 1
• unstack(b,a) at level 1
• stack(a,b) at level 1
• pickup(a) at level 1
• etc.

60
Conversion (Continued)

• The problem with the preceding method is that the
  number of propositions grows exponentially with
  the predicate arity.
• Alternative Break the representation of each
  first-order ground atom into parts (e.g.,
  arguments or bits), all of which have to be true
  for the atom to be construed as true.
• One distinct proposition for each argument of

61
Conversion (Continued)

• (Continued) of each ground atom.
• One distinct proposition for each argument of a
  given predicate (some ground atoms could share
  some propositions).
• Number all the ground atoms, and have one
  proposition for each bit in the binary
  representation of the atoms number.

62
SATPLAN Example
63
Example Conversion

• INIT
• x1 ontable(a,0)
• x2 ontable(b,0)
• x3 ontop(c,a,0)
• x4 clear(c,0)
• x5 clear(b,0)
• x6 handempty(0)

64
Example (Continued)

• GOAL
• x7 clear(a,2)
• x8 clear(c,2)

65
Example (Continued)

• ACTIONS
• pickup(a,1) -gt ontable(a,0) clear(a,0)
  handempty(0)
• Must convert into clauses
• pickup(a,1) ontable(a,0)
• pickup(a,1) clear(a,0)
• pickup(a,1) handempty(0)
• Similarly for pickup(b,1) and pickup(c,1)

66
Example (Continued)

• ACTIONS (Continued)
• putdown(a,1) -gt holding(a,0)
• Must convert into clauses
• putdown(a,1) holding(a,0)
• Similarly for putdown(b,1) and putdown(c,1)

67
Example (Continued)

• ACTIONS (Continued)
• stack(a,b,1) -gt clear(b,0) holding(a,0)
• Must convert into clauses
• stack(a,b,1) clear(b,0)
• stack(a,b,1) holding(a,0)
• Similarly for other instantiations of the stack
  operator and for other action levels.

68
Example (Continued)

• ACTIONS (Continued)
• unstack(a,b,1) -gt ontop(a,b,0) handempty(0)
  clear(a,0)
• Must convert into clauses
• unstack(a,b,1) ontop(a,b,0)
• unstack(a,b,1) handempty(0)
• unstack(a,b,1) clear(a,0)
• Similarly for other instantiations of the unstack
  operator and for other action levels.

69
Example (Continued)

• FRAME AXIOMS (Explanatory)
• clear(a,0) clear(a,2) -gt
• unstack(b,a,1)
• unstack(c,a,1)
• putdown(c,1).
• Convert to clauses by generalization of the rule
  (ab) (cd) (ac)(ad)(bc)(bd). Must
  build frame axioms for all action instances.
• Also need clear(a,0) clear(a,2) -gt ...

70
Example (Continued)

• FRAME AXIOMS (Explanatory)
• clear(a,0) clear(a,2) -gt
• stack(b,a,1)
• stack(c,a,1)
• pickup(c,1).
• Must repeat these for all other time steps, and
  must also do explanatory frame axioms for all
  other propositions besides those based on clear.

71
Example (Continued)

• EXCLUSION AXIOMS For each pair of action
  instances a and b and each action level i, add
  (a-i b-i).
• For example, we would add (among others)
• stack(a,b,1) pickup(c,1)
• unstack(a,b,1) unstack(b,a,1)
• etc.

72
Example of the Benefit of Action Splitting

• With just 10 blocks, we will require nearly
  10,000 axioms of the form stack(a,b,1)
  stack(c,d,1). To see this, note that 90 ground
  stack literals can be built given 10 blocks, and
  therefore 9089 pairs of stack literals can be
  built.
• With splitting instead, we require only 180
  literals (109 for the first argument, and 109
  for the second).

73
SATPLAN

• Compile a planning problem into a propositional
  satisfiability problem.
• Use a fast satisfiability algorithm to solve the
  satisfiability problem. A satisfying assignment
  encodes a plan
• Well see later that we also can merge GRAPHPLAN
  and SATPLAN.

74
SATPLAN (Continued)

• As we might expect, we need to encode the initial
  state, the goal, and the available actions.
• Included among the actions are the maintenance
  actions (must write frame axioms).
• At the end, we will discuss encoding
  non-propositional planning tasks.

75
A Subtle Point

• We still will use the idea of proposition and
  action levels, but for now we will assume only
  one action occurs per level.
• For now we will consider using SAT-based planning
  alone, without GRAPHPLAN.
• Afterward, we will discuss merging the two.

76
Compiling Planning to SAT

• INIT initial state is specified by a set of
  single-literal (empty-body) clauses. For
  example, the initial state from our earlier
  example would be specified by the clauses garb-0,
  cleanH-0, quiet-0, dinner-0, and present-0.
• GOAL To test for a plan of length at most n,
  each goal conjunct is asserted to be true at
  level 2n. For the goal in our example, we

77
Compilation (Continued)

• (Continued) if we want to test whether it is
  true at time 1, we would add the following
  single-literal (empty-body) clauses garb-2,
  dinner-2, and present-2.
• ACTIONS Actions imply both their preconditions
  and effects. Thus among the clauses we would add
  for our preceding example would be (cook-1
  cleanH-0) as

78
Compiling (Continued)

• (Continued) well as (cook-1 cleanH-0).
• EXCLUSION axioms saying at most one action
  occurs at an action level (can relax) for all
  actions a and b add (a-i b-i).
• FRAME Also must encode some type of frame axioms
  (maintenance actions). Well spend several
  slides on this because it is more complicated and
  two options exist.

79
Two Types of Frame Encodings

• Classical frame axioms at-least-one axioms
  classical frame axioms say which propositions are
  left unchanged by a given action, and
  at-least-one axioms enforce that some action
  occurs at each action level.
• Explanatory frame axioms enumerate the set of
  actions that could have occurred to account for
  some state change.

80
Classical Frame Axioms

• In our previous example, we would specify that if
  the garbage was in the house at level 0, and our
  action at level 1 was cook, then garbage is still
  in the house at level 2 (garb-0 cook-1
  garb-2).
• In general, for each action a and each
  proposition p that a leaves unchanged, we have
  (p-(i-1) a-i p-(i1)).

81
At-Least-One Axioms

• But if no action occurs at an action level, we
  will lose all our propositions from the previous
  level. Therefore, we add axioms that specify an
  action must occur at each level.
• For each action level i, we have a disjunction of
  all possible actions, e.g., (cook-i wrap-i
  dolly-i carry-i).

82
Explanatory Frame Axioms

• If garbage was in the house at level 0 but is not
  in the house at level 2, then one of the actions
  that removes garbage must have occurred at level
  1 (garb-0
  garb-2 carry-1 dolly-1).
• We do not need at-least-one axioms, but we do
  still need exclusion axioms.

83
Linking GRAPHPLAN and SATPLAN

• Build the planning graph as normally, and then
  convert the planning graph (partially solved and
  hence simpler task) into a CNF formula.
• INIT and GOAL axioms are as before.
• Actions imply their preconditions (we use our
  ACTION axioms without the implication of effects.

84
Linking (Continued)

• (Almost) explanatory frame axioms each fact at a
  propositional level implies the disjunction of
  all actions that could have caused it, including
  explicit maintenance actions. For example, if
  garbage is not in the house at level 4, then
  either dolly or carry occurred at level 3 or we
  maintained garbage from level 2 ...

85
Linking (Continued)

• Specialized exclusion axioms instead of saying
  no two actions can occur at the same action
  level, we simply say that conflicting (mutex)
  actions cannot occur at the same level.
• GSAT or WSAT can the be used to more efficiently
  search the planning graph (so represented) for a
  plan.

86
Relaxing the Restriction to Propositional Logic

• Suppose we have a first-order representations,
  such as the standard STRIPS representation for
  the blocks world.
• Neither GRAPHPLAN nor SATPLAN (nor their
  combination) as described so far can be applied,
  because they assume a propositional
  representation.
• Solution convert to propositional.

87
Methods of Conversion

• Convert each ground atom (member of the Herbrand
  Universe) and level pair to a distinct
  proposition. For example, each of the following
  becomes a proposition
• ontop(a,b) at level 0
• ontop(b,a) at level 0
• clear(a) at level 0
• clear(b) at level 0

88
Conversion (Continued)

• ontop(a,b) at level 2
• unstack(a,b) at level 1
• unstack(b,a) at level 1
• stack(a,b) at level 1
• pickup(a) at level 1
• etc.

89
Conversion (Continued)

• The problem with the preceding method is that the
  number of propositions grows exponentially with
  the predicate arity.
• Alternative Break the representation of each
  first-order ground atom into parts (e.g.,
  arguments or bits), all of which have to be true
  for the atom to be construed as true.
• One distinct proposition for each argument of

90
Conversion (Continued)

• (Continued) of each ground atom.
• One distinct proposition for each argument of a
  given predicate (some ground atoms could share
  some propositions).
• Number all the ground atoms, and have one
  proposition for each bit in the binary
  representation of the atoms number.
