Realizing Optimal Fuel Cell Designs With Advanced Manufacturing Methods

1

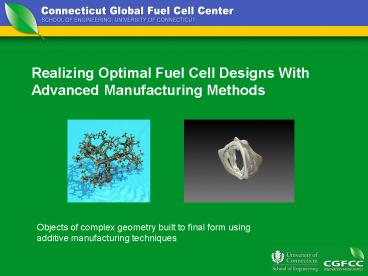

Realizing Optimal Fuel Cell Designs With Advanced
Manufacturing Methods
Objects of complex geometry built to final form
using additive manufacturing techniques
2
Todays Mass Customization Applications

• Scan-Digitize-Manufacture
• Patient-specific orthodontia and joint
  replacements
• Patient-specific hearing aid shells
• Athlete-specific sports shoes soles
• Part, material, and process-specific cooling of
  molds for injection molding
• Replacement of multiple-part assemblies with one
  piece (commercial aerospace applications)

T.Bergman
3
Cutting Edge Layered Manufacturing
Titanium cage fabricated 12/03 with
selective laser melting Courtesy S. Hollister
Zirconium oxide cage fabricated with ink jet
printing (Zhao et al., 2002)
T.Bergman
4
Tomorrows optimally-designed and manufactured
fuel cell

• Manufacture of truly optimal fuel cell designs
• Selective catalyst seeding for optimal
  performance and minimum cost
• Conformal geometries for bio applications
• Opportunities for revolutionary system design

T.Bergman
5
Work in Progress at UConn/Ionomem

• Scale-Up of MEAs
• Performance Characterization
• Single Cell Short Stack
• 300 cm2 Testing

• Optimization of MEAs
• Material Characterization
• Endurance Testing

• Composite membrane (based on Nafion and solid
  proton conductor)
• Nafion-Teflon-phosphotungstic acid (NTPA) HPA
  Stabilization
• Nafion-Teflon-zirconium hydrogen phosphate
  (NTZP)
• Nafion-Zirconium hydrogen phosphate (NZP)
• Increased Thermal Stability (Ionic form of
  Nafion)
• Catalyst layer
• Optimize Proton Conduction
• Optimize Mass Transfer
• Diffusion layer
• Enhance Gas Transfer
• Optimize Hydrophilic/Hydrophobic Regions

J. Fenton
6
Components of a PEMFC MEA
Anode catalyst Pt-Ru/C 0.3 - 0.5 mg/cm2 0.6 -
1 mils
Cathode catalyst Pt/C 0.3 - 0.5 mg/cm2 0.6 -
1 mils
Membrane Electrode Assembly (MEA)
Cathode gas diffusion layer (GDL) 14 - 16 mils
Anode gas diffusion layer 14 - 16 mils
J. Fenton
7
J. Fenton
8
Nafion/Heteropolyacid Composite Membranes
FTIR
XRD

• Rationale
• - Inherently high HPA conductivity at high
  humidities ( 0.2 S/cm)
• - Induction of alternate conduction mechanisms
  i.e. enhancement of proton hopping

J. Fenton
9
High Performance under Non-Humidified Conditions
TCell/TA,Hum/TC,Hum, Membrane 1mil NTPA
Membrane, In-house Substrate 0.5 mg/cm2 Pt/C for
cathode , 0.5 mg/cm2 Pt-Ru/C for anode
0.674 V
0.645 V
Remove humidification Lower inlet flow rates of
both Cathode Anode, ? 30 mV loss with
Simpler System, NO humidifier required, HIGHER
utilization.
(Williams Thesis)
J. Fenton
10
Conclusion

• High Performance high temperature MEAs
• Developed from 5 25-cm2
• 0.6 V _at_ 400 mA/cm2 (120C, 35R.H./1 atm) R
  0.18 ohm-cm2
• 0.66 V _at_ 400 mA/cm2 (120C, 50R.H./1.5 atm) R
  0.09 ohm-cm2
• Scaled up to full size 300 cm2
• Similar Performance as elemental cell up to 4
  cell stack
• Component Development
• Composite membrane high conductivity
  stabilized
• Catalyst structure kinetics studies optimized
  lt 1st order
• Gas diffusion layer superior than commercial at
  high T/low R.H.
• Unique Applications
• NO external humidification High Perf. (GDL
  Stoi.)
• LOW Flow Rate CO tolerance not much important

J. Fenton
11
Under a NSF Grant, UConn Has Fabricated Ceramics
for On-Site Production of Hydrogen from Natural
Gas to Produce a Hydrogen Infrastructure for Fuel
Cell Use.
A reforming catalyst is packed into perovsite
ceramic tubes to convert the natural gas into a
stream containing hydrogen. The hydrogen is
purified since only the hydrogen can pass
through the perovsite tube walls.
UConn Perovsite
R. Kunz
12
Molten Carbonate Fuel Cells for Cogeneration Use
Can be Reduced in Cost by the Development of
Alternative Cathodes

• MCFCs operate at a high enough temperature
  (650oC) to allow very efficient cogeneration and
  demonstrations are underway at FuelCell Energy.
• The performance of a MCFC stack is limited by
  cathode catalytic performance.
• Combined electron and oxide ion conductors may
  enhance that catalytic activity.
• Such conductors have been researched for use in
  solid oxide fuel cells.
• Some of these materials have shown stability in
  the MCFC environment and should be evaluated for
  their catalytic properties.

R. Kunz
13
Cogeneration Fuel Cell Power Plants Can be
Developed to Efficiently Use Agricultural Wastes
as the Fuel Source

• Ethanol can be made from agricultural materials
  such as corn stalks, straw, wood, grasses and
  waste papers by a fermentation process.
• Methane can be made from such materials by a
  gasification process.
• Traditional processes to make useful products
  from wastes require purification e.g., the
  distillation of water from an ethanol/water
  stream.
• Fuel cells can tolerate some impurities in fuels
  e.g., some fuel cells need water.
• Wastes are frequently too low in value to ship
  long distances.
• Fuel cells can locally consume impure products of
  processed waste to generate both electricity and
  heat for on-site use.

R. Kunz
14

• Science Links - Wilson K. S. Chiu
• MODELS ASSISTED BY EXPERIMENTS
• Construct hierarchical modeling methods from
  nano-to-systems using teraflop computing
  capabilities and optimized computational and
  simulation algorithms.
• Design fuel cell validation system.
• REGEN Science reversibility, recharging
  dynamics, severe environments, cycling,
  fabrication and manufacturing.
• COGEN Science thermal management, transient
  operation, recovery of co-products, heat
  exchange, optimization, scaling.
• SSGEN Science fuel consumption, thermal
  management, anode / cathode nanostructural
  design, fabrication and manufacture, accelerated
  characterization.

15
Understanding Hole Pattern Formation
DuringMicrostructured Optical Fiber DrawWilson
K. S. Chiu (UConn) and David J. DiGiovanni (OFS
Labs)
Structures of Interest
Draw Process
16
Transport Phenomena in the Chemical Vapor
Deposition ofHermetic Optical Fiber
CoatingsWilson K. S. Chiu, UConn
Computational Modeling Design
Film Growth Characterization
17
Integrated Fuel Cell Systems Engineering Design
and Manufacturing Research Center

• Educational Efforts
• Multi-University Integrated and Modular Approach
  to Fuel Cell Science Engineering Education -
  The Vision
• Overcomes the difficulties associated with large
  scale curriculum changes
• Allows for integration of fuel cell technology
  education in current curriculums of Mechanical
  Engineering, Chemical Engineering, Engineering
  Mechanics, Chem, etc.
• Integrated as part of electives
• Access to the Experts (ATTE) The Means
• Allows for access to technology and experts at
  other universities that would otherwise not be
  available at one university
• Expands opportunities for learning and research
• Interdisciplinary approach to education
• Distributed Learning The Methods
• Interactive video
• Web based
• Faculty-Student Exchange
• EDS e-engineering

18
Integrated Fuel Cell Systems Engineering Design
and Manufacturing Research Center

• Underrepresented Institution
• University of Puerto Rico System
• Carlos R. Cabrera, Chemistry, UPR Rio Piedras
• Vijay K. Goyal-Singhal, Mech Engr., UPR Myaguez
  (UPRM), collaboration with Pratt/UConn EDS
• Ricardo Roman, Vice Chair of the UPRM Sch of
  Engin. Industrial Advisory Board, Hamilton
  Sundstrand PR Electronics in Santa Isabel
• Interactions
• Catalysts
• System engineering (EDS e-engineering)
• Distributed learning
• Technology, Industrial, Fabrication
  Implementation
• PR Economic Development

19
ERC Information Technology Enterprise Enabling
the virtual ERC via e-science and e-engineering
20
Key enabling technologies Grid-based distributed
collaborative framework
Data Grid overlayed on Computational Grid
Computational Grid, including NPACI/TerraGrid
Access Grid
