IS560 ERP Session Number: 4

1

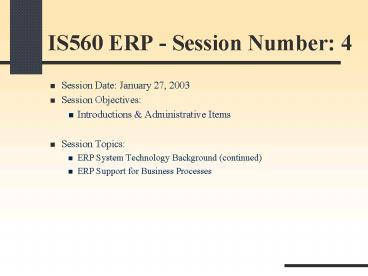

IS560 ERP - Session Number 4

• Session Date January 27, 2003
• Session Objectives
• Introductions Administrative Items
• Session Topics
• ERP System Technology Background (continued)
• ERP Support for Business Processes

2
ERP System Technology Background - mySAP SCM
Example

• Servers
• Windows NT
• AS/400 System/390 (incl. S/390 Parallel
  Enterprise Server
• Unix Systems from Bull, IBM, HP, Sun, Compaq
• Databases
• Adabas D for Unix Windows
• DB2 for AIX, OS/400, OS/390, Windows NT
• Informix for Unix Windows
• Oracle for Unix Windows
• MS SQL Server for Unix Windows
• Note MS SQL Server 7.0 is strategic platform for
  mySAP.com on WinNT W2K
• Clients
• Windows NT 2000
• Sun Solaris
• Linux
• IBM RS/6000, AS/400, S/390

3
Traditional ERP solutions Accomdating industry
needs
Traditional ERP consists of modules that support
plant/manufacturing operations, corporate
functions and direct purchasing/procurement "blue
collar for various industries.

• Financial Services
• Banking
• Insurance
• Process Industries
• Chemicals
• Mill Products
• Oil Gas
• Pharmaceuticals
• Mining
• Discrete Manufacturers
• Aerospace Defense
• Automotive
• Engineering Construction
• High Tech

• Consumer Goods
• Consumer Products
• Retail
• Utilities Communications
• Media
• Telecommunications
• Utilities
• Public Services
• Healthcare
• Higher Education Research
• Public Sector

4
ERP Supported Business Processes

• Plant Manufacturing Operations
• Corporate Functions
• Fulfillment
• Order Management
• Asset Management,
• Service Management
• Project Management
• Corporate Compliance
• QA/QC
• HR
• Recruitment
• Benefits
• Personnel Administration
• Education and Training
• Contingent Workforce Management
• Organization Development
• Performance Management
• Payroll
• Workforce Analytics

• Financial Management
• Accounting
• Budgeting
• Activity-based Management
• Indirect Purchasing/Procurement
• Consolidation
• Enterprise Asset Management
• Asset Management
• HRMS
• Materials Management
• Financials
• Integrated Plant Systems
• Plant Resource Management
• Production Operations Management
• Open Control Systems
• Production Info Management
• Process Modeling/Knowledge Management

• Supply Chain Management
• Supply Chain Planning
• Supply Chain Execution
• Warehouse Management
• Transportation Management
• Import/Export Trade Management
• Buy-side Ecommerce
• e-Procurement
• eSourcing
• eMarketplace
• eCommerce Content Management
• Collaboration Knowledge Management
• Email Scheduling/Calendaring
• Team Support Real-time Collaboration
• Content/Document Management
• Design Engineering

5
Highlight on Plant Manufacturing Operational
Support Support for Manufacturing Integration

• MRP-Based Production Planning and Scheduling
• Kaizen
• Just-in-Time (JIT)
• Total Quality Management (TQM)
• Lean Production
• Extended Enterprise

6
Traditional Material and Capacity Planning
Hierarchy
Material Planning
Capacity Planning
Business Planning
Resource Requirements Planning
Production Planning
Rough-Cut Capacity Planning
Master Production Scheduling
Capacity Requirements Planning
Material Requirements Planning
Operation Sequencing
Production Activity Control
Input / Output Control
7
Materials Requirements Planning
Master Production Schedule

• MRP types
• Regeneration
• Net change

Exploding the requirements

• Time fences
• Frozen-Firm
• Flexible-open

Bills of Materials
Inventory Status File
MRP Procedure
Special Reports
Inventory Transactions
e.g., Inventory costs
Planned Order Schedules Actual Order
Releases Exception and Change Notices
8
Push Production vs. Pull Production

• Push --- Job orders at every stage of the
  production process are pushed from one operation
  to the neshop floor on job schedules
• Pull --- Job orders are initiated from
  downstream operations that require parts, i.e..
  they are pulled from one operation to the next
• MRP is associated with push production but
  still retains usefulness as a tool for long-range
  and medium-range planning (as well as for
  materials procurement)
• Pull production is a tool for short-range work
  scheduling and shop floor control

9
MRP, Closed-Loop MRP and MRP II

• Material Requirements Planning
• Procedure for determining how much of and when
  dependent-demand items should be manufactured /
  ordered to satisfy requirements for an end-item
• Determines required quantities of components and
  sends out manufacturing / purchase orders for
  them at the appropriate times
• Closed-Loop MRP
• Considers material and capacity requirements
• Prior to releasing production orders to shop
  floor, it adds the planned workload to existing
  workload, and compares it with the available
  capacity
• MRP II (Manufacturing Resource Planning)
• Closed-Loop MRP plus planning and managing
  resources
• Other departments (purchasing, marketing,
  engineering, finance) use output from MRP
  procedure to coordinate work and achieve cost
  savings
• Used for resource and aggregate planning and RCCP

10
MRP terminology

• Available Stock On-Hand Scheduled Receipt
• Net Requirement (NR) Gross Requirement
  Available Stock
• Lot-sizing Rules
• Lot for lot (POR quantity NR quantity)
• Fixed lot (constant quantity for every order)
• Safety stock
• Amount held to protect against changes in supply
  and demand
• Safety margin
• Shortages result when items produced are
  unsuitable to fill the NR.
• If NR 300 and Yield-loss 2, then POR amount
  306
• Safety lead time
• Orders placed to arrive before needed (to reduce
  the risk of an order arriving late)
• System Nervousness
• Small changes at higher levels induce large
  changes at lower levels (degree to which changes
  to MPS or GRs of upper-level items affect GRs and
  PORs of lower-level items)

11
MRP-Based Production Planning and Scheduling
Planning Horizon Long-Range -------------------
---- Medium-Range ----------------------- Sh
ort-Range
MRP Components

• Demand Management
• Aggregate Demand
• Resource Planning

• Master Production Scheduling (MPS)
• Rough Cut Capacity Planning
• Material Requirements Planning
• Capacity Requirements Planning

• Material Capacity Plans
• Order Release
• Shop-floor Scheduling/Control
• Purchasing
• Vendor Scheduling/Follow-up

12
Long-Range Planning

• What will happen to demand over the next 1-5
  years and how should we prepare for it?
• Considers alternative strategies and tactics
• Plant size/location, workforce size, new
  products, capital, etc
• Work shifts, overtime, inventories, outsourcing,
  etc
• Multi-functional perspective
• finance, marketing, sales, operations
• Demand Management External vs.. Internal
• Customer demand
• Service parts, Intra-company requirements,
  inventory stocking
• Forecasting, promotional campaigns, product
  pricing
• Aggregate Demand
• Demand for product groups (similar routings,
  parts, operating times, resources)

13
Long-Range Planning (contd)

• Resource Planning
• Resource measured in terms of its capacity level
• Amount of resources necessary to satisfy
  aggregate demand
• Only key resources considered (bottleneck
  operations, special equipment and labor skills)
• Checks whether capacity of existing resources
  available to meet forecasted demand
• Maximum capacity is based on 3 shifts per day, 7
  days a week
• Available capacity depends on factors such as
  actual number of shifts and days worked per week,
  worker efficiency, equipment levels, etc

14
Aggregate Production Plan

• Considers not only overall resource requirements
  but also how the resource utilization will be
  adjusted to meet fluctuations in demand
• Plan for a product group from 3-6 months in the
  future up to 12 or more months
• 2 extreme cases
• Level-Production (constant workforce, constant
  output, use inventory to absorb demand
  fluctuations)
• Chase-Production (varies output to match
  demand by changing workforce size, outsourcing,
  adding shifts, etc)
• Usual plan is to have extended periods of level
  production, inter-mixed with brief periods of
  increased or decreased production to match demand
• Baseline for more detailed medium-range planning

15
MRP-Based Production Planning and Scheduling
Planning Horizon Long-Range -------------------
---- Medium-Range ----------------------- Sh
ort-Range
MRP Components

• Demand Management
• Aggregate Demand
• Resource Planning

• Master Production Scheduling (MPS)
• Rough Cut Capacity Planning
• Material Requirements Planning
• Capacity Requirements Planning

• Material Capacity Plans
• Order Release
• Shop-floor Scheduling/Control
• Purchasing
• Vendor Scheduling/Follow-up

16
Medium-Range Planning

• Time horizon 6 months or less into the future
• Facilities, product groups and processes are
  largely fixed
• Increase in capacity through overtime,
  subcontracting, etc
• Individual products, not product groups
• Weekly requirements, not monthly or yearly
• Master Production Schedule (MPS)
• A more detailed plan for every end-item, usually
  in weekly time buckets
• Usually derived from the most immediate portion
  of the aggregate production plan
• Usually takes into account actual customer orders
  rather than just forecasts. Mix of actual and
  forecast orders in later time buckets
• Available-To-Promise (ATP)
• The difference between the forecasted amount and
  the customer ordered amount in a time bucket
• Sales people try to keep new customer orders
  within the ATP amount, otherwise extreme measures
  (OT, grave-yard shifts) might be needed

17
Medium-Range Planning (contd)

• Rough-Cut Capacity Planning (RCCP)
• Workload associated with the quantity in each of
  the MPS time bucket is compared to the capacity
  of available resources
• Ensures that scarce, critical or bottleneck
  resources are not overloaded
• If workload exceeds available capacity in a
  certain time bucket, then either
• adjust MPS (e.g.. moving a portion of the
  quantity to another time bucket)
• Adjust the capacity in that overloaded time
  bucket (egg. OT)

18
Materials Requirements Planning

• Procedure
• Starts with scheduled due-date for an end-item
• Works backward in time to determine the
  quantities and timing for orders of every of its
  sub-assemblies and components
• Includes both manufactured orders and purchased
  orders
• Major Inputs
• MPS
• Time fences
• Example
• First 2 weeks (frozen - no changes allowed)
• The next 4 weeks (firm only minor changes
  allowed)
• After 6 weeks (the schedule is open and any
  changes allowed)
• BOM
• Exploding the requirements (down the various
  levels of the BOM)

19
Material Requirements Planning Major Inputs

• Inventory Status File
• Record of the current inventory status of every
  component in weekly or daily time buckets
• Contains the following information for each time
  bucket
• Amount of the item required (REQ)
• On-hand amount of the item (OH)
• Scheduled deliveries of existing orders for the
  item (RECP)
• MRP checks whether (OH RECP) gt REQ. If
  not, it will issue additional orders for the item
• Re-generation
• Entire file is regenerated (re-updated)
  regularly, usually weekly
• Re-assesses the inventory status of every item,
  and generates new orders for every item, if
  needed
• More costly than Net-change but has poorer record
  accuracy
• Net-Change
• Only the records that need updating are changed
• Re-assesses only items affected by a transaction
  and re-issues orders if needed

20
MRP - Major Outputs

• Inventory Transactions
• Updates to Gross Requirements and Scheduled
  Deliveries
• Planned Order Releases
• Future orders that will be necessary to satisfy
  the requirements of all items in the BOM
• Actual Order Releases
• Planned order becomes actual order, when the time
  bucket for the planned order reaches the present
  time
• For manufactured part, the order is sent to the
  shop floor
• For purchased part, the order is sent to external
  supplier
• Manual approval before releasing order is
  possible
• Exception and Change Notices
• The actual dates of delivery and amounts received
  may differ from the dates and amounts scheduled
• Special Reports
• Management reporting needs

21
Capacity Requirements Planning, Order Releases
and Picking

• CRP
• Checks the short-term and medium-term capacity
  feasibility of the MPS
• Similar to RCCP but is more detailed and accurate
• Instead of product groups, it uses individual
  products or end-items
• Compares total loading of every resource with the
  available capacity
• If overcapacity is discovered, the resource is
  flagged so that planners can take action
• Order Releases and Picking
• Planned order releases (POR) generated by MRP are
  accumulated in a job pool
• When the time bucket for a particular POR reaches
  the present, the order is released to the shop
  floor or to a supplier
• For manufactured parts, a released order is an
  authorization to shop floor personnel to withdraw
  materials from stockroom and to begin production
• Picking Tickets are sent to the stockroom,
  specifying the quantity of each material to be
  issued to the particular released order

22
MRP Limitations

• Centralized systems relying on a manual system of
  support that is often not up to the task
• Garbage-in, garbage-out problem (BOM, inventory
  status, lead-times)
• MRP assumes fixed lead-times
• In reality, lead-times vary depending on workload
• MRP planners tend to use inflated lead times
• This leads to large WIP inventories
• MRP requires too much effort for tracking, record
  keeping, status updating, etc. This is due to
  its attempt to schedule and control everything on
  the shop floor
• MRP does not encourage the improvement of process
  or product quality
• Built-in safety measures (safety stock, safety
  lead-time, safety margin)
• Too much emphasis on system updating that leaves
  little time for problem solving, elimination of
  waste and continuous improvement
• However, the limitations of MRP are largely
  restricted to shop floor matters, but it is
  effective for resource / capacity planning and
  master scheduling.

23
Support for Manufacturing Integration

• MRP-Based Production Planning and Scheduling
• Kaizen
• Just-in-Time (JIT)
• Total Quality Management (TQM)
• Lean Production
• Extended Enterprise

24
Kaizen

• Continuous, incremental improvement in a
  companys products, manufacturing processes,
  methods and procedures
• Idea that great improvement eventually comes from
  a series of small, incremental gains

Improvement
Performance
The S-curve of incremental improvement
Cumulative effort (Resources)
25
Just-in-Time

• A production system aiming for zero inventory and
  yet assuring that parts are available for
  assembly at the right time
• A pull system in which no materials move and no
  work is done until a downstream customer consumes
  a product
• In contrast, MRP systems anticipate customer
  requirements and push materials through the
  production system to be ready for the customer
• JIT is also a philosophy focusing on identifying
  and eliminating all waste, and on continuous
  improvement
• Overproduction, Waiting, Transportation,
  Processing, Stock, Motion, Making defective parts
• Use of kanbans for pull production
• Signboard in Japanese
• Rectangular piece of card (ERP systems use
  electronic kanbans)
• Authorization to assemble/ship parts to the next
  operation

26
Total Quality Management (TQM)

• Integrated approach that focuses all functions
  and levels of an organization on quality and
  continuous improvement
• Emphasizes quality not just for customers of the
  final product but also for internal customers
• Quality of Performance/Service as an example
• TQM and JIT
• JIT is aimed at eliminating waste and increasing
  value-added
• This cannot be achieved by manufacturing alone
• TQM ensures that improvements are fundamental and
  not superficial, through a company-wide
  commitment to quality
• For example, inspection to detect manufacturing
  defects does reduce waste and is an improvement.
  But the improvement is not fundamental
• TQM provides procedures and tools for identifying
  and eliminating the sources of defects (which may
  originate not in manufacturing, but in the
  product design or in purchasing practices)

27
Total Quality Management (contd)
Product Design / Development Quality of Design
Product Design and Engineering
Marketing And Sales
Product and Process Requirements / Definition
Finance
Manufacturing / Process Engineering
Purchasing
Product Manufacture Quality of Conformance
Production Management, Supervisors, Line Workers
External Suppliers
Customer Service
Final Product Of End-Item
Production Application Quality of
Performance/Service
External Customer
28
Lean Production some key principles

• Value
• Defined by the customer, created by the producer
• Value Stream
• Set of all the specific actions required to bring
  a specific product through the 3 critical
  management tasks of any business
• Problem-solving (concept through detailed design
  and engineering to production launch)
• Information management (order taking through
  detailed scheduling to delivery)
• Physical transformation (raw materials to a
  finished product in the hands of the customer)
• Map each of these actions into 3 categories
• Those that actually create value as perceived by
  the customer
• Those that create no value but are currently
  required by product development, order filling or
  production systems, and so cant be eliminated
  just yet
• Those that create no value as perceived by the
  customer and can be eliminated immediately

29
Lean Production some key principles (contd)

• Flow
• Focus on the actual object and never let it out
  of sight from beginning to end
• Ignore traditional boundaries of jobs,
  departments and firms to form a lean enterprise
  removing all impediments to the continuous flow
  of the specific product. Cross-functional
  teams are key.
• Rethink specific work practices and tools to
  eliminate scrap and stoppages of all sorts so
  that design, order and the production of the
  specific product can proceed continuously
• Pull
• Let the customer pull the product from you as
  needed rather than pushing products, often
  unwanted, onto the customer
• Perfection
• No end to the process of reducing effort, time,
  space, cost and mistakes while offering a product
  which is nearer to what the customer actually
  wants
• Trying to flow faster always exposes hidden waste
  in the value stream
• Pulling harder will reveal more impediments to
  flow

30
Distinguishing Features of TQM / JIT / Lean
Production Organizations

• The number of people who are involved in
  identifying and eliminating obstructions
• People at all levels trained in analysis and
  problem-solving
• Given responsibility and authority to implement
  improvements
• Measure, diagnose and improve whats happening
• The process employed to identify and prioritize
  problems and sources of waste
• In JIT, the primary process is reduction of
  inventory
• This is to reveal the obstructions and prioritize
  them
• With less inventory, the obstructions become
  visible, thus allowing them to be identified and
  removed

31
The Extended Enterprise and Collaborative
Advantage

• Implications of Electronic Marketplaces (egg. the
  automotive parts exchange enabled through the
  Internet)
• Toyota the first automaker to recognize that
  the fundamental unit of competition had changed
  from the individual firm to the extended
  enterprise
• Toyota gains competitive advantage through
  collaborative systems
• Toyotas lean Extended Enterprise a set of
  firms within a value chain that collaborate to
  produce a finished product
• Time to market, Cost, Quality and perhaps Styling
• Toyota the first automaker to recognize that
  the fundamental unit of competition had changed
  from the individual firm to the extended
  enterprise

32
ERP Evolution - ERP II Targeted to accommodate
industry-specific needs

• ERP II
• Focus on strategies technologies to utilize
  core ERP systems and the Web.
• ERP II extends beyond operational, transaction
  processing, and enterprise-centric optimization.
• Focus now directed toward
• improving enterprise competitiveness.
• process integration and external collaboration.

33
ERP Functional Evolution Morphing to ERP II
34
ERP Functional Evolution (continued)
35
ERP Evolution to ERP II
36
ERP Evolution to ERP II (continued)
37
Next Session Highlights

• Topics
• ERP Support for Business Processes (continued).
• Reading Assignment
• Complete reading chapter 12 of ERP Tools,
  Techniques, and Applications by Ptak and
  Schragenheim targeting completion by week 5. Will
  be important preparation for team assignment.
• Read chapters 6, 11 15 of ERP Tools,
  Techniques, and Applications by Ptak and
  Schragenheim targeting completion by week 7. Will
  be helpful with the first team assignment.
• Complete reading Geneva Pharmaceutical Case
  targeting completion for week 6.
