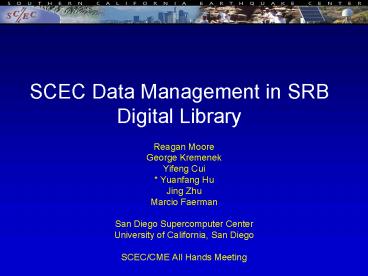

SCEC Data Management in SRB Digital Library

1
SCEC Data Management in SRB Digital Library

• Reagan Moore
• George Kremenek
• Yifeng Cui
• Yuanfang Hu
• Jing Zhu
• Marcio Faerman
• San Diego Supercomputer Center
• University of California, San Diego
• SCEC/CME All Hands Meeting

2
Outlines

• SCEC data size in SRB digital library (DL)
• Data organization in SRB DL
• Data integrity in SRB DL
• Metadata management in SRB DL

3
SCEC Data Size

• 3D ground motion collection for the LA basin
• 60 scenarios, 150M data / scenario
• TeraShake 1 2
• 4 TeraShake1 runs, 6 TeraShake2 runs (wave
  propagation dynamic rupture)
• Each simulation generates
• Surface data and its derivatives
• 1.2 TB surface velocity data
• 0.4 TB velocity magnitude data
• 1.2 TB surface displacement data
• 0.4 TB displacement magnitude data
• 1.2 TB surface seismograms data
• 5 TB volume data (optional)
• Each file has one backup copy at HPSS or SRB tape
• Other data checkpoints and visualizations
• Total 168 TB, 3.5 million files

4
SCEC Data Organization

• 3D ground motion collection for the LA basin
• Organized by scenarios
• TeraShake 1 2 simulation
• simulation id visualization
• checkpoint
• input
• output surface-velocity vmag
• peak
• surface-displacement dmag
• peak
• surface-seismograms
• volume

5
Data Integrity in SRB DL

• Replication
• Output data of each simulation run have backup
  copies at HPSS or SRB tape
• Md5 checksums
• Surface velocity data of each simulation run have
  md5 checksums as metadata
• Data mutual backup
• Surface data and seismograms data mutually backup
  each other
• Codes to convert from surface data to seismograms
  data, or from seismograms data to surface data

6
Metadata Management in SRB DL

• Collection level
• Every SCEC collection has a metadata attribute to
  briefly describe what kind of data inside the
  collection
• File level
• Every surface velocity file has a metadata
  attribute to keep its md5 checksum for data
  integrity
• Every seismograms file has metadata attributes to
  describe properties associated with the file

Sufmeta xhist00001 0 simulation_level leaf
4 data_product_file_sequence_number 1 6
computation_float_size 4 2 data_product_type
seismogram 3 data_product_component east
5 computation_endian big 1 simulation_id
7
7
SRB Metadata Management Tool Set

• Provide facilities to Create, Display, Update and
  Remove SRB metadata
• For either SRB collections or SRB files
• In an easy-to-use manner
• Each operation needs an input file in certain
  format
• Suitable for large-scale metadata operations
• Millions of files in SCEC simulation
• Tool set is located at SCEC CVS direction
  /home/cvs/SRB_Tools

8
Create Operation

• Function create new metadata entries for
  collections/files according to attribute lists in
  input file
• Input file format
• SRB collection
• ltdirgt collection path (relative or absolute
  path)
• metadata attribute n value n
• SRB file
• ltfilegt file path (relative or absolute path)
• metadata attribute n value n
• Example
• Command line ./create.pl input_create

more input_create ltdirgt/home/sceclib.scec/test/m
y_test DC.title This is a test collection
DC.date 2006-07-10 ltfilegt/home/sceclib.scec/te
st/my_test/test1.dat DC.title test file
1 ltfilegt/home/sceclib.scec/test/my_test/test2.dat
DC.title test file 2
9
Display Operation

• Function Display the metadata of
  collections/files listed in input file
• Input file format
• SRB collection ltdirgt collection path (relative
  or absolute path)
• SRB file ltfilegt file path (relative or absolute
  path)
• Example
• Command line ./display.pl input_display
• Output

more input_display ltdirgt/home/sceclib.scec/test/
my_test ltfilegt/home/sceclib.scec/test/my_test/test
1.dat ltfilegt/home/sceclib.scec/test/my_test/test2.
dat
./display.pl input_display /home/sceclib.scec/t
est/my_test 0 DC.title This is a test
collection 1 DC.date 2006-07-10
/home/sceclib.scec/test/my_test/test1.dat 0
DC.title test file 1 /home/sceclib.scec/test/my
_test/test2.dat 0 DC.title test file 2
10
Update Operation

• Function Update metadata entries for
  collections/files according to attribute lists in
  input file. If metadata attributes already exist,
  then update their value otherwise, create them
  as new metadata entries
• Input file format
• SRB collection
• ltdirgt collection path (relative or absolute
  path)
• metadata attribute n value n
• SRB file
• ltfilegt file path (relative or absolute path)
• metadata attribute n value n
• Example
• Command line ./update.pl input_update

more input_update ltdirgt/home/sceclib.scec/test/m
y_test DC.place SDSC ltfilegt/home/sceclib.sce
c/test/my_test/test1.dat DC.date 2006-07-13
11
Remove Operation

• Function Remove all metadata of
  collections/files listed in input file
• Input file format
• SRB collection ltdirgt collection path (relative
  or absolute path)
• SRB file ltfilegt file path (relative or absolute
  path)
• Example
• Command line ./remove.pl input_remove

more input_remove ltdirgt/home/sceclib.scec/test/m
y_test ltfilegt/home/sceclib.scec/test/my_test/test1
.dat ltfilegt/home/sceclib.scec/test/my_test/test2.d
at
12
Summary

• SRB digital library provides data management
  facilities to SCEC
• Large space to hold 100 TB data
• Replication, checksum and mutual backup
  mechanisms for data integrity
• Easy-to-use metadata management tool set
