Linguistics 187287 Week 9

1

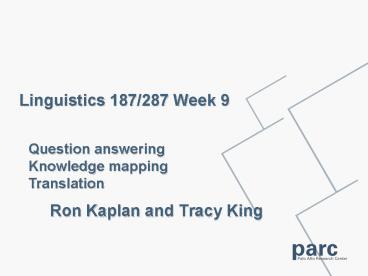

Linguistics 187/287 Week 9
Question answering Knowledge mapping Translation

• Ron Kaplan and Tracy King

2
Question Answering

• Unindexed documents in information repository
• Example Technical manuals, business procedures
• Find specific facts in documents to answer
  specific questions.
• How do I make the paperclip go away?
• Who authorizes foreign travel?
• Documents may not contain exact words
• The Help Assistant may be closed by clicking
  the Option menu
• Exact words may be misleading
• Will Gore raise taxes?
• Bush promised Gore to raise taxes
  promise(Bush,
  Gore, raise(Bush, taxes))
• Bush persuaded Gore to raise taxes

  persuade(Bush, Gore, raise(Gore, taxes))
• XLE Check for overlapping meanings

3
Pipeline for Meaning Overlap
Overlap detector
Meaning
Meaning
Semantics
Semantics
DocumentCollection
Question
Parser
Parser
Englishgrammar
Englishgrammar
High precision, recall, but heavy computation.
4
A lighter-weight approach to QA
Analyze the question, anticipate and search for
possible answer phrases
Question F-structure
Queries

• Question What is the graph partitioning problem?
• Generated Queries The graph partitioning
  problem is
• Answer (Google) The graph partitioning problem
  is defined as dividing a graph into disjoint
  subsets of nodes
• Question When were the Rolling Stones formed?
• Generated Queries The Rolling Stones were
  formed formed the Rolling Stones
• Answer (Google) Mick Jagger, Keith Richards,
  Brian Jones, Bill Wyman, and Charlie Watts
  formed the Rolling Stones in 1962.

5
Pipeline for Answer Anticipation
Question f-structures
Answer f-structures
Convert
Generator
Parser
Question
AnswerPhrases
Search (Google...)
Englishgrammar
Englishgrammar
6
Who won the oscar in 1968?
?X.win(X,oscar) ? in(win,1968)
7
Mapping to knowledge representations via semantics
8
Knowledge mapping Architecture
Word structure Entity recognition
Text
C-structure
XLE/LFGparsing
LFG GrammarLexicon
F-structure
Gluederivation
Semanticlexicon
Linguisticsemantics
VerbNetWordNet
TermRewriting
Abstract KR
Mapping Rules
Cyc
Cyc ANSProlog
Target KRR
9
Abstract Knowledge Representation

• Encode different aspects of meaning
• Asserted content
• concepts and arguments, relations among objects
• Contexts
• author commitment, belief, report, denial,
  prevent,
• Temporal relations
• qualitative relations among time intervals,
  events
• Translate to various target KR's e.g.
  CycL, Description Logic, AnsProlog
• Capture meaning ambiguity

10
Abstract KR Ed fired the boy.

• subconcept(Ed3 Person)
• subconcept(boy2 MaleChild)
• subconcept(fire_ev1 DischargeWithPrejudice)
• role(fire_ev1 performedBy Ed3)
• role(fire_ev1 objectActedOn boy2)
• context(t)
• instantiable(Ed3 t)
• instantiable(boy2 t)
• instantiable(fire_ev1 t)
• temporalRel(startsAfterEndingOf Now fire_ev1)

Conceptual
Contextual
Temporal
11
Concept-role disambiguation

• Mapping to conceptual structure
• Ontology constrains verb concept and argument
  roles

verb_concept_map(fire, V-SUBJ-OBJ,
DischargeWithPrejudice, subj, Agent-Generic,
doneBy, obj, Person, objectActedOn)
Ed fired the boy.
verb_concept_map(fire, V-SUBJ-OBJ,
ShootingAGun, subj, Person, doneBy, obj, Gun,
deviceUsed)
Ed fired the gun.
Templates for rewriting rules
Ed fired the goofball.
12
Concept-role ambiguation
Ed fired the goofball.
subconcept(Ed3 Person) role(fire_ev1 doneBy
Ed3) context(t) instantiable(Ed3 t)
instantiable(goofball2 t) instantiable(fire_ev1
t) A1subconcept(goofball2 Person) A1subconcept
(fire_ev1 DischargeWithPrejudice) A1role(fire_ev1
objectActedOn goofball2) A2subconcept(goofball2
Gun) A2subconcept(fire_ev1 ShootingAGun) A2role
(fire_ev1 DeviceUsed goofball2)
13
Embedded contexts The man said that Ed
fired a boy.
subconcept(say_ev19 Inform-CommunicationAct) role(
say_ev19 senderOfInfo man24) role(say_ev19
infoTransferred comp21) subconcept(fire_ev20
DischargeWithPrejudice) role(fire_ev20
objectActedOn boy22) role(fire_ev20 performedBy
Ed23) context(t) context(comp21) context_lifting_
rules(averidical t comp21) instantiable(man24
t) instantiable(say_ev19 t) instantiable(Ed23
t) instantiable(boy22 comp21) instantiable(fire_e
v20 comp21)
14
Contextual Structure

• The senator prevented a war
• role(preventRelation action1 ctx2)
• role(doneBy action1 senator3)
• subconcept (action1 Eventuality)
• subconcept (senator3 USSenator)
• subconcept (war4 WagingWar)
• instantiable(t senator3)
• instantiable(t action1)
• uninstantiable(t war2)
• uninstantiable(ctx2 action1)
• instantiable(ctx2 war2)
• more details on contextula structure to follow

15
Abstract KR Canonicalization

• Ed cooled the room
• subconcept(cool_ev18 scalar-state-change)
• decreasesCausally(cool_ev18 room20
  temperatureOfObject)
• role(doneBy cool_ev18 Ed21)
• subconcept(room20 RoomInAConstruction)
• Ed lowered the temperature of the room
• subconcept(lower_ev22 scalar-state-change)
• decreasesCausally(lower_ev22 room24
  temperatureOfObject)
• role(doneBy lower_ev22 Ed23)
• subconcept(room24 RoomInAConstruction)
• The room cooled
• subconcept(cool_ev25 scalar-state-change)
• decreasesCausally(cool_ev25 room26
  temperatureOfObject))
• subconcept(room26 RoomInAConstruction)

16
Term-Rewriting for KR Mapping

• Rule form
• ltInput termsgt gt ltOutput termsgt
  (obligatory)
• ltInput termsgt ?gt ltOutput termsgt
  (optional)
• (optional rules introduces new choices)
• Input patterns allow
• Consume term if matched Term
• Test on term without consumption Term
• Test that term is missing
  -Term
• Procedural attachment
  ProcedureCall
• pred(E, hire), subj(E, X), obj(E, Y),
  subconcept(X, CX), subconcept(Y,
  CY),genls(CX, Organization), genls(CY,
  Person) gt subconcept(E, EmployingEvent),
  performedBy(E,X), personEmployed(E,Y).
• Ordered rule application
• Rule1 applied in all possible ways to Input to
  produce Output1
• Rule2 applied in all possible ways to Output1 to
  produce Output2

Example Rule
17
Term Rewriting for Semantics

• Canonicalizing syntactic constructions
• undo passive
• resolve relative and null pronouns
• appositives
• comparatives
• Introduce contextual structure
• Flatten facts
• Semantic constructions
• negation
• coordination

18
Example semantics rules Depassivisation
VTYPE(V, ), PASSIVE(V,), SUBJ(V,
LogicalOBJ) gt OBJ(V, LogicalOBJ).
VTYPE(V, ), PASSIVE(V,),
OBL-AG(V,LogicalSUBJ), PFORM(LogicalSUBJ, )
gt SUBJ(V, LogicalSUBJ). VTYPE(V,
), PASSIVE(V,), -SUBJ(V,) gt
SUBJ(V, AgtPro), PRED(AgtPro, agent_pro),
PRON-TYPE(AgtPro, null_agent).
19
Term-rewriting can introduce ambiguity

• Alternative lexical mappings
• - cyc_concept_map(bank, FinancialInstitution
• - cyc_concept_map(bank, SideOfRiver).
• is_true_in(, P(Arg)), cyc_concept_map(P,
  Concept) gt subconcept(Arg, Concept).
• Input term
• is_true_in(c0, bank(b1))
• Alternative rule applications produce different
  outputs Rewrite system represents this
  ambiguity by a new choice
• Output
• C1 subconcept(b1, FinancialInstitution)C2
  subconcept(b1, SideOfRiver)
• (C1 xor C2) ? 1

Permanent Background Facts
Mapping from Predicate to Cyc concept
20
Term-rewriting can prune ill-formed mappings

• The bank hired Ed
• pred(E, hire), subj(E,X), obj(E,Y),
  subconcept(X,CX), subconcept(Y,CY),genls(
  CX, Organization), genls(CY,Person) gt
  subconcept(E, EmployingEvent),
  performedBy(E,X), personEmployed(E,Y).
• From Cyc genls(FinancialInstitution,
  Organization) true
  genls(SideOfRiver, Organization)
  false
• If bank is mapped to SideOfRiver, the rule will
  not fire.This leads to a failure to consume the
  subject.
• subj(,) gt stop.
• prunes this analysis from the choice space.
• In general, later rewrites prune analyses that
  dont consume grammatical roles.

Rule for mapping hire
21
Answers from textLinguistic entailment
Knowledge-based reasoning

• Linguistic context reflects author commitments
• Did Iran enrich uranium?
• Iran managed to enrich uranium. Yes
• Iran failed to enrich uranium. No
• Iran was able to enrich uranium. Unknown
• Language interacts with world knowledge
• Iran managed to enrich uranium.
• Does Iran have a centrifuge? Yes
• Enriching uranium requires a centrifuge
  ? Iran has a centrifuge

22
Answering questions throughlinguistic entailment

• 1. Convert questions to declarative form
• Did Iran enrich uranium? ? Iran enriched
  uranium.
• Who enriched uranium? ? Some entity enriched
  uranium.
• Select candidate answer-source (e.g. search)
• Compare candidate and declarative form

23
Linguistic knowledge is necessary
Iran bought yellowcake from Niger.

• Relation of terms WordNet, Cyc
• Did Iran purchase yellowcake? Yes
• Relation of roles KR rules, VerbNet, Cyc
• Was yellowcake sold to Iran? Yes
• Implications and presuppositions KR rules
• Did Iran fail to buy yellowcake? No

24
Awareness of alternative interpretations
Iran didnt wait to buy yellowcake.

• Did Iran purchase yellow cake?
• Unknown (Ambiguous)
• Yes, if they did the buying immediately
• No, if they did something else instead (e.g.
  they stole it, they bought anthrax)

25
Access to world knowledge Cyc

• KR rules Translating to Cyc Source Iran
  enriched uranium. (and (isa P25
  PurificationProcess) (isa U59
  Uranium) (objectOfStateChange P25
  U59) (performedBy P25 Iran))
• Question Does Iran have a centrifuge?
• (exists ?E (and (isa ?E Centrifuge) (ownedBy
  Iran ?E))
• Cyc knows (implies (and (isa ?P
  PurificationProcess) (isa ?U
  Uranium) (objectOfStateChange ?P
  ?U) (performedBy ?P ?X)) (exists ?C
  (and (isa ?C Centrifuge) (ownedBy ?X ?C))))
• Cyc deduces Yes

26
NYT 2000 top of the chart
27
Verbs differ as to speaker commitments

• Bush realized that the US Army had to be
  transformed to meet new threats
• The US Army had to be transformed to meet new
  threats

Bush said that Khan sold centrifuges to North
Korea Khan sold centrifuges to North Korea
28
Implicative verbs carry commitments

• Commitment depends on verb context
• Positive () or negative (-)
• Speaker commits to truth-value of complement
• True () or false (-)

29
/- - Implicative

• positive context positive commitment negative
  context negative commitment
• Ed managed to leave
• Ed left
• Ed didnt manage to leave
• Ed didnt leave

30
-/- Implicative

• positive context negative commitment negative
  context positive commitment
• Ed forgot to leave
• Ed didnt leave
• Ed didnt forget to leave
• Ed left

31
Implicative

• positive context only positive commitment
• Ann forced Ed to leave
• Ed left
• Ann didnt force Ed to leave
• Ed left / didnt leave

32
- Implicative

• positive context only negative commitment
• Ed refused to leave
• Ed didnt left
• Ed didnt refuse to leave
• Ed left / didnt leave

33
- Implicative

• negative context only positive commitment
• Ed hesitated to leave
• Ed left / didnt leave
• Ed didnt hesitate to leave
• Ed left

34
-- Implicative

• negative context only negative commitment
• Ed attempted to leave
• Ed left / didnt leave
• Ed didnt attempt to leave
• Ed didnt leave

35
Factive

• positive commitment no matter what context

Ann realized that Ed left Ann didnt realize
that Ed left Ed left
36
- Factive
negative commitment no matter what context

• Ann pretended that Ed left
• Ann didnt pretend that Ed left
• Ed didnt leave

Like -/-- implicative but with additional
commitments
37
Coding of implicative verbs

• Implicative properties of complement-taking verbs
• Not available in any external lexical resource
• No obvious machine-learning strategy
• 1250 embedded-clause verbs in PARC lexicon
• 400 currently examined
• Considered in BNC frequency order
• Google search when intuitions unclear
• 1/3 are implicative, classified in Unified Lexicon

38
Matching for implicative entailments

• Term rewriting promotes commitments in Abstract KR

context(cx_leave7) context(t)context_lifting_rul
es(veridical t cx_leave7) instantiable(Ed0 t)
instantiable(leave_ev7 cx_leave7)
instantiable(manage_ev3 t) role(objectMoving
leave_ev7 Ed0) role(performedBy manage_ev3 Ed0)
role(whatsSuccessful manage_ev3 cx_leave7)
context(cx_leave7) context(t)instantiable(leave_
ev7 t) instantiable(Ed0 t)
instantiable(leave_ev7 cx_leave7)
instantiable(manage_ev3 t) role(objectMoving
leave_ev7 Ed0) role(performedBy manage_ev3 Ed0)
role(whatsSuccessful manage_ev3 cx_leave7)
Ed managed to leave.
context(t) instantiable(Ed0 t)
instantiable(leave_ev1 t) role(objectMoving
leave_ev1 Ed0)
Ed left.
39
Embedded examples in real text

• From Google
• Song, Seoul's point man, did not forget to
  persuade the North Koreans to make a strategic
  choice of returning to the bargaining table...

Song persuaded the North Koreans
40
Promotion for a (simple) embedding

• Ed did not forget to force Dave to leave

Dave left.
41
Ed
not
forget
force
Dave
leave
not
force
Dave
leave
forget
Ed
did
to
to
comp
subj
comp
Ed
obj
subj
comp
Dave
subj
42
not
-/- Implicative
comp
forget
-/- Implicative
subj
comp
Ed
force
Implicative
obj
subj
comp
Dave
leave
Ed
subj
Dave
43

not
-/- Implicative
comp
-
forget
-/- Implicative
subj
comp

Ed
force
Implicative

obj
subj
comp
Dave
leave
Ed
subj
Dave
44

Matches Dave left.
not
comp
-
forget
subj
comp

Ed
force

obj
subj
comp
Dave
leave
Ed
subj
Dave
45
DEMO
46
Grammatical Machine Translation

• Stefan Riezler John Maxwell

47
Translation System
Lots of statistics
Translationrules
XLEParsing
XLEGeneration
F-structures
F-structures.
GermanLFG
English LFG
48
Transfer-Rule Induction from aligned bilingual
corpora

• Use standard techniques to find many-to-many
  candidate word-alignments in source-target
  sentence-pairs
• Parse source and target sentences using LFG
  grammars for German and English
• Select most similar f-structures in source and
  target
• Define many-to-many correspondences between
  substructures of f-structures based on
  many-to-many word alignment
• Extract primitive transfer rules directly from
  aligned f-structure units
• Create powerset of possible combinations of basic
  rules and filter according to contiguity and type
  matching constraints

49
Induction

• Example sentences Dafür bin ich zutiefst
  dankbar.
• I have a deep appreciation for that.
• Many-to-many word alignment
• Dafür6 7 bin2 ich1 zutiefst3 4 5
  dankbar5
• F-structure alignment

50
Extracting Primitive Transfer Rules

• Rule (1) maps lexical predicates
• Rule (2) maps lexical predicates and interprets
  subj-to-subj link as indication to map subj of
  source with this predicate into subject of target
  and xcomp of source into object of target
• X1, X2, X3, are variables for f-structures

• (2) PRED(X1, sein),
• SUBJ(X1,X2),
• XCOMP(X1,X3)
• gt
• PRED(X1, have),
• SUBJ(X1,X2)
• OBJ(X1,X3)

(1) PRED(X1, ich) gt PRED(X1, I)
51
Extracting Primitive Transfer Rules, cont.

• Primitive transfer rule (3) maps single source
  f-structure into target f-structure of
  prepositionobject units

• (3) PRED(X1, dafür)
• gt
• PRED(X1, for),
• OBJ(X1,X2)
• PRED(X2,that)

52
Extracting Complex Transfer Rules

• Complex rules are created by taking all
  combinations of primitive rules, and filtering

• (4) sein zutiefst dankbar
• gt
• have a deep appreciation
• (5) sein zutiefst dankbar dafür
• gt
• have a deep appreciation for that
• (6) sein ich zutiefst dankbar dafür
• gt
• have I a deep appreciation for that

53
Transfer Contiguity constraint

• Transfer contiguity constraint
• Source and target f-structures each have to be
  connected
• F-structures in the transfer source can only be
  aligned with f-structures in the transfer target,
  and vice versa
• Analogous to constraint on contiguous and
  alignment-consistent phrases in phrase-based SMT
• Prevents extraction of rule that would translate
  dankbar directly into appreciation since
  appreciation is aligned also to zutiefst
• Transfer contiguity allows learning idioms like
  es gibt - there is from configurations that are
  local in f-structure but non-local in string,
  e.g., es scheint zu geben - there seems
  to be

54
Linguistic Filters on Transfer Rules

• Morphological stemming of PRED values
• (Optional) filtering of f-structure snippets
  based on consistency of linguistic categories
• Extraction of snippet that translates zutiefst
  dankbar into a deep appreciation maps
  incompatible categories adjectival and nominal
  valid in string-based world
• Translation of sein to have might be discarded
  because of adjectival vs. nominal types of their
  arguments
• Larger rule mapping sein zutiefst dankbar to have
  a deep appreciation is ok since verbal types match

55
Transfer

• Parallel application of transfer rules in
  non-deterministic fashion
• Unlike XLE ordered-rule rewrite system
• Each fact must be transferred by exactly one rule
• Default rule transfers any fact as itself
• Transfer works on chart using parsers
  unification mechanism for consistency checking
• Selection of most probable transfer output is
  done by beam-decoding on transfer chart

56
Generation

• Bi-directionality allows us to use same grammar
  for parsing training data and for generation in
  translation application
• Generator has to be fault-tolerant in cases where
  transfer-system operates on FRAGMENT parse or
  produces non-valid f-structures from valid input
  f-structures
• Robust generation from unknown (e.g.,
  untranslated) predicates and from unknown
  f-structures

57
Robust Generation

• Generation from unknown predicates
• Unknown German word Hunde is analyzed by German
  grammar to extract stem (e.g., PRED Hund, NUM
  pl) and then inflected using English default
  morphology (Hunds)
• Generation from unknown constructions
• Default grammar that allows any attribute to be
  generated in any order is mixed as suboptimal
  option in standard English grammar, e.g. if SUBJ
  cannot be generated as sentence-initial NP, it
  will be generated in any position as any category
• extension/combination of set-gen-adds and OT
  ranking

58
Statistical Models

• Log-probability of source-to-target transfer
  rules, where probability r(ef) or rule that
  transfers source snippet f into target snippet e
  is estimated by relative frequency
• Log-probability of target-to-source transfer
  rules, estimated by relative frequency

59
Statistical Models, cont.

• Log-probability of lexical translations l(ef)
  from source to target snippets, estimated from
  Viterbi alignments a between source word
  positions i1, n and target word positions
  j1,,m for stems fi and ej in snippets f and e
  with relative word translation frequencies
  t(ejfi)
• Log-probability of lexical translations from
  target to source snippets

60
Statistical Model, cont.

• Number of transfer rules
• Number of transfer rules with frequency 1
• Number of default transfer rules
• Log-probability of strings of predicates from
  root to frontier of target f-structure, estimated
  from predicate trigrams in English f-structures
• Number of predicates in target f-structure
• Number of constituent movements during
  generations based on original order of head
  predicates of the constituents

61
Statistical Models, cont.

• Number of generation repairs
• Log-probability of target string as computed by
  trigram language model
• Number of words in target string

62
Experimental Evaluation

• Experimental setup
• German-to-English on Europarl parallel corpus
  (Koehn 02)
• Training and evaluation on sentences of length
  5-15, for quick experimental turnaround
• Resulting in training set of 163,141 sentences,
  development set of 1,967 sentences, test of 1,755
  sentences (used in Koehn et al. HLT03)
• Improved bidirectional word alignment based on
  GIZA (Och et al. EMNLP99)
• LFG grammars for German and English (Butt et al.
  COLING02 Riezler et al. ACL02)
• SRI trigram language model (Stocke02)
• Comparison with PHARAOH (Koehn et al. HLT03) and
  IBM Model 4 as produced by GIZA (Och et al.
  EMNLP99)

63
Experimental Evaluation, cont.

• Around 700,000 transfer rules extracted from
  f-structures chosen by dependency similarity
  measure
• System operates on n-best lists of parses (n1),
  transferred f-structures (n10), and generated
  strings (n1,000)
• Selection of most probable translations in two
  steps
• Most probable f-structure by beam search (n20)
  on transfer chart using features 1-10
• Most probable string selected from strings
  generated from selected n-best f-structures using
  features 11-13
• Feature weights for modules trained by MER on 750
  in-coverage sentences of development set

64
Automatic Evaluation

• NIST scores (ignoring punctuation) Approximate
  Randomization for significance testing (see
  above)
• 44 in-coverage of grammars 51 FRAGMENT parses
  and/or generation repair 5 timeouts
• In-coverage Difference between LFG and P not
  significant
• Suboptimal robustness techniques decrease overall
  quality

65
Manual Evaluation

• Closer look at in-coverage examples
• Random selection of 500 in-coverage examples
• Two independent judges indicated preference for
  LFG or PHARAOH, or equality, in blind test
• Separate evaluation under criteria of
  grammaticality/fluency and translational/semantic
  adequacy
• Significance assessed by Approximate
  Randomization via stratified shuffling of
  preference ratings between systems

66
Manual Evaluation

• Result differences on agreed-on ratings are
  statistically significant at p lt 0.0001
• Net improvement in translational adequacy on
  agreed-on examples is 11.4 on 500 sentences
  (57/500), amounting to 5 overall improvement in
  hybrid system (44 of 11.4)
• Net improvement in grammaticality on agreed-on
  examples is 15.4 on 500 sentences, amounting to
  6.7 overall improvement in hybrid system

67
Examples LFG gt PHARAOH

• src in diesem fall werde ich meine verantwortung
  wahrnehmen
• sef then i will exercise my responsibility
• LFG in this case i accept my responsibility
• P in this case i shall my responsibilities
• src die politische stabilität hängt ab von der
  besserung der lebensbedingungen
• ref political stability depends upon the
  improvement of living conditions
• LFG the political stability hinges on the
  recovery the conditions
• P the political stability is rejects the
  recovery of the living conditions

68
Examples PHARAOH gt LFG

• src das ist schon eine seltsame vorstellung von
  gleichheit
• ref a strange notion of equality
• LFG equality that is even a strange idea
• P this is already a strange idea of equality
• src frau präsidentin ich beglückwünsche herrn
  nicholson zu seinem ausgezeichneten bericht
• ref madam president I congratulate mr nicholson
  on his excellent report
• LFG madam president I congratulate mister
  nicholson on his report excellented
• P madam president I congratulate mr nicholson
  for his excellent report

69
Discussion

• High percentage of out-of-coverage examples
• Accumulation of 2 x 20 error-rates in parsing
  training data
• Errors in rule extraction
• Together result in ill-formed transfer rules
  causing high number of generation
  failures/repairs
• Propagation of errors through the system also for
  in-coverage examples
• Error analysis 69 transfer errors, 10 due to
  parse errors
• Discrepancy between NIST and manual evaluation
• Suboptimal integration of generator, making
  training and translation with large n-best lists
  infeasible
• Language and distortion models applied after
  generation

70
Conclusion

• Integration of grammar-based generator into
  dependency-based SMT system achieves
  state-of-the-art NIST and improved grammaticality
  and adequacy on in-coverage examples
• Possibility of hybrid system since it is
  determinable when sentences are in coverage of
  system

71
Applications Conclusions

• Use large-scale robust LFG grammars as base for
  deep linguistic processing
• Ordered rewrite system provides integrated method
  to manipulate output and incorporate external
  resources
• Stochastic and shallow techniques can combine
  with deep processing

72
(No Transcript)
