Curriculum Vitae Pramila Rani

1

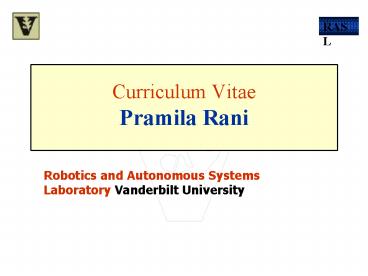

Curriculum VitaePramila Rani
Robotics and Autonomous Systems Laboratory
Vanderbilt University
2
About Me

• Education
• Vanderbilt University, Nashville, TN (June
  2003-Present)
• PhD in Electrical Engineering and Computer
  Science
• Dissertation Topic Affect- based implicit
  human-robot interaction
• Vanderbilt University, Nashville, TN (August
  2001-May 2003)
• M.S. in Electrical Engineering and Computer
  Science
• Major Robotics and Control
• Birla Institute of Technology and Science,
  Pilani, India (August 1997-June 2001)
• B.E. (Hons.) in Electrical and Electronics
  Engineering

3
Experience

• Research Assistant At Robotics and Autonomous
  Systems Laboratory (Under Prof. Nilanjan Sarkar),
  Vanderbilt University (January 2002 - Present)
• Implementing pattern recognition techniques
  (Fuzzy Logic, Regression Tress, Bayesian
  Networks, KNN classifier and Neural Networks).
• Design and implementation of an affect-sensitive
  robot architecture.
• Real-time acquisition and analysis of
  physiological signals using advanced signal
  acquisition and processing techniques
• Design and development of a closed-loop feedback
  system for robot-based and computer-based games.
• Teaching Assistant At Department of Mechanical
  Engineering, Vanderbilt University for ME 234
  System Dynamics (August 2001 - December 2001)
• Intern At Motorola India Electronics Limited,
  Bangalore, India (January-June 2001)

4
Professional Achievements

• Selected for the 2004-2005 Chancellor's List
  published by the National Academic Affairs (Only
  1 students from the 3000 National Colleges and
  Universities are selected each year)
• My Research in News Featured on Tech TV and
  various news magazines including BBC, ABC News,
  Science Daily and ACM Technews
• (http//robotics.vuse.vanderbilt.edu/affect.htmn
  ews)
• Among the 35 students selected world-wide to
  attend the RAS/IFRR Summer School on "Human-Robot
  Interaction" held at Volterra, Italy in July,
  2004
• Professional memberships IEEE Robotics and
  Automation Society (RAS), American Association
  for Artificial Intelligence (AAAI)

5
Publications

• Dissertation Related Publications
• Rani, P, Sims, J, Brackin, R, and N. Sarkar,
  Online Stress Detection using Psychophysiological
  Signal for Implicit Human-Robot Cooperation, in
  Robotica, Vol. 20, No. 6, pp. 673-686, 2002.
• Rani, P., Sarkar, N., Smith, C., and L. Kirby,
  Anxiety Detecting Robotic Systems Towards
  Implicit Human-Robot Collaboration, in Robotica,
  Vol. 22, No. 1, pp. 85-95, 2004.
• (Under Review) Rani, P., Sarkar, N., Smith, C.,
  A., Adams, J., A., Affective Communication for
  Implicit Human-Machine Interaction, IEEE
  Transactions on Systems, Man, and Cybernetics.
• (Under Review) Rani, P., Sarkar, N., An Approach
  to Human-Robot Interaction Using Affective Cues,
  IEEE Transactions on Robotics.
• Rani, P., Sarkar, N., "Operator Engagement
  Detection and Robot Behavior Adaptation in
  Human-Robot Interaction", IEEE International
  Conference on Robotics and Automation, April
  2005, Barcelona, Spain.
• Rani, P., Sarkar, N., Smith, C., "Affect-Sensitive
  Human-Robot Cooperation Theory and
  Experiments", IEEE International Conference on
  Robotics and Automation, pp 2382-2387, Taiwan,
  September 2003.
• Rani, P., Sarkar, N., "Maintaining Optimal
  Challenge in Computer Games Through Real-Time
  Physiological Feedback ", HCI International, July
  2005, Las Vegas, USA.
• Rani, P., Sarkar, N., Smith, Anxiety Detection
  for Implicit Human-Robot Collaboration, IEEE
  International Conference on Systems, Man
  Cybernetics, Washington D.C., pp 4896-4903,
  October 2003.
• Rani, P., Sarkar, N., "Emotion-Sensitive Robots-
  A New Paradigm for Human-Robot Interaction",
  IEEE-RAS/RSJ International Conference on Humanoid
  Robots (Humanoids 2004), November 2004, Los
  Angeles, USA
• Adams, J, Rani, P, Sarkar, N, Mixed Initiative
  Interaction and Robotic Systems, Workshop on
  Supervisory Control of Learning and
  Adaptive Systems, Nineteenth National Conference
  on Artificial Intelligence (AAAI-04), San Jose,
  CA, July, 2004.
• (Submitted) Liu, C, Rani, P., Sarkar, N.,
  "Comparison of Machine Learning Techniques for
  Affect Detection in Human Robot Interaction,"
  IEEE/RSJ International Conference on Intelligent
  Robots and Systems, August 2005, Canada.
• (Submitted), Rani, P., Sarkar, N., Making Robots
  Emotion-Sensitive - Preliminary Experiments and
  Results,, ROMAN 2005

6
Psychophysiology-Based Affective Communication
for Implicit Human-Robot Interaction

• Pramila Rani

7
Some Definitions

• Human-Robot Interaction (HRI)
• The study of humans, robots and the ways in which
  they influence each other
• Psychophysiology
• Science of understanding the link between
  psychology and physiology
• Affective Communication
• Communication relating to, arising from, or
  influencing feelings or emotions

8
Goal

• This goal is to develop an intuitive
  affect-sensitive human-robot interaction
  framework
• robot will interact with a human based on his/her
  probable affective state
• affective state will be inferred from the human's
  physiological signals
• robot will adapt its behavior in response to the
  human's affective state
• emotion

9
Outline

• Motivation
• HRI Framework and Main Components
• Signal Processing for Affect-Recognition
• Simulink Design for Real-Time Affective feedback
  Robot Control

10
Motivation

• The Robot Invasion
• There is a projected increase of 1,145 in the
  number of personal service robots in use within a
  year
• According to World robotics 2004 report, at the
  end of 2003, about 610,000 autonomous vacuum
  cleaners and lawn-mowing robots were in operation
• In 2004-2007, more than 4 million new units are
  forecasted to be added!!!
• Need for Natural and Intuitive Human-Robot
  Communication
• Unlike industrial robots, personal and
  professional service robots will need to
  communicate more naturally and spontaneously with
  people around
• Robots will be expected to be understanding,
  emphatic and intelligent

11
Motivation

• Attempt to mimic Human-Human Interaction
• More than 70 of communication is non-verbal or
  implicit
• Emotions are a significant part of communication
• 7 percent of the emotional meaning of a message
  is communicated verbally. About 38 by
  paralanguage and 55 via nonverbal channels 1
• Most Significant Channels of Implicit
  Communication in Humans
• Facial Expressions
• Vocal Intonation
• Gestures and Postures
• Physiology

1 Mehrabian, A. (1971). Silent Messages.
Wadsworth, Belmont, California
12
Motivation

• Giving Robots Emotional Intelligence
• Robots should be capable of implicit
  communication with humans
• They should detect human emotions
• They should modify their behavior to adapt to
  human emotions

13
Application Areas
Some Potential Application Areas of
Affect-Sensitive Robots
14
Human-Robot Interaction Framework
Extend Architecture Capabilities
Basic Framework
Extend Communication Capabilities
15
Main Components

• Theoretical
• Computational
• Signal conditioning and processing
• Machine learning for affect recognition
• System Development
• Task design for training (Phase I) and validation
  (Phase II) phases
• Experimental

16
System Development

• System Set-up for Interactive Pong Game

• One player Pong Player against Computer
• Continuous Physiological Monitoring
• Anxiety Detection from Physiology
• Dynamic Game Adaptation based on
• Anxiety
• Performance

17
Computational

• Signal conditioning and processing
• Algorithms for artifact-rejection, adaptive
  thresholding, signal conditioning and
  feature-extraction for various signals
• Fourier transform, Wavelet transform, and
  statistical analysis and were extensively used
  in order to perform signal processing
• Machine learning for affect recognition
• Regression Tree Methodology was employed to build
  an affect-recognition system
• A systematic comparison of the strengths and
  weaknesses of four machine learning methods -
  K-Nearest Neighbor, Regression Tree, Bayesian
  Network and Support Vector Machine was performed


SVM analysis was done by Mr. Changchun Liu
18
Real-Time Affect Recognition
C2
Biomedical Signal Processing
C1
Affect-Recognition via Regression Tree
ECG
PPG
ICG
Physiological Features
Affective Trigger Generation
Real-Time Signal Acquisition
C Library
SC
Medical Acquisition Device
EMG
Performance Measure
PCG
19
Signal Processing
R Waves
Peak Amp
Signals
PPG
PPG (Photoplethysmogram)
ECG
ECG (Electrocardiogram)
PTT
IBI
Peak Amplitude
IBI (Interbeat Interval)
Mean
Variability
Pulse Transit Time
Mean
Variability
Sympathetic Power
Parasympathetic Power
20
ECG and PPG Signals

• Electrocardiogram (ECG) and Photoplethysmogram
  (PPG) Signals

Inputs
Outputs
ECG

• Mean Pulse Transit Time
• Var. Pulse Transit Time
• Mean Interbeat Interval
• Var. Interbeat Interval
• Peak Time Array
• Mean Peak Amplitude
• Max Peak Amplitude
• Sympathetic Activity
• Parasympathetic activity

ECG Waveform
PPG
PPG Waveform
21
Electrocardiogram

• Electrocardiogram (ECG) Signal

22
Photoplethysmogram

• Photoplethysmogram (PPG) Signal

Input
PPG Waveform
23
Other Biomedical Signals
Physiological Signals
Feature Vectors
EMG Waveform

• EMG
• Mean EMG activity
• Var. EMG activity
• Slope EMG activity
• Mean Frequency
• Median Frequency

Impedance Waveform

• ICG
• Mean IBI
• Var. IBI
• Mean PEP
• Var. PEP

• GSR
• Mean Tonic
• Slope Tonic
• Mean Amp Phasic
• Max Amp Phasic
• Rate Phasic

Galvanic Skin Response

• Tools
• Wavelet Trans .
• Fourier Trans.
• Statistical SP

• Challenges
• High Speed
• High Accuracy
• Handle Artifacts

24
System Development

• System Set-up for Robot Basketball Game

• Basketball hoop on 5 DOF robotic arm
• Robot can vary game difficulty
• Continuous Physiological Monitoring
• Anxiety Detection from Physiology
• Dynamic Game Adaptation based on
• Anxiety
• Performance

25
Robot-Control
C2
Robot Controller
Inverse Kinematics
Affective Triggers
Config. Selection
Trajectory Generation
PD Controller
MultiQ Data Acquisition Card
Serial Communication
C1 Running Matlab for Signal Acquisition
Medical Acquisition Device
Data Acquisition Functionality from MultiQ Board
in Simulink provided By Quanser
Configurations Data Base
26
Simulink Implementation of C2
Serial Acquisition of Affective Triggers
27
Serial Acquisition of Affective Triggers
The S-Function Block is responsible for
processing the Affective Triggers and sending the
appropriate handshake signals to the computer
being serially communicated with
Simulink Blocks for Serial Communication Provided
by Quanser
28
Simulink Implementation of C2
Trajectory Generation and Robot Control
29
Trajectory Generation and Robot Control
Robot X-Motion
30
Robot X-Motion
Trajectory Selection
Trajectory Selection
31
Trajectory and Speed Selection
Speed Selection
Trajectory Selection
32
Trajectory Generation and Robot Control
Robot Joint Control
33
Robot Joints Control
PD Controller
Simulink Blocks for Data Acquisition Provided by
Quanser
34
Conclusion

• Feasibility of real-time physiology-based
  affect-recognition demonstrated
• Affect-detection capability integrated in a
  robot-control architecture to allow implicit
  communication
• Robot behavior dynamically adapted as a function
  of perceived affective stets
• Computer-based and robot-based experiments
  designed to investigate impact of affective
  communication in human-machine interactions

35
HRI and MathWorks

• Human-Robot Interaction is an emerging focus area
  requiring synergistic integration of Robotics,
  Control Systems, AI, and Psychology.
• Matlab Simulink provide an ideal platform for
  combining the above domains knowledge and for
  rapid prototyping of intelligent HRI frameworks
• Potential for New Matlab Toolboxes
• Biomedical Signal Processing
• Robotics (Forward/Inverse Kinematics, Controller
  Design etc.)
• Ultimate goal Achieve seamless integration of
  diverse science and engineering domains and
  MathWorks well-place to achieve this
• It is an exciting time for MathWorks and I would
  love to be a part of it!!

36
Acknowledgements

• Advisor Dr. Nilanjan Sarkar,
• Mech. Engg., Vanderbilt
  UniversityTeam Members Dr. Eric Vanman,
• Psychology, Georgia State University

• Mr. Changchun Liu,
• Graduate Student, Vanderbilt University

37
Questions?
?
