Title: Layered Solidification Processes


1

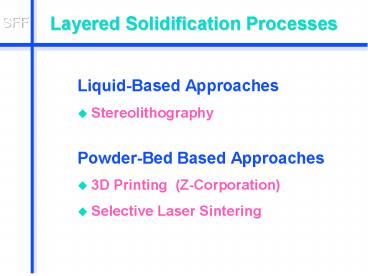

Layered Solidification Processes
  • Liquid-Based Approaches
  • Stereolithography
  • Powder-Bed Based Approaches
  • 3D Printing (Z-Corporation)
  • Selective Laser Sintering

2
Stereolithography (SLA)
  • First commercial layered manufacturing technology
    (1988)
  • Photo-curable liquid resin
  • www.3dsystems.com

3
SFF Stereolithography (SLA)
  • UV laser beam solidifies the top layerof a
    photosensitive liquid.

UV Laser Beam
Photopolymer
Build Stage
4
Stereolithography Principle
5
Stereolithography
  • Pre-process
  • Orient part.
  • Choose slice thickness.
  • Slice parts and plan supports.

6
Stereolithography
  • Process
  • Position build platform (stage)just below liquid
    resin surface.
  • Smooth surface with re-coater blade.
  • Scan the outline of the current slice, loosely
    hatch part interior with laser.
  • Lower the build platform for next layer.

7
Stereolithography
  • Post-process
  • Raise part and drain out liquid.
  • (except liquid trapped by loose hatch)
  • Break off supports.
  • Rinse in isopropanol and water.
  • Dry with air hose.
  • Post-cure (strengthen) in UV oven.

8
Stereolithography
  • Characteristics
  • Slow process
  • Supports must be removed by hand
  • Lab environment necessary (gasses!)
  • Needs trained operator
  • Laser lasts 2000hrs, costs 20000!
  • Little material choice, (700 per gallon)
  • Parts can be brittle, fragile

9
Stereolithography
  • Characteristics (cont.)
  • High accuracy
  • Layer thickness 0.001 - 0.006
  • Minimum feature size 0.003 - 0.012
  • Large build volume
  • Up to 20 x 20 x 23

10
Powder-based Approaches
  • Key Properties
  • Needs no supports that must be removed!
  • Uniform bed of powder acts as support.
  • This powder gets selectively (locally) glued (or
    fused) together to create the solid portions of
    the desired part.

11
SFF 3D Printing -- Principle
  • Selectively deposit binder droplets onto a bed
    of powder to form locally solid parts.

Head
Powder Spreading
Printing
Powder
Feeder
Build
12
3D Printing Some Key Players
  • Z Corporation http//www.zcorp.com/Plaster and
    starch powders for visualization models.
  • Soligen http//www.zcorp.com/Metal and ceramic
    powdersfor operational prototypes.
  • Therics Inc. http//www.therics.com/Biopharmaceu
    tical products,tissue engineering.

13
3D Printing Z Corporation
  • The Z402 3D Printer
  • Speed 1-2 vertical inches per hour
  • Build Volume 8" x 10" x 8"
  • Thickness 3 to 10 mils, selectable

14
3D Printing Z Corporation
15
3D Printing Z Corporation
  • Digging out

16
Optional Curing 30 min. _at_ 200ºF
  • Keep some powder in place
  • lt-- Tray for transport

17
3D Printing Z Corporation
  • Cleaning up in the de-powdering station

18
3D Printing Z Corporation
  • The finished part
  • Zcorp,
  • 6" diam.,
  • 6 hrs.

19
120 Cell -- Close-up
20
Parallel Projection of the 4D 120-Cell
  • Zcorp,
  • 6" diam.,
  • 6 hrs.

21
Morin Surface
3D-Print6" diam. 5 hrs.
  • This is the half-way point of a sphere eversion
    (without causing creases or tears).

22
3D Color Printing Z Corporation
  • The Z402C 3D Color Printer
  • Differences compared to mono-color printer
  • Color print head with Cyan, Yellow, Magenta,
    Black, and Neutral.
  • Smaller build area.
  • Specs
  • Speed 0.33 - 0.66 vertical inches per hour
  • Build Volume 6" x 6" x 6"
  • Layer Thickness 3 to 10 mils, selectable
  • Color depth 80 mils below surface

23
3D Color Printing Z Corporation
24
3D Color Printing Z Corporation
  • Use compressed air to blow out central hollow
    space.

25
3D Color Printing Z Corporation
  • Infiltrate Alkyl Cyanoacrylane Ester
    super-glue to harden parts and to intensify
    colors.

26
3D Color Printing Z Corporation
  • Lizard-Frame Final Infiltrated Part

27
Hypercube, Perspective Projections
28
Two Ways to Make a Hypercube
  • 3D Color Print

Assembly of flat FDM parts gt
29
What Can Go Wrong ? -- Parts may brake before
infiltration
30
What Else Can Go Wrong ?
  • Blocked glue lines
  • Crumbling parts

31
Post-Processing for 3D-Printing
  • Surface is porous, dusty.? seal and strengthen
    the part
  • Dip in wax
  • Nice smooth finish
  • Needs separate waxing station
  • Infiltrate with superglue
  • Tedious, dirty manual labor
  • Spray-paint with a sealant
  • Polyurethane (yellowish, smelly)
  • Krylon (invisible)

32
Post-Processing for 3D-Printing
  • Spray-paint surface with Krylon

33
3D Printing Z Corporation
  • An Informal Evaluation
  • Fast !
  • Running expenses moderate,(but overpriced
    powder)
  • Color print head and tubes need some care in
    maintenance.
  • Somewhat messy cleanup !
  • Lots of dust everywhere ...

34
Selective Laser Sintering (SLS)
  • Key Points
  • Powder gets solidified with a laser.
  • Powder is kept just below melting point, heat
    from laser will fuse powder grains.
  • Un-fused powder acts as support,can easily be
    removed later.
  • Many different materials can be used when mixed
    with a suitable bindernylon, metal, ceramics

35
SLS Conceptual View
36
SLS Players
  • 3D SYSTEMS
  • Representing the fourth generation of SLS
    (selective laser sintering) technology,
    Vanguard and Vanguard HS (High Speed), are
    the first SLS systems developed specifically
    for advanced manufacturing applications.
  • With the Vanguard system you can move directly
    from a CAD file to a durable, functional plastic
    or metal part or tool in a fraction of the
    time required for traditional machining and
    tooling.
  • http//www.3dsystems.com/products/sls/vanguard/ind
    ex.asp

37
SLS from 3D SYSTEMS
  • Use Vanguard or Vanguard HS system for
    Plastic or metal parts, patterns prototypes
    Complex metal tooling inserts  Highly Durable
    Parts  Parts with small features  Short runs
    of plastic metal parts
  • Benefits  High part accuracy   Fast build
    speed  Unattended operation  Uses plastic or
    metal materials  Respond to customer demands
    Worldwide service and support

38
SLS Laserform Parts
39
The Most Challenging SFF Part
  • 3rd-order 3D Hilbert Curve
  • much weight
  • much length
  • no supports
  • only two tube-connectionsbetween the two
    halves.

40
Fabricated by ProMetal
41
ProMetal Process
  • A green part is first formed, composed of
    stainless steel powder and a selectively applied
    binder.
  • This part is built bottom-up, layer-by-layer
    under direct computer control.
  • This green part is then sintered, the binder is
    drained out and replaced by liquid bronze.
  • ProMetal is a division of The Ex One Company,
    Irwin, PA.

42
Which Process Should You Pick?
  • Do you need a prototype (not just a model)?
  • ? SLS, FDM (for robustness, strength).
  • Do you need a mold for a small batch?
  • ? SLA (for smooth, hard surface).
  • Does part need multiple colors?
  • ? 3D Color-Printing.
  • Does part have convoluted internal spaces?
  • ? 3D-Print, SLS, SLA (easy support removal).

43
Informal Process Ratings Matrix
