Molecular Imprinting

1

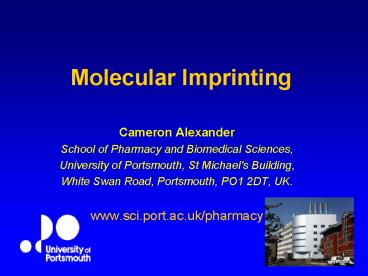

Molecular Imprinting

• Cameron Alexander
• School of Pharmacy and Biomedical Sciences,
• University of Portsmouth, St Michael's Building,
• White Swan Road, Portsmouth, PO1 2DT, UK.
• www.sci.port.ac.uk/pharmacy

2
Schematic of molecular imprinting
3
Features of imprinted polymers

• Advantages
• Target defines own recognition site
• Stability of synthetic materials
• Specificity of natural systems
• Adaptability/flexibility in use
• Facile, one-pot synthesis
• Use in non-aqueous media/aggressive environments

• Disadvantages
• Diversity of binding sites
• Poor processibility
• Analytically opaque/Black box chemistry

4
Applications of imprinted polymers

• Chiral HPLC stationary phases

• Antibody mimics for polymer-based immunoassays

• Enzyme-type catalysis (printzymes)

• Chiral microreactors

• Sample enrichment

• Racemate resolution

• Robust sensors

• Crystallization mediators

5
Enantiomer resolution

• Imprinted enantiomer retained on column

6
Separation from mixtures

• Whitcombe et al J Food Agric. Chem.in press

7
Imprinted polymers-antibody binding site mimics
8
Imprinting methodologies

• Covalent
• Reversible covalent linkage

• Non-covalent
• Monomer-template complexes

• Sacrificial spacer
• Covalent link during synthesis
• Non-covalent rebinding

9
Molecular Imprinting Covalent
Wulff Schauhoff J. Org. Chem., 1991, 56,
395-400.
10
Covalent template-monomer species
Template Binding moiety Binding at equilibrium
Saccharides Polyols
Glycoproteins
Aldehydes
Ketones
Disulfides
11
Molecular Imprinting Non-covalent
12
Non-covalent template-monomer species
Template Binding moiety Binding at equilibrium
Acids
Bases
Polyamides
Carboxylates
13
Molecular Imprinting Spacer Approach
CVPC
14
Sacrificial spacer template-monomers
Pyridine analogue imprints
15
Sacrificial spacer template-monomers
Pyridine analogue imprints
School of Pharmacy and Biomedical Sciences
16
Sacrificial spacer template-monomers
Pyridine and quinoline analogue imprints
School of Pharmacy and Biomedical Sciences
17
Imprinting for Hydrophobic Recognition
ß-CD
1. assemble complex 2. crosslink, DMSO
extract

Asanuma et al. Supramolecular Science 1998, 5,
417-421
18
Imprinting methodologies - advantages and
disadvantages

• Covalent Imprinting
• Ability to fix template in place during
  polymerisation - lower dispersity in binding
  sites
• Can be carried out in any solvent flexibility
• Can be difficult to remove template from polymer
  - low recovery of valuable templates and low
  number of binding sites
• Limited number of chemistries for fixing template
  to polymer reversibly - reduction in number of
  templates that can be imprinted
• Poor kinetics of re-binding

19
Imprinting methodologies - advantages and
disadvantages

• Non-covalent imprinting
• Easy to remove template from polymer- good
  recovery of valuable templates and accessible
  binding sites
• Very large number of templates amenable to
  non-covalent imprinting
• Rapid kinetics of re-binding
• Inability to fix template in place during
  polymerisation - polydispersity in binding sites,
  poor definition
• Generally requires low-polarity aprotic solvents
  - incompatible with aqueous polymerisations

20
Imprinting methodologies - advantages and
disadvantages

• Sacrificial spacer method
• Ability to fix template in place during
  polymerisation - lower dispersity in binding
  sites
• Can be carried out in any solvent flexibility
• Rapid kinetics of re-binding
• Can be difficult to remove template from polymer
  - low recovery of valuable templates and low
  number of binding sites
• Limited number of chemistries for fixing template
  to polymer reversibly - reduction in number of
  templates that can be imprinted

21
Synthesis and catalysis at imprinted polymer
binding sites

• Synthesis
• Imprinted polymers as protecting groups
• Modifications of sterol hydroxyl groups
• Regioselective acylation at binding sites

• Catalysis
• Imprinted polymers with constrained binding sites
• Imprinting of transition state analogues (TSAs)
• Catalytic turnover in imprinted sites

22
Regioselectivity of Modification

• What can the degree and position of reaction
  tell us about binding at the imprinted sites?
• Dependent on the fit of a ligand, chemical
  modification can be directed to different parts
  of the molecule
• Imprinted site geometry and chemistry can be
  inferred from product ratios

23
Androstene templates
School of Pharmacy and Biomedical Sciences
24
Synthesis of androstene-based templates
School of Pharmacy and Biomedical Sciences
25
Template-monomer binding via boronate ester
chemistry
School of Pharmacy and Biomedical Sciences
26
Synthesis of androst-5-ene-3b-ol binding sites
School of Pharmacy and Biomedical Sciences
27
Synthesis of androst-5-ene-17b-ol binding sites
School of Pharmacy and Biomedical Sciences
28
Synthesis of androst-5-ene-3b,17b-ol binding sites
School of Pharmacy and Biomedical Sciences
29
Uptake measurements
Uptake by Androst-5-ene-17-ol Imprinted Polymers
250C CHCl3
Uptake of Androst-5-ene-3-ol 250C CHCl3
30
Uptake measurements
Uptake by Androst-5-ene-3,17-diol Imprinted
Polymers 250C CHCl3
Uptake of Androst-5-ene-3,17-diol 250C CHCl3
31
IR Spectra of Androst-5-ene-3b,17b-diol
Androst-5-ene-3b,17b-diol polymer
School of Pharmacy and Biomedical Sciences
32
Kinetics of binding
33
Synthesis at sterol-imprinted polymer binding
sites

• Androstene sterols used to imprint 3 different
  polymers
• Androst-5-ene-3b-ol-imprinted and
  androst-5-ene-17b-ol-imprinted polymers both bind
  similar amounts of their templates
• Androst-5-ene-3b,17b-ol-imprinted polymer binds
  its own template most strongly- co-operative
  interaction
• Can the three different binding sites be used for
  synthesis?

34
Chemical Modification as Probe of Binding

• Reaction of functional groups within binding site
• If all functional groups on molecule are involved
  in binding interactions, no modification occurs
• Imprinted polymer acts as protecting group for
  its own template
• Partial interaction of template with polymer
  allows unbound groups to be modified
• Imprinted polymer directs chemistry in site

35
Reactions in imprinted cavities
36
Regioselective modification
37
Synthesis in imprinted polymer binding sites
38
Synthesis in imprinted polymer binding sites
39
Synthesis in imprinted polymer binding sites
40
Examples of imprinted polymer catalysts
41
Examples of imprinted polymer catalysts
42
Catalysis
School of Pharmacy and Biomedical Sciences
43
Catalysis
School of Pharmacy and Biomedical Sciences
44
Catalysis
School of Pharmacy and Biomedical Sciences
45
Catalysis
School of Pharmacy and Biomedical Sciences
46
Catalysis
School of Pharmacy and Biomedical Sciences
47
References/Further reading

• Bioseparations Downstream Processing For
  Biotechnology. Belter, P. A. Cussler, E. L. Hu,
  Wei-Shou (John Wiley Sons 1988).
• Smart polymers and what they could do in
  biotechnology and medicine. Galaev, I.Y.
  Mattiasson, B. TIBTECH. 17, 335-340 (1999).
• Smart polymers and protein purification.
  Mattiasson, B. Dainyak, M.B. Galaev, I.Y.
  Polymer-Plastics Technology and Engineering 37,
  303-308 (1998).
• Molecular imprinting in cross-linked materials
  with the aid of molecular templates - a way
  towards artificial antibodies. Wulff,G. Angew.
  Chem. Int. Ed. Engl. 34, 1812-1832 (1995).
• Polymer- and template-related factors influencing
  the efficiency in molecularly imprinted
  solid-phase extractions. Sellergren, B. TRAC. 18,
  164-174 (1999).
• Assembling the Molecular Cast. Alexander, C.
  Whitcombe, M.J. Vulfson, E.N. Chem. Br. 33,
  23-27 (1997).
