Title: A CANADIAN COMPANY


1

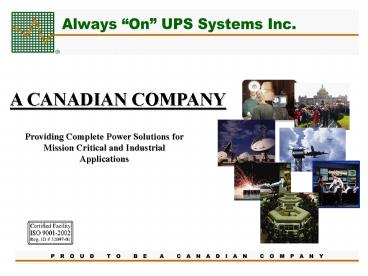

A CANADIAN COMPANY
Providing Complete Power Solutions for Mission
Critical and Industrial Applications
2
Evolution
  • Wilfred Frey, the Founder and former President of
    Tycor International, came out of retirement in
    1996 to incorporate a company that would provide
    cutting edge technology, a consistent high
    standard of quality combined with a high level of
    service at competitive prices.
  • Always "On" UPS Systems Inc.

3
Philosophy
  • Always On provides
  • State of the Art, Cutting Edge Technology
  • High Quality Products
  • Maintained High Level of Service
  • Minimum MTBF (5 yrs min.)
  • Guaranteed NO D.O.A.

4
Product Technologies
  • UPS Systems
  • Back-up/Standby (Antiquated Technology No
    Longer Manufactured)
  • Line Interactive UPS Systems
  • Dual Conversion On-line UPS Systems
  • AC to DC UPS systems
  • Frequency Converters (Electronic)
  • Convert 50/60/400Hz In to 50/60/400Hz Out
  • UPS Peripherals
  • Smart Electrical Distribution Panel
  • Wrap Around Bypass
  • Power Quality Products
  • Low Pass Series Filters
  • Transient Voltage Surge Suppressors (TVSS)
  • Isolating Line Filters

5
Power Problems/Solutions
All Always On UPS Systems Incorporate TVSS and
LPS Filters
6
Competitive Advantage
Always On Provides Totally Filtered
Protection
7
UPS Features Functions
  • INPUT AND OUTPUT NOISE FILTERS
  • NETWORK AND MODEM PROTECTION
  • INTELLIGENT COMMUNICATIONS INTERFACE
  • (RS-232 Dry Contact, Optional SNMP Adapter or
    AS-400)
  • PLUG AND PLAY NETWORK SOFTWARE
  • COLD START FROM BATTERY
  • AUTO RESTART AFTER EXTENDED BLACKOUT
  • USER FRIENDLY BATTERY REPLACEMENT
  • AUTO FREQUENCY DETECTION

8
Commercial Series UPSs Square Wave (PWM)
Output
The LIMOUSIN II
The LIMOUSIN
9
Commercial Series UPSs Square Wave (PWM)
Output
  • Small Office / Home users
  • Personal Computers
  • Servers
  • Point of Sale Equipment

10
LINE INTERACTIVE V or L Series
V Series (PWM Wave Output On Battery)
L Series (True Sine Wave Output Continuous)
11
LINE INTERACTIVE V Series
PWM Sine Wave Output (when on battery)
  • The V Series line interactive technology
    provides regulated, filtered AC utility to the
    loads until a blackout condition occurs. At this
    point the inverter converts the DC voltage to AC
    power which, in turn, is supplied to the loads.

12
LINE INTERACTIVE L Series
True Sine Wave Output Continuous
  • TheL Series line interactive technology
    provides regulated, filtered AC utility to the
    loads until a blackout condition occurs. At this
    point the inverter converts the DC voltage to AC
    power which, in turn, is supplied to the loads.
    The CPU synchronizes the inverter to the AC
    utility so when a problematic power condition
    occurs the inverter will supply power within the
    same waveform as the utility instead of
    restarting at the zero crossing.

13
LINE INTERACTIVE V or L Series
Commercial Light Industrial Applications
  • Security Systems
  • Test Equipment,
  • Automated Teller Machines,
  • Telecommunications,
  • LAN File Servers,
  • Personal Computers,
  • Workstations,
  • Network Routers,
  • Hubs and Switches

Use the L Series whenever True Sine Wave
output, Extended Runtime or SNMP network
communication are required.
14
DIN RAIL MOUNTED UPS
  • Designed to provide back-up in a convenient Din
    Rail mounted container.
  • System has optional extended back-up time and DC
    switcher module to allow for both 120VAC and
    24VDC at various different current ratings so you
    are only required to purchase one power supply
    system.

15
Dual Conversion On-Line UPS
Side Mount
NEMA 12
Cabinet Types
Rack-mount
3 Phase 208-600V 10 - 160kVA
16
Dual Conversion On-Line UPS
  • Modes of Operation

17
Dual Conversion On-Line UPS
  • Modes of Operation

18
Dual Conversion On-Line UPS
  • Modes of Operation

19
Dual Conversion On-Line UPS
  • Modes of Operation

20
Dual Conversion On-Line UPS
  • Modes of Operation

21
Dual Conversion On-Line UPS
  • Supplied AC Utility converted to DC, inverted to
    AC via inverter providing clean, noise free
    power.
  • Due to this conversion AC supplied from the
    Inverter, the connected Loads are Always
    isolated from the dirty AC supply!
  • Available from 700VA single phase configurations
    up to 250kVA three phase configurations.
  • Isolation Transformers are standard for systems
    5kVA and up.
  • Communications interface, SNMP slot and AS-400
    slot included.
  • LCD Display.
  • Logging capabilities and user programmable
    communication ports

22
Dual Conversion On-Line UPS
  • OPTIONS
  • External Wrap Around Maintenance Bypass (EMBP)
  • EMBP - with Isolation Transformer and Kirk-Key
    Interlock
  • Extended Runtime Cabinets
  • Remote Monitoring Panel
  • Remote Emergency Stop
  • Communication Interfaces (SNMP, AS-400, Relay
    I/O)
  • Output Distribution Panel (GENIE)
  • Extended Warranty and 3rd Party Service
    Agreements
  • Wet Cell Batteries (Flooded) (5 and 10 yr
    Warranties)

23
Dual Conversion On-Line UPS
For all CRITICAL Applications. Medical
Industry, Military Industry, Pulp and Paper
Industry, Oil and Gas Industry Emergency
Lighting Blood Analyzers, Life Support systems,
Forensics, Robotics, PLCs, etc. Virtually all
commercial, industrial, medical and military
applications require clean and stable AC
supply and 100 run time.
24
Always On UPSs Address
1 Harmonic Distortion
25
Always On UPSs Address
1 Harmonic Distortion 2 Switching Transients

26
Always On UPSs Address
1 Harmonic Distortion 2 Switching Transients
3 Line Noise
27
Always On UPSs Address
1 Harmonic Distortion 2 Switching Transients
3 Line Noise 4 Frequency Variations
28
Always On UPSs Address
1 Harmonic Distortion 5 Power Surges 2
Switching Transients 3 Line Noise 4
Frequency Variations
29
Always On UPSs Address
1 Harmonic Distortion 5 Power Surges 2
Switching Transients 6 Power Sags 3 Line
Noise 4 Frequency Variations
30
Always On UPSs Address
1 Harmonic Distortion 5 Power Surges 2
Switching Transients 6 Power Sags 3 Line
Noise 7 High Voltage Spikes 4 Frequency
Variations
31
Always On UPSs Address
1 Harmonic Distortion 5 Power Surges 2
Switching Transient 6 Power Sags 3 Line Noise 7
High Voltage Spikes 4 Frequency Variations 8
Brownouts
32
Always On UPSs Address
1 Harmonic Distortion 5 Power Surges 9 Power
Failures 2 Switching Transients 6 Power Sags 3
Line Noise 7 High Voltage Spikes 4 Frequency
Variations 8 Brownouts
33
PLC 22 and 20 Protector
  • The PLC 20 offers AC protection only.
  • The PLC 22 offers AC DC protection as well as
    Data Line Filtering.
  • Dry Contact (Forms A, B and C) are available
  • Data Line Protection.
  • Industrial LANs
  • Twisted Pair, 3 wire up to 100 Mb/sec
  • ModBus, DH
  • RS-485 and RS-422

Din Rail
34
GENIE UPS Powered Smart Panel
  • Designed to identify a overload condition and
    clear the SDB in less than 1 cycle preventing a
    damaging and/or dangerous short circuit.
  • GENIE SDBs are designed to clear or open
    within 1 cycle eliminating the time window (18
    to 22 cycles) which allows the short circuit
    evolution of problems to begin.
  • GENIE SDBs intelligent design allows for
    distinguishing the difference between normal
    inrush current and a short circuit or overload
    condition.
  • GENIE SDBs are simple plug-in Breaker design,
    for easy upgrade or replacement.
  • GENIE communications available for
  • Controller monitoring and alarm.

35
ELECTRICAL SERVICE ENTRANCE TVSS FILTER - 1Ø
3Ø models
  • Protects Electrical Service Entrance and
    Sub-Panels
  • Against
  • Massive surge impulses, indirect lightning
    strikes,
  • Common normal mode noise, spikes, transients,
  • Low Frequency harmonics
  • Available from 60kA to 600kA surge current

36
ELECTRICAL SERVICE ENTRANCE TVSS FILTER - 1Ø
3Ø models
  • 1 Ø or 3 Ø
  • Delta or Wye, up to 600 volts
  • Commercial and Industrial applications.
  • Removable phase/fuses,
  • Self Diagnostics - LED Indicators per phase.
  • Optional Surge Counter, Dry Contact Form C and
    Fault Test Button.

37
TTF/ILF Isolating Line Filter
  • Total Isolation with low pass series filtering
  • Re-establish 0 volts ground references
  • Eliminate 100 of Common Mode Noise

38
Automatic/Manual Bypass
The AMB unit is designed as a wrap-around bypass
with automatic or manual transfer from UPS power
to utility to allow for maintenance or repair of
the UPS system without interruption of the load.
This bypass is designed to supply UPS power and
in the event that the UPS power is lost the AMB
will automatically switch to bypass mode and
continue to supply AMB conditioned utility AC
to the load. The communications (optional) will
notify the connected equipment that the UPS is no
longer supplying power, but the loads have not
been effected.
39
The Bull Automatic Voltage Regulating Power Bar
  • Auto Regulation Boost and Buck features with
    Brownout and Over-voltage protection
    (Transformer Based)
  • Surge, Spike, Noise, and Transient Protection.
  • Six (6) 5-15R Outlets (4 Normal and 2 AC
    Adapter Outlets)
  • Output rating is 1000W

40
DC UPS Systems
  • A DC-UPS system designed to convert the utility
    AC to DC. In the event of a power loss the DC
    UPS will supply back-up power to the DC load.
  • Std. Back-up time approx. 3 hours.
  • Features Auto-Restart Diagnostic LEDs
    Wall-mount or tower models available.

41
Benefits
  • Engineered Solutions
  • Engineered systems to fit user requirements.
  • Maintained High Quality Products.
  • Maintained High standard of service.
  • Continual upgrading of products to maintain
    cutting edge technology.

42
Thank-You!
  • We appreciate your time and attendance.
