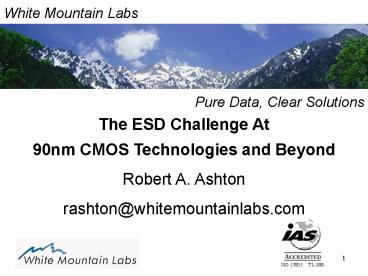

The ESD Challenge At 90nm CMOS Technologies and
Beyond Robert A. Ashton rashton_at_whitemountainlabs
.com
2
Outline

• Introduction to ESD ESD Protection
• Technology Advances and ESD
• Intrinsic Changes in Technology
• Challenges new Technology Introduces
• Discussion of Specific Issues
• Directions for ESD Protection Control
• Summary

3
The ESD Threat It Does Not Change

• ESD threats we test for
• Charged Human Touches IC (HBM)
• Charged Machine Touches IC (MM)
• Charged IC Discharges (CDM)
• Elements That Define Tests
• A Capacitance That is Charged
• A Discharge Path

4
Elements That Define ESD Testing
5
HBM 2000V, MM 200V, and CDM 500V
6
ESD Protection Thought Process

• Think
• High Current Flow/Short Time Scale
• NOT High Voltage
• Most of Voltage Drop Outside of Device
• High Current generates Voltage On Chip
• On Chip Voltages Often lt10V
• ESD Design
• Create Low Resistance Paths
• Keep Voltage and Current Below Critical Levels

7
Sample ESD Protection Strategy
8
Stress IN Negative To VSS1
Voltage Drop One Forward Bias Diode Bus
Resistance
Diode Drop NOT Low Current, 0.7V, but at HIGH
current, at least a Full Volt
9
Stress IN Positive To VSS1
Voltage Drop 1 FB Diode Rail Clamp Bus
Resistance
10
ESD Strategy Multi Power Supply
11
Stress OUT Positive To VDD1
Voltage Drop 3 FB Diode Rail Clamp Bus
Resistance
12
ESD and Technology Evolution

• New Technologies Change
• Critical Voltage Levels
• Critical Current Levels
• Change Resistances

13
Intrinsic Technology Changes

• Feature sizes get smaller (DUH!!!)
• Thicknesses get thinner
• Not just gate oxide
• Metal layers
• Junction depths
• Sheet resistances increase
• New materials
• Metals, Low and High K dielectrics,
• New silicide materials (changes junctions)
• High resistance starting material
• Modified implants for transistor junctions

14
Changes Technologies Facilitate

• Higher Pin Counts
• Analog and Digital On One Chip
• Multiple Power Domains
• Higher Frequencies
• Passive Components on Chip

15
Intrinsic ESD Technology Issues

• Will Discuss
• Transistor behavior
• Gate Dielectric
• Interconnect
• Will Not Discuss
• Silicide Changes
• Diffusion Resistance
• Other Material Changes

16
nMOS Transistor Behavior

• nMOS Split Personality
• Can be weak link in ESD strategy
• Can be a robust ESD protection device
• What are ESD properties of transistor?
• How do they scale with technology?

17
Grounded Gate nMOS
Drain
Gate
Source
18
GG nMOS Parameters and ESD

• Vt1, It1 How easy to turn on snapback
• Vt1, generally lowers with technology
• Important relative to other voltages
• Vsb Energy during ESD event
• Needs to be above VDD max and burn-in V
• Vt2, It2 Defines damage point
• It2, general transistor robustness
• Either way with technology
• Vt2, important relative to other voltages

19
nMOS Generation to Generation

• TI Transistor study
• Requirement same for each generation
• ESD performance similar over several generations
• (Boselli et.al. 2005 EOS/ESD Symposium)
• Dont take this as a given!!!
• Changes could have dramatic consequences

20
Oxide Versus Junction Breakdown
Weir , IRPS 2004 (based on Duvvury Semi. Sci.
Tech. 1996)
21
How Do Oxides Survive?

• Oxide BD dropping faster than Junction BD
• What allows Passing ESD Tests
• Time Dependent Dielectric Breakdown
• TDDB
• Higher survival Voltage at shorter times
• Extends to the ESD time scale

22
Time Dependent Dielectric Breakdown
For a specific Oxide and Area
23
Equivalent Oxide Thickness
24
Oxinitride to High K Transition

• Oxinitride
• 1.2nm oxinitride can survive 3.4V at ESD times
• Thinner dielectric, safe voltage decreases
• Will high K materials depend similarly?
• Will need to be determined

25
Intermediate Interconnect Trend
Int. Tech. Roadmap for Semiconductors 2004
26
Chip Size Trend
Int. Tech. Roadmap for Semiconductors 2004
27
Interconnect and ESD

• Allowed ESD IR drop same or decreasing
• Sheet resistance increasing
• Chip size not decreasing
• Push to reduce line widths
• Increased care needed in ESD current paths

28
Extrinsic ESD Technology Issues

• New Technologies Make Possible
• High Frequency (RF) Circuits
• Increased Number of Pins
• Increasing Number of Power Domains
• Analog and Digital on Same Chip
• Passive Components on Chip
• ESD Implications are intertwined
• Long Test Time
• Multiple Zaps ?Wear Out?
• Multiple ESD Strategies On One Chip

29
High Frequency in Advanced Technology

• Increased integration of RF
• RF requires low capacitance
• ESD protection eats capacitive budget
• Compromises are made w.r.t. ESD
• Lower ESD Level for RF pins
• Locate RF pins at less susceptible locations

30
HBM/MM Pin Combinations in Test
31
Zap dependence on Pins and Power Domains
Number of Power Domains
32
HBM Test Time (assume 1s per zap)
Number of Power Domains
Time to Test is an Issue
33
Multiple Zap Wear Out
34
The Bottom Line on The Future

• ESD Association Roadmap to 2010
• We can not expect ESD levels to stay the same!

35
ESD Roadmap - HBM
36
ESD Roadmap - CDM
37
How Industry Will Cope On Chip

• More Active Circuits for ESD Protection
• Triggered by Power Supply Transient
• Normal MOS (or bipolar) current for protection
• Protection can be circuit (SPICE) simulated
• Less prone to wear-out
• Increased use of ESD design simulation
• Biggest development needed in CDM
• Package Power Planes reduce IR drop
• Narrow Band RF circuits
• Use Inductor Matching Network as part of
  Protection

38
How Industry Will Cope Off Chip

• Improved ESD control in factory
• Improved training
• Better handling equipment
• Air Ionization
• Monitoring of ESD events
• Increased Off Chip ESD protection
• Use on select pins (RF for example)
• Zener Diodes
• Polymeric voltage suppression

39
Summary ESD at 90nm and Below

• The Challenge Increases
• Everyone needs to share the pain
• Technologists Squeeze in Robustness
• Designers
• ESD design from day one
• Development of improved ESD prediction tools
• Testing Break testing into sub units
• Modified Pin Combinations (not full coverage?)
• System Designers Provide protection on board
• Factory Improved ESD Control
