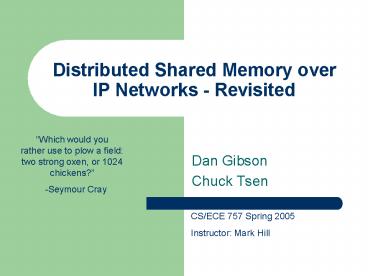

Distributed Shared Memory over IP Networks - Revisited

1
Distributed Shared Memory over IP Networks -
Revisited

• Dan Gibson
• Chuck Tsen

Which would you rather use to plow a
field two strong oxen, or 1024 chickens?
-Seymour Cray
CS/ECE 757 Spring 2005 Instructor Mark Hill
2
DSM over IP

• Abstract a single, large, powerful machine from a
  group of many commodity machines
• Workstations can be idle for long periods
• Networking infrastructure already exists
• Increase performance through parallel execution
• Increase utilization of existing hardware
• Fault tolerance, fault isolation

3
Overview - 1

• Source-level distributed shared memory system for
  x86-Linux
• Code written with DSM/IP API
• Memory is identically named at high-level (C/C)
• Only explicitly shared variables are shared
• User-level library checks coherence on each
  access
• Similar to programming in an SMP environment

4
Overview - 2

• Evaluated on a small (Ethernet) network of
  heterogeneous machines
• 4 x86-based machines of varying quality
• Small, simulated workloads
• Application-dependent performance
• Communication latency must be tolerated
• Relaxed consistency models improve performance
  for some workloads
• Heterogeneity vastly affects performance
• All machines operate as slowly as the slowest
  machine in Barrier-synchronized workloads
• Pentium 4 4.0 GHz is faster than a Pentium 3 600
  Mhz!

5
Motivation

• DSMoIP similar to building an SMP with unordered
  interconnect
• Shared-memory over message-passing
• Race conditions possible
• Coherence concerns
• DSMoIP offers a tangible result
• Runs on real HW

6
Challenges

• IP on Ethernet is slow!
• Point-to-point peak bandwidth lt12Mb/s
• Latency 100us, RTT 200us
• Common case must be fast
• Software check of coherence on every access
• Many coherence changes require at least one RTT
• IP semantics difficult for correctness
• Packets can be
• Dropped
• Delivered More than Once
• Delivered Very Late, etc.

7
Related Projects

• TreadMarks
• DSM over UDP/IP, page-level granularity,
  source-level compatibility, release consistency
• Brazos (Rice)
• DSM using multicast IP, MPI compatibility, scope
  consistency, source-level compatibility
• Plurix (Universitdt Ulm)
• Distributed OS for shared memory, Java-source
  compatible

8
More Related Projects

• Quarks (Utah)
• DSM over IP, user-level package interface,
  source-level compatibility, many coherence
  options
• SHRIMP (Princeton), StarDust (IRISA)
• And more
• DSM over IP is not a new idea
• Most have demonstrated speedup for some workloads

9
Implementation Overview

• All participating machines have space reserved
  for each shared object at all times
• Each shared object has accompanying coherence
  data
• Depending on coherence, the object may or may not
  be accessible
• If permissions are needed on a shared object,
  network communication is initiated
• Identical semantics to a long-latency memory
  operation

10
Implementation Overview
11
Implementation Overview

• Shared memory objects use altered syntax for
  declaration and access
• User-level DSMoIP library, consisting of
• Communication backbone
• Coherence engine
• Programmer uses a small API for setup and
  synchronization

12
API Accessing Shared Objects

• SMP
• a x b
• x y 1
• z arrayi 7
• arrayi

• DSMoIP
• a x.Read() b
• x.Write(y.Read()-1)
• z array.Read(i) 7
• array.Write(
• array.Read(i)1,
• i)

Variables x, y, z, and array are shared. All
others are unshared
13
API Accessing Shared Objects

• Naming of shared objects is syntactically
  different, but semantically unchanged
• Use of .Read() and .Write() functions allows DSM
  to interpose if necessary
• Use of C/C operator overloading can remove some
  of the changes in syntax (not implemented)

14
Communication Backbone (CB)

• A substrate on which to build coherence
  mechanisms
• Provide primitives for communication
• Guaranteed delivery over an unreliable network
• At-most-once delivery
• Arbitrary message passing to a logical thread or
  broadcast to all threads

15
Coherence Engine (CE)

• Uses primitives in communication backbone to
  abstract shared memory from a message-passing
  system
• Swappable, based on needs of application
• CE determines consistency model
• CE plays a major role in performance

16
CE/CB Interaction Example
MACHINE 1 MACHINE 2 a / None a / Read
17
CE/CB Interaction Example
MACHINE 1 MACHINE 2 a / Read a / Read
18
CE/CB Interaction Example
Already have perm.
MACHINE 1 MACHINE 2 a / Write a / None
19
CE/CB Interaction Example
MACHINE 1 MACHINE 2 a / Write a / None
20
CE/CB Interaction Example
MACHINE 1 MACHINE 2 a / None a / Write
21
Coherence Engines Implemented

• ENGINE_NC
• Fast, simple engine that pays no attention to
  consistency
• Reads can occur at any time
• Writes are broadcast, can be observed by any
  processor in any order, and are not guaranteed to
  ever become visible at all processors
• Communicates only on writes, non-blocking

22
Coherence Engines Implemented

• ENGINE_OU
• Owned/Unowned
• Sequentially-consistent engine
• Ensures SC by actually enforcing total order of
  accesses
• Each shared object is valid at only one processor
  for the duration of execution
• Slow, cumbersome (nearly every access generates
  traffic)
• Blocking, latent reads and writes

23
Coherence Engines Implemented

• ENGINE_MSI
• Based on MSI cache coherence protocol
• Shared objects can exist in multiple locations in
  S state
• Writing is exclusive to a single, M-state machine
• Communicates as needed by typical MSI protocol
• Sequentially consistent

24
Evaluation

• DSM/IP evaluated using four heterogeneous
  x86/Linux machines
• Microbenchmarks test correctness
• Simulated workloads explore performance issues
• Early results indicate that DSM/IP overwhelms
  100M LAN
• 1-10k broadcast packets/second per machine
• TCP/IP streams in subnet are suppressed by UDP
  packets in absence of Quality of Service measures
• Process is self-throttling, but makes DSM/IP
  unattractive to network administrators

25
Measurement

• Event counting
• Regions of DSM Library augmented with event
  counters
• Timers
• gettimeofday(), setitimer() for low-granularity
  timing
• Built-in x86 cycle timers for high-granularity
  measurement
• Validated with gettimeofday()

26
Timer Validation

• Assumed system-call based timers accurate
• x86 cycle timers validated for long executions
  against gettimeofday()

27
Microbenchmarks

• message_test
• Each thread sends a specified number of messages
  to the next thread
• Attempts to overload network/backbone to produce
  an incorrect execution
• barrier_test
• Each thread iterates over a specified number of
  barriers
• Attempts to cause failures in DSM_Barrier()
  mechanism
• lock_test
• All threads attempt to acquire a lock and
  increment global variable
• Puts maximal pressure on DSM_Lock primitive

28
Microbenchmarks Validation

• message_test
• nMessages 1M, N1,4, no lost messages
  (runtime 2 minutes)
• barrier_test
• nBarriers 1M, N1,4, consistent
  synchronization (runtime 4 minutes)
• lock_test
• nIncs 1M, ENGINE_OU (SC), N1,4, final value
  of variable N-million (correct)

29
Simulated Workloads

• Three simulated workloads
• sea, similar to OCEAN from SPLASH-2
• genetic, a typical iterative genetic algorithm
• xstate, an exhaustive solver for complex
  expressions
• Implementations are relatively simplified, for
  quick development.

More Communication
30
Simulated Workloads - sea

• Integer version of SPLASH-2s OCEAN
• Simple iterative simulation, taking averages of
  surrounding points
• Uses large integer array
• Coherence granularity depends on number of
  threads
• Uses DSM_Barrier() primitives for synchronization

31
Simulated Workloads - genetic

• Multithreaded genetic algorithm
• Uses distributed genetic process to breed a
  specific integer from a random population
• Iterates in two phases
• Breeding Generate new potential solutions from
  the most fit members of the current population
• Survival of the Fittest Remove the least fit
  solutions from the population
• Uses DSM_Barrier() for synchronization

32
Simulated Workloads - xstate

• Integer solver for arbitrary expressions
• Uses space exploration to find fixed points of
  hard-coded expression
• Employs a global list of solutions, protected
  with a DSM_Lock primitive

33
Methodology

• Each simulated workload run for each coherence
  engine
• Normalized parallel-phase runtime (versus
  uniprocessor case) measured with high-resolution
  counters
• Does not include startup overhead for DSM system
  (1.5 seconds)
• Does not include other initialization overheads

34
Results - SEA
Engine ABT Wait
OU 0.6 s 82
NC 0.6 s 10
MSI 0.05s 15
35
Results - GENETIC
Engine ABT Wait
OU 0.02 s 20
NC 0.02 s 9
MSI 0.01 s 1
36
Results - XSTATE
Engine ABT Wait
OU 3.1 s 8
NC 2.7 s 2
MSI 2.6 s 9
37
Observations

• ENGINE_NC
• speedup for all workloads (but no consistency)
• Scalability concerns Broadcasts on every write!
• ENGINE_OU
• speedup for workload with lightest communication
  load
• Scalability concerns Unicast on every read
  write!
• ENGINE_MSI
• Reduces network traffic has speedup for some
  workloads
• Impressive performance on SEA
• Effect of heterogeneity is significant!
• Est. fastest machine spends 25-35 of its time
  waiting for other machines to arrive at barriers

38
Conclusions

• Performance for DSM/IP implementation is marginal
  for small networks (Nlt4)
• Coherence engine significantly affects
  performance
• Naïve implementation of SC has far too much
  overhead

39
Conclusions

• Common case might not be fast enough
• Best case
• Single load or store becomes a function call
  10 instrs.
• Worst case
• Single load or store becomes a RTT on the network
  (1M-100M instruction times)
• Average case (depends on engine)
• LD/ST becomes 100-1K instruction times?

40
More Questions

• How might other engine implementations behave?
• Is the communication substrate to blame for all
  performance problems?
• How would DSM/IP perform for N8,16,64,128?

41
Questions

• SEA Demo

42

• Extra Slides

43
Initial Synchronization
44
Initial Synchronization
45
Initial Synchronization
