Title: P,T-Flash Calculations


1

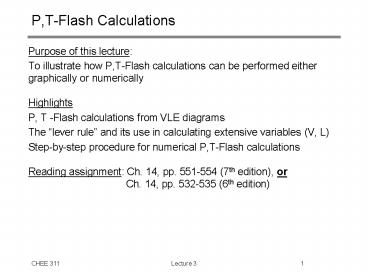

P,T-Flash Calculations
  • Purpose of this lecture
  • To illustrate how P,T-Flash calculations can be
    performed either graphically or numerically
  • Highlights
  • P, T -Flash calculations from VLE diagrams
  • The lever rule and its use in calculating
    extensive variables (V, L)
  • Step-by-step procedure for numerical P,T-Flash
    calculations
  • Reading assignment Ch. 14, pp. 551-554 (7th
    edition), or
  • Ch. 14, pp. 532-535 (6th edition)

2
4. P,T-Flash Calculations
  • If a stream consists of three components with
    widely differing volatility, substantial
    separation can be achieved using a simple flash
    unit.
  • Questions often posed
  • Given P, T and zi, what are the equilibrium phase
    compositions?
  • Given P, T and the overall composition of the
    system, how much of each phase will we collect?

3
P-T Flash Calculations from a Phase Diagram
  • For common binary systems, you can often find a
    phase diagram in the range of conditions needed.
  • For example, a Pxy diagram for the
  • furan/CCl4 system at 30?C is
  • illustrated to the right.
  • Given
  • T30?C, P 300 mmHg, z1 0.5
  • Determine
  • x1, x2, y1, y2 and the fraction of the
  • system that exists as a vapour (V)

4
Flash Calculations from a Phase Diagram
  • Similarly, a Txy diagram can be used if
    available.
  • Consider the ethanol/toluene system illustrated
    here at P 1atm.
  • Given
  • T90?C, P 760 mmHg, z1 0.25
  • Determine
  • x1, x2, y1, y2 and the fraction of the
  • system that exists as a liquid (L)
  • How about
  • T90?C, P 760 mmHg, z1 0.75?

5
Phase Rule for Intensive Variables
  • For a system of ? phases and N species, the
    degree of freedom is
  • F 2 - ? N
  • variables that must be specified to fix the
    intensive state of the system at equilibrium
  • Phase Rule Variables
  • The system is characterized by T, P and (N-1)
    mole fractions for each phase
  • the masses of the phases are not phase-rule
    variables, because they do not affect the
    intensive state of the system
  • Requires knowledge of 2 (N-1)? variables
  • Phase Rule Equations
  • At equilibrium ?i? ?i ? ?i ? for all
    N species
  • These relations provide (?-1)N equations
  • The difference is F 2 (N-1)? - (?-1)N
  • 2- ? N

6
Duhems Theorem Extensive Properties SVNA10.2
  • Duhems Theorem For any closed system of known
    composition, the equilibrium state is determined
    when any two independent variables are fixed.
  • If the system is closed and formed from specified
    amounts of each species, then we can write
  • Equilibrium equations for chemical potentials
    (?-1)N
  • Material balance for each species N
  • We have a total of ?N equations
  • The system is characterized by
  • T, P and (N-1) mole fractions for each phase 2
    (N-1)?
  • Masses of each phase ?
  • Requires knowledge of 2 N? variables
  • Therefore, to completely determine the
    equilibrium state we need
  • 2 N? - ?N 2 variables
  • This is the appropriate rule for flash
    calculation purposes where the overall system
    composition is specified

7
Ensuring you have a two-phase system
  • Duhems theorem tells us that if we specify T,P
    and zi, then we have sufficient information to
    solve a flash calculation.
  • However, before proceeding with a flash calcn,
    we must be sure that two phases exist at this P,T
    and the given overall composition z1, z2, z3
  • At a given T, the maximum pressure for which two
    phases exist is the BUBL P, for which V 0
  • At a given T, the minimum pressure for which two
    phases exist is the DEW P, for which L 0
  • To ensure that two phases exist at this P, T, zi
  • Perform a BUBL P using xi zi
  • Perform a DEW P using yi zi

8
Ensuring you have a two-phase system
  • If we revisit our furan /CCl4 system at 30?C, we
    can illustrate this point.
  • Given
  • T30?C, P 300 mmHg, z1 0.25
  • Is a flash calculation possible?
  • BUBLP, x1 z1 0.25
  • DEWP, y1 z1 0.25
  • Given
  • T30?C, P 300 mmHg, z1 0.75
  • Is a flash calculation possible?
  • BUBLP, x1 z1 0.75
  • DEWP, y1 z1 0.75

9
Flash Calculations from Raoults Law
  • Given P,T and zi, calculate the compositions of
    the vapour and liquid phases and the phase
    fractions without the use of a phase diagram.
  • Step 1.
  • Determine Pisat for each component at T
    (Antoines eqn, handbook)
  • Step 2.
  • Ensure that, given the specifications, you have
    two phases by calculating DEWP and BUBLP at the
    composition, zi.
  • Step 3.
  • Write Raoults Law for each component
  • or
  • (A)
  • where Ki Pisat/P is the partition coefficient
    for component i.

10
Flash Calculations from Raoults Law
  • Step 4.
  • Write overall and component material balances on
    a 1 mole basis
  • Overall
  • (B)
  • where L liquid phase fraction, V vapour phase
    fraction.
  • Component
  • i1,2,,n (C)
  • (B) into (C) gives
  • which leads to
  • (D)
  • Step 5.
  • Substitute Raoults Law (A) into (D) and
    rearrange
  • (E)

11
Flash Calculations from Raoults Law
  • Step 6
  • Overall material balance on the vapour phase
  • into which (E) is substituted to give the general
    flash equation
  • 14.18
  • where,
  • zi overall mole fraction of component i
  • V vapour phase fraction
  • Ki partition coefficient for component i
  • Step 7
  • Solution procedures vary, but the simplest is
    direct trial and error variation of V to satisfy
    equation 14.18.
  • Calculate yis using equation (E) and xis using
    equation (A)

12
VLE Calculations Summary
  • Here is a summary of what we need to know
    (Lectures 8 9)
  • How to use the Phase Rule (F2-pN)
  • How to read VLE charts
  • - Identify bubble point and dew point lines
  • - Read sat. pressures or temperatures from the
    chart
  • - Determine the state and composition of a
    mixture
  • How to perform Bubble Point, Dew Point, and
    P,T-Flash calculations
  • - Apply Raoults law
  • - Apply Antoines equation
  • How to use the Lever Rule (graphically or
    numerically)
  • How to construct VLE (Pxy or Txy ) charts for
    ideal mixtures
