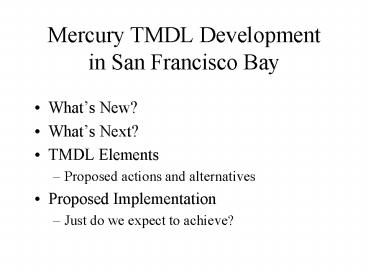

Mercury TMDL Development in San Francisco Bay

1
Mercury TMDL Developmentin San Francisco Bay

• Whats New?
• Whats Next?
• TMDL Elements
• Proposed actions and alternatives
• Proposed Implementation
• Just do we expect to achieve?

2
The usual caveats...

• This discussion is not about
• The will or intent of the Regional Board, the
  State Board, or the State of California
• The anticipated outcome of any public process

• This discussion is about
• Published historic accounts
• Public information (hearings, staff reports,
  peer-reviewed science)
• Staff recommended actions

3
Goals

• Reduce mercury concentrations in fish
• Focus on resident species
• Stop ongoing pollution
• Using existing water quality objectives
• Implement a new fish tissue objective
• Using sound science and whole-watershed approach
• Predict the Bays recovery rate
• Communicate to the public through Use
  Attainability Analysis

4
The history...

• 1994 First RMP fish tissue survey
• 1996 Bay listed as impaired for mercury
• 1998 First Staff report - northern reach
• 1999 Mercury Watershed council convened
• Series of meetings and workgroups, 1999 - present
• 1999 Regional Board staff form TMDL team
• Staff commit to submission of TMDL report to U.S.
  EPA by April 2000
• 2000 TMDL Report submitted to U.S. EPA
• Transmittal letter and resolution commits to TMDL
  adoption by early 2002

5
The Future
(Months)
No LATER than January 2002
Regional Board Hearing
Public Comment
2
Responses to Comments
Regional Board Adoption
State Board Hearing
2-6
Public Comment
Responses to Comments
State Board Approval
2-6
OAL Approval
EPA Approval
2-6
June 2002 - August 2003
Total 8-20 Months
6
Whats New? (Since June 2000)

• NAS review of mercury risk assessment
• EPA mercury tissue residue criterion
• RMP fish consumption study
• RMP 3rd fish tissue survey
• RMP pilot air deposition study
• All dischargers begin ultra-clean mercury
  measurements
• FSSD begins near-field methylmercury monitoring
• BASMAA fuels study
• BADA - Sustainable Conservation fluorescent lamp
  report
• CALFED methylmercury survey in Bay and Delta
• U.S. EPA EMAPS survey in Bay
• CVRWQCB Clear Lake numeric targets report
• Urban runoff program sediment monitoring
• USFWS NRDA in Guadalupe River Watershed
• Guadalupe River Flood Control Project
  Collaborative
• Guadalupe Creek restoration EIR / Engineers
  Report

7
Hey, Ive been no sluggard!

• New Idria Manuscript published in EST
• First author Priya Ganguli, SFEP (Lead field
  staff on Gambonini post cleanup monitoring)
• Presented at
• Environmental Council of States, St. Louis
• California Waste Management Association, Berkeley
• Water Environment Federation Pollution Prevention
  Symposium, Monterey (Cori Traub, Clean Water
  Action presented on same panel)
• EPA Mercury in Mines Conference, San Francisco
• California Water Environment Association mercury
  workshop, San Jose

8
NAS Methylmercury Review

• Report released in July 2000
• Validated U.S. EPA reference dose
• Significant implications for risk assessment

9
U.S. EPA mercury tissue residue criterion

• Published in Fed Register December, 2000
• Based on consumption rates
• Recommends 0.3 ppm for 17.5 g fish / day
• Recommends States develop site-specific criteria
  using local consumption data
• U.S. EPA expects states to adopt tissue-based
  criteria

10
RMP fish consumption study

• Most recent of several available
• Good response rate
• Pier fishers and party boats
• Available at www.sfei.org

11
RMP 3rd fish tissue survey

• Conducted in 2000
• Continue monitoring every 3 years
• Mercury data available soon, will be incorporated
• Will be available at www.sfei.org
• Contact Jay Davis (jay_at_sfei.org)

12
RMP pilot air deposition study

• Measured ambient airborne mercury
• Measure wet deposition rates
• Modeled dry deposition rates
• Ambient air concentrations very close to global
  ambient conditions
• Ambient rainwater 5-20 ng/L total Hg
• Contact Pam Tsei, Don Yee SFEI
• www.sfei.org

13
Ultra-low detection limits for mercury in
wastewater

• Ordered by Regional Board staff in 1999
• Purpose was to improve mass load estimates for
  wastewater
• June 2000 report estimated 20-40 kg/yr
• Revised estimate is lt 15 kg / yr
• Average concentration 13 ng/L

14
Near-Field Methylmercury Monitoring

• Permit provision for Fairfield Suisun
• Measured dissolved methylmercury, unfiltered
  methylmercury, dissolved mercury, total mercury,
  TSS, other metals
• High-quality data set

15
BASMAA Fuels Study

• Began as study of mercury levels in fuels
• Additional air deposition monitoring to
  complement SFEI study
• Low (1 ppb) Hg concentrations in refined fuels
• Where is missing mass? (1 ppm in crude)
• Confirmed that mercury air deposition is from
  remote, not regional sources.

16
BADA - Sustainable Conservation fluorescent lamp
report

• Requested of BADA by Regional Board staff
• Evaluated potential for eliminating mercury in
  electric light through reformulation
• Estimate 20 Years to new technologies
• Recycling is our best option
• Terminal disposal is a significant barrier to
  recycling programs
• Regional direction consistent with national
  trends
• Partnership results stunned ECOS participants

17
CALFED methylmercury survey in Bay and Delta

• 3-year CALFED grant to study mercury
  bioaccumulation in Delta
• SFRWQCB supplemented funds to extend sediment
  survey into Central, South Bay
• Surprises
• Delta is a methylmercury sink
• San Joaquin drainage is a bioaccumulation
  hot-spot
• No surprises
• Methylmercury in our bay highest in margins,
  especially where total mercury exceeds sediment
  target

18
U.S. EPA EMAPS survey in Bay

• Stratified random sampling of the Bay
• Provides statistically robust data set
• Complements RMP, CALFED data sets, which are
  site-focused sampling designs
• Data expected within next 3-6 months

19
CVRWQCB Clear Lake numeric targets report

• Region 5 is developing a TMDL for mercury in
  Clear Lake
• Numeric Target Report implements U.S. EPA
  guidance to develop fish tissue target
• Contacts Janice Cooke or Chris Foe, CVRWQCB

20
Urban runoff program sediment monitoring

• Ordered by Regional Board staff for TMDL
  development
• Approach is to characterize mercury and PCB
  concentrations in urban and non-urban stormwater
  conveyances (80 Samples this year)
• Intent is to use data for evaluation of target
  attainment, characterize concentrations by
  land-use, identify any major controllable
  sources, estimate pollutant loads
• Preliminary reports expected in February
• Excellent, innovative work by all urban runoff
  programs
• Kudos to Andy Gunther (AMS), Dan Cloak (EOA),
  BASMAA Program managers

21
USFWS NRDA in Guadalupe River Watershed

• Natural Resource Damage Assessment conducted by
  U.S Fish and Wildlife Services
• Assesses value of lost natural resources due to
  mercury pollution in Guadalupe River watershed
• Public agencies and private companies identified,
  brought to table
• Interim, cooperative agreement established
• Has potential to assign accountability for
  remediation
• Extremely litigation sensitive
• Contact Jim Haas, USFWS

22
Guadalupe River Flood Control Project
Collaborative

• Not really new, the collaborative has been in
  effect as a settlement agreement for years
• To date, environmental issues focussed on habitat
  restoration
• Regional Board staff now helping to incorporate
  mercury remediation in project designs
• Partnership approach with SCVWD staff

23
Guadalupe Creek Restoration

• Mitigation for downtown flood control project
• 1.7 miles of stream
• Downcut 8 feet in 30 years
• 20-30 ppm mercury in soils
• Project will arrest erosive loss of in-stream
  mercury
• EIR produced excellent methylmercury assessment
• First step in a journey of a thousand miles

24
SO.

• Yes, we are fighting mercury pollution in our
  watersheds
• Yes, the stakeholders are involved
• In fact, they are doing all the work
• Yes, the partnership approach can work
• But we still have to memorialize our commitment
  to action through a public process, in the form
  of a TMDL...

25
The Game Plan

• Reduce watershed pollutant loads by enforcing
  existing water quality objectives
• Build partnerships that promote pollution
  prevention
• Commit to establishing a new objective for
  mercury in fish tissue within ten years
• Conduct a UAA concurrent with new fish tissue
  objective to predict time to attainment

26
Elements of a TMDL
Status in SF Bay

• Problem Statement
• Numeric Targets
• Source Assessment
• Linkage Analysis
• TMDL, Load and Waste Load Allocations
• Margin of Safety, Seasonal Variations, Critical
  Conditions
• Implementation Plan

Proposed in June 30, 2000 report to U.S.
EPA Received substantial stakeholder input Needs
scientific peer review
Concepts in place Needs formal public process to
adopt
27
Problem Statement How many grams per day is
fishable?
28
Problem Statement Pull over, son, youre over
the limit
29

• Why?
• Watershed and air sources
• Historic sources
• Complex cycling in the environment

30

• What increases mercury in water?
• Increasing amounts of sediment in the water
• mercury sticks to dirt
• Increasing amount of mercury in sediment

polluted sediments
Mercury Concentration in Water
background sediments
Suspended sediments in water
31
What increases mercury in SF Bay water?
Data from the San Francisco Estuary Regional
Monitoring Program for Trace Substances.
http//www.sfei.org
32
Polluted Sediments
Data from the San Francisco Estuary Regional
Monitoring Program for Trace Substances.
http//www.sfei.org
33
Phase 1 TargetMercury in Sediments

• Most of the sediment in SF Bay comes from the
  Central Valley
• Our sediment should resemble that of Central
  Valley Source
• There is usually more mercury in fine clay than
  in coarse sand

Over Target
Mercury in Sediment
Target
Sand
Clay
34
Evaluation of Sediment Target
Data from the San Francisco Estuary Regional
Monitoring Program for Trace Substances.
http//www.sfei.org
35
Proposed Action

• Regulate to Sediment target in first phase
• Set Sediment Target at current watershed
  background concentration

36
Proposed Action

• Set fish tissue target as success criterion in
  first phase
• Develop load allocations based on fish tissue
  target in second phase

37
Alternative Actions

• Set sediment target below current watershed
  background level
• Calculate load allocations based on fish tissue
  target

38
Source Assessment
39
Linkage Analysis
40
Forget modeling, lets measure it
Methylmercury concentrations in sediments (ng/g)
41
Phase 1 Action stop feeding the methylation
machinery on the margins
42
Allocate loads based on effect on sediment target
This
Sum of these
43
Clean Water Act requires that we express the load
in terms of mass per unit time
Load Allocation
Target allocation x Sediment Load


Kg Hg / yr
mg Hg/kg sed
kg sed / yr
44
Happy now?
45
Implementation Plan for Wastewater

• 50 kg total
• Concentration goals
• annual average
• 25 ng/L deep water
• 15 ng/L shallow
• Based on twice current flow
• Credit for
• Reclamation
• Stormwater treatment
• Air emission controls
• Offset proposals
• Dont forget cooling water!

46
Implementation Plan for Urban Runoff Programs

• Continue sediment monitoring for five years
• After five years, submit a report telling
  Regional Board
• Do any catchments cause exceedance of target
  allocation? (0.32 ppm in fine sediments)
• Submit action plans for largest exceedances,
  considering
• What is the total mercury mass flux?
• Is exceedance due to upstream source requiring
  Regional Board or other agency action?
• What is effect of airborne deposition?
• Are there opportunities for pollution prevention?
• Are there potential benefits from reduction of
  other pollutants? (e.g., PCBs)
• Is conveyance cleanout a potential solution?
• Is treatment the only alternative?
• What are economic impacts?
• What are environmental benefits?

47
Goal of urban runoff programs

• Identify your biggest outliers
• Tell us what it takes to eliminate them
• Tell us, once that is done, will the net impact
  of all watershed inputs be less than the target
  allocation?
• Are there added benefits due to other pollutants?

48
Economic Impacts
Effluent loads
Watershed loads
49
Implementation Plan for Dredgers

• Continue to Use LTMS cover / no cover guidelines
• Consistent with 0.4 ppm target
• Supported by linkage analysis - dont put red-hot
  sediments in a wetland, duh!
• Develop Best Management Practices for minimizing
  methylation potential in constructed and managed
  wetlands

50
Pollution Prevention

• Encourage municipalities to adopt virtual
  elimination policies, take-back programs
• Work with BADA, BASMAA, municipalities to ensure
  100 recycling of fluorescent lights
• Work with CDA, POTWs to maximize recovery of
  dental amalgam
• Regulatory leverage is EO approval of pollution
  prevention plans
• Adopt a resolution supporting a national terminal
  disposal strategy

51
The Big Picture
(A)
Total amount of bioavailable mercury in Bay and
its margins (Kg)
assimilative capacity
(B)
(C)
Time
