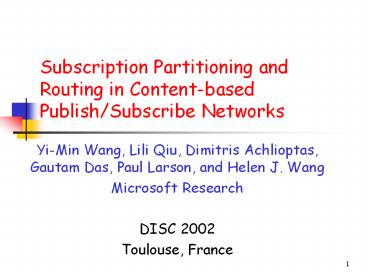

Subscription Partitioning and Routing in
Content-based Publish/Subscribe Networks

• Yi-Min Wang, Lili Qiu, Dimitris Achlioptas,
  Gautam Das, Paul Larson, and Helen J. Wang
• Microsoft Research
• DISC 2002
• Toulouse, France

2
Motivation

• Phenomenal growth in Web usage
• Future trends
• Switch from polling to notifications
• Example stock quotes, sports scores, weather,
  news,
• Yahoo! Alerts, MSN Mobile, AOL anywhere,
  InfoSpace,
• Complements the traditional polling model in Web
• Event Distribution Network (EDN)
• Distributed and scalable event distribution
• Parallel the idea of Content Distribution Network
  (CDN) for event distribution
• Built on top of a self-configuring overlay
  network of servers
• Content-based publish/subscribe systems through
  in-network processing of aggregated subscription
  filters

3
Dispatcher-based model
4
Model of Content-based Pub/Sub

• Content-based filtering/routing
• Event schema with d attributes, supporting
  equality and range predicates
• Event a point in the ddimensional space
• Subscription a rectangle in that space
• Match a rectangle contains the point

5
Subscription Partitioning

• Basic idea similarity-based clustering for
  reducing total event traffic
• Event Space Partitioning (ESP)
• Filter Set Partitioning (FSP)

6
Equality Predicates

• Hash predicates to get uniform distribution
• Treat the hashed domain as the event space
• Use Event Space Partitioning
• Subscription is a point does not intersect
  multiple sub-spaces
• Use over-partitioning for better load balancing
• Use offline greedy algorithm to assign buckets to
  servers for load balancing
• Use indirection table to dynamically map buckets
  to servers for load re-balancing
• Use bloom filters to further reduce traffic
• Fast detection of true negatives at the expense
  of (very low) false-positive rate

7
Simulation Results

• Actual Notification Money log
• 1.48M subscriptions with 0.29M unique filters
  over 21,741 stock symbols
• Zipf-like distribution

8
Simulation Results (Cont.)

• Simulate 100M new subscriptions from 43,734
  symbols
• Scaled-up Zipf-like distribution
• Perturbation and permutation
• Uniform distribution
• 50 servers with over-partitioning ratio 10
• Without load re-balancing
• Load imbalance (max/min) ranged from 1.41 to 6.66
  (Uniform case)
• With imbalance threshold of 2.0
• Re-balancing was triggered only 5 times, each
  time involving re-assignment of up to 3 buckets
  and migration of up to 0.7 subscriptions.

9
Range Predicates

• Use Filter Set Partitioning
• K-Mean clustering
• Use center point to represent a rectangle
• R-tree-based clustering
• R-tree dynamic index structure for
  multi-dimensional data rectangles
• Offline R-tree algorithm
• Exhaustively and recursively search for
  partitions that minimize sum of bounding
  rectangle volumes
• Online R-tree algorithm
• Insert from root down the path that greedily
  minimizes the increase in bounding rectangle
  volume
• Simulation results
• Off-line R-tree gt On-line R-tree gt K-Mean gt
  Random

10
Related Work

• Pub/Sub systems
• Echo, Elvin, Gryphon, Herald, Hierarchical Proxy
  Architecture, Information Bus, JEDI, Keryx,
  Ready, Scribe, Siena,
• Clustering in the pub/sub
• All the previous work focus on reducing
  multicast groups OAA00, RLW02, WKM00

11
Summary

• Proposed two subscription partitioning and
  routing approaches
• Event Space Partitioning
• Filter Set Partitioning
• Evaluated performance via simulations
• Subscription partitioning reduces network traffic
• Over-partitioning helps to achieve good load
  balancing dynamically
• Bloom filter further reduces event traffic

12
Simulation Results

• 10,000 random subscriptions per server on average
• Offline R-tree performs the best reduces event
  traffic by 20 to 60

13
EDN Network Architecture

1. Submit subscriptions
2. Subscription routing
3. Content-based route updates
4. Peer exchange of route updates
5. Content-based event routing
6. Notification delivery

Event Src.
5
EDN nodes
3
3
2
5
4
1
Notification Routing Services
6
subscriber
14

• Backup Slides

15

• Optimize various performance metrics, subject to
  load-balancing constraints
• Minimize total event traffic
• Volume of union of rectangles
• Maximize overall system throughput
• Minimize end-to-end latency

Subscription rectangles
16
The EDN Optimization Problem
Centralized Architecture
Distributed Architecture
Event Sources
Notification Routing Service
Server
Subscribers
17
Three Research Directions

• Theoretical Study
• Optimal or approximation algorithms for
  simplified versions
• System Design and Simulation
• Subscription partitioning for reducing event
  traffic
• Summary-based routing for enhancing system
  throughput
• Indigo-based Implementation
• Extensible routing pub/sub architecture

18
An R-tree-based EDN pub/sub system
19
System Design and SimulationSummary-based
Routing

• Basic idea summary precision-based load
  balancing for enhancing system throughput

20

• If dispatcher is not the bottleneck, use precise
  summary.
• Otherwise, reduce summary precision until either
  the outgoing link or the servers are about to
  become the bottleneck.
• Throughput increasing
• Further reduction of summary precision would
  generate excessive false-positive traffic to
  throttle back the dispatcher
• Throughput decreasing

21
Simulation results

• Imprecise summaries enhance throughput

22

• Imprecise summaries combined with R-tree-based
  partitioning further enhance throughput

23

• Dispatcher-to-link and dispatcher-to-sever
  bottleneck ratios

24
EDN on Herald

• Piggyback subscription routing summary
  reporting on multicast tree forming process
• Need to additionally consider notification
  traffic (because subscribers are now part of
  multicast tree)

Subscription Routing
Subscriber
25
Indigo-based Implementation

• Indigo M2 routing pub/sub architecture was not
  extensible
• EDN used M2 messaging and built a WS-compliant,
  extensible routing pub/sub architecture on top
  of it
• Close collaboration with Indigo
• Extensibility proposals to Indigo
• Some appeared in M3
• But most sealed for security for now
• Some being considered for M4

26
EDN Extensible Routing and Pub/Sub
Namespace Binding Layer
EDN Route Manager
EDN Subscription Manager
MS Route Manager
WS-Eventing Subscription Manager
WS-Routing Route Manager
EDN R-tree Matcher
XPath Filter Matcher
Indigo Messaging
27
Other XML-Messaging/Indigo interactions

• State dependency management
• Design tool for new features involving state
  transplant
• E.g., System Restore (across time), Intellimirror
  (across space)
• Repair tool providing consistent undo
• System Restore rollback of atomic units
• GoBack3 roll-forward of atomic units
• Troubleshooting tool
• Trace-diff state-diff approaches
• Our automatic, bottom-up, black-box discovery
  approach complements their manual, top-down,
  logical declaration approach (TravisM)
• Install-time and run-time information augments
  the authoring-time information
• Targeted problem spaces help identify things to
  declare for manageability
