The Computational Grid: Aggregating Performance and Enhanced Capability from Federated Resources

1

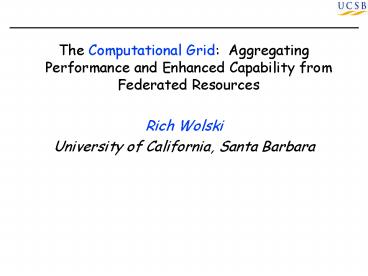

• The Computational Grid Aggregating Performance
  and Enhanced Capability from Federated Resources
• Rich Wolski
• University of California, Santa Barbara

2
The Goal

• To provide a seamless, ubiquitous, and
  high-performance computing environment using a
  heterogeneous collection of networked computers.
• But there wont be one, big, uniform system
• Resources must be able to come and go dynamically
• The base system software supported by each
  resource must remain inviolate
• Multiple languages and programming paradigms must
  be supported
• The environment must be secure
• Programs must run fast
• For distributed computingThe Holy Grail

3
For Example Richs Computational World
umich.edu
wisc.edu
ameslab.gov
osc.edu
harvard.edu
wellesley.edu
anl.gov
ncsa.edu
ksu.edu
uiuc.edu
lbl.gov
indiana.edu
virginia.edu
ncni.net
utk.edu
ucsb.edu
titech.jp
isi.edu
vu.nl
csun.edu
caltech.edu
utexas.edu
ucsd.edu
npaci.edu
rice.edu
4
Zoom In
CT94
SDSC
IBM SP
HPSS
Desktops
Sun
T-3E
C
The Internet
UCSB
5
The Landscape

• Heterogeneous
• Processors X86, SPARC, RS6000, Alpha, MIPS,
  PowerPC, Cray
• Networks GigE, Myrinet, 100baseT, ATM
• OS Linux, Solaris, AIX, Unicos, OSX, NT, Windows
• Dynamically changing
• Completely dedicated access is impossible gt
  contention
• Failures, upgrades, reconfigurations, etc.
• Federated
• Local administrative policies take precedence
• Performance?

6
The Computational Grid

• Vision Application programs plug into the
  system to draw computational power from a
  dynamically changing pool of resources.
• Electrical Power Grid analogy
• Power generation facilities computers,
  networks, storage devices, palm tops, databases,
  libraries, etc.
• Household appliances application programs
• Scale to national and international levels
• Grid users (both power producers and application
  consumers) can join and leave the Grid at will.

7
The Shape of Things to Come?

• Grid Research Adventures
• Infrastructure
• Grid Programming
• State of the Grid Art
• What do Grids look like today?
• Interesting developments, trends, and
  prognostications of the Grid future

8
Fundamental Questions

• How do we build it?
• software infrastructures
• policies
• maintenance, support, accounting, etc.
• How do we program it?
• concurrency, synchronization
• heterogeneity
• dynamism
• How do we use it for performance?
• metrics
• models

9
General Approach

• Combine results from distributed operating
  systems, parallel computing, and internet
  computing research domains
• Remote procedure call/ remote invocation
• Public/private key encryption
• Domain decomposition
• Location independent naming
• Engineering strategy Implement Grid software
  infrastructure as middleware
• Allows resource owners maintain ultimate control
  locally over the resources they commit to the
  Grid
• Permits new resources to be incorporated easily
• Aids in developing a user community

10
Middleware Research Efforts

• Globus (I. Foster and K. Kesselman)
• Collection of independent remote execution and
  naming services
• Legion (A. Grimshaw)
• Distributed object-oriented programming
• NetSolve (J. Dongarra)
• Multi-language brokered RPC
• Condor (M. Livny)
• Idle cycle harvesting
• NINF (S. Matsuoka)
• Java-based brokered RPC

11
Commonalities

• Runtime systems
• All current infrastructures are implemented as a
  set of run time services
• Resource is an abstract notion
• Anything with an API is resource operating
  systems, libraries, databases, hardware devices
• Support for multiple programming languages
• legacy codes
• performance

12
Infrastructure Concerns

• Leverage emerging distributed technologies
• Buy it rather than build it
• Network infrastructure
• Web services
• Complexity
• Performance
• Installation, configuration, fault-diagnosis
• Mean time to reconfiguration is probably measured
  in minutes
• Bringing the Grid down is not an option
• Who operates it?

13
NPACI

• National Partnership for Advanced Computational
  Infrastructure
• high-performance computing for the scientific
  research community
• Goal Build a production-quality Grid
• Leverage emerging standards
• Harden and deploy mature Grid technologies
• Packaging, configuration, deployment,
  diagnostics, accounting
• Deliver the Grid to scientists

14
PACI-sized Questions

• If the national infrastructure is managed as a
  Grid...
• What resources are attached to it?
• X86 is certainly plentiful
• Earth Simulator is certainly expensive
• Mutithreading is certainly attractive
• What is the right blend?
• How are they managed?
• How long will you wait for your job to get
  through the queue?
• Accounting
• What are the units of Grid allocation?

15
Grid Programming

• Two models
• Manual Application is explicitly coded to be a
  Grid application
• Automatic Grid software Gridifies a parallel
  or sequential program
• Start with the simpler approach build programs
  that can adapt to changing Grid conditions
• What are the current Grid conditions?
• Need a way to assess the available performance
• For example
• What is the speed of your ethernet?

16
Ethernet Doesnt Have a Speed -- it Has Many
TCP/IP throughput mb/s
17
More Importantly

• It is not what the speed was, but what the speed
  will be that matters
• Performance prediction
• Analytical models remain elusive
• Statistical models are difficult
• Whatever models are used, the prediction itself
  needs to be fast

18
The Network Weather Service

• On-line Grid system that
• monitors the performance that is available from
  distributed resources
• forecasts future performance levels using fast
  statistical techniques
• delivers forecasts on-the-fly dynamically
• Uses adaptive, non-parametric time series
  analysis models to make short-term predictions
• Records and reports forecasting error with each
  prediction stream
• Runs as any user (no privileged access required)
• Scalable and end-to-end

19
NWS Predictions and Errors
Red NWS Prediction, Black Data
MSE 73.3, FED 8.5 mb/s, MAE 5.8 mb/s
20
Clusters Too
MSE 4089, FED 63 mb/s, MAE 56 mb/s
21
Many Challenges, No Waiting

• On-line predictions
• Need it better, faster, cheaper, and more
  accurate
• Adaptive programming
• Even if predictions are there they will have
  errors
• Performance fluctuates at machines speeds, not
  human speeds
• Which resource to use? When?
• Can programmers really manage a fluctuating
  abstract machine?

22
GrADS

• Grid Application Development Software (GrADS)
  Project (K. Kennedy, PI)
• Investigates Grid programmability
• Soup-to-nuts integrated approach
• Compilers, Debuggers, libraries, etc.
• Automatic Resource Control strategies
• Selection and Scheduling
• Resource economies (stability)
• Performance Prediction and Monitoring
• Applications and resources
• Effective Grid simulation
• Builds upon middleware successes
• Tested with real applications

23
Four Observations

• The performance of the Grid middleware and
  services matters
• Grid fabric must scale even if the individual
  applications do not
• Adaptivity is critical
• So far, only short-term performance predictions
  are possible
• Both application and system must adapt on same
  time scale
• Extracting performance is really really hard
• Things happen at machine speeds
• Complexity is a killer
• We need more compilation technology

24
Grid Compilers

• Adaptive compilation
• Compiler and program preparation environment
  needs to manage complexity
• The machine for which the compiler is
  optimizing is changing dynamically
• Challenges
• Performance of the compiler is important
• Legacy codes
• Security?
• GrADS has broken ground, but there is much more
  to do

25
Grid Research Challenges

• Four foci characterize Grid problems
• Heterogeneity
• Dynamism
• Federalism
• Performance
• Just building the infrastructure makes research
  questions out of previously solved problems
• Installation
• Configuration
• Accounting
• Grid programming is extremely complex
• New programming technologies

26
Okay, so where are we now?
27
Rational Exuberance
28
For Example -- TeraGrid

• Joint effort between
• San Diego Supercomputer Center (SDSC)
• National Center for Scientific Applications
  (NCSA)
• Argonne National Laboratory (ANL)
• Center for Advanced Computational Research (CACR)
• Stats
• 13.6 Teraflops (peak)
• 600 Terabytes on-line storage
• 40 gb/s full connectivity, cross country, between
  sites
• Software Infrastructure is primarily Globus based
• Funded by NSF last year

29
Non-trivial Endeavor
30
Its Big, but there is Room to Grow

• Baseline infrastructure
• IA64 processors running Linux
• Gigabit ethernet
• Myrinet
• The Phone Company
• Designed to be heterogeneous and extensible
• Sites have plugged their resources in
• IBM Blue Horizon
• SGI Origin
• Sun Enterprise
• Convex X and V Class
• Caves, imersadesks, etc.

31
Middleware Status

• Several research and commercial infrastructures
  have reached maturity
• Research Globus, Legion, NetSolve, Condor, NINF,
  PUNCH
• Commercial Globus, Avaki, Grid Engine
• By far, the most prevalent Grid infrastructure
  deployed today is Globus

32
Globus on One Slide

• Grid protocols for resource access, sharing, and
  discovery
• Grid Security Infrastructure (GSI)
• Grid Resource Allocation Manager (GRAM)
• MetaDirectory Service (MDS)
• Reference implementation of protocols in toolkit
  form

33
Increasing Research Leverage

• Grid research software artifacts turn out to be
  valuable
• Much of the extant work is empirical and
  engineering focused
• Robustness concerns mean that the prototype
  systems need to work
• Heterogeneity implies the need for portability
• Open source impetus
• Need to go from research prototypes to nationally
  available software infrastructure
• Download, install, run

34
Packaging Efforts

• NSF Middleware Initiative (NMI)
• USC/ISI, SDSC, U. Wisc., ANL, NCSA, I2
• Identifies maturing Grid services and tools
• Provides support for configuration tools,
  testing, packaging
• Implements a release schedule and coordination
• R1 out 8/02
• Globus, Condor-G, NWS, KX509/KCA
• Release every 3 months
• Many more packages slated
• The NPACkage
• Use NMI technology for PACI infrastructure

35
State of the Art

• Dozens of Grid deployments underway
• Linux cluster technology is the primary COTS
  computing platform
• Heterogeneity is built in from the start
• Networks
• Extant systems
• Special-purpose devices
• Globus is the leading Middleware
• Grid services and software tools reaching
  maturity and mechanisms are in place to maximize
  leverage

36
Whats next?
37
Grid Standards

• Interoperability is an issue
• Technology drift is starting to become a problem
• Protocol zoo is open for business
• The Global Grid Forum (GGF)
• Modeled after IETF (e.g working groups)
• Organized at a much earlier stage of development
  (relatively speaking)
• Meetings every 4 months
• Truly an international organization

38
Webification

• Open Grid Service Architecture (OGSA)
• The Physiology of the Grid, I. Foster, K.
  Kesselman, J. Nick, S. Tuecke
• Based on W3C standards (XML, WSDL, WSIL, UDDI,
  etc.)
• Incorporates web service support for interface
  publication, multiple protocol bindings, and
  local/remote transparency
• Directly interoperable with Internet-targeted
  hosting environments
• J2EE, .NET
• The Vendors are excited

39
Grid_at_Home

• Entropia (www.entropia.com)
• Commercial enterprise
• Peer-2-Peer approach
• Napster for compute cycles (without the law
  suits)
• Microsoft PC-based instead of Linux/Unix based
• More compute leverage -- a lot more
• Way more configuration support, deployment
  support, fault-management built into the system
• Proprietary technology
• Deployed at NPACI on 250 hosts

40
Thanks and Credit

• organizations
• NPACI, SDSC, NCSA, The Globus Project (ISI/USC),
  The Legion Project (UVa), UTK, LBL
• support
• NSF, NASA, DARPA, USPTO, DOE

41
More Information
http//www.cs.ucsb.edu/rich

• Entropia
• http//www.entropia.com
• Globus
• http//www.globus.org
• GrADS
• http//hipersoft.cs.rice.edu/grads
• NMI
• http//www.nsf-middleware.org
• NPACI
• http//www.npaci.edu
• NWS
• http//nws.cs.ucsb.edu
• TeraGrid
• http//www.teragrid.org
