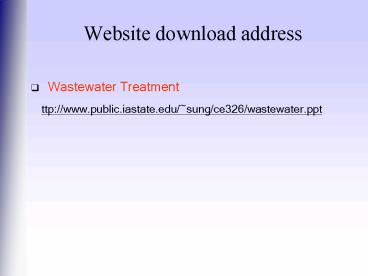

Website download address
  • Wastewater Treatment
  • ttp//www.public.iastate.edu/sung/ce326/wastew
    ater.ppt

2
  • What is Wastewater?
  • 99 water impurities
  • Impurities include
  • Insoluble Particulates Suspended Solids (SS)
  • Inorganic SS or Fixed SS, e.g., silt
  • Organic SS, or Volatile SS, e.g., cell mass
  • Soluble Solutes
  • Soluble Inorganics, e.g., salts
  • Soluble Organics, e.g., sugars
  • Nutrients N and P
  • Could be organic/inorganic or particulate/soluble
  • Could cause eutrophication in receiving water
    body (page 394)
  • Organic nutrients plus ammonia (NH4) have oxygen
    demand

3
  • Major pollutant categories and principal sources
    of pollutants
  • Evaluate the potential for water pollution from
    the following categories
  • H high potential, M moderate potential, L
    low potential for pollution

M H H L M H H M H
L-M M L M H H H L
H L H L H L M L H
L M L H L L
Point source collected by a network of
pipes and conveyed to a single point of
discharge into receiving water Non-point source
polluted water flows over the surface of the land
or along natural drainage channels to
receiving water
4
Biochemical Oxygen Demand (BOD)
. When microorganisms oxidizing the organic
matter as a food source, the quantity of the
oxygen consumed is known as BOD . BOD test
is done in a series of special 300 mL bottles
Dissolved Oxygen Meter
5
Biochemical Oxygen Demand (BOD)
. Each BOD bottle filled with a appropriately
diluted wastewater sample plus blank bottles
and inoculates with microorganisms .
After a desired number of days (5 days typical),
dissolved oxygen (DO) concentration is
measured BODt ( DOb,t DOs,t ) x dilution
factor DOb,t DO in blank after t days of
incubation, mg/L DOs,t DO in sample after t
days of incubation, mg/L
6
  • Biochemical Oxygen Demand (BOD)
  • BOD and oxygen-equivalent relationships

Page 362
Lo ultimate BOD Lt oxygen equivalent of
remaining organic BODt Lo Lt Lo Lo e-kdt
Lo ( 1 ekt )
7
  • Example 1.
  • Wastewater treatment plant is discharging a waste
    with a BOD5 of 30 mg/L and k is 0.3 d-1. What is
    the ultimate BOD?
  • 30 mg/L Lo ( 1 ekt ) Lo ( 1 e(0.3?5) )
  • Lo 38.6 mg/L
  • Example 2.
  • BOD3 of a waste is 25 mg/L, and k is 0.0125 h-1.
    What is its BOD5?
  • 25 mg/L Lo ( 1 ekt ) Lo ( 1
    e(0.0125?24?3) )
  • Lo 42 mg/L
  • BOD5 42 x ( 1 e(0.0125?24?5) ) 32.6 mg/L

8
  • Temperature correction of kinetic constant k
  • kT k20 (?)T-20 page 365
  • T oC
  • where ? 1.135 4 T lt 20oC
  • ? 1.056 20 T 30oC
  • Example 3.
  • A waste is being discharged into a river has a
    temperature of 10oC. What fraction of the
    maximum oxygen consumption could be occurred in 4
    days if standard k is 0.115 d-1?
  • BOD test is conducted at standard temperature of
    20oC
  • kT k20 (?)T-20 k10 0.115 (1.135)10-20 0.032
    d-1
  • BOD4 / Lo (1 e-(0.032)(4)) 0.21

9
Page 375
Oxygen Sag
10
  • DO Sag Curve Page 374 384

Eq. 5 41
Where Dt oxygen deficit in river water after
exertion of BOD for time, t, mg/L La initial
ultimate BOD after river and wastewater have
mixed, mg/L kd deoxygenation rate constant,
d-1 kr reaeration rate constant, d-1 t
time of travel of wastewater discharge
downstream, d Da initial deficit after river
and wastewater have mixed, mg/L
11
Deoxygenation Rate Constant, kd
Eq. 5 43
Where v average speed of stream flow, m/s k
BOD rate constant determined in lab at 20oC,
d-1 H average depth of stream, m ?
bed-activity coefficient
Reaeration Rate Constant, kr
Eq. 5 44
12
Critical Point lowest point on the DO sag curve
Eq. 5 45
Where tc the time to the critical point Da
initial deficit after river and wastewater have
mixed, mg/L La initial ultimate BOD after
river and wastewater have mixed, mg/L
13
  • DO Sag Curve - Example Problem

14
  • Example continued
  • DOsaturation _at_ 16oC 9.95 mg/L (Table A-3,
    page 979)
  • kd _at_16oC kd 20oC x ?16-20 ? 1.135 4 T
    20
  • 0.14 x 1.135-4 0.084 d-1
  • kr _at_16oC kr 20oC x ?16-20
  • 0.16 x 1.135-4 0.096 d-1
  • Da 9.95 6.91 3.04 mg/L

Distance 7.97 day x 86,400 s/day x 0.1 m/s
68,900 m 68.9 km
15
  • Example continued

Critical DO DOsaturation Dt 9.95 5.87
4.08 mg/L
16
Typical composition of untreated domestic
wastewater Table 6 - 1,Page 422
17
Typical Organic Pollutants in Sewerage 40-60
proteins 25-50 carbohydrates 10 fats and
oils Trace miscellaneous organic
compounds (urea, pesticides, surfactants,
phenols, ethylene glycol, and priority pollutants)
18
Minimum national standards for secondary treatment
Page 423
a Average removal shall not be less than 85
percent. b Only enforced if caused by industrial
wastewater or in-plant inorganic addition. c May
be substituted for BOD5 at the option of the
NPEDS permitting authority.
19
Solid Matrix
TS TSS TDS

VS VSS
VDS
TFS FSS FDS
particulate organic
soluble organic
soluble inorganic
particulate inorganic
salts
sand, silt
T Total S Solids or Suspended D Dissolved V
Volatile F Fixed
20
Example A water sample contains Sugar
100 mg/L Fine sand 60 mg/L Bacteria 25
mg/L Salts e.g., NaCl, KHCO3 125 mg/L What is
the TDS and VS/TS of this sample?
T Total S Solids or Suspended D Dissolved V
Volatile F Fixed
TS TSS TDS

VS VSS
VDS
TFS FSS FDS
310
85
225
125
100
25
60
125
185
21
(No Transcript)
22
  • Four levels of wastewater treatment
  • Preliminary treatment - screening, grit removal
  • Primary treatment - settling of solids in primary
    clarifiers
  • Secondary treatment - biological treatment
  • 4. Tertiary treatment - nutrient (N, P) removal,
    filtration

23
  • 1. Preliminary Treatment
  • Screening (Bar Racks) Remove debris such as
    rocks, branches, pieces of lumber, leaves, paper,
    tree roots, plastics and rags.
  • Grit Chamber Remove grits such as sands,
    gravel, heavy solids materials, anything with
    specific gravity (s.g.) greater than organic
    solids (s.g. 1.03-1.05)

24
(No Transcript)
25
Bar Screen
26
Vortex Grit Chamber
Flow in
Flow out
27
Aerated Grit Chamber
28
  • 2. Primary Treatment
  • Primary Clarifier (Primary Sedimentation)
    Remove settleable suspended solids (mainly VSS)
  • Typical removal efficiency (p 448)
  • TSS 50 60
  • BOD5 30 35
  • Design Criteria
  • Overflow rate Weir Loading
  • gal/ft2/day gal/ft/day
  • at Average Flow 800 1,200 10,000 - 40,000
  • at Peak Flow 2,000 - 3,000
  • Detention time 1.5 2.5 hours
  • Side Water Depth 15 ft

29
Primary Treatment Circular Clarifier
30
Primary Treatment - Rectangular Clarifier
31
Theory of Sedimentation Tank Sizing
32
Theory of sedimentation tank sizing
A Inlet Zone B Settling Zone C Outlet
Zone D Sludge Zone
Vc critical settling velocity, all particles w/
settling velocity greater than Vc will
be removed
td hydraulic detention time V / Q td (A x
H) / Q ----- (1) A surface area Width x
L vc H / td ----- (2) (1) (2) ? vc Q
/ A H / td
33
  • Three types of sedimentation
  • Type I Sedimentation Discrete Particle Settling
  • Goal remove all particle w/ a settling velocity
    greater than a specified velocity
  • In regards to design
  • Tank design is independent of depth
  • Tank design depends only on surface overflow
    (Q/A)
  • Sedimentation efficiency is independent of
    detention time
  • Type II Sedimentation Flocculent Sedimentation
  • Goal remove small particles which flocculate
    during sedimentation
  • In regard to design
  • Tank design depends on time and depth
  • Particle size and average settling velocity are
    constantly increasing
  • No theoretical way to predict the amount of
    flocculation

34
  • Three types of sedimentation
  • Type III Sedimentation Zone Settling
    Sedimentation
  • Goal accomplish sedimentation as a mass and some
    degree of
  • thickening occurs
  • In regards to design
  • Distinct interface occurs between clear
    supernatant and sludge
  • zone.
  • Settling generally occurs together in a large
    mass.
  • Zone settling velocity dictates the surface
    area of the tank.
  • Need to look at the forces between particles
    zone settling velocity
  • decrease with higher concentration of
    sludge

35
  • 2. Primary Treatment
  • Design Criteria
  • Overflow rate Weir Loading
  • gal/ft2/day gal/ft/day
  • at Average Flow 800 1,200 10,000 - 40,000
  • at Peak Flow 2,000 - 3,000
  • Detention time 1.5 2.5 hours
  • Side Water Depth 15 ft

36
Sedimentation Tank Circular Clarifier
37
Sedimentation Tank Circular Clarifier
38
Weir Arrangement Circular Sedimentation Tank
39
Weir Arrangement - Rectangular Sedimentation Tank
40
  • 3. Secondary (Biological) Treatment

Activated Sludge System
41
(No Transcript)
42
Aeration Basin
43
Aeration Equipment Air Piping and Diffusers
44
Typical Activated Sludge Treatment Plant
45
(No Transcript)
46
(No Transcript)
47
Typical Trickling Filter Treatment Plant
48
  • Secondary Treatment
  • Activated Sludge System Page 459 482 Lab
    Design Problem
  • Tricking Filter System Page 482 - 488
  • 2ndary Clarifier Design Criteria
  • Overflow rate Solids Loading
  • gal/ft2/day lb/ft2?hr
  • For Activated Sludge System
  • at Average Flow 400 800 0.8
    1.2
  • at Peak Flow 1,000-1,200 2.0
  • For Tricking Filter System
  • at Average Flow 400 600 0.6
    1.0
  • at Peak Flow 1,000-1,200 1.6
  • Side Water Depth 12 20 ft

49
  • 3. Secondary (Biological) Treatment
  • Classification of microorganisms by their carbon
    and
  • energy source
  • Heterotrophs - utilize organic matter to supply
    their carbon and energy needs. These are the
    predominant organisms in biological wastewater
    treatment plants, responsible for converting
    organic pollutants to carbon dioxide, water, and
    additional heterotrophic biomass.
  • B. Autotrophs - get their energy from an
    inorganic source and their carbon from carbon
    dioxide. An example of autotrophs in wastewater
    treatment is nitrifying bacteria. They use
    ammonia for energy and carbon dioxide for a
    carbon source.

50
  • Classification of microorganisms by their
    Terminal
  • Electron Acceptor (TEA)
  • Aerobic microorganisms transfer electrons from
    the energy source to oxygen, O2. In the process
    oxygen and organic matter is converted to carbon
    dioxide, CO2, and water, H2O. Oxygen is termed
    the terminal electron acceptor or TEA.
  • Anoxic microorganisms utilize some other oxidized
    compound to accept electrons. In the case of
    denitrifying microorganisms, nitrate, NO3-,
    serves as the TEA, as nitrate is converted to
    nitrogen gas, N2.
  • C. Anaerobic microorganisms utilize CO2 and
    organic compounds as terminal electron acceptors.
    In this process, organic compounds are converted
    to fermentation products and carbon dioxide. In
    anaerobic digestion of wastewater solids, the
    fermentation products are converted to methane,
    CH4, and carbon dioxide.

51
Process TEA Predominant Reactions Example
Aerobic O2 organics O2 ? CO2 H2O AS,
1st stage TF Aerobic O2 NH4
O2 ? NO3- Nitrification, 2nd stage
TF Anoxic NO3- organics NO3- ? N2
CO2 H2O Denitrification Anaerobic
CO2 organics ? CH4 CO2 H2O Anaerobic
organics Digestion
AS Activated Sludge System TF Trickling Filter
System
52
  • Classification of microorganisms by their growth
    temperature
  • A. Psychrophiles - grow at temperatures below
    25C
  • B. Mesophiles - grow at temperatures 25 - 45C
  • C. Thermophiles - grow at temperatures 45 - 60C

53
  • Ten Growth Requirements for Microorganisms
  • Carbon source
  • Energy source
  • Terminal Electron acceptor
  • Macro-Nutrients C, N, H, O, P, K, S
  • Micro-Nutrients Fe, Ni, Co, Mb, Zn, etc.
  • Moisture
  • Appropriate temperature
  • Appropriate pH
  • Absence of inhibition

54
Monod Kinetic Equation
55
Substrate (waste) Characteristics
56
dx / dt µ X x biomass
concentration, mg/L Biomass growth rate µ
growth rate constant, 1/t
57
Activated Sludge System Operating Parameters
. Effluent quality . HRT of aeration tank .
Mixed liquor solids (biomass) concentration .
Sludge production (solid wasting rate) . Sludge
recycling rate . Oxygen requirement quantity
of compressed air . 2ndary clarifier overflow
rate, HRT, depth, solid loading rate, etc.
58
Activated Sludge Model
P 462 - 467
59
HRT with Flow Recirculation
What is the HRT with V 10 m3, x 2, and Q 1
m3/min HRT V / Q 10 m3 / 1 m3/min 10
minutes No effect on recirculation flow!!!
60
Activated Sludge Model
Mass balance approach mass IN mass OUT Q
X0 Qr Xr ( Q Qr ) X Qr Xr Q X
Qr X
61
Activated Sludge Model
62
Sludge Treatment and Disposal page 500-521
Sludge dewatering
63
Importance of Sludge Treatment in Overall
Wastewater Treatment
64
  • Sludge Treatment and Disposal page 508
  • The basic processes for sludge treatment are as
    follows
  • 1. Thickening concentrating sludge using
    gravity or flotation methods. Primary sludge can
    be thickened to a maximum of about 10 solids and
    secondary sludge to a maximum of about 6-8
    solids.

65
Dissolved Air Floatation (DAF)
Gravity Thickener
66
Screw type thickener
67
  • 2. Stabilization converting the organic in the
    sludge to more stable (inert) forms so they can
    be handled more easily (more dewaterable, less
    potential for odors) and used as soil
    conditioners. Typically stabilization involves
    anaerobic or aerobic digestion. During digestion
    considerable volatile solids destruction occurs

68
Organics Conversion in Anaerobic System
COMPLEX ORGANIC MATTERS
Carbohydrates
Lipids
Proteins
1
1
1
Hydrolysis
Amino Acids, Sugars
Fatty Acids, Alcohols
Intermediary Products (Organic acids Propionic,
Butyric acids, etc.)
2
2
Anaerobic Oxidation
Fermentation
2
3
Acetate
Hydrogen, Carbon dioxide
Homoacetogenesis
5
4
72
28
Methane Carbon dioxide
Acetotrophic Methanogenesis
Hydrogenetrophic Methanogenesis
69
Anaerobic Digester
70
Anaerobic Digester
71
Anaerobic Digester
72
Aerobic Digester
73
  • 3. Conditioning Addition of chemical to allow
    better separation of the water and the solids.
    Ferric chloride and organic and inorganic
    polymers are frequently used for sludge
    conditioning.
  • 4. Dewatering Belt press, vacuum, centrifuge,
    pressure, or drying methods for removing water
    from the solids. Typically about 25 to 35
    solids can be achieved.

74
Belt Press
75
Belt Press
76
Belt Press
77
Vacuum Filter Pressure Filter
78
  • 5. Destruction Incineration of sludge with ash
    residual for ultimate disposal.

79
Circulating Fluidized Bed Incinerator
80
Lab Supplemental Slides
81
Nitrogen Cycle
82
Nitrification
Step 1 Oxidation of Ammonia to Nitrite NH3 O2
Nitrosomonas sp. bacteria ? NO2- Step 2
Oxidation of Nitrite to Nitrate NO2- O2
Nitrobacter sp. bacteria ? NO3-
83
CBOD vs. NBOD
84
Denitrification
Denitrification converts nitrates to nitrogen gas
under anoxic (no free oxygen) condition
Write a Comment
User Comments (0)
About PowerShow.com
