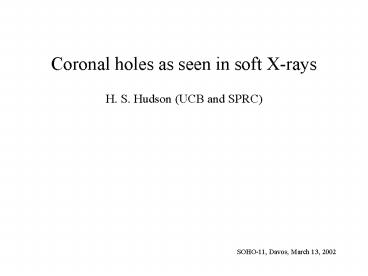

Coronal holes as seen in soft X-rays

1
Coronal holes as seen in soft X-rays

• H. S. Hudson (UCB and SPRC)

SOHO-11, Davos, March 13, 2002
2
Coronal Holes (CH)

• Originally discovered via soft X-ray images (see
  also Waldmeiers koronale loecher).
• CH appear to show regions of open coronal field.
• Soft X-rays (Yohkoh SXT) have large contrast and
  may define CH boundaries sharply.
• He I 10830A gives a somewhat different view -
  broader but not so clear.
• This talk does not specifically review the solar
  cycle, since there is as yet no SXT literature.

3
Waldmeier images from the past - not loecher, but
polar plumes?
4
Topics

• Boundaries of equatorward-extension CHs
• Transient CH and dimming
• CH channels
• Enveloping CH
• Interpretation

5
Large-scale issues

• Source surface representation of coronal field
• Variation of beta in the corona
• Coronal transients and Golds open flux problem -
  the need for magnetic reconnection, but where?

6
Source-surface models and why I distrust them

• A fictitious concentric surface, typically at 2.5
  R, defines the open magnetic flux by serving as
  the outer boundary for a potential-field
  extrapolation.
• This model totally distorts the top of the
  corona.
• There is no reason to expect that the best-fit
  source surface would not vary with time.
• The potential-field representation of the coronal
  volume leaves no room for flares or CMEs!

7
Example of a source-surface model, from
the Berkeley group
8
Streamer
Filament
Slow wind
1
Quiet loops
0.1
Fast wind
Plasma beta
CH
0.01
AR loops
0.001
-4 -3
-2 -1 0
1 log(h/AU)
1.5 15 150 Mm
Height above photosphere (h)
9
SXT observations of rigid CH
boundaries(Kahler Hudson, submitted to ApJ)

• Identify three types of boundary morphology in
  Yohkoh equatorial extensions.
• See no direct evidence for heating associated
  with reconnection as boundaries move.
• Find that CH areas evolve smoothly, independent
  of X-ray bright points and transient coronal
  holes.

10
Loopy boundary
YCH1
Ragged boundary
YCH2
Smooth boundary
Categories of CH Boundaries (Kahler Hudson 2002)
YCH3
11
Significance of loopy or ragged boundaries

• The closed corona just outside the CH contains
  small-scale loops in most cases.
• It is therefore hard to imagine reconnection on
  large (streamer) scales as the mechanism for
  boundary evolution
• Cartoons to be shown later

12
Transient coronal holes
13
Transient coronal holes and dimming

• SXT sees transient coronal holes associated
  both with flares and with quiet-Sun arcade
  events.
• There are other varieties of dimming events
  associated with CMEs (depletions also seen in
  white light).
• It is clear morphologically that such events
  alter the solar open flux, if CHs provide an
  accurate indicator of open field lines.

14
Coronal hole channels
15
Coronal hole channels

• Soft X-rays show CH channels well (these are
  probably Waldmeiers locher when on the limb).
• The channels may contain substantial flux but may
  not easily be detected in 10830 because they are
  too narrow.
• The source-surface models often find them
  successfully.

16
Enveloping CH
Defines an enveloping CH boundary.
17
Shows the CH boundary as it appears on a
magnetogram.
18
No streamer forms over the enveloping CH
At the times of limb passage, the CH and AR
complex did \ not produce a streamr.
19
Enveloping CHs

• A ring-shaped CH area may appear when a new
  active region emerges within a CH boundary
  (rosette or anemone).
• Such an enveloping CH may contain multiple
  active regions.
• In the example shown, an isolated streamer did
  not form over such an inclusion.
• However, it is known from radio type III bursts
  that active regions often contain open field
  lines, even prior to an eruptive flare.

20
Variation of CH area

• CH boundaries change smoothly, except during
  eruptive events.
• TCH recovery pattern proceeds in a curious
  manner.
• CH areas can increase without magnetic
  reconnection, but to decrease CH area requires
  that two open field lines meet and reconnect,
  somewhere within the corona.
• At present we dont know where this reconnection
  takes place (but note the interesting LASCO
  observations of reversed flow).

21
How does a CH change its area? - open-open
reconnection - problem of heat flux dropouts
22
A better cartoon? - reconnection in low corona
- use of network field for wave of
reconnection
23
Conclusions

• Yohkoh data show that CH boundaries evolve
  smoothly, not altered significantly by XBPs or
  TCHs.
• Yohkoh identifies most CH boundaries with
  small-scale loops.
• Yohkoh sees no physical evidence for reconnection
  at moving CH boundaries.
• We need to exploit the Yohkoh database and look
  forward to future exploration of the inner
  heliosphere, perhaps with Solar Orbiter. The top
  of the corona is a new frontier.

24
Conclusions not achieved yet

• Cannot determine the properties of the open-field
  regulation
• Cannot locate the reconnection needed for this
  regulation.
• Cannot directly observe solar/heliospheric
  connectivities.
