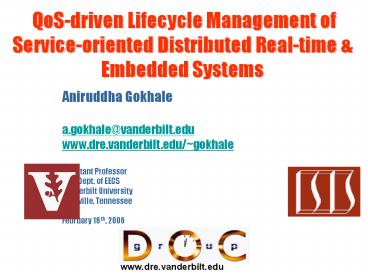

QoS-driven Lifecycle Management of
Service-oriented Distributed Real-time Embedded
Systems
Aniruddha Gokhale a.gokhale_at_vanderbilt.edu www.dr
e.vanderbilt.edu/gokhale Assistant
Professor ISIS, Dept. of EECS Vanderbilt
University Nashville, Tennessee February 16th,
2006
www.dre.vanderbilt.edu
2
Service-oriented Style of Distributed Real-time
Embedded Systems

• Regulating adapting to (dis)continuous changes
  in runtime environments
• e.g., online prognostics, dependable upgrades
• Satisfying tradeoffs between multiple (often
  conflicting) QoS demands
• e.g., secure, real-time, reliable, etc.
• Satisfying QoS demands in face of fluctuating
  and/or insufficient resources
• e.g., mobile ad hoc networks (MANETs)

3
Characteristics of SOA-style DRE Systems

• Manifestation of Service-Oriented Architectures
  (SOA) in the distributed real-time embedded
  (DRE) systems space
• Applications composed of a one or more
  operational string of services
• A service is a component or an assembly of
  components
• Dynamic (re)deployment of services into
  operational strings is necessary
• New class of QoS (performance survivability)
  requirements
• Realized using enabling component middleware
  technologies e.g., CCM, .NET and J2EE

4
QoS Issues for SOA-style DRE Systems

• Per-component concern choice of implementation
• Depends of resources, compatibility with other
  components in assembly
• Communication concern choice of communication
  mechanism used
• Assembly concerns what components to assemble
  dynamically? What order? What configurations
  end-to-end are valid?
• Failure recovery concern what is the unit of
  failover?
• Sharing concern shared components will need
  proactive survivability since it affects several
  services simultaneously
• Availability concern what is the degree of
  redundancy? What replication styles to use? Does
  it apply to whole assembly?
• Deployment concern how to select resources?
  Risk alleviation?

5
Tangled Concerns in SOA-style DRE Systems

• Demonstrates numerous tangled para-functional
  concerns
• Significant sources of variability that affect
  end-to-end QoS (performance survivability)

Separation of Concerns Managing Variability is
the Key
6
(1) Design-time Variability Management in
SOA-style DRE Systems

• Focus on Separation of Concerns
• What if Analysis
• Analytical methods
• Simulation methods
• Model-driven generative programming for what if
• Understanding the impact of individual concerns
• Students involved
• Krishnakumar Balasubramanian, Jaiganesh
  Balasubramanian, Gan Deng, Amogh Kavimandan,
  James Hill, Sumant Tambe, Arundhati Kogekar,
  Dimple Kaul

Work partly supported by DARPA PCES program (PI),
DARPA ARMS Program, PI on subcontracts from
Lockheed Martin ATL, NSF CSR-SMA Program, PI
7
Separation of Concerns using CoSMIC

• Project Lead and PI DARPA PCES program
• CoSMIC project focuses on separation of
  deployment and configuration concerns
• Model-driven generative programming framework
• Complementary technology to CIAO and DAnCE
  middleware
• www.dre.vanderbilt.edu/cosmic

• CoSMIC tools e.g., PICML used for separation of
  concerns in operational strings
• Captures the data model of the OMG DC
  specification
• Synthesis of static deployment plans for DRE
  components
• New capabilities being added for static
  deployment planning

Work supported by DARPA PCES Program, PI
8
Case Study for What if Analysis Virtual Router

• Network services need support for efficient
  (de)-multiplexing, dispatching and
  routing/forwarding

• .e.g., VPN Service provided by a virtual router
• Provides differentiated services to customers,
  e.g., prioritized service
• VPN setup messages must be efficiently (de)
  multiplexed, serviced and forwarded
• Implemented using middleware
• Need to estimate capacity of the system at
  design-time

Problem boils down to capacity planning and
estimating performance of configured middleware
9
Performance Analysis of Reactor Pattern in VR

• Customers send VPN setup messages to router
• VPN setup messages manifest as events at the VR
• VR must service these events (e.g., resource
  allocation) and honor the prioritized service, if
  any
• Accepted messages are forwarded
• Events could be dropped in overload conditions

The Reactor architectural pattern allows
event-driven applications to demultiplex
dispatch service requests that are delivered to
an application from one or more clients.

• Reactor pattern decouples the detection,
  demultiplexing, dispatching of events from the
  handling of events
• Participants include the Reactor, Event handle,
  Event demultiplexer, abstract and concrete event
  handlers

10
Modeling VR Capabilities in a Reactor

• Consider VPN service for two customer classes
• Reactor accepts and handles two types of input
  events
• Differentiated services for two classes
• Events are handled in prioritized order
• Each event type has a separate queue to hold the
  incoming events. Buffer capacity for events of
  type one is N1 and of type two is N2.
• Event arrivals are Poisson for type one and type
  two events with rates l1 and l2, resp.
• Event service time is exponential for type one
  and type two events with rates m1 and m2, resp.

Model of a single-threaded, select-based reactor
implementation
11
Performance Metrics of Interest for Reactor

• Throughput
• -Number of events that can be processed
• -Applications such as telecommunications call
  processing.
• Queue length
• -Queuing for the event handler queues.
• -Appropriate scheduling policies for
  applications with real-time requirements.
• Total number of events
• -Total number of events in the system.
• -Scheduling decisions.
• -Resource provisioning required to sustain
  system demands.
• Probability of event loss
• -Events discarded due to lack of buffer
  space.
• -Safety-critical systems.
• -Levels of resource provisioning.
• Response time

12
Performance Analysis using Stochastic Reward Nets
Transition
Inhibitor arc
Place
Immediate transition
Token

• Stochastic Reward Nets (SRNs) are an extension to
  Generalized Stochastic Petri Nets (GSPNs) which
  are an extension to Petri Nets.
• Extend the modeling power of GSPNs by allowing
• Guard functions
• Marking-dependent arc multiplicities
• General transition probabilities
• Reward rates at the net level
• Allow model specification at a level closer to
  intuition.
• Solved using tools such as SPNP (Stochastic Petri
  Net Package).

13
Modeling the Reactor using SRN (1/2)
Event arr.
Drop events on overflow
Service queue
Prioritized service
Servicing the event
Service completion

• Models arrivals, queuing, and prioritized service
  of events.
• Transitions A1 and A2 Event arrivals.
• Places B1 and B2 Buffer/queues.
• Places S1 and S2 Service of the events.
• Transitions Sr1 and Sr2 Service completions.
• Inhibitor arcs Place B1and transition A1 with
  multiplicity N1 (B2, A2, N2)
• - Prevents firing of transition A1 when
  there are N1 tokens in place B1.
• Inhibitor arc from place S1 to transition Sr2
• - Offers prioritized service to an event
  of type one over event of type two.
• - Prevents firing of transition Sr2 when
  there is a token in place S1.

14
Modeling the Reactor using SRN (2/2)

• Process of taking successive snapshots
• Reactor waits for new events when currently
  enabled events are handled
• Sn1 enabled Token in StSnpSht Tokens in B1
  No Token in S1.
• Sn2 enabled Token in StSnpSht Tokens in B2
  No Token in S2.
• T_SrvSnpSht enabled Token in S1 and/or S2.
• T_EndSnpSht enabled No token in S1 and S2.
• Sn1 and Sn2 have same priority
• T_SrvSnpSht lower priority than Sn1 and Sn2

15
VR SRN Performance Estimates

• SRN model solved using Stochastic Petri Net
  Package (SPNP) to obtain estimates of performance
  metrics.
• Parameter values l1 0.5/sec, l2 0.5/sec, m1
  2.0/sec, m2 2.0/sec.
• Two cases N1 N2 1, and N1 N2 5.

• Observations
• Probability of event loss is higher when the
  buffer space is 1
• Total number of events of type two is higher than
  type one.
• Events of type two stay in the system longer than
  events of type one.
• May degrade the response time of event requests
  for class 2 customers compared to requests from
  class 1 customers

16
VR SRN Sensitivity Analysis

• Analyze the sensitivity of performance metrics to
  variations in input parameter values.
• Vary l1 from 0.5/sec to 2.0/sec.
• Values of other parameters l2 0.5/sec, m1
  2.0/sec, m2 2.0/sec, N1 N2 5.
• Compute performance measures for each one of the
  input values.

• Observations
• Throughput of event requests from customer class
  1 increases, but rate of increase declines.
• Throughput of event requests from customer class
  2 remains unchanged.

17
Middleware Pattern Simulations in OMNeT

• OMNeT is a discrete event simulator for
  networked systems
• Developers write C code for simulation
• www.omnetpp.org

18
The Simulation Model for Reactor
Event Handlers with queues
Synchronous Event Demultiplexer
Statistics Collector
Event Generator
Reactor
19
Addressing Middleware Variability Challenges
Although middleware provides reusable building
blocks that capture commonalities, these blocks
and their compositions incur variabilities that
impact performance in significant ways.

• Compositional Variability
• Incurred due to variations in the compositions of
  these building blocks
• Need to address compatibility in the compositions
  and individual configurations
• Dictated by needs of the domain
• E.g., Leader-Follower makes no sense in a single
  threaded Reactor

• Per-Block Configuration Variability
• Incurred due to variations in implementations
  configurations for a patterns-based building
  block
• E.g., single threaded versus thread-pool based
  reactor implementation dimension that crosscuts
  the event demultiplexing strategy (e.g., select,
  poll, WaitForMultipleObjects

20
Automation Goals for What if Analysis
Applying design-time performance analysis
techniques to estimate the impact of variability
in middleware-based DRE systems
Composed System
Refined model of a pattern
Refined model of a pattern

• Build and validate performance models for
  invariant parts of middleware building blocks
• Weaving of variability concerns manifested in a
  building block into the performance models
• Compose and validate performance models of
  building blocks mirroring the anticipated
  software design of DRE systems
• Estimate end-to-end performance of composed
  system
• Iterate until design meets performance
  requirements

Invariant model of a pattern
Refined model of a pattern
Refined model of a pattern
Refined model of a pattern
weave
weave
variability
variability
Refined model of a pattern
Refined model of a pattern
system
21
Automating Scaling the What if Process

• Model-driven Generative technologies
• Developed the SRN Modeling Language (SRNML) in
  GME
• Applied C-SAW framework (from Univ of Alabama,
  Birmingham) for model scalability

RD supported by NSF CSR-SMA Program in
collaboration with Dr. Jeff Gray (UAB) and Dr.
Swapna Gokhale (UConn)
22
Analyzing Impact of Individual Concerns
Engineering Mechanics Statics Dynamics for
analyzing impact of concerns?

• Borrow concepts from physical systems to analyze
  the impact of individual concerns on end-to-end
  system
• Method of joints, method of sections, free body
  diagrams, equilibrium conditions

23
Engineering Mechanics for DRE Systems

• A concern is viewed as a force
• Challenges
• Directionality are concerns vectors?
• Rigidity are assemblies rigid or deformable?
• Force distribution does a concern have
  components along Cartesian axes
• Well-defined structures do software components
  have properties like trusses
• Second order effects transient effects showing
  up elsewhere
• Notion of friction these are probably the
  capacities of resources

24
(2) Deployment-time Intelligence

• Near optimal deployment planning decisions
• Specialized middleware stacks
• Students involved
• Arvind Krishna (graduated), Jaiganesh
  Balasubramanian, Gan Deng, Dimple Kaul, Arundhati
  Kogekar, Amogh Kavimandan

Work partly supported by DARPA ARMS Program, PI
on subcontracts from Lockheed Martin ATL
25
Deployment Challenges

• Service workloads and resource capacity issues
  service placement depends on workloads and
  available resources
• Component accessibility patterns -- component
  survivability depends on its sharing degree
• Differentiated levels of service affects
  resource provisioning and survivability
  strategies
• Service failover different failover
  possibilities e.g., as a whole or part assembly
  or one component at a time
• Resource sharing increases the risk of
  component(s) requiring proactive survivability
  strategy
• No one-size-fits-all dependability strategy
  cannot dictate one FT strategy on all services

26
Service Placement Problem

• A resource configuration is a tuple RC (C, D,
  HC, EC) where
• C is a set of computation nodes each attributed
  by
• PI(c) processing index (capacity)
• MI(c) memory index
• RI(c) reliability index
• D is a set of Data access units of types in
  Ai,Sj
• HC C ? ?(D) is a map associating each c in C
  with a set of data access units
• EC ??C ? C is a set of comm. links each
  attributed by
• BI(e) bandwidth index
• RI(e) reliability index

• System performance can be measured in a variety
  of ways. Considering a task assignment TA T ? C

• Resource utilization for processing it is
  defined as the average of all task processing
  utilization, given as
• Memory utilization MU(TA) and link utilization
  LU(TA) can defined similarly
• System utilization factor The weighted sum
  percentage of utilizing the system resources

• Reliability is more tricky to measure. In
  general, the reliability of a given computation
  string is the multiplication of the reliability
  indices of the underlying nodes and communication
  edges.
• The reliability factor RF(TA) for a given task
  assignment, TA, depends on
• The reliability of all its computation strings.
• The group reliability the underlying nodes
  (taking into account their relative distances).
• The resource utilization of the systems. The more
  the system hardware are utilized the less
  reliable it is.

27
Specializations via Generative Programming

• GME-based POSAML language for POSA2 pattern
  language
• Generative programming to synthesize FOCUS and
  AspectC rules
• Synthesize specialized middleware stacks for
  distributed deployment of operational strings.

28
Run-time QoS-aware Mechanisms

• Focus on Autonomic Mechanisms
• Survivability Fault tolerance
• Students involved
• Jaiganesh Balasubramanian, Sumant Tambe, Jules
  White, Nishanth Shankaran

Work supported by DARPA ARMS Program, PI on
subcontracts from Lockheed Martin ATL, BBN
Technologies, Telcordia
29
Distributed Virtual Container Approach

• Virtual Container Concept for Component M/W
• Based on a virtualization idea
• Spans boundaries across all the replicas, which
  could be placed on different physical nodes
• Provides a single point for resource provisioning
  component programming
• Seamless environment for configuring FT, LB,
  online swapping
• Handles fine-grained checkpointing across all the
  replicas in virtual container
• Reliable multicast state synchronization
  confined to a virtual container
• Maintains information about how the replicas are
  connected to the external component assemblies
• Salient features
• Provides an operating context for the
  components/assemblies requiring QoS
• Relieves programmer from having to configure the
  middleware for QoS support
• Clients are oblivious to replication
• Normal container programming model
• Middleware hides the virtualization details

Virtual Container
primary
secondary
30
Open RD Issues in FT for Comp MW
Virtual Container
Primary assembly
Secondary assembly

• What types of faults to consider? Single versus
  multiple software versus hardware or both?
• Can we detect port, component, container, node
  application and assembly failures?
• Do we allow recovery at port level or component
  level or container level or node application
  level
• Does assembly recovery imply wholesale recovery
  of entire assembly?
• What does semi-active mean for assemblies?
• Does Distributed FT container span entire
  assemblies?

31
Run-time QoS Survivability Mechanisms

• A configurable approach to survivability
  including micro- (infrastructure) macro-
  (assembly operational string) level strategies

• Micro-level strategies monitor infrastructure
  state to make proactive decisions at
• Component level (swapping migration)
• Middleware level (configurations)
• Component Server Level (process resource
  allocations)
• Node level (multiple components)
• Macro-level strategies monitor assembly health to
  make failover decisions

• Failover based on type of failover unit
• Affects service placement decisions
• May involve load balancing
• State synchronization issues
• Replication styles (hidden by FT strategies)

• Initial prototype developed using
  Component-Integrated ACE ORB (CIAO) Deployment
  Configuration Engine (DAnCE) (www.dre.vanderbilt
  .edu)

32
RD Mentoring and Advising

• Primary Advisees
• Amogh Kavimandan (PhD) hybrid simulation
  technologies, DC for heterogeneous systems,
  pervasive systems, BEEP
• James Hill (PhD) emulation technologies
• Sumant Tambe (PhD) Variability management at
  modeling level, FT
• Dimple Kaul (MS) MDD/AOSD techniques for
  middleware specialization, POSAML
• Arundhati Kogekar (MS) MDD techniques for
  analysis simulations, POSAML
• Co-Advisees
• Arvind Krishna (PhD Graduated) Middleware
  specializations (FOCUS)
• Jaiganesh Balasubramanian (PhD) Survivable
  systems, Deployment Planning, SwapCIAO, Load
  Balancing
• Krishnakumar Balasubramanian (PhD) MDD/CoSMIC,
  assembly optimizations
• Gan Deng (PhD) DC framework, ReDAC
• Jules White (PhD) Autonomic Computing, BEEP
• Nishanth Shankaran (PhD) Control Theory in
  Middleware
• Undergraduates
• Matthew Heineke Network data collection from
  routers for traffic analysis (for IAB)

33
Research Summary
RD in new, holistic approaches to end-to-end QoS
management in services-enabled distributed
real-time embedded systems
Research Challenge Research Approach Benefits
Managing problem space variability Model-driven generative approach to separation of concerns Enhance the state-of-art in MDD and AOSD technologies
Design-time What-if analysis using generative prog Variety of analysis techniques including non traditional mechanisms Generative technologies for automated analysis Application of Engineering Mechanics
Deployment-time intelligent decisions New applications of constraints optimization theory Middleware specializations Near optimal deployment Specialized middleware stacks
Run-time Mechanisms Multilevel, proactive QoS mgmt schemes Virtualization ideas Largely autonomic Survivable systems
