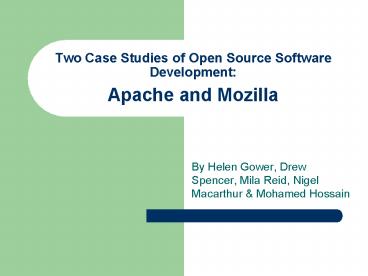

Two Case Studies of Open Source Software Development: Apache and Mozilla

1
Two Case Studies of Open Source Software
DevelopmentApache and Mozilla

• By Helen Gower, Drew Spencer, Mila Reid, Nigel
  Macarthur Mohamed Hossain

2
Introduction

• Development Process - Traditional
• What is Open Source Software
• Apache and Mozilla
• Apache Process
• Hypotheses
• Mozilla Process
• Hypotheses revisited
• Conclusion
• Research
• Any questions

3
Development Process - Traditional

• Basically the waterfall cycle
• Predominately used in the commercial industry
• Advantages well established, structured
  procedures
• Disadvantages management related constraints,
  cannot go back a phase

4
What is Open Source Software (OSS)?

• A new way to develop software
• Differences from traditional development
• Source code is freely available
• Communicate exclusively by email/bulletin boards
• Geographically distributed development
• Advantages developer freedom, tacit knowledge
• Disadvantages lacks traditional methods to
  coordinate development

5
Open Source Software - Results

• OSS development has proven to be
  equivalent/superior to traditional methods
• Defects found and fixed quicker
• Code written with more care/creativity
• An example of successful OSS software is the
  Linux operating system

6
What is Apache?

• Apache is a free, open source HTTP web server
  software system
• Works well on open source operating systems such
  as UNIX and Linux
• Also available for Windows and other operating
  systems

7
What is Apache? cont

• Supports the PERL and PHP languages
• Provides services such as server-side scripting
• Industry leaders such as DEC, UUNet and Yahoo use
  Apache
• 70 of the worlds web servers run on Apache
  (http//news.netcraft.com/web_server_survey.html)

8
Why call it Apache?

• In early 1995, developers of some high visibility
  web sites decided to pool their patches and
  enhancements to the NCSA/1.3 server to create
• A patchy server
• The Apache Group (AG) started 1995

9
What is Mozilla?

• The Mozilla Project is an open source software
  project
• Dedicated to development of the Mozilla web
  browser and application framework
• Available for many operating systems
• Firefox, a cross-platform browser and
• Camino, a web browser for MacOS X

10
What is Mozilla? cont

• Includes mail and news reader (Mozilla
  Thunderbird), HTML editor and an IRC client
• Supports many technologies including development
  tools
• CVS, Bugzilla, Bonsai, Tinderbox
• It also builds toolkit type applications such as
  Komodo from ActiveState

11
What is Mozilla? cont

• Mozilla uses a development process with
  commercial roots
• Mozilla.org exists as a group within Netscape
• Central point of contact responsible for
  coordinating development

12
The Development Process

• Problems posed by OSS-style development
• Decentralised Workspaces
• Lack of communication leadership
• Inconsistent dedication of time
• Solutions
• Concurrent Version Control Archive (CVS)
• Mailing List
• Quorum Voting System
• Meritocracy

13
Identifying work to be done

• Modification Requests (MRs) mailing list
• BUGDB
• USENET groups
• Showstoppers always addressed
• Others discussed on mailing list

14
Assigning Performing Work

• Core developers have own areas
• New developers take on disowned areas or new
  features
• Great respect for core developers expertise and
  experience
• No specific rights to code meritocracy gives
  implicit ownership

15
The Development Community

• 400 individual contributors of code
• 182 people contributed 695 fixes
• 249 people contributed 6,092 new code submissions
• 3,060 people submitted 3,975 bug reports
• 458 people submitted 591 that caused a change in
  the code

16
Distribution of Work

• Top 15 developers contributed
• 83 of MRs for new features
• 66 of MRs for defects/bugs
• The wider development community is significant in
  defect repair
• Few outside the core group submit with any
  regularity

Developers contributing gt 1 MR Before After Both
New Features 49 49 25
Fixes 120 140 25
17
Commercial Project Comparison
MR KLOCA Dev MR/top dev/yr LOCA/top dev/yr
A 3,300 5,000 101 30 38,600
B 2,500 1,000 91 30 11,700
C 1,100 81 17 90 6,100
D 200 21 8 20 5,400
E 700 90 16 60 10,000
A-E Avg. - - 47 46 14,360
Apache 6,000 220 388 110 4,300
18
Commercial Project Comparison

• Top developers handle around twice the number
  of MRs as commercial projects
• Rate of development is within 2/3 that of C D
  in terms of LOCA
• B E are about twice as productive
• A is 10 times more productive

19
Reporting Problems

• Top Problem Reporters only contributed 5 of
  PRs
• Of these 15, only 3 are also core developers
• Problem reporting belongs almost exclusively to
  the wider development community

20
Ownership of Code

• Was thought likely that strong code ownership
  would evolve due to modular design and
  decentralisation
• This was not supported by analysis of files (.c
  files)
• 75 had gt 2 developers contributing 10 of lines
• 50 had gt 4 developers contributing 10 of lines
• High level of trust and recognition of expertise

21
Defect Density

• Measured in defects/KLOCA
• Apache has same defect density for pre-release
  and post release tests
• Pre-release less defects than commercial
  products
• Post release more defects than commercial
  products

22
Resolving Problems

• How long does it take to resolve problems?
• 50 resolved within 24hrs
• 75 resolved within 42 days
• 90 resolved within 140 days
• Slightly lower for documentation, OS related and
  optional features
• Over two periods the average resolution interval
  decreased significantly while the number of users
  increased

23
What has been analysed?

• The structure of the development process
• The number of participants
• The distribution of work among different roles
• Rules of ownership of code
• Density of defects
• Time taken to resolve problems

24
Hypothesis 1

• Implicit coordination mechanism
• Detailed knowledge of who has expertise in what
  area
• Customs habits regarding how things are done
• What are core members are doing

• Core of developers who control the code base
• No larger than 10-15 people
• Create approx 80 of the new functionality
• (not fixes or problem reporting)

25
Hypothesis 2

• Satellite projects created
• Divide conquer work split over core
  developers and satellite groups

Strict code ownership policy needs to be adopted
26
Hypothesis 3

• A group around 10x larger
• than the core (10-15 people)
• will repair defects
• E.g. Apache, 182 people repaired defects

• A group 10x larger or more will report problems
• E.g. Apache, 3,060 people reported bug reports

27
Hypothesis 4

• Lack of resources overburdened
• Most people have only ever submitted 1 bug
• Apache 3,060 people reported 3,975 bugs
• Wider community needed to free up core developers
  time so they can develop new functionality

Projects without a wider community finding and
repairing defects will fail
28
Hypothesis 5
Defect density (per 1,000 lines of code) will be
lower than commercial software
29
Hypothesis 6

• Familiar with the features needed
• Familiar with desirable user behaviour

Developers are also experienced users of the
software they write
30
Hypothesis 7

• Many eyeballs implies shallow bugs
• Free-world of OSS
• Patches available to all customers nearly as soon
  as they are made
• Commercial developments
• Patches bundled into new releases and scheduled
  for release at specific times (long term
  projects)

OSS developments exhibit rapid responses to
customer problems
31
Mozilla How Things Happen

• Development was done at the time of writing the
  paper by 12 staff in mozilla.org
• Non-development staff concentrate on issues like
  testing, or community milestone releases
• The content of future releases is specified in a
  road map
• Work within this is allocated according to
  developer preferences and expertise

32
How Things Happen cont

• Developers can browse Bugzilla to choose areas on
  which they would like to work
• Mozilla web pages can be used to note areas where
  help is needed
• Mozilla operates on a daily build
• Each build is smoke tested by one of 6
  pre-release test teams
• This is followed by inspections and managed
  release

33
Mozilla Research Findings

• The points below summarise the research questions
  originally considered
• 486 people contributed code
• 412 contributed code to fixes
• 6,873 communicated problems (external community
  very large, small core)
• Code ownership is enforced

34
Mozilla Findings cont

• The authors hypotheses 1 and 2 are supported by
  the Mozilla data
• However, these hypotheses were modified as
  summarised below
• The core size (10-15) is limited to 10-15 if only
  informal coordination is used
• Original hypothesis did not discuss impact of
  coordination
• Project cores larger than 10-15 might require
  other mechanisms in addition to code ownership to
  improve coordination

35
Mozilla Findings cont

• Hypothesis 3 (relative sizes of
  core/fixers/reporters) is weakly supported
• Core 22 to 35 (larger than expected)
• Fixers 47 to 129
• Reporters 119 to 623
• Mozilla defect density lower than commercial
  equivalent projects
• although caution more may be found later

36
Mozilla - Conclusions

• Commercial/OSS has many possible hybrids
• These hybrids will require a large open source
  community to fix bugs
• They will also require an even larger community
  to find bugs

37
Research

• A strong paper
• Good approach to measuring the metrics required
  to test the required hypotheses
• Citation frequency in the following years
  suggests that is regarded as authoritative
• However, the final conclusion, as mentioned
  previously, must be considered unproven as yet

38
References

• http//www.cs.colostate.edu/cs656/reading/reading
  -paper.ppt1 (How to read and critique a
  technical paper, Colorado State University
• Greenhalgh, Trisha, How to read a paper London,
  BMJ, 1997
• The above summarised at
• http//www.bmj.com/archive/7102/7102ed.htm
• Note the BMJ references above concern evidence
  based medicine, but have some useful sections!

39

• Any questions?
• preferably easy ones!
