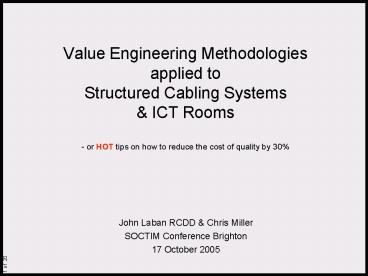

Value Engineering Methodologies applied to Structured Cabling Systems

1
Value Engineering Methodologiesapplied
toStructured Cabling Systems ICT Rooms- or
HOT tips on how to reduce the cost of quality by
30

• John Laban RCDD Chris Miller
• SOCTIM Conference Brighton
• 17 October 2005

2
What's important ?

• The single most important challenge facing
  managers today is having to do more with less

survey result London Business School
3
Teaching bridge designor where the UK ICT
industry is today

• If a bridge designer is educated and certified by
  a concrete manufacturer then the bridge will be
  made predominately from
• Steel ? Stone ? Concrete ?
• Will this bridge be the optimal design solution ?
• What will it look like?

4
A concrete bridge !!!!

• 4,000,000 cubic metres of concrete
• Optimal volume of concrete keeps manufacturer
  happy
• Unnecessary cost for end user
• Wasteful and unsustainable
• And its not GREEN

5
Vendor independent design education
professional certification

• Results in Optimal
• economy
• form
• function
• value
• Beauty
• ............................................gt
• I couldnt find a GREEN one

6
Bridges Cabling

• Bridges
• are vehicle animal transport systems
• only certified professionals design bridges
• Structured Cabling Systems (SCS)
• are Information Transport Systems
• only certified professionals should design SCSs
• my dream

7
Education Skills

• Education - first
• vendor independent certification is education
• education provides a firm foundation
• forms the basis for professionalism
• Skills - second
• must follow on from education
• vendor certification is skills training
• builds upon a foundation of education

8
What's the goal ?
global best practice
9
Densification of ICT equipmentHOT tips- or
how not to get roasted

• Chris Miller
• Future-Tech
• cmiller_at_future-tech.co.uk
• 07786 433212

10
Today's leading edgebut your tomorrow

• 200 Blade servers in a single cabinet
• 16 blade servers per 3U of cabinet space
• LAN Ethernet switches
• LAN switches with over 1,000 ports
• two 6kW power supplies in a core switch
• Power over Ethernet (PoE) switches
• supplies additional 20W per port
• all user drops live

11
Power issues

• Standard 16 kW high density cabinet
• equivalent to 4 conventional ovens
• Can reach 30 kW in a cabinet
• but is this really a good idea in an imperfect
  world?
• Available power dont under estimate your needs

12
Cooling issues

• Air versus liquid cooling
• facts figures
• Enclosures
• advantages, drawbacks, usage
• High density areas versus diffused site
  configuration
• Design out the HOT spots

13
HOT Tips

• Have a strategy
• you will get burnt with the tactical approach
• Keep an eye on low-density equipment power
  creep
• you may be about to loose your UPS/cooling N1
  redundancy
• Better discipline within rooms and cabinets
• hot isles and cold isles
• patching cords cable management
• use blanking plates to avoid internal recycling
• watch out for sideways air flows on large LAN
  switches
• choice of cabinet mesh front and rear doors
• Try before you buy
• consider using 3D Computational Airflow Modelling
• No one size fits all solution
• look at your existing situation, organisational
  needs going forward
• internal disciplines best practice
• site restrictions, etc.

14
John kicks of ChrisValue Management Timing
Planning
Design
Construction
O M
Typically 30
Cost Reduction Potential
Typically 10
When the baby is born the baby is born
Source TF Group
Cost to change

• The earlier in the project, the greater the cost
  reduction potential and the less cost to change

15
Functional analysis

• All cost is function
• Always question function
• spring loaded shutters on RJ45 wall sockets
• RJ45 interfaces on LAN switches
• Always check for duplication of function
• locks on doors
• doors
• containers within containers
• fan trays
• support structures
• Encourage disruptive thinking

16
Stupid 01High level cable entry
intotelecommunications room
17
Stupid 02Fan trays in top of cabinets
Understand airflows LAN
switch
18
Stupid 03Perfectly formed cable bundles
19
Stupid 04100 Game-boy cable verification
20
Further information

• Bicsi Telecommunications Distribution Methods
  Manual (TDMM)
• Gurus
• Value Engineering
• Lawrence D. Miles
• Quality Management
• Dr W. Edwards Deming
• Ask John Laban Chris Miller
• john.laban_at_annor.net
• 07710 124487

There is no direct relationship between cost and
quality . it is possible using global best
practice to have Cat6 at Cat5 prices
