Fiber Networks: An Underlying Infrastructure for Research in the USA

1

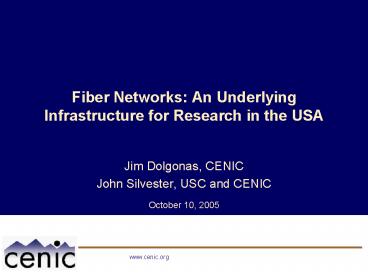

Fiber Networks An Underlying Infrastructure for
Research in the USA

• Jim Dolgonas, CENIC
• John Silvester, USC and CENIC
• October 10, 2005

2
RE Networking in USA

• 1969-90--ARPANET (Milnet split off in 83)
• 1981-96--BITNET/CREN
• 1981-91ish--CSNET (CSnet merged with BITNET into
  CREN)
• 1986-95ishNSFnet
• 1995-2001ish--vBNS
• 1996-97---Internet2/Abilene
• 1997-CENIC/CalREN (California)
• 2002-03-CENIC deploys statewide fiber backbone
• 2003-NLR NLR created for deploy national fiber
  backbone

3
CENIC Mission and Goals

• Mission
• to develop, deploy and operate leading edge
  network-based services and to facilitate and
  coordinate their use for the RESEARCH and
  education community to advance learning and
  innovation
• Goals
• Provide competitive advantage in global
  marketplace to education and RESEARCH communities
• Provide opportunities for innovation in teaching,
  learning and RESEARCH through use of the network.

4
Why A Fiber Infrastructure?

• Cost effective
• Customize services to meet variety of needs
  instead of one size fits all
• Ability to provision services quickly to meet
  specialized needs - i.e., iGRID

5
CENIC/CalREN Tiers of Service

• Network Development and Evolution
• For California Research and Education Community

6
CalREN Optical BackboneServing Californias
Research and Education Community
7
Where Does CENIC Fit In?

• With campus networks
• With national research networks
• With international networks

8
Optical Network Infrastructure Framework

Tom West, NLR
9
Regional Optical Networks

• California (CALREN)
• PNWGP
• Colorado/Utah (FRGP)
• Illinois (I-WIRE)
• Michigan (MLR)
• Indiana (I-LIGHT)
• Ohio (TFN)
• New York (NYSERnet)

• Maryland, D.C. Virginia (MAX/MATP)
• North Carolina (NCREN)
• Georgia (Southern Light Rail)
• Florida (Florida LambdaRail)
• Louisiana (LONI)
• Texas (LEARN)
• Oklahoma (OneNet)

Courtesy of Steve Corbato
10
Internet2
206 University Members October 2005
11
Internet2 Services

• Advanced network applications enables
  collaboration among people and provide
  interactive access to information and resources
  in ways not possible on today's commercial
  Internet.
• New network capabilities i.e., Quality of
  Service, multicasting, and IPv6 are being
  aggressively tested and deployed in the networks
  used by Internet2 members.
• Middleware behind-the-scenes software, is
  providing security, directories and other
  services required by advanced network
  applications.
• High-performance networks linking the campuses
  and laboratories of over 200 Internet member
  institutions.

12
National LambdaRail Mission

• To advance the research, clinical and educational
  goals of members and other institutions by
  establishing and maintaining a nationwide
  advanced network infrastructure.

13
(No Transcript)
14
National LambdaRail (NLR) Goals

• Support experimental and production networks
• Foster networking research
• Promote next-generation applications
• Facilitate interconnectivity among
  high-performance research and education networks

15
Internet2 and NLR-to Merge or Not to Merge

• Questions regarding the need for two different
  national education and research networking
  organizations
• CENICs interests are
• to obtain cost effective national transit for CA
  educational institutions,
• to obtain services similar to those of the CENIC
  pyramid but on a national basis,
• exploit use of fiber network NLR has acquired.

16
P A C I F I C W A V Ean International
Connection Exchange partnership of PNWGP
CENIC, done in collaborations with StarLight,and
our international network partners, and partially
funded by NSF
17
Translight - Pacific Wave

18
Global Lambda Integrated Facility
www.glif.is
Visualization courtesy of Bob Patterson, NCSA.
19
Communities Served by CENIC, Internet2 and NLR

• Network Researchers
• Science ResearchersBig Applications
• Educators---Teaching-Learning Applications
• Supercomputing continues to be a key driver!

20
Changes in RE Impacting Networking Needs

• Growing urgency for new network technologies
• Increased collaboration worldwide onBig Science
  projects
• Exponential growth in size of data sets being
  accessed
• Need for multiple dedicated/private research
  networks
• iGRID last month demonstrated many examples of
  high-end and lightpath network applications

21
Sample Traffic Measurement from iGRID
22
Current Projects Served by Fiber Nets OptIPuter
23
(No Transcript)
24
Current Projects ServedExtensible Terascale
Facility (ETF)
25
Potential Network Research ProjectVirtualized
Testbed for Network Research

• Provide multiple heterogeneous virtual networks
  on a common substrate.
• Engage broad networking research community.
• Bridge gap between cutting-edge research and
  production usage.
• Proposed by
• Tom Anderson, University of Washington
• Larry Peterson, Princeton University
• Scott Shenker, UC Berkeley
• Jon Turner, Washington University in St. Louis

26
Planning for Future CENIC Net Services

• CENIC Board Subcommittee defining future service
  needs
• John Dundas, CalTech Chair
• Larry Smarr, UCSD/CalIT2, Vice Chair
• John Silvester, USC
• Ron Johnson, University of Washington
• Mike Scott, UC Irvine
• Jim Davis, UCLA
• Greg Hidley, UCSD/CalIT2
• Jim Dolgonas, CENIC
• Dave Reese, CENIC

27
Potential List of Future CENIC Net Services

• End to end optical lambda/wave services
• Ends are labs/desktops at campuses
• Cross national and international network
  boundaries
• Ability to obtain these for short periods of
  times on short notice (user switched??)
• End to end switched ethernet services (same as
  above)
• New-experimental routed services (layer 3, to
  complement experimental routed services of NLR)

28
Enhancement of CalREN or Buildout of XD

• CENIC issues to address
• CENIC needs input from campuses (researchers) on
  needs
• If dedicated networks (Lambdas) needed by
  researchers, demarc (handoff) between CENIC and
  campus needs to be made more flexible
• Funding is required for high end (XD layer) needs
• End to end performance issues require campus and
  CENIC partnership to address
