Team Members Nitish Barman

1

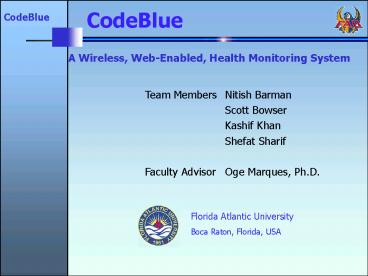

CodeBlue
A Wireless, Web-Enabled, Health Monitoring System
Team Members Nitish Barman Scott
Bowser Kashif Khan Shefat
Sharif Faculty Advisor Oge Marques, Ph.D.
Florida Atlantic University Boca Raton, Florida,
USA
2
Outline

• Motivation
• Design Concept
• System View
• Wearable Unit
• Design Considerations
• Implementation Issues
• Base Station Software
• Web Server Software
• Marketability Issues
• Manufacturability Issues
• Future Improvements
• Summary

3
Motivation

• Improved Health Care
• Reduced length of hospitalization
• Enhanced patient comfort
• Early detection of medical emergencies
• Constant health monitoring
• Typical Health Monitor
• Stationary
• Bulky heavy
• Too many wires

4
Design Concept
5
Wearable Unit Design Considerations

• Small, Light Portable
• Low Power Consumption
• Run on typical 9V battery
• Robust Durable
• User friendly interface
• LED indicators
• Several audible alerts
• Inexpensive

6
Wearable UnitBlock Diagram

• Wearable Unit
• Collects data from the different sensors
• Transmits and receives data packets through the
  Bluetooth transceiver
• Alerts user through status LEDs and buzzer
  alerts

7
Wearable Unit Flow
Check Shock
Room Temp
Check Shock
Skin Temp
Check Shock
Heart Rate
Check Shock
Check Battery
Process Base Station commands
8
Microcontroller

• The 68HC12 is programmable in C using an IAR
  compiler with CSPY debugger

9
Accelerometer

• Analog Devices ADXL202
• Measures tilt through digital output lines
• Measures shock and acceleration through analog
  outputs

10
Shock Sensor
Shock Sensor
Microcontroller
Shock is detected if the sum of the samples is
greater than the set limit as determined through
testing
17 sample integrator
11
Temperature Sensor

• DS1620 Dallas Semiconductor
• Measurements accurate within 0.1 Co

reset
clock
data
Microcontroller Unit
12
Temperature Protocols

• Sensor Mode Four
• Three wire communications
• Perform only one temperature reading
• High Resolution
• Extends accuracy to 0.1o C
• Calculation based on temperature dependent counter

Calculate High Resolution Temperature from
Readings
13
Heart Rate Monitor
Microcontroller Unit

• Signal is taken from the wrist receiver as a
  negative going pulse for each heart beat
• Heart rate comes from chest strap sensor /
  transmitter
• Average taken as frequency over three samples

14
Base Station Design Considerations

• Standard Platform
• Windows 9X compliant software
• Work with laptop or desktop
• Easily ported to Windows CE
• Web server
• Supports Active Server Pages
• Windows IIS server
• User friendly graphical interface
• Clean, intuitive, functional layout

15
Base Station Software

• Allows system customization for specific patients
• Interprets wearable units data
• Based on health status
• Provides user feedback via the GUIs
• Logs data for web server access
• Bluetooth stack courtesy of Cstack.com

16
Base Station Flow
17
Base Station Flow
18
Main Screen
19
Web Server Design Considerations

• Fast loading pages
• Limit the server side scripting done for each
  page
• Avoid parsing large log files
• Logical data presentation
• Allow user to choose a range of data to view
• Server side scripting
• Increases speed for slow client machines
• Only error checking is done client side

20
Web Server Scripts

• Remote Monitoring
• Health care professionals and concerned family
  can monitor patient
• Graphical Data
• Client can view data in graphical and tabular
  format
• Patient Instructions
• Remote client can send text message instructions
  or reminders

21
Web Server Flow
Login
Current Sensor Readings
Send Instructions
Choose Chart (time range and sensor)
Display Desired Chart
All data is read from text files stored on the
host machine
22
Graphical Trends

• Choosing a plot
• Determine an hourly time interval
• Determine which sensor(s) to plot
• Graph generation
• Applet takes formatted data
• A GIF is returned to the client
• Script is modified from Javaside.com

23
Marketability

• Target Markets
• Families of the elderly
• Nursing home health care
• Hospitals clinics
• Marketability
• Provides inexpensive peace of mind
• Alleviates the burden of bulky equipment
• Allows complete mobility when coupled with
  wireless Internet

24
Manufacturability

• Package size
• Size of a cell phone
• Sensors
• Medical grade temperature sensors
• Hard wired heart rate monitor
• Power
• Rechargeable cell phone style battery
• Convert to 3V logic for low power consumption

25
Prototype Cost Analysis

• Our Wearable Unit Design
• MCU / eval. board 150
• Temp 7 (2)
• Accel. 14
• Regulator 5.50
• HRM 50
• Op Amp 2.5 (2)
• Miscellaneous 50
• Bluetooth board (150)
• TOTAL 275
• (425)

26
Future Improvements

• Added features
• LCD on the wearable unit
• Battery meter rather than low indicator
• Hard wired heart rate monitor
• Add tilt feature of the accelerometer
• Software additions
• Real time updates on web data
• Database backend for long term trend monitoring
• Full duplex audio from wearable unit to remote
  web client

27
Summary

• CodeBlue
• Portable
• Small light weight
• Wireless
• Simple user friendly
• Inconspicuous
• Constant monitoring
• immediate action

• Typical Health Monitor
• Stationary
• Bulky heavy
• Too many wires

28
Thank You
