Origin of solar system

1

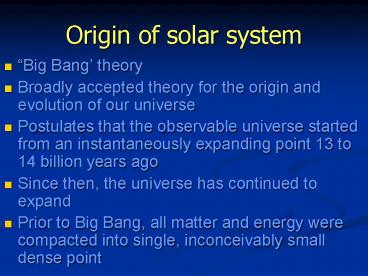

Origin of solar system

• Big Bang theory
• Broadly accepted theory for the origin and
  evolution of our universe
• Postulates that the observable universe started
  from an instantaneously expanding point 13 to 14
  billion years ago
• Since then, the universe has continued to expand
• Prior to Big Bang, all matter and energy were
  compacted into single, inconceivably small dense
  point

2
Evidence for Expanding Universe

• Astronomers looking at distant galaxies directly
  observe this expansion
• Originally detected by Edwin Hubble
• The expansion of the universe "stretches" light
  rays converting blue light into red light and red
  light into infrared light
• Example of a Doppler effect
• Thus, distant galaxies, which are rapidly moving
  away from us appear redder
• Geologists look to the formation of the solar
  system to understand formation of the Earth

3
Evidence for Big Bang

• Expansion of the Universe
• Abundance of helium, deuterium and lithium
• Thought to be synthesized primarily in the first
  three minutes of the universe
• Thermal spectrum of cosmic microwave background
  radiation
• The universe is filled with the remnant heat from
  the Big Bang called the "cosmic microwave
  background radiation
• Today, this radiation is very cold only 2.728
  degrees above absolute zero. It fills the
  universe and can be seen almost everywhere we
  look
• Cosmic microwave background radiation appears
  hotter in distant clouds of gas
• Since light travels at a finite speed, we see
  these distant clouds at an early time in the
  history of the universe, when it was denser and
  thus hotter

4
What Big Bang does not Explain

• Origin of galaxies and the observed large-scale
  clustering of galaxies
• Astronomers observe considerable structure in the
  universe, from stars to galaxies to clusters and
  superclusters of galaxies
• "Deep Field Image" taken by the Hubble Space
  Telescope, provides a view of such structure
• How did these structures form?
• Most astrophysicists believe that the galaxies
  that we observe today grew gravitationally out of
  small fluctuations in the nearly-uniform density
  of the early universe
• These fluctuations leave an imprint in the cosmic
  microwave background radiation in the form of
  temperature fluctuations from point to point
  across the sky
• Origin of the uniform distribution of matter on
  very large scales

5
Origin of solar system

• Pick a theory, any theory, but it must be
  consistent with these facts
• Planets all revolve around the Sun in the same
  direction in nearly circular orbits
• Counterclockwise direction
• The angle between the axis of rotation and the
  plane of orbit is small (except Uranus)
• Roughly perpendicular to the plane of orbit

6
Origin of solar system

• Pick a theory, any theory, but it must be
  consistent with these facts
• All planets (except Venus and Uranus) rotate in
  the same direction as their revolution their
  moons do, too
• Counterclockwise direction
• Each planet is roughly twice as far as the next
  inner planet is from the Sun

7
Origin of solar system

• 99.9 of mass is in the Sun 99 of angular
  momentum is in the planets
• Sun rotates very slowly
• Planets in two groups with different chemical and
  physical properties
• terrestrial (inner) Mercury, Venus, Earth, Mars
  Mercury is mostly Fe (? 5.4)

• Jovian (outer) Jupiter, Saturn, Uranus,
  Neptune. Jupiter mostly gas and ice ( ? 0.7)
  Pluto ????

8
Origin of solar system

• Terrestrial planets are mostly O, Si, Fe, Mg.
  The Sun is almost entirely H He (also important
  in Jovian planets)
• Interplanetary material
• Existence of asteroid belt between terrestrial
  and Jovian planets
• Existence of planetary dust

9
Nebular hypothesis

• Primeval nebula (slowly rotating cloud of He and
  H gases dust)
• Initially cloud are stable and move slowly
• Occasionally they are disrupted by shock waves
  from exploding star called a Supernova

10
Nebular hypothesis

• Massive explosions create turbulence in the dust
  cloud induce gravitational instabilities
• Gas cloud contracts under the force of gravity
  and flattens
• As a result the cloud starts to rotate in order
  to conserve its original angular momentum

11
Nebular hypothesis

• Eventually, the increasing speed of rotation
  causes the cloud to collapse into a flat disk

12
Nebular hypothesis

• Sun forms and dust particles collide and clump
  together to form planetesimals

13
Nebularhypothesis
14
Our Solar System
15
Evidence for the Nebular Hypothesis

• Because of the original angular momentum and
  subsequent evolution of the collapsing nebula,
  this hypothesis provides a natural explanation
  for some basic facts about the Solar System
• The orbits of the planets lie nearly in a plane
  with the sun at the center (neglecting the slight
  eccentricity of the planetary orbit)
• The planets all revolve in the same direction
• The planets mostly rotate in the same direction
  with rotation axes nearly perpendicular to the
  orbital plane
• The nebular hypothesis explains many of the basic
  features of the Solar System, but we still do not
  understand fully how all the details are
  accounted for by this hypothesis

16
Collision hypothesis

• Portions of the Sun were torn off by a passing
  star planetesimals then collided to form
  planets.
• Problems gases coming from Sun would be too hot
  to condensestellar collision exceedingly rare.

17
Protoplanet hypothesis

• Large gas cloud begins to condense.
• Most mass in center, turbulence in outer parts.
• Turbulent eddies collect matter meter across
  small chunks grow and collide, eventually
  becoming large aggregates of gas and solid
  chunks.
• Protoplanets, much bigger than present planets,
  eventually contracted due to their own gravity.

18
(No Transcript)
19
The Moon

• Only a little smaller than Mercury (small planet
  in two-planet system).
• Surface of the moon very different from the
  surface of Earth.
• No atmosphere, therefore, no weathering.

20
Formation of the Moon

• Mars-sized body collides with Earth 4.5 Billion
  yr BP
• Debris ejected to form Moon

21
A catastrophic impact between theproto-Earth and
a Mars-sized impactor
22
(No Transcript)
23
Timeline for the Sun, Earth, and Moon
24
Why worry about the beginning?

• The evolutionary course is significantly
  influenced by the initial state.
• We know the state of the Earth today relatively
  well knowing the beginning will help constrain
  the in between.

25
A Differentiating Planet
26
Heating of Planet

• Accretion. Impacting bodies bombard the Earth and
  convert their energy of motion into heat
• Gravity. As the Earth gets bigger, the extra
  gravity forces the mass to contract into a
  smaller volume, producing heat
• Just like a bicycle pump gets hot on compression
• Radioactive Disintegration. The surrounding
  material absorbs the energy released in
  radioactivity, heating up
• This is a very slow but steady source of heat
• About 20 calories of heat are generated by 1
  cubic centimeter of granite in the course of a
  million years
• It would take this amount of rock 500 million
  years to brew a cup of coffee!

27
An Early Homogeneous Earth
Early Earth was a homogenous body
28
Differentiation

• Rock is a very poor conductor of heat
• So heat continued to build up until some
  materials started to melt
• Calculations have been carried out to determine
  what happened to the early "homogenous" earth
  before differentiation
• At some point, probably during the first few
  hundred million years of Earth history a region
  at a depth of 500 km became so hot that iron (a
  plentiful element) started to melt
• The molten iron collected and began to sink under
  its own weight.
• About one third of the primitive planet's
  material sank to the center and in the upheaval
  heating rates increased and a large part of the
  body was liquefied

29
Differentiation Begins
Irons sinks to the interior and lighter
material floats upward
30
Differentiation

• The formation of a molten iron core was the first
  stage of the differentiation
• Converted Earth from a homogenous body with
  roughly the same kind of material at all depths
  to a zoned, or layered body with a dense iron
  core, a crust composed of lighter materials with
  lower melting points and between them the mantle
• The first stage of differentiation iron melting
  (which took a long time to occur) led to the
  onset of a mechanism that speeded up the
  differentiation
• Convective overturn -- a process whereby molten
  material may overturn, transferring heat buried
  deeply within the planet to the outer layers

31
Present day Earth
Now Earth is a zoned planet with a dense core
and lighter crust
32
Differentiation

• Perhaps the most significant event in the history
  of the Earth
• It led to the formation of a crust and eventually
  the continents
• Differentiation probably initiated the escape of
  gases from the interior
• eventually led to the formation of the atmosphere
  and oceans

33
Origins of the Atmosphere

• Some geologists believer that most of the air and
  water on Earth came from volatile-rich matter of
  the outer solar system that impacted Earth as it
  formed
• Countless comets may have bombarded Earth
  bringing water and gas that gave us our oceans
  and atmosphere
• The very hot young Earth would also have lots of
  volcanic activity leading to outgassing of
  volatile gases from within the magma
• Originally water and gases were locked up in
  minerals
• There is evidence that the hot outgassing that
  occurred during the first billion years also led
  to the first atmosphere of the Earth

34
Interacting Earth SystemsVolcanoes contribute
gases to the atmosphere and solids to the crust
35
Atmospheric Gases

• Did not inherit all our atmosphere from ancestral
  bodies
• Water vapor and other gasses released from rocks
  by outgassing
• Outgassing by volcanic emission occurs today
• Water vapor, H, HCl, CO, CO2, N2
• Early atmosphere higher H content
• Possibly also ammonia and methane
• Gasses from modern volcanoes from recycled rocks
• Reasonably sure early atmosphere not from
  accretion
• i.e., accumulation of light volatiles from nebula
• Relative scarcity of inert gasses in modern
  atmosphere
• Ar, Ne, Krypton
• Too heavy to escape from earths gravity
• Less abundant than in atmosphere of stars
• Our atmosphere not residue of gasses from nebula

36
Rapid Degassing

• Rapid degassing must have produced much water
  vapor
• Condense to form seas when earth cooled
  sufficiently
• Know oceans formed early
• Water laid sediments
• Metamorphosed sediments date 3.8 by
• Detrital grains 4.4 by

37
Big Burp

• If the Big Bang led to all the universe
• The "Big Burp" of differentiation led to much of
  the environment we live in
• It could have occurred over millions of years or
  it could have been a more catastrophic event
• The earliest Earth was probably an unsorted
  conglomeration
• Mostly silicon compounds, iron and magnesium
  oxides and smaller amounts of all the natural
  elements

38
Relative Abundance of Elements
39
Earth System Science

• Earth should be studied as a unified system
• Interactions and interrelationships between all
  Earth systems
• Earth can be divided into 4 subsystems
• Biosphere
• Lithosphere
• Hydrosphere
• Atmosphere
• Materials and energy cycle among these these
  subsystems

40
Lithosphere, Hydrosphere, Atmosphere, Biosphere
and Uniformitarianism
41
Interacting Earth Systems
42
Kinds of Systems
43
Example of an Open System
44
Another view of the hydrologic cycle
45
The Earth is a Closed System
46
CO2 and Long-Term Climate

• What has moderated Earth surface temperature over
  the last 4.55 by so that
• All surface vegetation did not spontaneously
  catch on fire and all lakes and oceans vaporize?
• All lakes and ocean did not freeze solid?

47
Greenhouse Worlds

• Why is Venus so much hotter than Earth?
• Although solar radiation 2x Earth, most is
  reflected but 96 of back radiation absorbed

48
Energy Budget

• Earths temperature constant 15?C
• Energy loss must incoming energy
• Earth is constantly receiving heat from Sun,
  therefore must lose equal amount of heat back to
  space
• Heat loss called back radiation
• Wavelengths in the infrared (long-wave radiation)
• Earth is a radiator of heat
• If T gt 1?K, radiator of heat

49
Energy Budget

• Average Earths surface temperature 15?C
• Reasonable assumption
• Surface of Earth radiates heat with an average
  temperature of 15?C
• However, satellite data indicate Earth radiating
  heat average temperature -16?C
• Why the discrepancy?
• What accounts for the 31?C heating?

50
Energy Budget

• Greenhouse gases absorb 95 of the long-wave,
  back radiation emitted from Earths surface
• Trapped radiation reradiated down to Earths
  surface
• Accounts for the 31?C heating
• Satellites dont detect radiation
• Muffling effect from greenhouse gases
• Heat radiated back to space from elevation of
  about 5 km (top of clouds) average 240 W m-2
• Keeps Earths temperature in balance

51
Energy Balance
52
Greenhouse Worlds

• Why is Venus so much hotter than Earth?
• Although solar radiation 2x Earth, most is
  reflected but 96 of back radiation absorbed

53
What originally controlled C?

• In solar nebula most carbon was CH4
• Lost from Earth and Venus
• Earth captured 1 in 3000 carbon atoms
• Tiny carbon fraction in the atmosphere as CO2
• 60 out of every million C atoms
• Bulk of carbon in sediments on Earth
• CaCO3 (limestone and dolostone) and organic
  residues (kerogen)
• Venus probably had similar early planetary
  history
• Most carbon is in atmosphere as CO2
• Venus has conditions that would prevail on Earth
• All CO2 locked up in sediments were released to
  the atmosphere

54
Earth and Venus

• Water balance different on Earth and Venus
• If Venus and Earth started with same components
• Venus should have either
• Sizable oceans
• Atmosphere dominated by steam
• H present initially as H2O escaped to space
• H2O transported "top" of the Venusian atmosphere
• Disassociated forming H and O atoms
• H escaped the atmosphere
• Oxygen stirred back to surface
• Reacted with iron forming iron oxide

55
Planetary Evolution Similar

• Although Earth and Venus started with same
  components
• Earth evolved such that carbon safely buried in
  early sediments
• Avoiding runaway greenhouse effect
• Venus built up CO2 in the atmosphere
• Build-up led to high temperature
• High enough to kill all life
• If life ever did get a foothold
• Once hot, could not cool

56
Why Runaway Greenhouse?

• Don't know for sure why Venus climate went
  haywire
• Extra sunlight Venus receives?
• Planet too hot for liquid water
• Life perhaps never got started?
• No sink for carbon in organic matter
• Was the initial component of water smaller than
  that on Earth?
• Did God make Venus as a warning sign?
