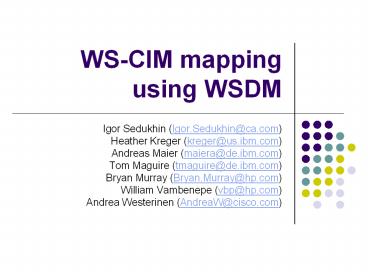

WS-CIM mapping using WSDM

1
WS-CIM mapping using WSDM

• Igor Sedukhin (Igor.Sedukhin_at_ca.com)
• Heather Kreger (kreger_at_us.ibm.com)
• Andreas Maier (maiera_at_de.ibm.com)
• Tom Maguire (tmaguire_at_de.ibm.com)
• Bryan Murray (Bryan.Murray_at_hp.com)
• William Vambenepe (vbp_at_hp.com)
• Andrea Westerinen (AndreaW_at_cisco.com)

2
Objectives

• Use of WS protocols for management
• Common tooling/platforms.
• Many required features are included.
• Make management capabilities more accessible
• Easy to implement and use
• Isolation of information from implementation
  aspects
• Wide-range distributed management
• Variety of interconnected resources
• Self-management

3
Using CIM
Management Application
CIM Provider
CIM Provider
Proprietary Protocols or WEBM
Proprietary Integration
CIM Server
CIM Provider
4
Using CIM

• Access the objects
• Enumerate objects
• Query/set properties of objects
• Invoke methods on objects
• Traverse associations/links between objects
• Create objects
• Query metadata (qualifiers) about objects
• Access the model
• Navigate class hierarchy
• Enumerate classes
• Query metadata (qualifiers) about classes
• Traverse associations/links between classes
• Query/set properties of classes
• Invoke methods on classes
• Create classes
• Subscribe to events (indications)

5
Evolutionary step 1
Management Application
CIM Provider
SMASH
Web services Protocols
CIM Server
WS impl.
6
Evolutionary step 2
Management Application
CIM OM
SMASH
Web services Protocols
WS impl.
Management Server
WS impl.
WS impl.
7
Web services access to Manageable Resources

• Interoperability based on XML message exchanges
• Multiple network transports
• Message-level composable features
• Security
• Reliability
• Asynchrony
• Etc. (Extensible)
• Describable
• Resource-centric
• No need to implement all full-scale CIMOM services

8
Web services access to Resources

EPR
Policies
refers to
Schemas
known to
WSDL
Resource
Web services Application
messagesw/ WSA other information in the headers
endpoint
XML Representation ltxCustomergt ltxNamegtJohn
Doelt/xNamegt ltxAddressgtlt/xAddressgt lt/xCustomer
gt
WS-Resource
9
Web Services Platform Standards

• XML Schema captures information model
• SOAP XML messaging
• WSDL describes message exchanges (e.g.
  operations)
• WS-ResourceProperties
• Discover resource properties
• Get/set resource properties
• Value change notifications
• WS-ResourceLifetime
• Know when a resource is/will be destroyed
• Destroy a resource
• WS-ServiceGroup
• Query a group of resources
• Register a resource
• WS-BaseNotification
• Subscribe to notifications
• Notify message wrapper
• WS-Topics description of notification messages
  and topic classification

10
Applying Web Services to CIM
Management Application
Directly WS-enable CIM OM access
CIM OM
Becomes similar to a WS access to anobject
database

• Focus on responsibilities of CIM OM

Management Application
WS-enable access to Manageable Resources
Manageable Server Resource
CIM OM
Manageable Server Resource

• Focus on responsibilities of Manageable Resources
• Adequate for implementation in SOA applications
• Manageability as a design-time, architectural
  aspect
• Can be done along with general SOA-enablement
• Provides for distributed management

Manageable Service Resource
Service Users
11
WSDM

• Focus on resources
• Isolation from implementation
• Composability
• Of implementation aspects
• Of manageability capabilities
• Bases on Web Services access to Resources
• Also applicable to new breed of resources whose
  functions are exposed as Web Services
• Provides support for
• Identity
• Relationships
• Event Format and Notification Topics
• Discovery and Advertisement
• Etc.

12
WS-CIM using WSDM protocol
Management Application
Command-Line
Proprietary/WEBM
WS
WS
WS
WSRF/WSN
WSRF/WSN
WSRF/WSN
WSDM
WSDM
WSDM
Manageable Application
CIM OM
SMASH
CIM Provider
CIM Provider
CIM Provider
SMASH Provider
SMASH Provider
SMASH Provider
13
WS-CIM using WSDM protocol

• WS basic XML messaging, descriptions, security,
  etc.
• WSRFWSN resource application patterns using WS
• WSDM
• 1) basic manageability capabilities (e.g.
  identity)
• 2) manageability mechanisms (e.g. association
  traversal)
• 3) a methodology to define other manageability
  capabilities
• CIM management information model
• WS-CIM joining it all together

14
Resource mapping

Policies
Schemas
manageable resources mark
WSDL
Management Application
Get(OtherIdentifyingInfo)
WS-CIM implementation
RequestStateChange(...)
EPR
endpoint
XML Representation ltcim-csCIM_ComputerSystemgt ltmu
ws-xs1ResourceIdgt... lt/muws-xs1ResourceIdgt ltcim-
csOtherIdentifyingInfogt lt/cim-csOtherIdentifyin
gInfogt ... lt/cim-csCIM_ComputerSystemgt
15
Other objects mapping

Policies
Schemas
WSDL
Management Application
Get(SampleInterval)
WS-CIM implementation
ResetSelectedStats(...)
EPR
endpoint
XML Representation ltcim-sdCIM_StatisticalDatagt .
.. ltcim-sdSampleIntervalgt lt/cim-sdSampleInterva
lgt ... lt/cim-sdCIM_StatisticalDatagt
16
Instances collection

Policies
Schemas
WSDL
Management Application
Query
WS-CIM implementation
EPR
endpoint
Instance 1
EPR1
Instance 2
EPR2
Instance ?
EPR?
17
Association traversal

• Objectives
• Ability to traverse associations between
  manageable resources and business
  applications/processes
• Association instances accessible via Web services
• Any Web service can provide for association
  traversal
• A manageable resource can provide its own
  associations with other resources (if known)
• A service can facilitate traversal of all
  discovered associations across many resources
• Provide for backward-compatible association
  introspection via CIM operations (queries,
  associators and references)

18
Association traversal

1. Query association instances, resolve reference
   properties
2. Common association traversal service
3. Every manageable resource provides associations
   it knows and wants to expose to managers

19
Association traversal
Management Application
WS-CIM implementation
QueryRelationshipsByType( AssociatedPowerManagemen
tService)
Get(PowerState)
SetPowerState(...)
EPR
EPR
EPR
20
Association traversal
Management Application
Association Provider
HWManager
SWManager
WS-CIM implementation
WS-CIM implementation
WS-CIM implementation
21
Association traversal
Management Application
WS-CIM implementation
SetPowerState(...)
QueryRelationshipsByType( AssociatedPowerManagemen
tService)
OUT
EPR
IN
ltwsdmRelationshipgt ltwsdmTypegtltcimAssociatedPowe
rManagementServicegt... ltwsdmParticipantgt ltwsdmR
olegt.../ServiceProvidedlt/wsdmRolegt lt/wsdmPartici
pantgt ... ltcim-apmPowerStategt...lt/cim-apmPowerSt
ategt ltcim-apmPowerOnTimegt ... ...
EPR
22
Indications

• Objectives
• Provide a subscription mechanism
• Can be implemented by a manageable resource which
  emits its own notifications
• Can be implemented by an events service which
  emits various notifications about various
  resources
• Provide a classification/description mechanism
• In order to describe which indications correspond
  to which notification messages
• Provide a mechanism to discover what indications
  are available
• Provide a representation of an indication as an
  notification message
• Used as a notification message body
• Interoperable representation of indication
  instances
• Provide a notification message delivery mechanism

23
Resource-specific notifications

Topic Spaces ltTopicSpace targetNamespace...cim-e
le...gt ltTopic nameEnabledState
messageTypewsdmManagementEventgt ltMessagePatter
n Dialect...XPath...gt wsdmManagementEventwsrp
PropertyValueChangeNotification lt/MessagePattern
gtlt/Topicgtlt/TopicSpacegt
Policies
Schemas
WSDL
Management Application
Get(Topics)
WS-CIM implementation
cim-eleEnabledState
EPR
endpoint
Observationsabout thisComputerSystem
XML Representation ltcim-csCIM_ComputerSystemgt ltmu
ws-xs1ResourceIdgt... lt/muws-xs1ResourceIdgt ltcim-
eleEnabledStategt lt/cim-eleEnabledStategt ... lt/c
im-csCIM_ComputerSystemgt
24
Resource-specific notifications

Policies
TopicSpaces
Schemas
WSDL
Management Application
Subscribe(cim-eleEnabledState)
WS-CIM implementation
Notification Message ltwsdmManagementEventgt ltwsrp
PropertyValueChangeNotificationgt ltcim-eleEnabledS
tategt lt/cim-eleEnabledStategt ltwsrpPropertyValue
ChangeNotificationgt lt/wsdmManagementEventgt
EPR
endpoint
Observationsabout thisComputerSystem
XML Representation ltcim-csCIM_ComputerSystemgt ltmu
ws-xs1ResourceIdgt... lt/muws-xs1ResourceIdgt ltcim-
eleEnabledStategt lt/cim-eleEnabledStategt ... lt/c
im-csCIM_ComputerSystemgt
25
CIM-specific notifications

Topic Spaces ltTopicSpace targetNamespace...cim-r
oot...gt ltTopic nameCIM_InstIndicationgt ltTopic
nameCIM_InstMethodCall messageTypewsdmManage
mentEventgt ltMessagePattern Dialect...XPath...gt
wsdmManagementEventcim-rootCIM_InstMethodCallM
essage lt/MessagePatterngtlt/Topicgtlt/Topicgtlt/TopicSp
acegt
Policies
Schemas
WSDL
Management Application
Get(Topics)
WS-CIM implementation
cim-rootCIM_InstIndication/cim-rootCIM_InstMeth
odCall
EPR
endpoint
Observationsabout thisComputerSystem
CIM_ComputerSysteminstance
26
CIM-specific notifications

Policies
Topic Spaces
Schemas
Subscribe(cim-rootCIM_InstIndication/cim-rootC
IM_InstMethodCall)
WSDL
Management Application
WS-CIM implementation
Notification Message ltwsdmManagementEventgt ltcim-r
ootCIM_InstMethodCallgt lt/cim-rootCIM_InstMetho
dCallgt lt/wsdmManagementEventgt
EPR
endpoint
Observationsabout thisComputerSystem
CIM_ComputerSysteminstance
27
CIM-specific notifications

Topic Spaces ltTopicSpace targetNamespace...cim-r
oot...gt ltTopic nameCIM_InstIndicationgt ltTopic
nameCIM_InstCreation messageTypewsdmManageme
ntEventgt ltMessagePattern Dialect...XPath...gt w
sdmManagementEventcim-rootCIM_InstCreationMessa
ge lt/MessagePatterngtlt/Topicgtlt/Topicgtlt/TopicSpacegt
Policies
Schemas
WSDL
Management Application
Get(Topics)
WS-CIM implementation
cim-rootCIM_InstIndication/cim-rootCIM_InstCrea
tion
EPR
endpoint
Observationsabout allComputerSystem instances
CIM_ComputerSystemclass
28
CIM-specific notifications

Policies
TopicSpaces
Schemas
Subscribe(cim-rootCIM_InstIndication/cim-rootC
IM_InstCreation)
WSDL
Management Application
WS-CIM implementation
Notification Message ltwsdmManagementEventgt ltcim-r
ootCIM_InstCreationgt lt/cim-rootCIM_InstCreatio
ngt lt/wsdmManagementEventgt
EPR
endpoint
Observationsabout allComputerSysteminstances
CIM_ComputerSystemclass
29
CIM-specific notifications
Topic Spaces ltTopicSpace targetNamespace...cim-r
oot...gt ltTopic nameCIM_InstIndicationgt ltTopic
nameCIM_InstCreation messageTypewsdmManageme
ntEventgt ltMessagePattern Dialect...XPath...gt w
sdmManagementEventcim-rootCIM_InstCreationMessa
ge lt/MessagePatterngtlt/Topicgt ltTopic
nameCIM_InstMethodCall messageTypewsdmManage
mentEventgt ltMessagePattern Dialect...XPath...gt
wsdmManagementEventcim-rootCIM_InstMethodCallM
essage lt/MessagePatterngtlt/Topicgt lt/Topicgtlt/TopicS
pacegt

Policies
Schemas
WSDL
Management Application
Get(Topics)
WS-CIM implementation
cim-rootCIM_InstIndication/cim-rootCIM_InstCrea
tion cim-rootCIM_InstIndication/cim-rootCIM_In
stMethodCall
EPR
endpoint
CIM Indications Producer
Observationsabout everything
30
CIM-specific notifications

Policies
TopicSpaces
Schemas
Subscribe( cim-rootCIM_InstIndication/, ...CQL
Selector... ... )
WSDL
Management Application
WS-CIM implementation
Notification Message ltwsdmManagementEventgt ltcim-r
ootCIM_InstCreationgt lt/cim-rootCIM_InstCreatio
ngt lt/wsdmManagementEventgt
EPR
endpoint
CIM Indications Producer
Observationsabout everything
31
Classes mapping
Instances Collection
Classes Collection
IC
CC
endpoint
endpoint
Instance 1
I1
Class 1
C1
WS-ServiceGroup
WS-ServiceGroup
Instance 2
I2
Class 2
C2
Instance Y
IY
Class X
CX
Class X
endpoint
Class definition
WS-ServiceGroup
X Instance 1
X1
InstancesCollection
MyClass
MX
X Instance Y
XY
Instance Y of Class X
32
ServiceGroup background

• Service groups aggregate Web services and
  WS-Resources for a domain specific purpose
• Three sets of service group message exchanges
  allow
• Query and retrieval of service group details
• Query and retrieval of entry details
• Ability to add entries
• WS-CIM domain specific purposes for service
  groups
• To group classes in a namespace (as exposed by a
  CIMOM)
• To group instances in a namespace (as exposed by
  a CIMOM)
• To group instances of a particular class
  (mandates that every CIM class definition include
  the WS-ServiceGroup operations in its portType)

33
Accessing metadata

WSRF-MD
Policies
TopicSpaces
Schemas

• Instances provide metadata about themselves
• Classes provide metadata about themselves and
  instances

WSDL
Management Application
WS-MeXGetMetadata
WS-CIM implementation
EPR
endpoint
CIMQualifiers
34
Qualifier mapping

• Qualifier information returned using WS-RMD
  (WS-ResourceMetadataDescriptor)
• WS-RMD specifies an XML document to define
  property/operation metadata in a
  WS-ResourceProperty compliant WSDL portType
• Metadata document is found through a reference on
  the WSDL portType
• Most CIM qualifiers mapped as specific attributes
  on a property or operation
• Defined for each class resource
• For example
• ltrmdOperation name"SetPowerState"
  idempotent"true"gt
• ltcimDeprecatedgttruelt/cimDeprecatedgt
• ltcimParameter name"PowerState"
  direction"IN"gt
• ltcimValueMap value1gtFull
  Powerlt/cimValueMapgt
• ltcimValueMap value2gtPower Save - Low
  Power Modelt/cimValueMapgt
• lt!-- other values omitted --gt
• lt/cimParametergt
• ltcimParameter name"Time" direction"IN"/gt
• lt/rmdOperationgt

35
Conclusion
36
CIM Functionality coverage

• Instance Access
• GetInstance WS-RF RP GetResorucePropertiesDocume
  nt
• ModifyInstance - WS-RF RP SetResourceProperties
• GetProperty WS-RF RP GetResourceProperty
• SetProperty- WS-RF RP SetResourceProperties
• Associations
• Associators WSDM Relationships
• AssociatorNames WSDM Relationships
• References WSDM Relationships
• ReferenceNames WSDM Relationships

37
CIM Functionality coverage

• Instance Management
• DeleteInstance WS-RF Resource Lifetime Delete
• CreateInstance Creation Capability
• Discovery
• Enumerate WS-RF ServiceGroup query
• ExecQuery WS-RF ServiceGroup query
• EnumerateInstances WS-RF ServiceGroup Query
• EnumerateInstanceNames WS-RF ServiceGroup Query

38
CIM Functionality Coverage

• Schema Management
• EnumerateClasses Class ServiceGroup query
• EnumerateClassNames Class ServiceGroup query
• GetClass GetMetaData WSDL (RP,WS-RMD)
• GetQualifier XQuery over WS-RMD document
• EnumerateQualifiers XQuery over WS-RMD document
• DeleteClass - future
• CreateClass - future
• ModifyClass - future
• SetQualifier - future
• DeleteQualifier - future

39
Summary

• Relatively straight forward mapping between Web
  services and CIM
• Scales large and small
• Based on existing specification that are on the
  standards track w/ significant industry support
• Implementations are available
• Meets requirements of WS-CIM
• Document provided
• To provide more details for understanding
• To be used by the WS-CIM group as we develop
  WS-CIM specifications

40
QA
