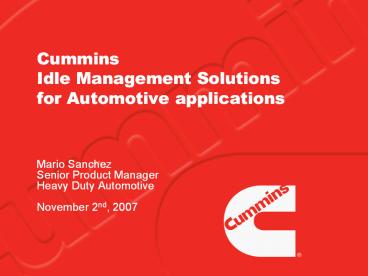

Cummins Idle Management Solutions for Automotive applications

1
CumminsIdle Management Solutions for Automotive
applications

• Mario Sanchez
• Senior Product Manager
• Heavy Duty Automotive
• November 2nd, 2007

2
Agenda

• This is Cummins
• Idle Management Product Plan and Line-up
• ICON product
• Clean Idle
• CEMS, Future
• ComfortGuard, Cummins APU/APS

3
Integrated Power and Energy Solution for a
cleaner and healthier environment
4
Cummins Idle Management Product Plan
Clean Idle Idle Shutdown ICON-CEMS ComfortGuardA/
T ISM07, ISX07
EPA 10
Clean Idle Idle Shutdown ICON ComfortGuardA/T ISM
07, ISX07
CARB Idle 2008
Current Product
Idle Shutdown, ICON, ComfortGuard ISM07, ISX07
EPA 07
Current Product
Idle Shutdown, ICON ISM02, ISX02
EPA 02/04
Idle Shutdown, ICON ISM99, ISX99
EPA 99
Current
2007
2009
2010
2008
Time Line
5
Cummins Idle Management Products
Auxiliary Power Unit (APU) total comfort without
main engine operation.
ComfortGuard
Engine Idle and Cab-Sleeper Climate Control unit
ICON
Programmable idle shutdown feature
INSITE Idle Shutdown
Free idle
Clean-Idle
6
ICON

• Engine Mode - When ICON is activated, engine mode
  monitors engine block temperature and battery
  voltage.
• Cab Comfort Mode - maintains the temperature in
  the sleeper bunk during rest periods.  The driver
  can set the desired temperature on a thermostat
  control located in the sleeper.
• 2 year/250k warranty
• Reduces idle fuel consumption by up to 50

Engine Idle and Cab-Sleeper Climate Control unit
7
Current ICON II System Review
Engine Start
Alarm ICON ECM ECM
Sleeper
Thermostat
Ambient Air Temperature Sensor
Hood Tilt Switch
Battery
Key Switch Starter Button Neutral Position
Switch Ignition Bus Relay Parking Brake
Switch ICON Lamp
Battery Starter Relay
8
Cummins Clean Idle

• ARB Compliant 30 gr/hr NOx
• he entry level of the Cummins idle solutions
• Allows end user to idle in CA and still comply
  with regulations and avoid fines
• Provides for idling in any state where not
  prohibited, regardless of where truck was sold
  and registered
• Provides flexibility for customers who
  infrequently need to idle gt5 min, but dont want
  to invest in APU

9
CEMS
Future

• Cummins Energy Management System (CEMS) will
  replace the ICON
• Functionality of CEMS is much greater than ICON,
  there will be a base and optimized version.
• Energy source, vehicle battery
• Simplified installation requirements
• Expanded control of auxiliary HVAC devices
• Advanced user interface and diagnostics

10
CEMS Overview
Cummins Energy Management System (CEMS)
Increased Fleet Savings
Fleet Information
Battery Life Improvement
Improved Idle Efficiency
Energy Management
Engine
Engine Readiness
Thermoelectric Generator
CEMS
Engine Idle Management
Fuel Cells
Vehicle Power Distribution
Auxiliary Power Units
Cab Climate Control
Batteries
Advanced Diagnostics
Predictive Maintenance
Battery Prognostics
Reduced Downtime
11
ComfortGuard Auxiliary Power Unit System

• Cummins Power Generation

12
Agenda

• APU Market Overview Cummins ComfortGuard
• Product Specifications
• CARB 2008 5 Minute Idle Ruling APU Emissions
  Compliance
• Installation
• Addendum
• Marketing Information

13
APU or APS Market Dynamics

• Growing Market (units)
• 2003 2005 2007
• 6,000 30,000 15,000
• Anti idling legislation and enforcement
• More States and municipalities adopting
  anti-idling rules
• CARB rule mandates 5 minute shut down on engines
  in 2008
• Varies widely by state EPA in the process of
  issuing a Idle Reduction Model Law guidance
  document for State use
• Fines range from a few hundred dollars to not
  more than 25K in Virginia and Sacramento CA

14
APU or APS Market Dynamics

• Economic drivers
• Fuel Savings
• Driver comfort / retention
• Reduced battery maintenance / jump starts
• Engine pre-heat for cold weather start
• Reduced engine maintenance

15
ComfortGuard APU System

• An integrated, vehicle mounted small diesel
  Auxiliary Power Unit (APU) system which
  eliminates the need to idle the main vehicle
  engine, significantly reducing fuel costs,
  emissions, and noise.
• APU and integrated HVAC system available for
  production February 2007
• Reduces fuel consumption up to 80 while
  providing power for any hotel load
• Payback period of 1-2 years

16
(No Transcript)
17
Agenda

• APU Market Overview Cummins ComfortGuard
• Product Specifications
• CARB 2008 5 Minute Idle Ruling APU Emissions
  Compliance
• Installation
• Addendum
• Marketing Information

18
ComfortGuard Specs

• Engine driven generator / Integrated cooling
• 2-cylinder water cooled Kubota diesel engine /
  Cummins built alternator
• 120v AC power output 4 kW at 60 Hz
• 12v DC power output 40 amps
• Dimensions 21 L x 24.5 D x 28 H
• Weight 375 lbs
• 1,000 hour oil change interval
• Self Diagnostics
• 2 year/4,000 hour warranty

19
ComfortGuard Specs
ComfortGuard Provides Power For

• TV, Stereo PC
• Refrigerator
• Microwave coffeemaker
• Much more
• Heating / Air Conditioning
• Lights
• Battery charging
• Block fuel heaters

• HVAC
• Manufactured by RVP / Coleman
• 12000 BTU A/C / 8000 BTU electric heat
• Customer choice of split or sealed systems
• Designed with plug-n-play A/C lines
• Dedicated HVAC thermostat control

20
Control System

• Derived from existing APUs VOC work
• Manages APU use for fuel efficiency, comfort and
  convenience
• Manual and Automatic operation
• Features
• One-touch START / STOP
• APU Hour meter
• Battery voltage monitor and indicator
• Coolant temperature display (gage to ambient)
• APU diagnostics w/ text readout
• Selectable parameters for AGS functions

21
ComfortGuard Operator Control

• Automatic Operation Modes
• All automatic features can be selected ON or OFF
  by user
• Economy mode
• Automatic cab climate monitoring and AGS control
• User selects temperature and heat/cool mode at
  HVAC t-stat
• Road Ready mode maintains main engine and APU
  readiness
• APU start for low battery level adjustable
  voltage and time
• APU start for low coolant temp adjustable
  temperature and time
• 7-day programmable timer
• Program start time up to 7 days in advance, or
  same time every day

22
Agenda

• APU Market Overview ComfortGuard Launch Update
• Product Specifications
• CARB 2008 5 Minute Idle Ruling APU Emissions
  Compliance
• Installation
• Addendum
• Marketing Information

23
California ARB Idle Regulation for commercial
vehicles
24
CARB Regulation

• CARB proposed regulation effective Jan 2008
• Limit idling of trucks to 5 minutes
• If the engine can be certified to 30 g/hr NOx at
  idle, a Certified Clean Idle label can be
  placed on vehicle hood.
• All APUs used with 2007 and later engines will
  need to meet one of the following
• An 85 reduction in PM OR
• PM level less than or equal to 0.01 g/bhp-hr OR
• Have exhaust plumbed into engine exhaust system
  upstream of the engines PM aftertreatment device
• All 2007 trucks required to retro-fitted APU in
  2008

25
PM Filter Overview

• Cummins Particulate Filter Technology
• Two different PM filter solutions being pursued
• Integrated Solution with Truck Filter
• Stand alone Active Solution

26
Integrated PM Filter

• Utilizes the Truck PM filter for the APU exhaust
• Program started Q2, 2006
• Developed under the direction of Engine Business
  Vehicle Integration Engineering Group, in
  conjunction with Power Generation Engineering
• 500 hr Lab Test complete
• Field test will commenced in June, 2007
• All significant issues have been resolved
• There will be a retrofit kit, for aftermarket
• Available by January, 2008

27
Stand Alone Active Filter

• Filter utilizes electric heating element embedded
  in filter assembly to provide energy for
  regeneration.
• Media Silicon Carbide substrate
• Regeneration Accomplished using an electric
  heating element
• Location This device will replace the current
  muffler
• Development testing has been conducted to
  determine the media size and performance.
  Package, controls, and heat management
  engineering ongoing.
• Available by January, 2008

28
Agenda

• APU Market Overview ComfortGuard Launch Update
• Product Specifications
• CARB 2008 5 Minute Idle Ruling APU Emissions
  Compliance
• Installation
• Addendum
• Marketing Information

29
System Layout
30
ComfortGuard Installation

• ComfortGuard designed for easy aftermarket
  installation
• Typical APU installations can take 20-30 hours
• Typical time required to install the ComfortGuard
  system is 12 hours.
• ComfortGuard APU direct frame mounting - 1 hour
• Coolant, fuel and battery connections 2.5 hours
• Condenser unit 1 hour
• Evaporator 2.5 hours
• Cab modifications (holes drilled) 3 hours
• Harness connections 2 hours

31
Installation

• Features
• Pre-charged refrigerant system
• Disconnectable lines at APU
• Plug and Play connections with unique end
  terminals
• Installation DVD video
• Cummins technical support

• Benefits
• No need to evacuate and charge AC system at
  install
• Easier to mount on frame rail
• Provides clean and fast installations without
  messy wiring connections
• Step by step installation video to provide a
  trouble free install

32
Installation DVD

• Chapter-based DVD showing actual installations

33
Agenda

• APU Market Overview Cummins ComfortGuard
• Product Specifications
• CARB 2008 5 Minute Idle Ruling APU Emissions
  Compliance
• Installation
• Addendum
• Marketing Information

34
ComfortGuard Brochure
HVAC brochure
35
Idle Regulations Guide

• Link to www.cumminscomfortguard.com where you can
  download

36
Truckers Guide to APU Financing

• A state-by-state guide to APU grants, loans and
  tax credits

37
www.cumminscomfortguard.com
38
Sales Service Locator
