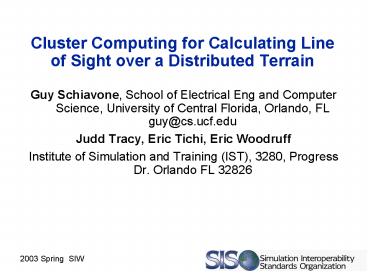

Cluster Computing for Calculating Line of Sight over a Distributed Terrain

1
Cluster Computing for Calculating Line of Sight
over a Distributed Terrain

• Guy Schiavone, School of Electrical Eng and
  Computer Science, University of Central Florida,
  Orlando, FL guy_at_cs.ucf.edu
• Judd Tracy, Eric Tichi, Eric Woodruff
• Institute of Simulation and Training (IST), 3280,
  Progress Dr. Orlando FL 32826

2
Outline

• Motivations
• Cluster Computing
• Previous Work
• Initial Results
• Second Iteration
• Future Work

3
Motivations

• Live/Virtual Training and Simulation
• Real-Time Non-LOS weapon simulation
• High Resolution Environments
• Large Number of entities
• CGF Large Operations
• High-Resolution Terrain Analysis
• Visibility Maps
• Avenues of Approach
• Defensible Positions
• Choke Points
• Urban Environments
• Observer placement w/coverage
• Autonomous Route-planning

4
Beowulf Cluster Projects

• Definition
• A Beowulf cluster is a parallel computer with a
  high performance to cost ratio. Beowulf clusters
  are built solely out of commodity hardware
  components and run primarily free-software like
  Gnu/Linux and gcc, and are interconnected by a
  private fast ethernet network. They consists of a
  cluster of PCs or workstations dedicated to
  running parallel and distributed computing tasks.

• History
• First Beowulf Cluster 1994 at CESDIS sponsored
  by NASA and DARPA. 16 nodes. Ethernet

5
Current Beowulf Projects at IST/UCF

• BOREAS Beowulf (Beowulf on-the-shelf Resources
  for Efficient Affordable Super-Computing)
• SCEROLA - (SEECS Cluster Education and Research
  On-Line Access)
• OPCODE I/II
• Mini-Clusters for Mobile Applications

6
BOREAS

• The BOREAS project was funded by the State of
  Florida, I-4 Initiative with cost sharing from
  US-ARMY STRICOM, ATES-STO project.
• 16 dual-processor Pentium 350 Mhz PCs
• 256 Mb RAM/node
• 8.6 Gb Disk Storage/node
• 4 Full Duplex Fast Ethernet NICs/Node
• 3 Channel FireWire Card
• Linux OS (Redhat 6.0 Distribution)
• GCC EGCS Compilers (C/C, Fortran, Java)
• MPICH standard message-passing interface

7
SCEROLA

• Overall Specifications
• 108 Single Processor Nodes
• 4 Storage Server with 90 GB of disk space
• 1 Frontend
• 256 Port Cisco 10/100TX switch
• Node Specifications
• Asus A7V motherboard
• AMD Athlon (Thunderbird) 900 Mhz processor
• 256 MB PC133 RAM
• 15 GB 5400 RPM ATA 100 IBM hard drive
• Netgear FA310TX 10/100TX ethernet card
• Redhat 7.2 with XFS filesystem

8
OPCODE I/II

• Split as two clusters. At IST and RDEC-STC
• Hardware Specifications
• 192 AMD Athlon Thunderbird (or Palomino) 1.2Ghz
  Processors
• 256 MB ECC Registered PC2100 DDR RAM Per
  Processor (512MB per board)
• 48 gigabytes of PC2100 DDR RAM.
• 20 GB Hard Drives
• Over two and a half terabytes of data storage

9
Miniature Clusters

• Omni Cluster
• 4 PCI Card Single Board Computers with Intel PII
• 512MB Memory
• Communicates over PCI bus
• Via Cluster
• 8 VIA EPIA computers with VIA C3 800Mhz Processor
• 512MB Memory and 384MB Disk on Chip storage
• SSV Cluster
• 8 Single Board Computers with StrongArm 206Mhz
  Processor
• 32MB Memory and 16MB Flash

10
Current Applications

• Electromagnetic Simulation
• To simulate antennas and wave propagation using
  Hybrid Finite Difference Time Domain
  Techniques/Ray Tracing
• IEEE 1394 Networking experiments
• Distributed Terrain
• To distribute complex terrain for processing on
  the cluster.
• Combat Server
• To server as a central node for data processing
  in simulation and training exercises
• Ultra-wide band PLT project.
• Used for determining base stations to optimize
  coverage in Urban environment.
• Complex mathematical problems
• Solve large simultaneous equations using Jacobis
  Iteration, Scalapack
• Software Defined Radio
• To design and implement software defined radios
  using parallel algorithms.
• Parallel Image Processing/Optical Simulation

11
Previous Efforts

• Parallel FEM/BEM Codes
• Parallel GIS
• SF-Express project
• Lui and Chan 2002
• Niedringhaus 1995

12
Terrain Partitioning Strategies

• Simple Cell-Based
• Quadtrees
• Equal Area
• Equal Density
• KD-Trees
• BSP Trees

13
Quadtree
14
Distribution based on terrain density
15
Distribution based on entity density
16
First Iteration Software

• omniORB CORBA Object Request Broker
• Robust
• Multi-threaded
• Extensible, Reusable Software
• Contributor
• acted as a resource pool for the line of sight
  calculation system. Each contributor maintained a
  collection of terrain objects.
• Distributor
• relocated the leaves of a terrain quad-tree to
  the Contributors, in a randomized fashion to
  ensure better communication overhead distribution


17
First Iteration Test DBs

• Simulated Terrain
• http//www.robot-frog.com/3d/hills/
• Regular Triangulations
• First Test 977,202 Triangles
• Second Test 32 Million Triangles

18
Mean of First Test
19
Mean of second test
20
CORBA communication
21
Socket Communication
22
Second Iteration Optimizations

• Biggest change that was made involved moving the
  representation of the tree to all of the compute
  nodes. Previously only the service node had the
  tree and the computed nodes only had leaves of
  the tree. To move the tree representation over
  we had to serialize all of the bounding volumes
  and corba references and send them compute nodes
  and deserialize.
• The LOS requests have also been moved to the
  compute nodes instead of the request being made
  from the service node. This allows for greater
  parallelism in LOS request and helps reduce
  network contention. In order to achieve this, the
  service node loads up a test file containing
  start and end points to test LOS. It then
  calculates which leaf the test belongs to and
  sends it to the corresponding leaf.

23
Second Iteration Optimizations (2)

• Once all the terrain and test vectors have been
  distributed each compute nodes wait to receive a
  start signal. The service node then signals all
  compute nodes to start and begins timing. Each
  compute node then loops through all test vectors
  given, and searches the tree to finds all leave
  that the vector crosses and sends LOS requests to
  each. Once a compute node is finished a signal
  is sent to the service node and timing for that
  node is finished. The service node then collects
  all timing information for the compute nodes and
  calculates the results.

24
Second Iteration Software
25
(De)Composition

• The composer breaks up the bag of triangles into
  a quadtree structure.
• This will be a modular process in the second
  version so we will be able to create plug-ins for
  each kind of tree structure we would like to
  experiment with.
• The file is archived for the distributor.

26
Distribution

• The distributor waits for N contributors.
• The distributor loads the database, handing
  leaves to each contributor (serially).
• The distributor currently loads a testing file
  which selects certain points for each contributor
  to test with.
• The distributor makes copies of the loaded
  quadtree with references to the remote leaves,
  hands them to each contributor.
• The contributors hand back the test results then
  exit.
• Test complete.

27
Contribution

• The contributors load up and register with the
  distributor as it is waiting.
• The contributors receive the leaves and sample
  data for testing (currently).
• The contributors run the tests with the sample
  data on the tree the distributor sent.
• The results are retuned to the distributor.
• Contribution complete.

28
Second Iteration Test DBs

• 100x100 Database statistics
• X, Y Range 0 990, Z Range 0 90
• Number of triangles 19602
• Average distance of test vectors
  516.518536343585
• 500x500 Database statistics
• X, Y Range 0 4990, Z Range 0 430
• Number of triangles 498002
• Average distance of test vectors
  2599.56680559955
• 1000x1000 Database statistics
• X, Y Range 0 9990, Z Range 0 2830
• Number of triangles 1996002
• Average distance of test vectors 5214.55854274468

29
Small Database
30
Medium Database
31
Large Database
32
Grouped vs. Individual LOS checks
33
Optimization Pseudocode

• Test each line against all triangles
• Foreach Line in LineList
• Foreach Triangle in TriangleList
• does_intersect (Triangle, Line)
• Done
• Done
• Test all lines against each triangle
• This only helps if all lines fit into cache or
  if all triangles dont.
• Foreach Triangle in TriangleList
• Foreach Line in LineList
• does_intersect (Triangle, Line)
• Done
• Done

34
Future Work

• Add AOI
• Load Balancing Formulate Cost Function
• One of the biggest problems with the system is
  that for every LOS test there is a corresponding
  network operation that has to be performed. We
  do not take into consideration that multiple
  tests to the same contributor (host) can be
  grouped together into a single network call.
  This would also allow for more efficient searches
  on the contributor side as we can now search
  database in parallel to more efficiently use the
  cache.
• The contributors are currently assigned leaves of
  the terrain in a round-robin fashion. If the
  were grouped together spatially we might have a
  better chance of using the optimization list
  previously, but at the risk of over burdening the
  machine if too many entities are on that
  contributor.
• There are also other optimizations that can be
  performed on the contributors side. For certain
  algorithms that are being performed we might be
  able to perform dynamic optimizations of the
  layout of triangles in memory to help minimize
  the time of searching.
