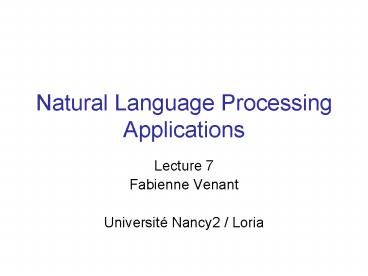

Natural Language Processing Applications

1
Natural Language Processing Applications

• Lecture 7
• Fabienne Venant
• Université Nancy2 / Loria

2
Information Retrieval
3
What is Information Retrieval?

• Information retrieval (IR) is finding material
  (usually documents) of an unstructured nature
  (usually text) that satisfies an information need
  from within large collections (usually stored on
  computers)
• Applications
• Many universities and public libraries use IR
  systems to provide access to books journals and
  other documents.
• Web search
• Large volumes of unstable, unstructured dat
• Speed is important
• Cross-language IR
• Finding documents written in another language
• Touches on Machine translation
• ....

4
Concerns

• The set of texts can be very large hence hence
  efficiency is a concern
• Textual data is noisy, incomplete and
  untrustworthy hence robustness is a concern
• Information may be hidden
• Need to derive information from raw data
• Need to derive information from vaguely expressed
  needs

5
IR Basic concepts

• Information needs queries and relevance
• Indexing helps speeding up retrieval
• Retrieval models describe how to search and
  recover relevant documents
• Evaluation IR systems are large and convincing
  evaluation is tricky

6
Information needs
7
Information needs

• INFORMATION NEED the topic about which the
  user desires to know more
• QUERY what the user conveys to the computer in
  an attempt to communicate the information need
• RELEVANCE a document is relevant if it is one
  that the user perceives as containing information
  of value wrt their personal information need
• Ex
• topic pipeline leaks
• relevant documents doesnt matter if they use
  those words or express the concept with other
  words such a  pipeline rupture .

8
Capturing information needs

• Information needs can be hard to capture
• One possibility use natural language
• Advantage expressive enough to allow all needs
  to be described
• Drawbacks
• Semantic analysis of arbitrary NL is very hard
• Users may not want to type full blown sentences
  into a search engine

9
Queries
10
Queries

• Information needs are typically expressed as a
  query
• Where shall I go on holiday? ? holiday
  destinations
• Two main types of possible queries
• How much blood does the human heart pump in one
  minute?
• Boolean queries
• ? heart AND blood AND minutes
• Web types queries
• ? human biology

11
Remarks

• A query
• is usually quite short and incomplete
• may contain misspelled or poorly selected words
• may contain too many or too few words
• The information need
• may be difficult to describe precisely,especially
  when the user isn't familiar about the topic
• Precise understanding of the document content is
  difficult.

12
Persistent vs one-off Queries

• Queries might or not evolve over times
• Persistent queries
• predefined and routinely performed
• Top ten performing shares today
• Continuous queries persistent queries that
  allow users to receive new results when they
  become available
• typical of Information extraction and News
  Routing systems
• One-off (or ad-hoc) queries
• created to obtain information as the need arises
• typical of Web searching

13
Relevance

• Relevance is subjective
• python ambiguous but not for user
• Topicality vs. Utility a document is relevant
  wrt a specific Goal
• ? A document is relevant if it addresses the
  stated information need, not because it just
  happens to contain all the words in the query.
• Relevance is a gradual concept (a document is not
  just relevant or not it is more or less relevant
  to a query)
• IR systems usually rank retrieved documents by
  relevance
• But many algorithm use a binary decision of
  relevance.

14
The big picture
15
Terminology

• An IR system looks for data matching some
  criteria defined by the users in their queries.
• The langage used to ask a question is called the
  query language.
• These queries use keywords (atomic items
  characterizing some data).
• The basic unit of data is a document (can be a
  file, an article, a paragraph, etc.).
• A document corresponds to free text (may be
  unstructured).
• All the documents are gathered into a collection
  (or corpus).

16
Searching for a given word in a document

• One way to do that is to start at the beginning
  and to read through all the text
• Pattern matching (re) speed of modern computer?
  grepping through tex can be a very effective
• Enough for simple querying of modest collections
  (millions of words)
• But for many purposes, you do need more
• To process large document collections (billions
  ot trillions of words) quickly.
• To allow more flexible matching operations. For
  example, it is impractical to perform the query
  Romans NEAR countrymen with grep, where NEAR
  might be defined as within 5 words or within
  the same sentence.
• To allow ranked retrieval in many cases you
  want the best answer to an information need among
  many documents that contain certain words
• -- gtYou need an Index

17
Index
18
Motivation for Indexing

• Extremely large dataset
• Only a tiny fraction of the dataset is relevant
  to a given query
• Speed is essential (0.25 second for web
  searching)
• Indexing helps speedup retrieval

19
Indexing documents

• How to relate the users information need with
  some documents content ?
• Idea using an index to refer to documents
• Usually an index is a list of terms that appear
  in a document, it can be represented
  mathematically as
• index doci? Uj keywordj
• Here, the kind of index we use maps keywords to
  the list of documents they appear in
• index' keywordj ? Ui doci
• We call this an inverted index.

20
Indexing documents

• The set of keywords is usually called the
  dictionary (or vocabulary)
• A document identifier appearing in the list
  associated with a keyword is called a posting
• The list of document identifiers associated with
  a given keyword is called a posting list

21
Inverted files

• The most common indexing technique
• Source file collection organised by documents
• Inverted file collection organised by terms

22
Inverted Index

• Given a dictionary of terms (also called
  vocabulary or vocabulary lexicon)
• For each term, record in a list which documents
  the term occurs in
• Each item in the list
• records that a term appeared in a document
• and, later, often, the positions in the document
• is conventionally called a posting
• The list is then called a postings list (or
  inverted list),

23
Inverted Index
From  an introduction to information
retrieval , C.D. Manning,P. Raghavan and
H.Schütze
24
Exercise

• Draw the inverted index that would be built for
  the following document collection
• Doc 1 breakthrough drug for schizophrenia
• Doc 2 new schizophrenia drug
• Doc 3 new approach for treatment of schizophrenia
• Doc 4 new hopes for schizophrenia patients
• For this document collection, what are the
  returned results for these queries
• schizophrenia AND drug
• schizophrenia AND NOT(drug OR approach)

25
Indexing documents

• Arising questions how to build an index
  automatically ? What are the relevant keywords ?
• Some additional desiderata
• fast processing of large collections of
  documents,
• having flexible matching operations (robust
  retrieval),
• having the possibility to rank the retrieved
  document in terms of relevance
• To ensure these requirements (especially fast
  processing) are fulfilled, the indexes are
  computed in advance
• Note that the format of the index has a huge
  impact on the performances of the system

26
Indexing documents

• NB an index is built in 4 steps
• Gathering of the collection (each document is
  given a unique identifier)
• Segmentation of each document into a list of
  atomic tokens ? tokenization
• Linguistic processing of the tokens in order to
  normalize them ?lemmatizing.
• Indexing the documents by computing the
  dictionary and lists of postings

27
Manual indexing

• Advantages
• Human judgement are most reliable
• Retrieval is better
• Drawbacks
• Time consuming
• Not always consistent
• different people build different indexes for the
  same document.

28
Automatic indexing

• Using NLU?
• Not fast enough in real world settings (e.g., web
  search)
• Not robust enough (low coverage)
• Difficulty what to include and what to exclude.

• Indexes should not contain headings for topics
  for which there is no information in the document
• Can a machine parse full sentences of ideas and
  recognize the core ideas, the important terms,
  and the relationships between related concepts
  throughout the entire text?

29
Building the vocabulary
30
Stop list

• The members of which are discarded during
  indexing
• some extremely common words which would appear to
  be of little value in helping select documents
  matching a user need are excluded from the
  vocabulary entirely.
• These words are called STOP WORDS
• Collection strategy
• Sort the terms by collection frequency (the total
  number of times each term appears in the document
  collection),
• Take the most frequent terms
• often hand-filtered for their semantic content
  relative to the domain of the documents being
  indexed
• What counts as a stop word depends on the
  collection
• in a collection of legal article law can be
  considered a stop word
• Ex
• a an and are as at be by for from has he in is it
  its of on that the to was were will with

31
Why eliminate stop words?

• Efficiency
• Eliminating stop words reduces the size of the
  index considerably
• Eliminating stop words reduces retrieval time
  considerably
• Quality of results
• Most of the time not indexing stop words does
  little harm
• keyword searches with terms like the and by dont
  seem very useful
• BUT, this is not true for phrase searches.
• The phrase query President of the United States
  is more precise than President AND United
  States.
• The meaning of flights to London is likely to
  be lost if the word to is stopped out.
• .....

32
Building the vocabulary

• Processing a stream of characters to extract
  keywords
• 1st task tokenization, main difficulties
• token delimiters (ex Chinese)
• apostrophes (ex Oneill, Finlands capital)
• hyphens (ex Hewlett-Packard, state-of-the-art)
• segmented compound nouns (ex Los Angeles)
• unsegmented compound nouns (icecream, breadknife)
• numerical data (dates, IP addresses)
• word order (ex Arabic wrt nouns and numbers)

33
Solutions for tokenization issues

• Using a pre-defined dictionary with largest
  matches and heuristics for unknown words
• Using learning algorithms trained over
  hand-segmented words

34
Choosing keywords

• Selecting the words that are most likely to
  appear in a query
• These words characterize the documents they
  appear in
• Which are they?

35
The bag of words approach

• Extreme interpretation of the the principle of
  compositional semnaics
• The meaning of documents resides solely in the
  words that are contained within them
• The exact ordering of the terms in a document is
  ignored but the number of occurrences of each
  term is material

36
BoW

• Not the same thing a bit! said the Hatter.
• You might just as well say that I see what I
  eat is the same thing as I eat what I see!
• You might just as well say, added the March
  Hare, that I like what I get is the same thing
  as I get what I like!
• You might just as well say, added the Dormouse,
  who seemed to be talking in its sleep, that I
  breathe when I sleep is the same thing as I
  sleep when I breathe!

37
Bags of words

• Nevertheless, it seems intuitive that two
  documents with similar bag of words
  representations are similar in content..

38
Whats in a bag of words?

• Are all words in a document equally important?
• stop words do not contribute in any way to
  retrieval and scoring
• BoW contain terms
• What should count as a term?
• Words
• Phrases (e.g., president of the US)

39
Morphological normalization

• Should index terms be word forms, lemmas or
  stems?
• Matching morphological variants increase recall
• Example morphological variants
• anticipate, anticipating, anticipated,
  anticipation
• Company/Companies, sell/sold
• USA vs U.S.A.,
• 22/10/2007 vs 10/22/2007 vs 2007/10/22
• university vs University
• Idea using equivalence classes of terms,
• ex Opel, OPEL, opel ? opel
• Two techniques
• stemming refers to a crude heuristic process
  that chops off the ends of words in the hope of
  achieving this goal correctly most of the time
• Lemmatisation refers to doing things,properly
  with the use of a vocabulary and morphological
  analysis of words, normally aiming to remove
  inflectional endings only and to return a
  dictionary form of a word, which is known as the
  lemma.
• NB documents and queries have to be processed
  using the same tokenization process !

40
Stemming and Lemmatization

• Role reducing inflectional forms to common base
  forms,
• Example
• car, cars, cars, cars ? car
• am, are, is ? be
• Stemming removes suffixes (surface markers) to
  produce root forms
• Lemmatization reduces a word to a canonical form
  (using a dictionary and a morphological analyser)
• Illustration of the difficulty
• plurals (woman/women, crisis/crisis)
• derivational morphology (automatize/automate)
• English ? Porter stemming algorithm (University
  of Cambridge, UK, 1980)

41
Porter stemmer

• Algorithm based on a set of context-sensitive
  rewriting rules
• http//tartarus.org/martin/PorterStemmer/index
  .html
• http//tartarus.org/martin/PorterStemmer/def.t
  xt
• Rules are composed of a pattern (left-hand-side)
  and a string (right-hand-side), example
• (.)sses ? \1 ss sses ? ss caresses ? caress
• (. aeiou.)ies ? \1i ies ? i ponies ? poni,
  ties ?ti
• (. aeiou.)ss ? \1 ss ss ? ss caress ?
  caress
• Rules may be constrained by conditions on the
  words measure, example
• (m gt 1) (.)ement ? \1 replacement ? replac
  but not cement ? c
• (mgt0) (.)eed -gt \1ee feed -gt feed but agreed
  -gt agree
• (v) ed -gt \1 plastered -gt plaster but bled
  -gt bled
• (v) ing -gt \1 motoring -gt motor but sing -gt
  sing

42
Porter StemmerWord measure

• Assumed that a list of consonants is denoted by
  C, and a list of vowels by V
• Any word, or part of a word has one of the four
  forms
• CVCV ... C
• CVCV ... V
• VCVC ... C
• VCVC ... V
• These may all be represented by the single form
• CVCVC ... V where the square brackets denote
  arbitrary presence of their contents.
• Using (VC)m to denote VC repeated m times, this
  may again be written as
• C(VC)mV.
• m will be called the measure of any word or word
  part when represented in this form.
• Here are some examples
• m0 TR,   EE,   TREE,   Y,   BY
• m1 TROUBLE,   OATS,   TREES,   IVY
• m2 TROUBLES,   PRIVATE,   OATEN,   ORRERY.

43
Exercise

• What is the Porter measure of the following words
  (give your computation) ?
• crepuscular
• rigorous
• placement
• cr ep usc ul ar
• C VC VC VC VC
• m 4
• r ig or ous
• C VC VC VC
• m 3
• pl ac em ent
• C VC VC VC
• m 3

44
Stemming

• Most stemmers also removes suffixes such as ed,
  ing, ational, ation, able, ism...
• Relational ? relate
• Most stemmers dont use lexical look up
• There are shortcomings
• Stemming can result in non-words
• Organization ? Organ
• Doing ? doe
• Unrelated words can be reduced to the same stem
• police, policy ?polic

45
Stemming

• Popular stemmers
• Porters
• Lovins
• Iterated Lovins
• Kstem

46
Lemmatization

• Exceptions needs to be handled
• sought ? seek, sheep ?sheep, feet ?foot
• Computationally more expensive than stemming as
  it lookups words in a dictionnary
• Lemmatizer for French
• http//bach.arts.kuleuven.be/pmertens/morlex/
• FLEMM (F. Namer)
• POS taggers with lemmatization TreeTagger, LT-POS

47
What is actually used?

• Most retrieval systems use stemming/lemmatising
  and stop word lists
• Stemming increases recall while harming precision
• Most web search engines do use stop word lists
  but not stemming/lemmatising because
• the text collection is extremely large so that
  the change of matching morphogical variants is
  higher
• recall is not an issue
• stemming is imperfect and the size and diversity
  of the web increase the chance of a mismatch
• stemming/tokenising tools are available for few
  languages

48
Example Text Representations

• Scientists have found compelling new evidence of
  possible ancient
• microscopic life on mars, derived from magnetic
  crystals in a meteorit that fell to Earth from
  the red planet, NASA anounced on Monday.
• Web search scientists, found, compelling, new,
  evidence,
• possible, ancient, microscopic, life, mars,
  derived, magnetic, crystals,
• meteorite, fell, earth, red, planet, NASA,
  anounced, Monday
• Information service or library search scientist,
  find, compelling,
• new, evidence, possible, ancient, microscopic,
  life, mars, derived,
• magnetic, crystal, meteorite, fall, earth, red,
  planet, NASA,
• anounce, Monday

49
Granularity

• Document unit
• An index can map terms
• ... to documents
• ... to paragraphs in documents
• ... to sentences in document
• ... to positions in documents
• An IR system should be designed to offer choices
  of granularity.
• For now, we will henceforth assume that a
  suitable size document unit has been chosen,
  together with an appropriate way of dividing or
  aggregating files, if needed.

50
Index Content

• The index usually stores some or all of the
  following information
• For each term
• Document count. How many documents the term
  occurs in.
• Total Frequency count. How many times the term
  occurs accross all documents ? popularity
  measure
• For each term and for each document
• Frequency How often the term occurs in that
  document.
• Position. The offsets at which the term occurs in
  that document.

51
Retrieval model
52
What is a retrieval model

• A model is an abstraction of a process here
  retrieval
• Conclusions derived by the model are good if the
  model provides a good approximation of the
  retrieval process
• IR Model variables queries, documents, terms,
  relevance, users, information needs
• Existing types of retrieval models
• Boolean models
• Vector space models
• Probabilistic models
• Models based on Belief nets
• Models based on language models

53
Retrieval Models the general intuition

• Documents and user information needs are
  represented using index terms
• Index terms serve as links to documents
• Queries consists of index terms
• Relevance can be measured in terms of a match
  between queries and document index

54
Exact vs. Best Match

• Exact Match
• A query specifies precise retrieval criteria
• Each document either matches or fails to match
  the query
• The result is a set of documents (no ranking)
• Best match
• A query describes good or best matching documents
• The result is a ranked list of documents

55
Stastical retrieval
56
Statistical Models

• A document is typically represented by a bag of
  words (unordered words with frequencies)
• User specifies a set of desired terms with
  optional weights
• Weighted query terms
• Q lt database 0.5 text 0.8 information
  0.2 gt
• Unweighted query terms
• Q lt database text information gt
• No Boolean conditions specified in the query.

56
57
Statistical Retrieval

• Retrieval based on similarity between query and
  documents.
• Output documents are ranked according to
  similarity to query
• Similarity based on occurrence frequencies of
  keywords in query and document
• Automatic relevance feedback can be supported
• The user issues a (short, simple) query.
• The system returns an initial set of retrieval
  results.
• The user marks some returned documents as
  relevant or nonrelevant.
• The systemcomputes a better representation of the
  information need base on the user feedback.
• The system displays a revised set of retrieval
  results.

57
58
Boolean model
59
The boolean model

• Most common exact-match model
• Basic assumptions
• An index term is either present or absent in a
  document
• All index terms provide equal evidence wrt
  information needs
• Queries are boolean combinations of index terms
• x AND y docts that contains both x and y
  (intersection of addresses)
• x OR y docts that contains x, y or both (union
  of addresses)
• NOT x docts that do not contain x (complement
  set of addresses)
• Additionnally,
• proximity operator
• simple regular expressions
• spelling variants

60
Boolean queriesExample

• User information need
• ? interested in learning about vitamins that are
  antioxidant
• User boolean query
• ? antioxidant AND vitamin

61
The boolean model

• Example of input collection (Shakespeares
  plays)
• Doc1
• I did enact Julius Caesar
• I was killed in the Capitol
• Brutus killed me.
• Doc2
• So let it be with Caesar. The
• noble Brutus hath told you Caesar
• was ambitious

62
The boolean model index construction

• First we build the list of pairs (keyword,
  docID))

63
The boolean model index construction

• Then the lists are sorted by keywords, frequency
  information is added

64
The boolean model index construction

• Multiple occurences of keywords are then merged
  to create a dictionary file and a postings file

65
Processing Boolean queries

• User boolean query Brutus AND Calpurnia
• over the inverted index
• Locate Brutus in the Dictionary
• Retrieve its postings
• Locate Calpurnia in the Dictionary
• Retrieve its postings
• Intersect the two postings lists
• The intersection operation is the crucial one. It
  has to be we efficient so as to be able to
  quickly find documents that contain both terms.
• sometimes referred to as merging postings lists
  because it uses a merge algorithm
• Merge algortihm general family of algorithms
  that combine multiple sorted lists by interleaved
  advancing of pointers through each list

66
Intersection
67
Extended boolean queries

• Merging algorithm (from Manning et al., 07)

NB the posting lists HAVE to be sorted.
68
Extended boolean queries

• Generalisation of the merging process
• Imagine more than 2 keywords appear in the
  query
• (Brutus AND Caesar) AND NOT (Capitol)
• Brutus AND Caesar AND Capitol
• (Brutus OR Caesar) AND (Capitol
• ...
• Ideas
• consider keywords with shorter posting lists
  first (to reduce the number of operations).
• use the frequency information stored in the
  dictionary
• ? See Manning et al., 07 for the algorithm

69
Extended boolean queries
retrieved docs D7, D5, D2
70
Exercise

• How would you process the following queries (main
  steps)
• Brutus AND NOT Caesar
• Try your algorithm on

71
Exercise

• How would you process the following query (main
  steps)
• Brutus OR NOT Caesar

72
Remarks on the boolean model

• The boolean model allows to express precise
  queries (you know what you get, BUT you do not
  have flexibility ? exact matches)
• Boolean queries can be processed efficiently
  (time complexity of the merge algorithm is linear
  in the sum of the length of the lists to be
  merged)
• Has been a reference model in IR for a long time

73
Advantages of exact-match retrieval

• Predictable, easy to explain
• Structured queries
• Works well when information need is clear and
  precise

74
Drawbacks of exact-match retrieval

• Unintuitive for non experts adequate query
  formulation difficult for most users
• no ranking of retrieved documents
• exact matching may lead to too few or too many
  retrieved documents
• too few if not using synonyms
• difficulty increases with collection size
• large results sets need to be compensated by
  interactive query refinement
• No notion of partial relevance (useful if query
  is overrestrictive)
• All terms have equal importance (no term
  weighing)
• Ranking models consistently better

75
Boolean modelThe story so far

• An inverted index associate keywords with posting
  lists
• The postings lists contain document identifiers
  (and other useful information, such as total
  frequences, number of documents, etc.)
• Boolean queries are processed by merging posting
  lists in order to find the documents satisfaying
  the query
• The cost of this list merging is time linear in
  the total number of document Ids O(m n)
• Question how to process phrase queries (i.e.
  taking the words context into account) ?

76
Dealing with phrases queries

• Many complex or technical concepts and many
  organization and product names are multiword
  compounds or phrases.
• Stanford University
• Graph Theory
• Natural Language Processing
• ...
• The user wants documents were the whole phrase
  appears, and not only some parts of it (i.e. The
  inventor Stanford Ovshinsky never went to
  university is not a match )
• About 10 of the web queries are phrase queries
  (songs names, institutions...)
• Such queries need either more complex dictionary
  terms, or more complex index (critical parameter
  size of the index)

77
Biword indexes

• Use key-phrases of length 2, example
• Text Natural Language Processing
• Dictionary
• Natural Language
• Language Processing
• The dictionary is made of biwords (notion of
  context)
• Query Information retrieval in Natural Langage
  Processing
• (Information retrieval) and (retrieval Natural)
  and (Natural Language) and (Language Processing)
• It might seem a better query to omit the middle
  biword.
• Better results can be obtained by using more
  precise part-of-speech patterns that define which
  extended biwords should be indexed

78
Positionnal indexes

• Store positions in the inverted indexes, example
• termID
• doc1 position1, position2, ...
• doc2 position1, position2, ..
• ....
• Processing then corresponds to an extension of
  the merging algorithm (additional checkings while
  traversing the lists)
• NB such indexes can be used to process proximity
  queries (i.e. using constraints on proximity
  between words)

79

• Positional indexes need an entry per occurence
  (NB classic inverted indexes need an entry per
  document Id)
• The size of such indexes grows exponentially with
  the size of the document
• The size of a positional index depends on the
  language being indexed and the type of document
  (books, articles, etc)
• On average, a positional index is 2-4 times
  bigger than a inverted index, it can reach 35 to
  50 of the size of the original text (for
  English)
• Positional indexes can be used in combination
  with classic indexes to save time and space (see
  Williams et al, 2005).

80
Exercise

• Which documents can contain the sentence to be
  or not to be considering the following
  (incomplete) indexes ?
• be
• 1 7, 18, 33, 72, 86, 231
• 2 3, 149
• 4 17, 191, 291, 430, 434
• 5 363, 367
• to
• 2 1, 17, 74, 222, 551
• 4 8, 16, 190, 429, 433
• 7 13, 23, 191

81
Exercise

• Given the following positional indexes, give the
  documents Ids corresponding to the query world
  wide web
• world
• 1 7, 18, 33, 70, 85, 131
• 2 3, 149
• 4 17, 190, 291, 430, 434
• wide
• 1 12, 19, 40, 72, 86, 231
• 2 2, 17, 74, 150, 551
• 3 8, 16, 191, 429, 435
• web
• 1 20, 22, 41, 75, 87, 200
• 2 18, 32, 45, 56, 77, 151
• 4 25, 192, 300, 332, 440

82

• The postings lists to access are to, be, or,
  not.
• We will examine intersecting the postings lists
  for to and be.
• We first look for documents that contain both
  terms.
• Then, we look for places in the lists where there
  is an occurrence of be with a token index one
  higher than a position of to
• and then we look for another occurrence of each
  word with token index 4 higher than the first
  occurrence.
• In the above lists, the pattern of occurrences
  that is a possible
• match is
• to lt...4lt...,429,433gt...gt
• Be lt...4lt...,430,434gt...gt

83
Exercise

• Consider the following index
• Language ltd1,12gtltd2,23-32-43gtltd3,53gtltd5,36-42-48gt

• Loria ltd1,25gt ltd2,34-40gt ltd5,38-51gt
• Where dI refers to the document I, the other
  numbers being positions.
• The infix operator NEAR/x refers to the proximity
  x between two term
• Give the solutions to the query language NEAR/2
  Loria
• Give the pairs (x,docids) for each x such that
  language NEAR/x Loria has at least one solution
• Propose an algorithm for retrieving matching
  document for this operator

84
Example WESTLAW

• Large commercial system that serves legal and
  professional market since 1974
• legal materials (court opinions, statutes,
  regulations, ...)
• news (newspapers, magazines, journals, ...)
• financial (stock quotes, financial analyses,
  ...)
• Total collection size 5-7 Terabytes
• 700 000 users (they claim 56 of legal searchers
  as of 2002)
• Best match added in 1992

85
WESTLAW query language features

• Boolean and proximity operators
• Phrases West Publishing
• Word Proximity West /5 Publishing
• Same sentence Massachussets /s technology
• Same paragraph - information retrieval /p
• Restrictions DATE(AFTER 1992 BEFORE 1995)
• Term expansion
• wildcard (THOMSON) truncation (THOM!)
  automatic expansion of plurals, possessive
• Document structure (fields)

86
WESTLAW query example

• Information need Information on the legal
  theories involved in preventing the disclosure of
  trade secrets by employees formerly employed by a
  competingcompany.
• ? Query "trade secret" /s disclos! /s prevent /s
  employe!
• Information need Requirements for disabled
  people to be able to access a workplace.
• ? Query disab! /p access! /s work-site
  work-place (employment /3 place)
• Information need Cases about a hosts
  responsibility for drunk guests.
• ? Query host! /p (responsib! liab!) /p
  (intoxicat! drunk!) /p guest

87
Boolean query languages are not dead

• Exact match still prevalent in the commercial
  market (but then includes some type of ranking)
• Many users prefer Boolean
• For some queries/collections, boolean may work
  better
• Boolean and free text queries find different
  documents
• ? Need retrieval models that support both

88
The Vector Space Model
89
Best-Match retrieval

• Boolean retrieval is the archetypal example of
  exact-match retrieval
• Best-match or ranking models are now more common
• Advantages
• easier to use
• similar efficiency
• provides ranking
• best match generally has better retrieval
  performance
• most relevant documents appear at the top of the
  ranking
• But comparison best- and exact-match is difficult

90

• Boolean model all documents matching the query
  are retrieved
• The matching is binary yes or no
• Extreme cases the list of retrieved documents
  can be empty, or huge
• A ranking of the documents matching a query is
  needed
• A score is computed for each pair (query,
  document)

91
Vector-space Retrieval

• By far the most common retrieval systems
• Key idea Everything (document, queries) is a
  vector in a high dimensional space
• Vector coefficients for an object (document,
  query, term) represent the degree to which this
  object embodies each of the basic dimensions
• Relevance is measured using vector similarity a
  document is relevant to a query if their
  representing vectors are similar

92
Vector-space Representation

• Documents are vectors of terms
• Terms are vectors of documents
• A query is a vector of terms

93
Graphic Representation

• Example
• D1 2T1 3T2 5T3
• D2 3T1 7T2 T3
• Q 0T1 0T2 2T3

93
94
Similarity in the Vector-space

• Vector can contain binary terms or weighted terms
• Binary term vector 1 ? term present, 0 ? term
  absent
• Weighted term vectorindicates relative
  importance of terms in a document
• Vector similarity can be measured in several
  ways
• Inner product (measure of overlap)
• Cosine coefficient
• Jacquard coefficient
• Dice coefficient
• Mikowski metric (dissimilarity)
• Euclidian distance (dissimilarity)

95
Using the inner product similarity measure

• Given a query vector q and a doct vector d, both
  of length n,
• similarity between q and d is defined by the
  inner product q d of q and d

• where qi (di ) is the value of the i -th position
  of q(d)
• With binary values this amounts to counting the
  matching terms between q and d

96
Similarity an example in the Vector-space
97
The effect of varying document lengths

• Problem
• Longer documents will be represented with longer
  vectors, but that does not mean they are more
  important
• If two documents have the same score, the shorter
  one should be preferred
• Solution the length of a document must be taken
  into account when computing the similarity score

98
Document length normalization

• The length of a document euclidian length
• If d (x1, x2, ... Xn) then dw

• To normalize a document, we divide it by its own
  length d/dw
• Similarity given by the cosine measure between
  normalized vectors
• q?(d/dw)
• One problem is solved shorter more focused
  documents receive a higher score than longer
  documents with the same matching terms
• But shorter documents are generally preferred
  over longer one!
• More sophisticated weighting schemes are
  generally used

99
Term weights

• qi is the weight of the term i in q
• Up to now, we only considered binary term weight
• 0 term absent
• 1 term present
• Two shortcomings
• Does not reflect how often a term occurs
• All terms are equally important (president vs.
  the)
• Remedy use non binary term weights
• tf-score store the frequency of a term in the
  vector (e.g., 4 if the term occurs 4 times in the
  document)
• idf-score to distinguish meaningful terms ie
  terms that occur only in a few documents

100
Term frequency

• A document is treated as a set of words
• Each word characterizes that document to some
  extent
• When we have eliminated stop words, the most
  frequent words tend to be what the document is
  about
• Therefore fkd (Nb of occurrences of word k in
  document d) will be an important measure.
• ? Also called the term frequency (tf)

101
Document frequency

• What makes this document distinct from others in
  the corpus?
• The terms which discriminate best are not those
  which occur with high document frequency!
• Therefore dk (nb of documents in which word k
  occurs) will also be an important measure.
• ? Also called the document frequency (idf)

102
TF.IDF

• This can all be summarized as
• Words are best discriminators when
• they occur often in this document (term
  frequency)
• do not occur in a lot of documents (document
  frequency)
• One very common measure of the importance of a
  word to a document is
• TF.IDF term frequency x inverse document
  frequency
• There are multiple formulas for actually
  computing this. The underlying concept is the
  same in all of them.

103
Term weights

• tf-score tfi,j frequency of term i in
  document j
• idf-score idfi Inversed document frequency of
  term i
• idfi log(N/ni) with
• N, the size of the document collection (nb of
  documents)
• ni , the number of documents in which the term i
  occurs
• idfi Proportion of the document collection in
  which termi occurs
• Term weight of term i in document j (TF-IDF)
• tfi,j. idfi
• the rarity of a term in the document collection

104
Boolean retrieval vs. Vector Space Retrieval

• Boolean retrieval
• Documents are not ranked
• Boolean queries are not easy to manipulate
• Vector space retrieval
• Documents can be ranked
• Issue 1 choice of comparison function. Usually
  cosine comparison.
• Issue 2 choice of weighing scheme. Usuall
  variations on tfi,j. idfi

105
Evaluation
106
Evaluation

• Issues
• User-based evaluation
• System-based evaluation
• TREC
• Precision and recall

107
Evaluation methods

• Two types of evaluation methods
• User-based measures the user satisfaction
• System-based focuses on how well the system
  ranks the documents

108
User based evaluation

• More direct
• Expensive
• Difficult to do correctly
• Need sufficiently large, representative sample of
  users
• The compared systems must be equally well
  developed (complete with fully fonctional user
  interface)
• Each user must be trained to control learning
  effects
• Information, information needs, relevance are
  intangible concepts

109
System based evaluation

• Good system performance good document rankings
• Allows for fair comparative testing
• Less expensive can be reused
• Test collection Topics, Documents, Relevance
  judgments
• System based evaluation goes back to Cranfields
  experiments (1960)
• Rate relevance of retrieved bibliographic
  reference on a scale from 1 to 4

110
Recall and Precision

• Three important performance metrics
• Precision Proportion of retrieved documents
  that are relevant
• ? No penalty for selecting too few item
• Recall Proportion of relevant documents that
  have been retrieved
• ? No penalty for selecting too many items (e.g.,
  everything)7

111
F-Measure
112
Standard Text Collections

• Relevant documents must be identified
• Given a document collection D and a set of
  queries Q, RELq is the set of document relevant
  to q
• Whether a document d is relevant to a query q is
  decided by human judgement

113
Standard Text Collections

• CACM (computer science) 3024 abstracts, 64
  queries
• CF (medicine) 1239 abstracts, 100 queries
• CISI (library science) 1460 abstracts, 112
  queries
• CRANFIELD (aeronautics) 1400 abstracts, 225
  queries
• LISA (library science) 6004 abstracts, 35
  queries
• TIME (newspaper) 423 abstracts, 83 queries
• Ohsumed (medicine) 348 566 abstracts, 106 queries

114
Building Test Collections

• How to identify relevant documents?
• How to assess relevance? (binary or
  finer-grained)
• One vs several judges

115
TREC

• Text REtrieval Conference
• Proceedings at http//trec.nist.gov/
• Established in 1991 to evaluate large scale IR
• Retrieving documents from a gigabyte collection
• Organised by NIST and run continuously since 1991
• Best known IR evaluation setting
• 25 participants in 92
• 109 participants from 4 continents in 2004
• European (CLEF) and Asian counterparts (NTCIR)7

116
TREC Format

• Several IR research tracks
• ad-hoc retrieval
• routing/filtering
• cross languag
• scanned document
• spoken document
• Video
• Web
• question answering
• ...

117
TREC notion of relevance

• If you were writing a report on the subject of
  the topic and would use the information contained
  in the document in the report, then the document
  is relevant
• Pooling is used for identifying relevant
  documents
• A set of possibly relevant documents is created
  automatically for each information need
• The top 100 documents returned by each system are
  kept and inspected by judges who determine which
  documents are relevant
• Inter-judge agreement is about 808

118
Improving Recall and Precision

• The two big problems with short queries are
• Synonymy Poor recall results from missing
  documents that contain synonyms of search terms,
  but not the terms themselves
• Polysemy/Homonymy Poor precision results from
  search terms that have multiple meanings leading
  to the retrieval of non-relevant documents.

119
Query Expansion

• Find a way to expand a users query to
  automatically include relevant terms (that they
  should have included themselves), in an effort to
  improve recall
• Use a dictionary/thesaurus
• Use relevance feedback

120
Thesauri

• A thesaurus contains information about words
  (e.g., violin) such as
• Synonyms similar words e.g., fiddle
• Hyperonyms more general words e.g., instrument
• Hyponyms more specific words e.g., Stradivari
• Meronyms parts, e.g., strings
• A very popular machine readable thesaurus is
  Wordnet

121
Problems of Thesauri

• Language dependent
• Available only for a couple of languages

122
Cooccurence models

• Semantically or syntactically related terms
• Cooccurence vs. Thesauri
• Easy to adapt to other languages/domains
• Also covers relations not expressed in thesaur
• Not as reliable as manually edited thesauri
• Can introduce considerable noise
• Selection criteria Mutual information, Expected
  mutual, information

123
Relevance feedback

• Ask user to identify a few documents which appear
  to be related to their information need
• Extract terms from those documents and add them
  to the original query.
• Run the new query and present those results to
  the user.
• Typically converges quickly

124
Blind feedback

• Assume that first few documents returned are most
  relevant rather than having users identify them
• Proceed as for relevance feedback
• Tends to improve recall at the expense of
  precision

125
Post-Hoc Analysis

• When a set of documents has been returned, they
  can be analyzed to improve usefulness in
  addressing information need
• Grouped by meaning for polysemic queries (using
  N-Gram-type approaches)
• Grouped by extracted information (Named entities,
  for instance)
• Group into existing hierarchy if structured
  fields available Filtering (e.g., eliminate spam)

126
References

• Introduction to Information Retrieval, by C.
  Manning, P. Raghavan, and H. Schütze. To appear
  at Cambridge University Press (chapters available
  at the book website).
• Information Retrieval, Second Edition, by C.J.
  van Rijsbergen, Butterworths, London, 1979.
  Available here.
