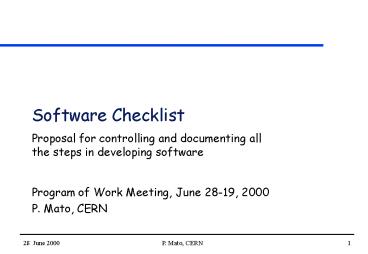

Software Checklist

1
Software Checklist

• Proposal for controlling and documenting all the
  steps in developing software

Program of Work Meeting, June 28-19, 2000 P.
Mato, CERN
2
Unified Software Development Process
Software Development Process
Users requirements
Software system

• Use-Case Driven
• Use cases capture functional requirements.
• They drive the development process.
• Architecture-Centric
• The software system is developed around an
  architecture.
• The architecture ennobles the most significant
  static and dynamic aspects of the system.
• Iterative and Incremental
• Iterations refer to steps in the workflow
• Increments are the growth in the product.

() I. Jacobson et al., The Unified Software
Development Process, Addison Wesley, 1999
3
USDP Phases and Iterations

• Phases
• Inception (feasibility)
• Elaboration (do-ability)
• Construction (building)
• Transition (release)
• Iterations
• Several iterations in each phase
• Each iteration
• requirements, analysis, design, implementation
  test
• Iteration mini-project

requirements
analysis/ design
testing
implemen- tation
4
UDSP Core Workflows
5
Specializing USDP to our situation

• Simplification
• Remove some workers and artifacts to better
  fit our immature organization and minimize
  overheads
• Workers
• User-case specifier, Architect, Component
  Engineer, Test engineer, Librarian
• Artifacts
• Documents Use-case, analysis design, test
  plan, release notes, users manual (if
  interaction with user)
• Code package(s), test programs
• ? templates needed!!

Predominant during construction phase
6
Component Engineer

• Scale of project
• few days to few weeks
• Single person performs the 4 activities
• Move to next activity if corresponding document
  reviewed
• Checklist to support process
• Templates for documentation are essential

Component Engineer
Analyses use cases
Use case, requirements, problem report
Component
Design component
Analysis Design document
User Manual
Implement component
Release Notes
Implement Perform test
Tests
7
Checklist(s)

• The idea is to produce a number of checklists,
  one for each type of development
• Bug fix
• New functionality in existing component
• New component
• The checklist should guide the developer through
  the agreed workflow
• Links to the tools to be used
• Template locations
• Memo aid

• Checklist for Bug Fixes
• Set problem report assigned ?
• Analyze bug (reproduce, get more
  information,) ?
• Produce (update) analysis designdocumentation
  ?
• Reviewed by ______ date _____
• Checkout CVS head revision ?
• Implement code ?
• Unit test ?
• Build on all platforms ?
• Run code checker ?
• Reviewed by ______ date _____
• Write release notes ?
• Commit changes to CVS ?
• Send request to librarian ?
• Write (update) user manual ?
• Set problem fixed ?

8
Proposal

• Produce a set of basic checklists for Component
  Engineer
• Bug fixes or small enhancements
• New Components (e.g. Toolbox)
• New Frameworks (e.g. Conditions Data Framework)
• Web or paper based?
• The checklists should be designed
• Not too heavy
• Easy to be followed
• Only put things that are useful
• Enforce checklist within the Computing Group
