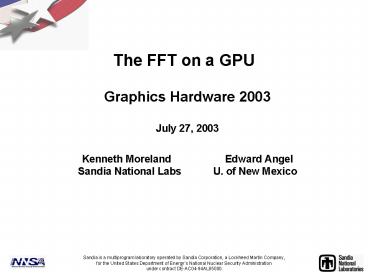

The FFT on a GPU

• Graphics Hardware 2003
• July 27, 2003
• Kenneth Moreland Edward Angel
• Sandia National Labs U. of New Mexico

Sandia is a multiprogram laboratory operated by
Sandia Corporation, a Lockheed Martin
Company,for the United States Department of
Energys National Nuclear Security
Administration under contract DE-AC04-94AL85000.
2
Overview

• Introduction
• Motivation, FFT review.
• FFT Techniques
• Exploitable FFT properties.
• Implementation
• Results
• Performance, applications, conclusions.

3
Motivation

• The Fourier transform is a principal tool for
  digital image processing.
• Filtering.
• Correction.
• Compression.
• Classification.
• Generation.
• As such, should not our graphics hardware support
  such a tool?

4
The Discrete Fourier Transform

• Converts data in the spatial or temporal domain
  into frequencies the data comprise.

5
The Discrete Fourier Transform

• 2D transform can be computed by applying the
  transform in one direction, then the other.

6
The Fast Fourier Transform

• Divide and Conquer Algorithm
• Input sequence is divided into subsequences
  consisting of values from even and odd indices,
  respectively.

7
Index Magic

• Do not use recursion.
• Use dynamic programming iterate over entire
  array computing all values for each recursive
  depth together, like mergesort.
• Indexing is non-obvious.
• Unlike mergesort, recursive step does not divide
  array into contiguous chunks.
• At any iteration, what partition does a given
  index belong to, and where can one find the
  applicable values of the sub-partitions?

8
Index Magic

• Common solution rearrange data by reversing the
  bits of indices.
• FFT can occur with contiguous partitions.
• Requires an extra data copy.
• Our solution, determine indexing in place.

Note that the paper has a typo.
9
Fourier Symmetry of Real Sequences

• In general, the frequency spectra of even real
  functions contain imaginary values.
• Captures magnitude and phase shift of sinusoids.
• Brute force FFT doubles computation and storage
  costs.
• But, Fourier transforms of real functions have
  symmetry.
• Values at and are real
  (because they are conjugates with themselves).

10
Fourier Transform of Real Functions

• Pick two functions, let them be f(x) and g(x).
• Let h(x) f(x) j g(x).
• Note that there is no loss of information.
• Can perform FFT of h in half the time as
  performing the brute force FFT of f and g
  individually.
• Simply point to one row of image as real
  components and another as imaginary components.

f
g
11
Untangling Fourier Transform Pairs

• Fourier transform is linear.
• H(u) F(u) j G(u)
• We can untangle using symmetry of F and G.
• Add and subtract H(u) and H(N u) to cancel out
  conjugate terms of F and G.

12
Untangling Fourier Transform Pairs
13
Packing Transforms of Real Functions

• We can store Fourier transform in an array the
  same size as the input.
• Throw away conjugate duplicates.
• Throw away imaginary values known to be zero.

14
Column-wise FFT

• We have two columns with real values.
• Use same tangled approach.
• All other columns are complex numbers.
• Use regular FFT.

Real
Real
Paired for Complex
15
Packing 2D Transforms of Real Functions

• Rows transformed from complex values are already
  packed appropriately.
• The two rows transformed from real values are
  untangled and packed to follow suite.

Real Values
Imaginary Values
16
Available Resources

• nVidia GeForce FX 5800 Ultra.
• Full 32-bit floating point pipeline and frame
  buffers.
• Fully programmable vertex and fragment units.
• Cg
• High level language for vertex and fragment
  programs.
• Traditional CPU 1.7 GHz Intel Zeon
• Freely available high performance FFT
  implementations.

17
Implementation

• Using a SIMD model for parallel computation.
• Draw quadrilateral parallel to screen.
• Rasterizer invokes the same fragment program in
  parallel over all pixels covered by
  quadrilateral.
• Inputs/output dependent on location of pixel the
  fragment program is running.
• We require many rendering passes.
• Use render to texture extension.
• Use two frame buffers one for retrieving values
  of last pass and one for storing results of
  current computation.

18
Implementation
FFT
FFT
Untangle
Untangle
Frequency Spectra
Images
FFT
FFT
Untangle
Untangle
19
Fragment Programs

• Written in Cg, compiled for GeForce FX.

20
Applications

• Digital image filtering.

21
Applications

• Texture generation.
• Volume rendering.

22
Performance

• Computation speed 2.5 GigaFLOPS
• Texture read rate 3.4 GB/sec

23
Conclusions

• The Fourier transform on the GPU has many
  potential applications.
• A well established FFT on the CPU (FFTW) still
  has an edge over GPU implementation.
• Both software and hardware of GPU are first
  generations.
• Room for improvement.

24
Get the Cg Code

• http//www.cgshaders.org ?
• http//www.cs.unm.edu/kmorel/documents/fftgpu
• kmorel_at_sandia.gov
