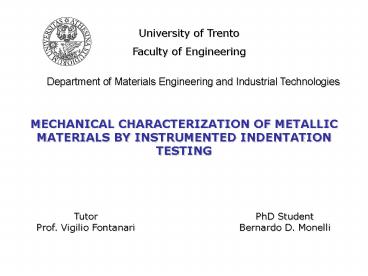

MECHANICAL CHARACTERIZATION OF METALLIC MATERIALS
BY INSTRUMENTED INDENTATION TESTING
Tutor Prof. Vigilio Fontanari
PhD Student Bernardo D. Monelli
2
Introduction Experimental Part Procedure FE
Model Conclusions
PROBLEM DEFINITION

• small amount of material is available
• destructive testings have to be avoided
• coating characterization

The elastic-plastic stress strain-curve (s-e) of
metallic materials cannot be determined by
standard tensile test
AIM OF THE WORK
Evaluation of stress-strain curve of metallic
material by instrumented spherical indentation
testing
Bernardo D. Monelli
University of Trento
3
Introduction Experimental Part Procedure FE
Model Conclusions
PROBLEM DEFINITION

• Spherical indentation test

L h curve

• Evaluation procedure of stress-strain curve

• Numerical simulation of spherical indentation
  test

FE model

• Experimental and numerical results

• Conclusions

Bernardo D. Monelli
University of Trento
4
Introduction Experimental Part Procedure FE
Model Conclusions
Spherical Indentation Test --- L-h curve
A spherical indenter (WC-Co) is slowly pushed
against the sample which has to be tested
L h curve
h
sample

• L load applied to the indenter

• h cavity depth

Bernardo D. Monelli
University of Trento
5
Introduction Experimental Part Procedure FE
Model Conclusions
Spherical Indentation Test --- L-h curve
Material Al alloy Indenter diameter 2.5 mm
Bernardo D. Monelli
University of Trento
6
Introduction Experimental Part Procedure FE
Model Conclusions
s - e evaluation procedure

• Experimental evaluation of L h curve

• Costitutive law assumption

• Numerical evaluation of L h curve

• Comparison between the two curves
• (L2 Norm)

Bernardo D. Monelli
University of Trento
7
Introduction Experimental Part Procedure FE
Model Conclusions

• Model details
• Two-dimensional axi-symmetric model (four node
  structural elements)
• Isotropic and homogeneus material
• Indenter Tungsten carbide (E2630 GPa, n0.22)
• Indenter radius 1.25 mm
• Contact surface to surface elements
• Frictionless contact

Bernardo D. Monelli
University of Trento
8
Introduction Experimental Part Procedure FE
Model Conclusions
Material Al alloy Indenter diameter 2.5 mm
Bernardo D. Monelli
University of Trento
9
Introduction Experimental Part Procedure FE
Model Conclusions
sy Yield stress
n strain-hardening coefficient
Bernardo D. Monelli
University of Trento
10
Introduction Experimental Part Procedure FE
Model Conclusions
Material Ti Alloy
E1 ? 110 GPa
s ? 1000 MPa
n 0.1
Bernardo D. Monelli
University of Trento
11
Introduction Experimental Part Procedure FE
Model Conclusions
Conclusions

• The stress-strain of metallic materials can be
  reasonably deduced from
• the spherical indentation testing.

• The iterative procedure based on FE modelling of
  spherical indentation testing
• can carefully predict the stress-strain curves
  of metallic materials.

• Hollomons power law can be used to represent
  stress-strain curves for
• some metallic materials (Ti-Alloy).

Future works

• Which is the rule played by material properties
  (anisotropy, texture,)?

• Is there a relationship between the state of
  surface (i.e. roughness and residual
• stresses) and L-h experimental curve?

Bernardo D. Monelli
University of Trento
12
