CS 7810 Lecture 12

1

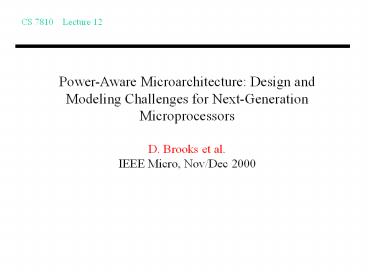

CS 7810 Lecture 12
Power-Aware Microarchitecture Design
and Modeling Challenges for Next-Generation Microp
rocessors D. Brooks et al. IEEE Micro, Nov/Dec
2000
2
Power/Energy Basics

• Energy Power x time
• Dynamic Power a C V2 f
• a switching activity factor
• C capacitances being charged
• V voltage swing
• f processor frequency
• Current trends f and C are rising, V is
  dropping,
• overall dynamic power is increasing
• Leakage energy is also increasing

3
Processor Breakdowns
Alpha 21264 Caches
16 O-o-o Issue Logic 19 Mem management
unit 9 FP unit
11 Integer unit 11 Clock
power 34
Pentium Pro
4
Metrics

• Performance a f a 1/D (D is delay or execution
  time)
• Delay of a circuit a 1/(V Vt) lower
  frequency
• tolerates longer delays, hence, can reduce
  voltage
• Power a C V2 f since f is roughly
  proportional
• to voltage, P a V3 a f3
• Since V and f are variable, remove it from the
• expression PD3 constant (regardless of V
  and f)
• This is the best metric to compare
  processors
• any other metric (say, perf/watt) can be
  fudged
• by changing voltage or frequency

5
Metric Example
Proc-A
Proc-B V 1.25 f
1GHz Perf 1000 MIPS
800 MIPS Power
100W 80W V
1.0 f 0.8GHz Perf
800 MIPS 640 MIPS Power
51.2W
41W V 1.5 f 1.2GHz Perf
1200 MIPS 960 MIPS Power
172.8W
138.2W
Power/f3 100
80
MIPS/W 10
MIPS/W 10
MIPS/W 15.6
MIPS/W 15.6
MIPS/W 6.9
MIPS/W 6.9
6
Metrics

• PD3 gives ratio of power if two processors were
• tuned to yield the same performance
• (PD3)1/3 gives ratio of performance if two
• processors were tuned to yield the same power
• Tuning is done through voltage and frequency
• scaling and it is assumed that a linear
  relationship
• exists between V and f note that in modern
• processors, this is not true and PDx is the
  right
• metric, where x gt 3 (x can be 1 or 2 in
  markets
• where performance is not very critical)

7
Commercial Examples
8
Global Power Saving Strategies

• Dynamic frequency scaling trivially reduces
• power, worsens performance, no effect on energy
• If off-chip components (memory) dominate, there
• will be an energy reduction with DFS
• Leakage power is unaffected by DFS, so if
  leakage
• dominates, overall energy increases
• Montecito 20MHz changes in frequency can
• happen in a single cycle

9
Global Power Saving Strategies

• Dynamic voltage scaling since we are changing
• frequency, can also combine it with voltage
  scaling
• as each circuit has longer slack has a more
  than
• quadratic effect on dynamic power, a linear
  effect
• on leakage power, and a more than linear effect
• on energy
• Intel Xscale roughly 50ms to scale from
  1.65-0.75V
• DVS opportunities are reducing lower voltage
• margins, error rates may increase

10
Localized Power Saving Strategies

• When a processor structure is not used in a
  cycle,
• gate off its clock for that cycle gating can
  happen
• in a single cycle increase in complexity
• Leakage energy can be reduced by gating off
• supply voltage V during periods of inactivity
  takes
• more time to effect
• Body biasing can also reduce leakage power

11
Localized Power Saving Strategies
Dynamically adjust frequency/voltage and size for
each domain, based on thruput rates
12
Leakage Power
Leakage is a linear function of supply voltage,
a linear function of the number of transistors,
and an exponential function of threshold voltage
From Butts and Sohi, MICRO00
13
Power-Performance Trade-Offs
14
Power-Performance Trade-Offs
Caches, bpreds are doubled at each point below,
while the x-axis represents the sizes of issue
queues, registers, ROB, etc.
Argues against going to wider/larger superscalars
15
Other Observations

• Clustered architectures have better power
  scalability
• (since the complexity of each cluster remains
  unchanged)
• CMP and SMT
• can employ
• complexity-effective
• designs power
• consumption is low
• (little wasted work)
• and multi-threaded
• performance
• continues to be high

From ISPASS06
16
