Sequence classification

1

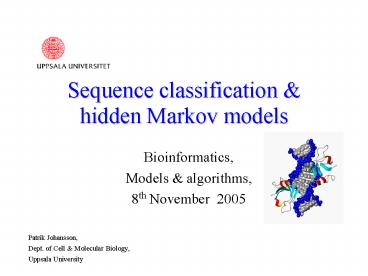

Sequence classification hidden Markov models

• Bioinformatics,
• Models algorithms,
• 8th November 2005
• Patrik Johansson,
• Dept. of Cell Molecular Biology,
• Uppsala University

2
A family of proteins share a similar structure
but not necessarily sequence
3
Classification of an unknown sequence s to family
A or B using HMMs
A
A
A
A
A
A
A
A
A
s
B
B
B
B
B
B
B
B
4
Hidden Markov Models, introduction

• General method for pattern recognition, comp.
  Neural networks
• An HMM generates sequences / sequence
  distributions
• Markov chain of events

Three coins A, B C gives a Markov chain ?
CAABA..
Outcome, e.g. Heads Heads Tails, generated by
hidden Markov chain ?
5
Hidden Markov Models, introduction..

• Model M is emitting a symbol (T, H) in each
  state i based on some probability ei
• The next state j is chosen based on some
  transition probability ai,j

e.g, the sequence s Tails Heads Tails over
the path ? BCC
6
Profile hidden Markov Model architecture

• A first approach for sequence distribution
  modelling

7
Profile hidden Markov Model architecture..

• Insertion modelling

Insertions random ejI(a) q(a)
8
Profile Hidden Markov Model architecture..

• Deletion modelling

Alt.
9
Profile Hidden Markov Model architecture..
Insert deletestates are generalized to all
positions. The model M can generate sequences
from state B by successive emissions and
transitions to state E
Dj
Ij
E
Mj
B
10
Probabilistic sequence modelling

• Classification criteria

( 1 )
Bayes theorem
( 2 )
..but, P(M) P(s)..?
( 3 )
11
Probabilistic sequence modelling..
If N models the whole sequence space (N q)
( 4 )
Since , logarithm
probabilities more convenient
Def., log-odds score V
( 5 )
12
Probabilistic sequence modelling..
Eq. ( 4 ) ( 5 ) gives new classification
criteria
logzP(s M)
( 6 )
score
d
logzP(s q)
..for a certain significance level ? (i.e. the
number of incorrect classifications in an n big
database) a threshold d is required
?
( 7 )
13
Probabilistic sequence modelling..
Example If ze or z2, the significance level is
chosen to one incorrect classification (false
positive) per 1000 trials in a database of
n10000 sequences
bits
nits,
14
Large vs. small threshold d
High d
A
Low d
A
A
A
A
A
A
A
A
B
B
B
B
B
True positives
B
B
B
False positive
15
Model characteristics
One can define sensitivity, how many are found
..and selectivity, how many are correct
16
Model construction

• From initial alignment
• Most common method. Start from an initial
  multiple alignment of e.g. a protein family
• Iteratively
• By successive database searches incorporating
  new similar sequences into the model
• Neural-inspired
• The model is trained using some continuous
  minimization algorithm, e.g. Baum-Welsh,
  Steepest Descent etc.

17
Model construction..
A short family alignment gives a simple model M,
potential matchstates marked with an (?)
B
18
Model construction..
A more generalized model Ex. evaluate sequence
sAIEH
19
Sequence evaluation
The optimal alignment, i.e. the path that has the
greatest probability of generating sequences s,
can be determined through dynamic programming
The maximum log-odds score VjM(si) for
matchstate j that is emitting si is calculated
from the emission score, previous maximum score
plus transition score
20
Sequence evaluation..
Viterbis Algorithm,
( 8 )
( 9 )
( 10 )
21
Parameter estimation, background

• Proteins with similar structures can have very
  different sequences
• Classical sequence alignment based only on
  heuristic rules parameters cannot deal with
  sequence identities below 50-60
• Substitution matrices add static a priori
  information about amino acids and protein
  sequences ? good alignments down to 25-30
  sequence identity, ex. CLUSTAL
• How to get further down into the twilight
  zone..?
• - More and dynamic a priori information..!

22
Parameter estimation
Probability of emitting an alanine in the first
matchstate, eM1(A)..?

• Maximum likelihood-estimation

23
Parameter estimation..

• Add-one pseudocount estimation

• Background pseudocount estimation

24
Parameter estimation..

• Substitution mixture estimation
• Score

?
Maximum likelihood gives pseudocounts ?
Total estimation
25
Parameter estimation..

• All above methods are in spite of their dynamic
  implementation, still based on heuristic
  parameters
• Method that compensates complements lack of
  data in a statistically correct way
• Dirichlet mixture estimation

Looking at sequence alignments, several different
amino acid distributions seem to be reoccurring,
not just the background distribution q Assume
that there are k probability densities
that generates these
26
Parameter estimation, Dirichlet Mixture style..
Given the data, a countvector
, this method allows a linear combination of k
individual estimations weighted with the
probability that n is generated by each component
The k componets can be modelled from a curated
database of alignments. Using some parametric
form of the probability density, an explicit
expression for the probability that n has been
generated by the jth component can be derived
Ex.
27
Parameter estimation, Dirichlet Mixture style..
n
The k components describe peaks of aa
distributions in some kind of multidimensional
space Depending on where in sequence space our
countvector n lies, i.e. depending on which
components that can be assumed to have generated
n, distribution information is incorporated into
the probability estimation e
28
Classification example
Alignment of some known glycoside hydrolase
family 16 sequences

• Define which columns are to be regarded as
  matchstates ()
• Build the corresponding model M HMM graph
• Estimate all emission and transition
  probabilities, ej ajk
• Evaluate the log-odds score / probability that
  an unknown sequence s has been generated by M
  using Viterbis algorithm
• If score(s M) gt d, the sequence can be
  classified as a GH16 family member

29
Classification example..
A certain sequence s1WHKLRQ.. is evaluated and
gets a score of -17.63 nits, i.e. the probability
that M has generated s1 is very small
Another sequence s2SDGSYT.. gets a score of
27.49 nits and can with good significance be
classified as a family member
30
Summary

• Hidden Markov models are used mainly for
  classification / searching (PFAM), but also for
  sequence mapping / alignment
• As compared to normal alignment, a position
  specific approach is used for sequence
  distributions, insertions and deletions
• Model building is usually a compromise between
  sensitivity and selectivity. If more a priori
  information is incorporated, the sensitivity goes
  up whereas the selectivity goes down
