A efficient bandwidth management scheme for realtime Internet applications

1

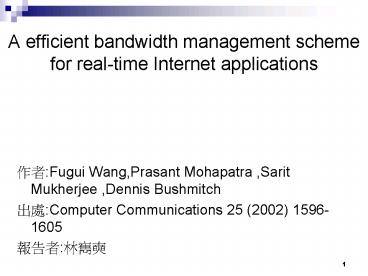

A efficient bandwidth management scheme for
real-time Internet applications

• ??Fugui Wang,Prasant Mohapatra ,Sarit Mukherjee
  ,Dennis Bushmitch
• ??Computer Communications 25 (2002) 1596-1605
• ??????

2
Outline

• Introduction
• Pipe
• Implementation of pipe
• Improving pipe utilization through updating
• Conclusion

3
Introduction

• With the proliferation of multimedia and
  real-time applications ,it is becoming more
  desirable to provide certain QoS guarantee for
  Internet applications.
• Premium service is an ideal for real-time
  application such as IP telephony and video
  conferencing.

4
Introduction

• A completely dynamic SLA could cause the problem
  about BBs scalability.
• BB has to maintain state of each arrive/depart
  flow.
• The SLA for premium service could update
  periodically that we can get better utilization
  than static SLA.

5
Pipe

• Concept of a pipe
• It can perform an end-to-end QoS guarantee in
  DiffServ environment .
• It can be used to guarantee ingress-to-egress
  bandwidth availability without the overhead of
  per-flow maintenance.
• BB is involved only when the pipe capacity need
  to update.

6
Pipe

• Definition of a pipe

7
Pipe

• A pipe is defined as a logic path between two
  ends points.
• The purpose of a pipe is to reduce the signaling
  and computation overhead of BB and to achieve
  efficient bandwidth management.

8
Pipe

• Relationship between pipe and SLA
• All traffic between ingress point A and egress
  point B.
• All of pipes configuration are stored in
  domains BB.
• Establishments of pipes
• The initial setup information includes ingress
  router, egress router and initial bandwidth,
  after setup the information is sent to BB of the
  domain from the ingress router.

9
An end host want to make a connection to other
end host in domain2
?
BB
BB
OK ?
OK ?
OK !
10
?
BB
BB
Ask BB to increase pipe capacity
No OK!
11
Implementation of pipe
n0n3 core router Link n0-n1, n1-n2
,n2-n3 With link bandwidth 10M,5M,10Mbps
Simulation Topology
12
Implementation of pipe

• This experiment used several queuing discipline
  in edge routers.
• Priority queue (PQ)
• Weighted fair queue (WFQ)
• Pick up one voice stream from the pipe between n0
  and n3 to study the voice packet delays and
  jitters.

13
(No Transcript)
14
(No Transcript)
15
Improving pipe utilization through updating

• Pipe capacity can be set static or dynamic if
  its static, the admission control are done at
  entrance of pipe and we set the capacity as peak
  .
• It makes the utilization very low.
• If its dynamic ,BB received one update
• message upon each call arrive/departure.
• It makes the utilization could be 100
• but it greatly increases updating overhead.

16
Improving pipe utilization through updating

• One possible solution is updating the pipe
  capacity periodically.
• So our goal is find a good prediction method to
  update the pipe capacity so that we can have
  both high utilization and acceptable updating
  overhead.

17
Improving pipe utilization through updating
18
Improving pipe utilization through updating

• Ideal prediction
• Based on updating points so we can precisely
  predict the peak bandwidth of next period.
• In fact, its impossible for real world because
  we are not aware of future events.

19
Improving pipe utilization through updating
20
Improving pipe utilization through updating

• Threshold-based prediction
• (1)Upon a call arrive , if number of calls reach
  the pipe_capacity , then pipe_capacity is
  increased by d.
• (2)Upon a call departure, if the numbers of calls
  is under pipe_capacity-2d ,then pipe_capacity is
  decreased by d.

21
Improving pipe utilization through updating
22
Improving pipe utilization through updating
Normalized_updates Number_of_updates ------------
---------------- 2 number_of_call.
23
conclusion

• We can not get both 100 utilization and no
  updating overhead so we should choose the most
  adaptive situation among different scheme.
