Arctic ROOS report

1

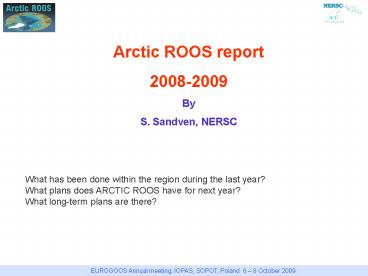

Arctic ROOS report 2008-2009 By S. Sandven,
NERSC
What has been done within the region during the
last year? What plans does ARCTIC ROOS have for
next year? What long-term plans are there?
2
Members
3
Main components of Arctic ROOS

• In situ observation systems ship-borne systems,
  moorings, ice buoys, floats and drifters (e.g.
  DAMOCLES)
• Satellite remote sensing polar orbiting
  satellites using active and passive microwave,
  optical and infrared instruments
• Modelling data assimilation, nowcasting, short
  term forecasting, seasonal forecasting, model
  comparison and validation (e.g. MyOCEAN)

4
Satellite observations of sea ice

• Well-established for large-scale monitoring of
  ice area and extent

Reference NERSC/NIERSC
5
Arctic sea ice drift
Combination of scatterometer (QuikSCAT) and
radiometer (SSM/I)
Grid resolution 62.5 km Daily in
winter Since 1992
In systematic processing
- 3 days lag - 6 days lag - 30 days
lag
Continuity of the time series with the new
Merging ASCAT/SSMI
6
CTD sections in the Greenland Sea by IOPAS
Hydrographic surveys
7
Ice thickness data from submarines and AUVs
Courtesey Peter Wadhams, UCAM
8
Glider experiment in the Fram Strait July
September 2008

• Courtesy E. Fahrbach, AWI

9
Glider data example

• Courtesy E. Fahrbach, AWI

Section of temperature 20-27 July 2008
10
Ferrybox lines
Norbjørn, NIVA/Akvaplan-niva Trollfjord,
NIVA/Akvaplan-niva Vesterålen,
IMR Norønna, MARlab/NIVA Bergensfjord, NIVA Col
or Fantasy, NIVA Lysbris, GKSS/NIVA
11
Ferrybox data
Tromsø Longyearbyen section
12
Acoustic Ice Tethered Profiler
(Ref. J.-C. Gascard
13
Acoustic tomography in Fram StraitDAMOCLES and
ACOBAR projects

Monitor temperature by measure acoustic travel
times between sources and receivers First
experiment started in August 2008, and will
continue until 2012
14
TOPAZ model system Ocean and sea ice model

• One way nested configuration of
• HYCOM model (Bleck, 2002)
• Boundaries conditions from TOPAZ3 (11-16 km)
• 4.5 to 5.5 km grid cell resolution
• 22 hybrid layers
• Atmospheric forcing fields from ERA40 reanalysis
  with 1.125resolution (used for FA as well)
• Tidal forcing on the boundary
• Ice dynamics from elastic viscous plastic model
  (Hunke and Dukowicz, 1997)
• Thermodynamics fluxes from Drange and
  Simonsen,(1996)

TOPAZ3 SST May 1990 week 2
15
Sea ice forecasting in the Barents Sea
16
Examples of online data presented on
http//arctic-roos.org

• Sea ice data from passive microwave data
  http//arctic-roos.org/observations
• SAR archive for the Barents Sea region
  http//sat.nersc.no/archive/show.php?regionbarent
  s (password required)
• Water quality chlorophyll-a and SST maps
  http//hab.nersc.no/archive.htm
• TOPAZ modelling and forecasting system
  http//topaz.nersc.no/
• Ice forecast in the Fram Strait
  http//topaz.nersc.no/Knut/IceForecast/FramStrait/


17
Usage of the website
18
Conclusion and further work

• Continue the routine field observation activities
  in the Arctic and sub-Arctic seas, and test new
  observing systems, aiming to build up long-term
  data sets for climate studies
• Improve the exploitation of existing and new
  satellite data covering Arctic regions
• Improve ice-ocean forecasting systems including
  validation by increased use of in situ data and
  satellite data
• Implement MyOcean Integrated project (EU FP7)
  where the Arctic is one of the target regions
• Interaction with users of operational
  oceanography services
• Contribute to SAON Sustaining Arctic Observing
  Networks
• Contribute to SIOS Svalbard Integrated Observing
  System
