Title: IVIS Spectrum filters
1

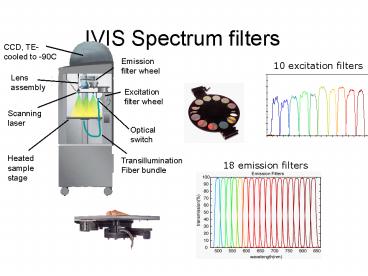

IVIS Spectrum filters
CCD, TE-cooled to -90C
Emission filter wheel
10 excitation filters
Lens assembly
Excitation filter wheel
Scanning laser
Optical switch
Heated sample stage
Transillumination Fiber bundle
18 emission filters
